4 X On/Off Toggle Switch Flip Flick Metal 12V 20Amp Illuminated Robinson K894Mix

4 x ON/OFF TOGGLE SWITCH FLIP FLICK METAL 12V 20AMP ILLUMINATED ROBINSON K894MIX

4 x 12V On/Off LED Toggle Switches

K894 mix

YOU CAN SELECT ANY 4 COLOURS
( VIA MESSAGE )

NOTE: If you do not message us stating the colours you want
we will send 1 of each colour

COLOURS AVAILABLE
RED, GREEN, BLUE, AMBER

6.3MM LUCAR TERMINALS X3
(1 x Earth Terminal, 1 x Power In Terminal & 1 X power out Terminal)

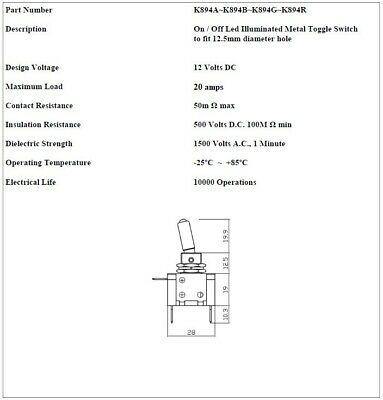

• 12 MM HOLE REQUIRED FOR FITMENT (Aprox.)
• SWITCH TYPE: TOGGLE
• CONTACTS CONFIGURATION: SPST
• SWITCHING METHOD: ON-OFF
• DC CONTACTS RATING: 20 A / 12 V
• KNOB HEIGHT: 17.5MM
• BODY DIMENSIONS: 28 X 15 X 19MM
• ILLUMINATED TIP

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).
