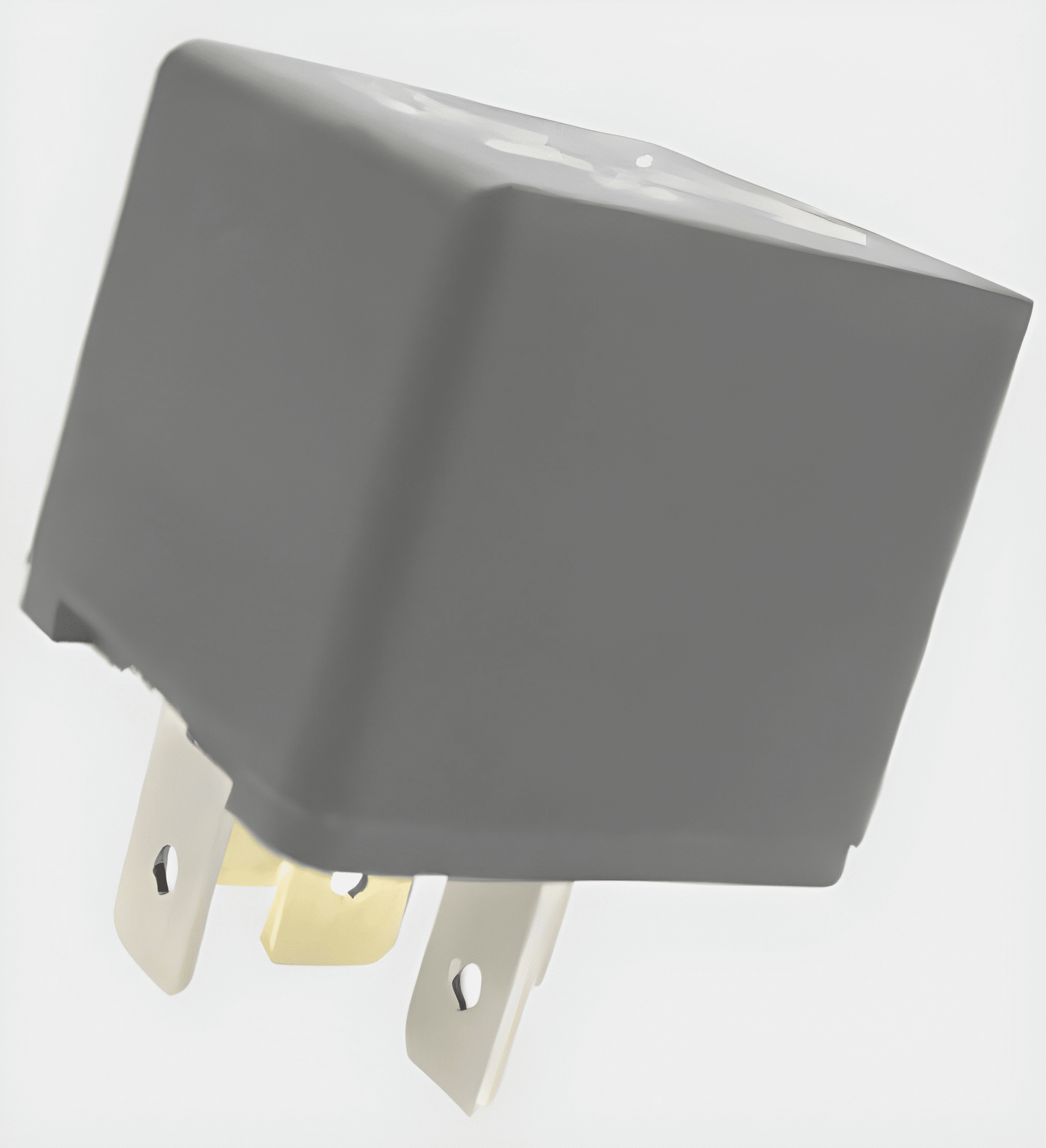

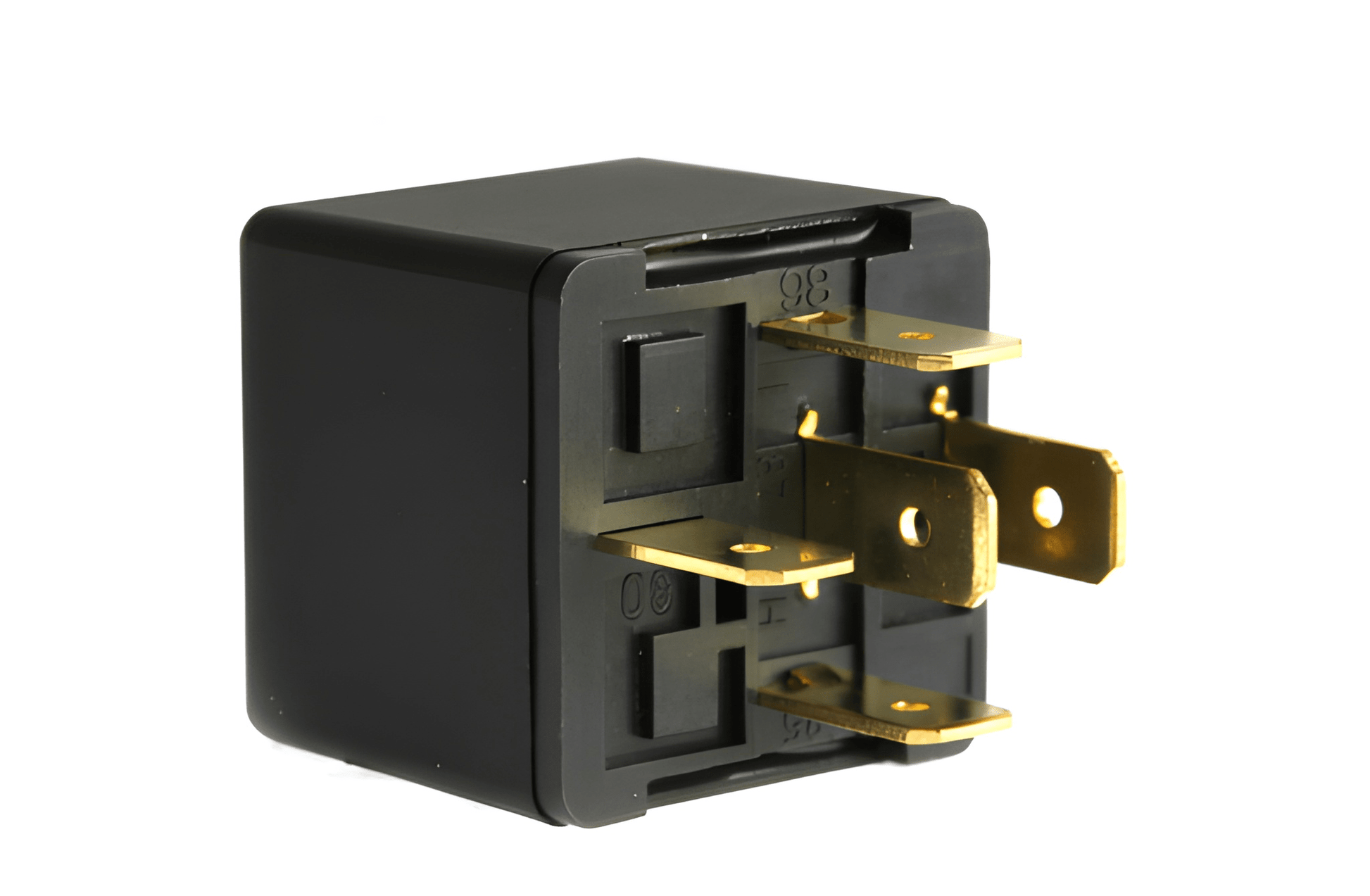

5 Pin Change Over Mini Relay 12V With Resistor Protection Current Care
02-024 / RLY1024
Key Features:

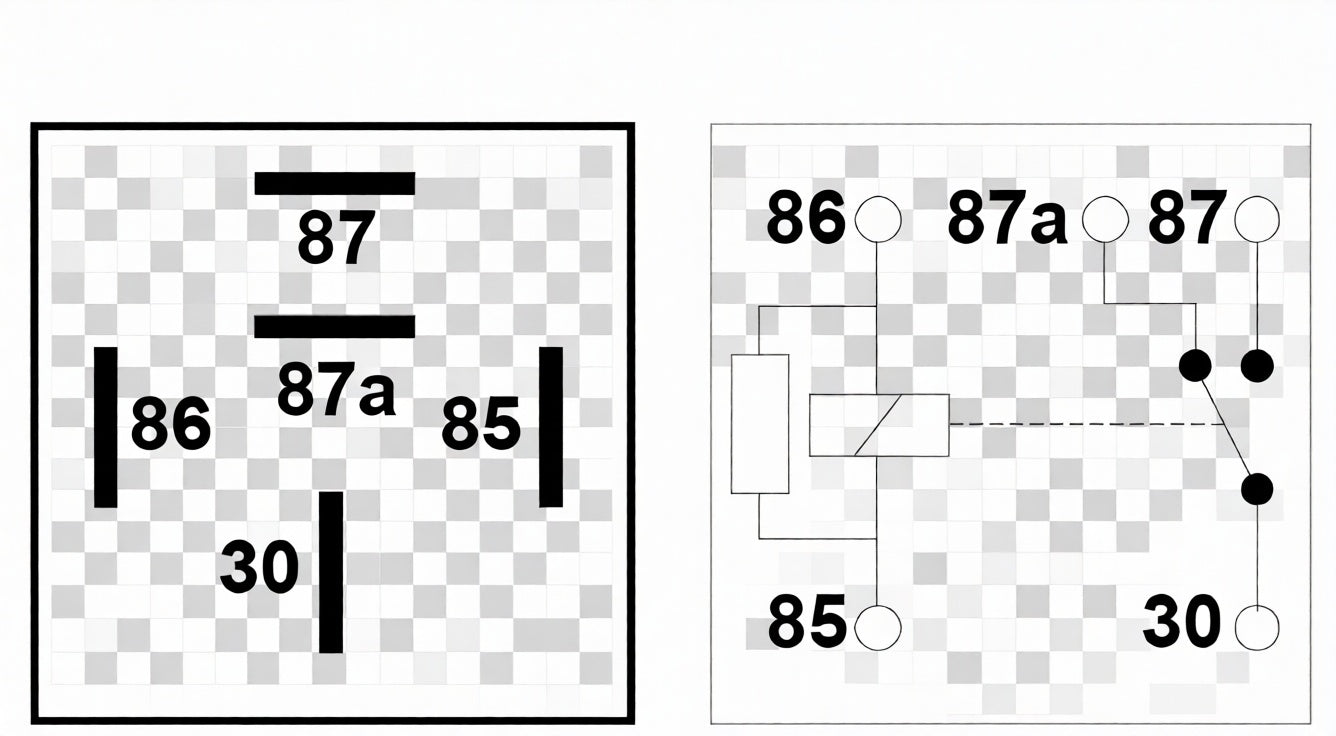

TYPE: 5 Pin changeover Mini Relay with Resistor protection.
VOLTAGE: 12
CONTINUOUS LOAD: –
OPEN: 40A
CLOSED / SWITCHED: 30A
PEAK LOAD: –
OPEN: 80A
CLOSED / SWITCHED: 60A
BRACKET TYPE: None
TERMINAL SIZES: 5 x 6.3mm
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
