5 Pin Changeover Relay Switch High Performance With Diode 12V 70A Wood Auto
RLY1027
02-027

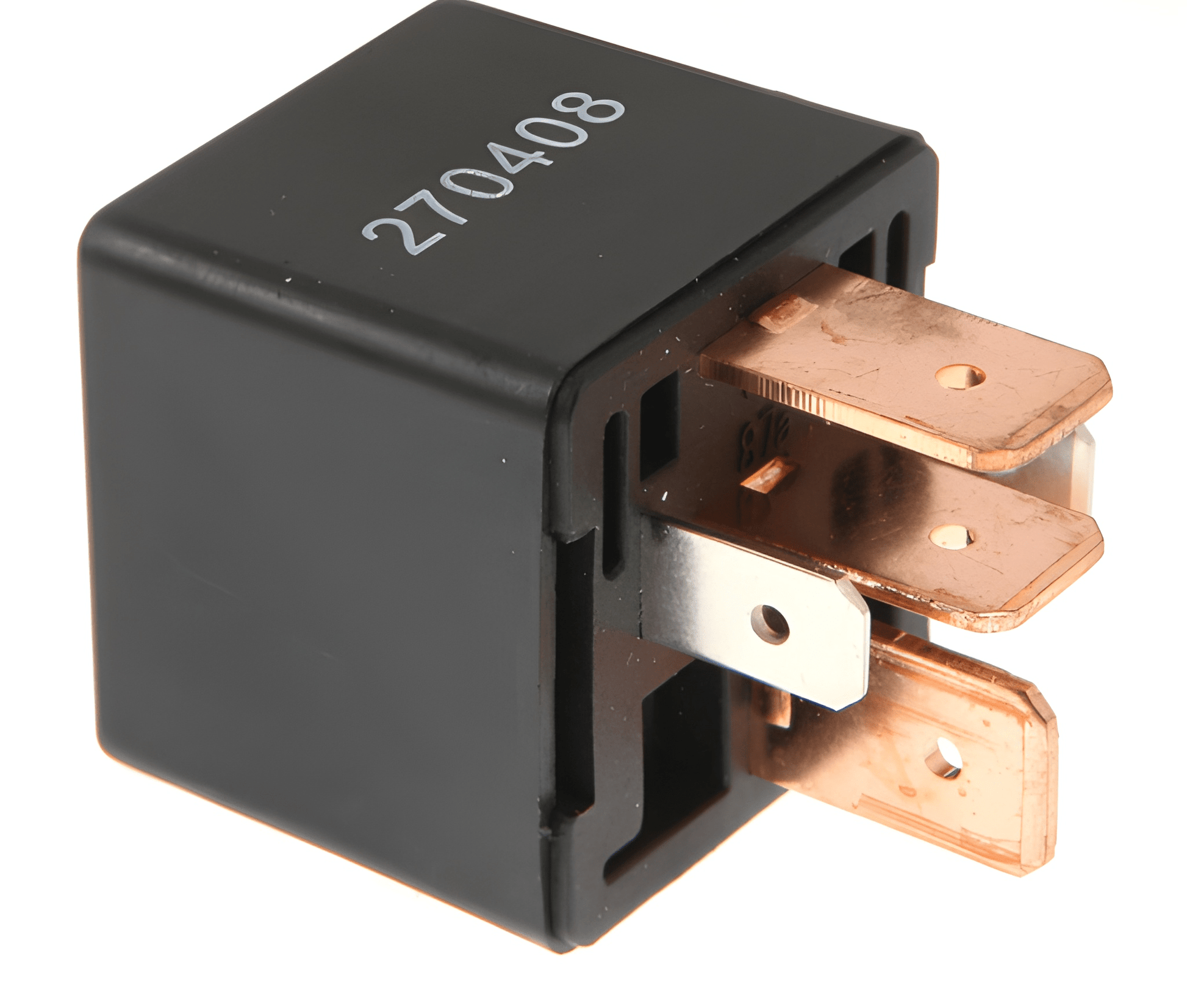

This is a 12V mini change over relay designed for high-performance and heavy-duty applications. Ideal for automotive or auxiliary electrical systems requiring reliable switching. Features a diode across the coil for protection.
Key Features:
- Voltage: 12V
- Amperage: 70A
- Type: Mini, 5 Pin Change Over Relay
- Diode: Across the coil
- Bracket: Not included
- Dimensions: Approx. 29mm x 29mm

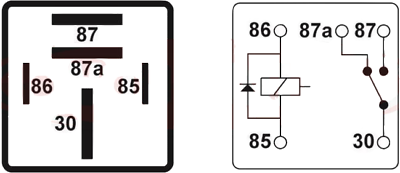

Terminal Specifications:
- Pin 30, 87 & 87a: 9.5mm blades
- Pin 85 & 86: 6.3mm blades
Another High-Quality Wood Auto Product
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
