5 Pin Relay Switch On Off 24V 20A Terminal With Bracket Truck Bus Robinson
ED010

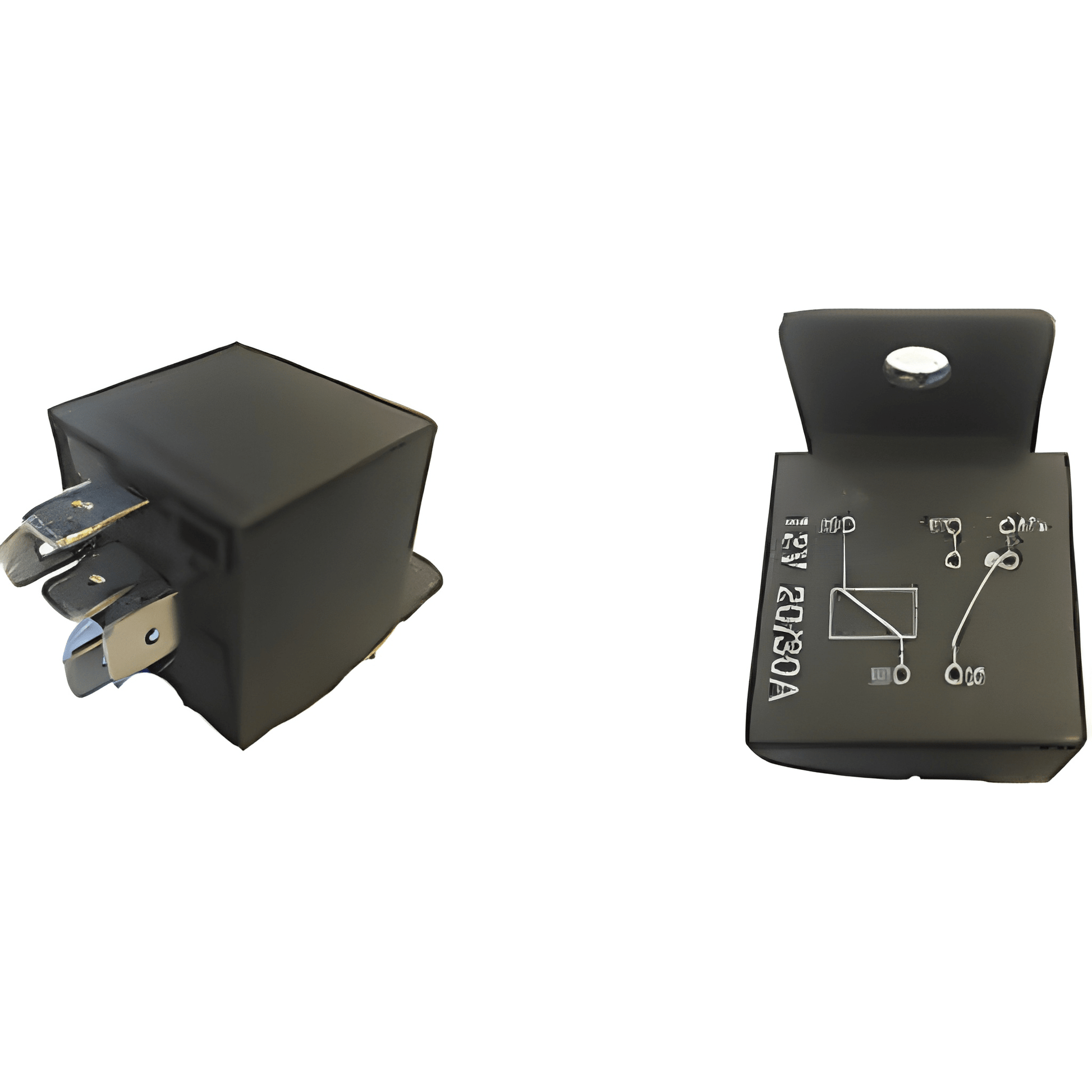

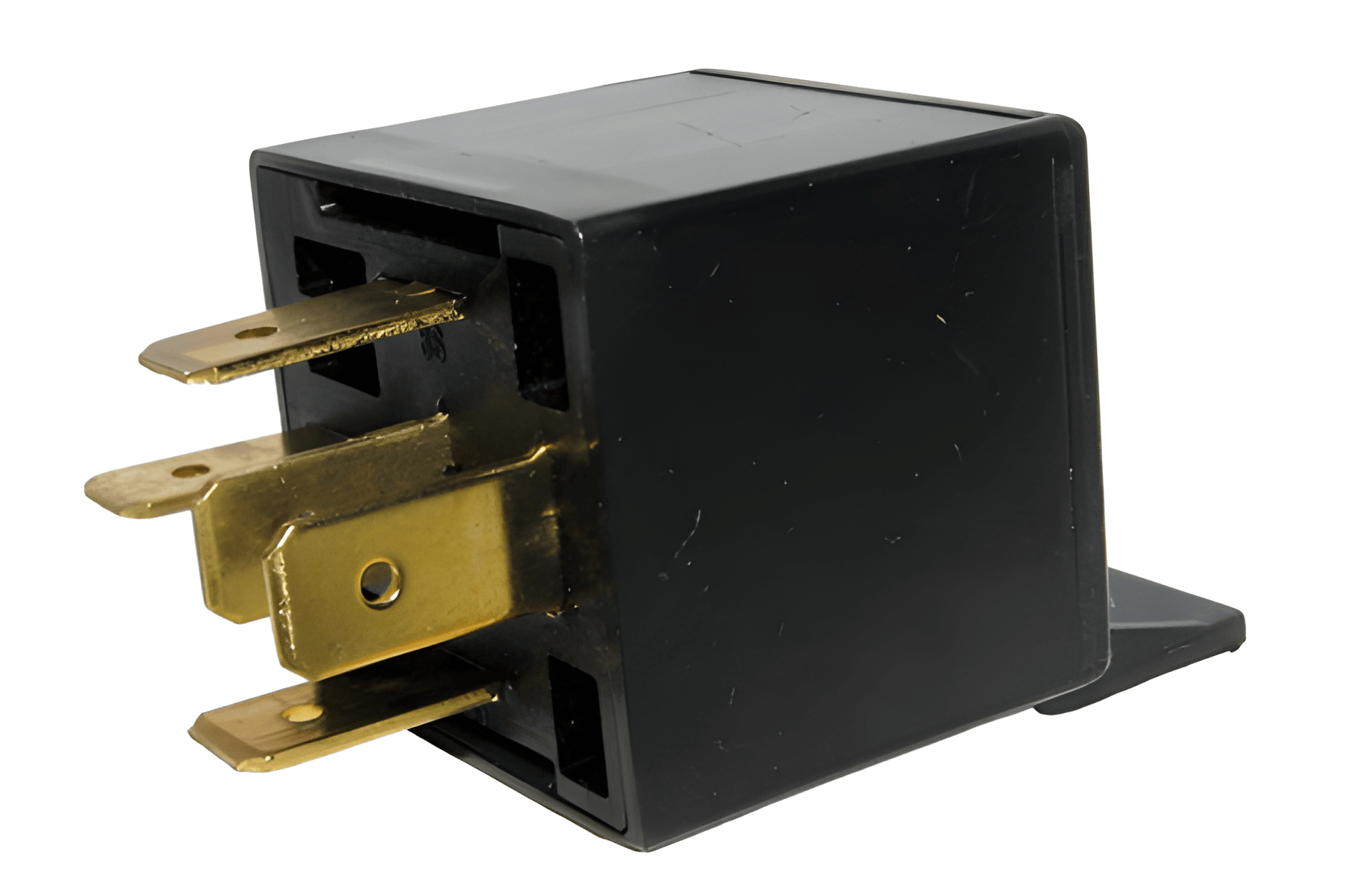

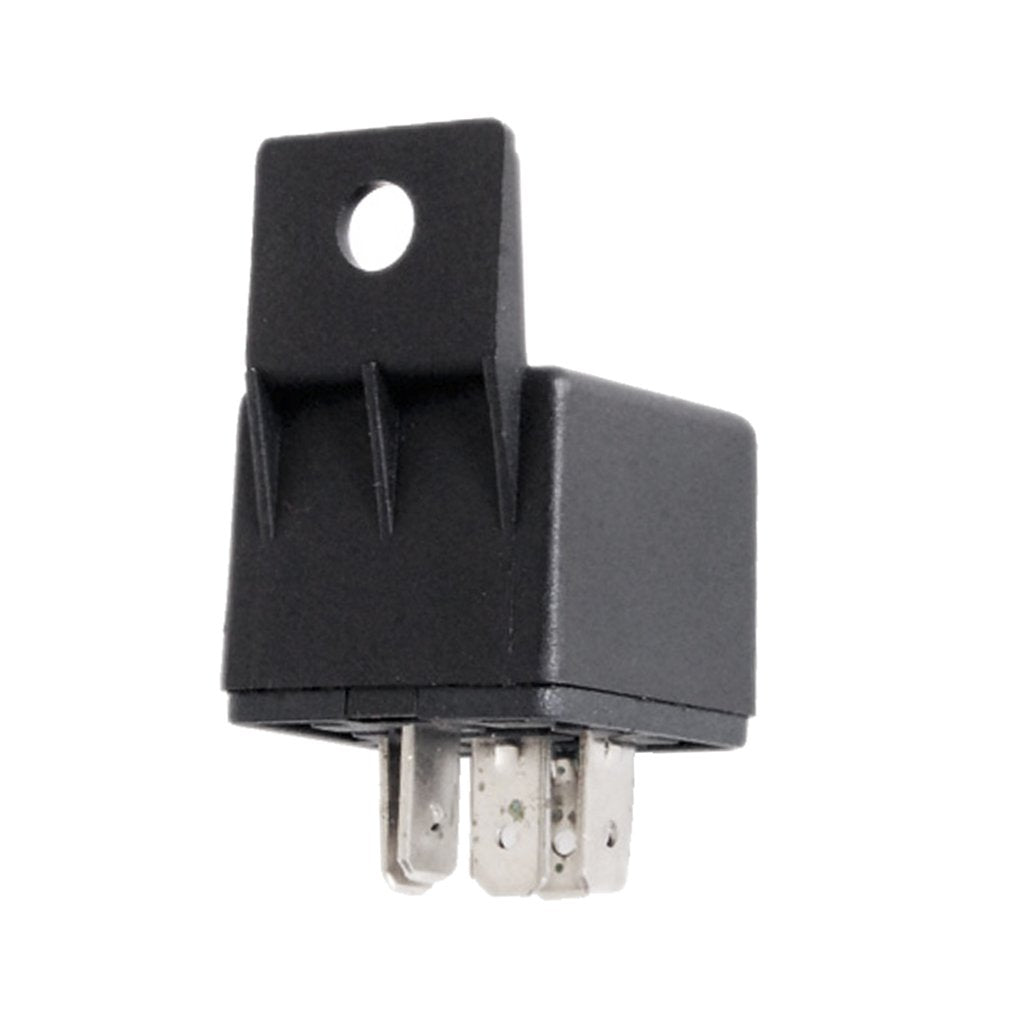

This is a 24V 20A On/Off 5 Pin Relay Switch with a plastic mounting bracket. It features normally open contacts and is designed for reliable switching in automotive and auxiliary applications. Terminals 87 and 87a are connected for convenience.
Key Features:
- Type: On/Off 5 Pin Relay
- Contacts: Normally open
- Current Rating: 20A @ 24V
- Terminals: 6.3mm
- Mounting: Plastic bracket

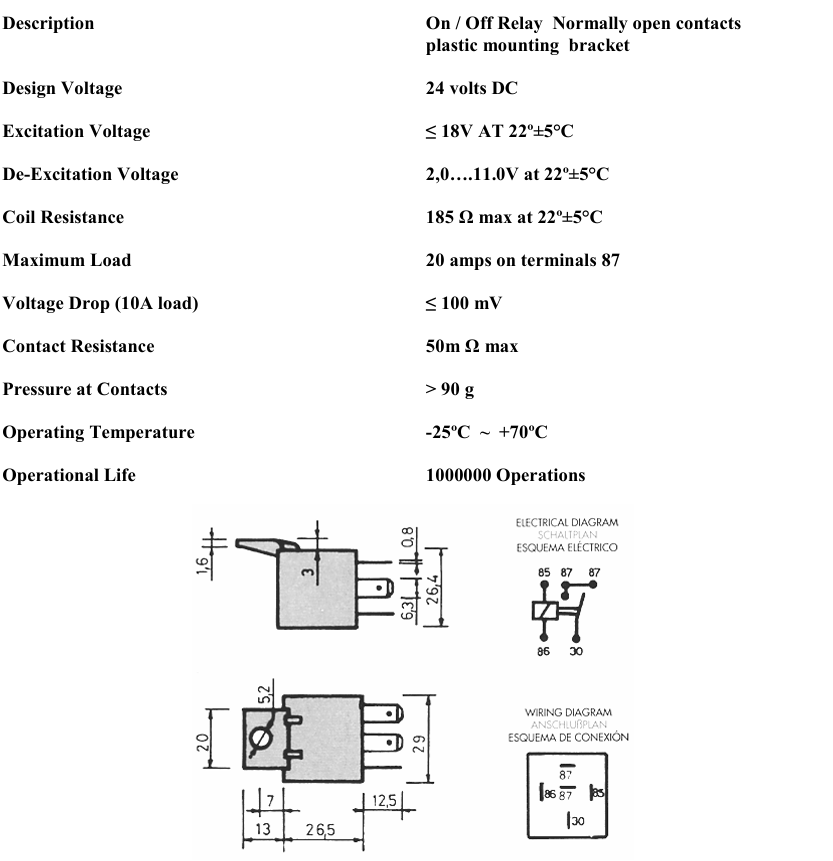

Technical Specifications:
- Body Width: 28mm
- Body Height: 25mm
- Height Including Bracket: 41mm
- Overall Height: 52mm
Another Quality Product from Robinson
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
