50 X Duraseal Type Blue Glue Heat Shrink Butt Splice Terminals Crimp Ctie Hsb2.0
Vendor:CTIE UK
Availability: 25 in stock
Product Type:1911u*50
Product Indentifier:731084221028
Regular price
£12.86 inc VAT
£10.72 ex VAT
Regular priceSale price
£13.98
£12.86 inc VAT
£10.72 ex VAT
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

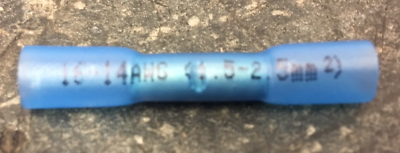

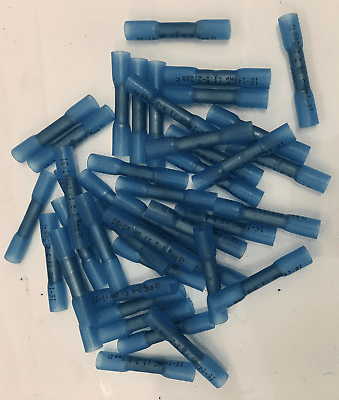

50 x INSULATED HEAT SHRINK BUTT SPLICES, BLUE DURASEAL TYPE CRIMP CONNECTORS
Pack of 50 Terminals
HSB2.0
1911U
ADHESIVE LINED FOR WATERTIGHT JOINT FOR CABLES
- Material (Insulation) – High Density Polyethylene
- Material (Terminal) – Copper
- Material (Terminal Plating) – Electro Tin Plating
- Maximum Electrical Rating – 600 Volts Max
Specification
- Waterproof
- Tip type: Heat shrink butt splice
- Wire cross-section: 1.5 - 2.5mm2
- Ferrule variant: insulated
- Colour: Blue
Dimensions:
- Length: 36.7mm
- Width: widest part - 6.5mm
- Narrowist part - 5.4mm
Directions
- place the cable in the metallic barrel and crimp firmly, then shrink the plastic cover by heating in the usual way. An adhesive on the inside of the plastic cover bonds to the cable, securing and water proofing the connection. Made from tin-plated copper and heat-shrinkable PVC. Supplied in packs of 10.
Another Top Quality Product From Ctie UK
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
