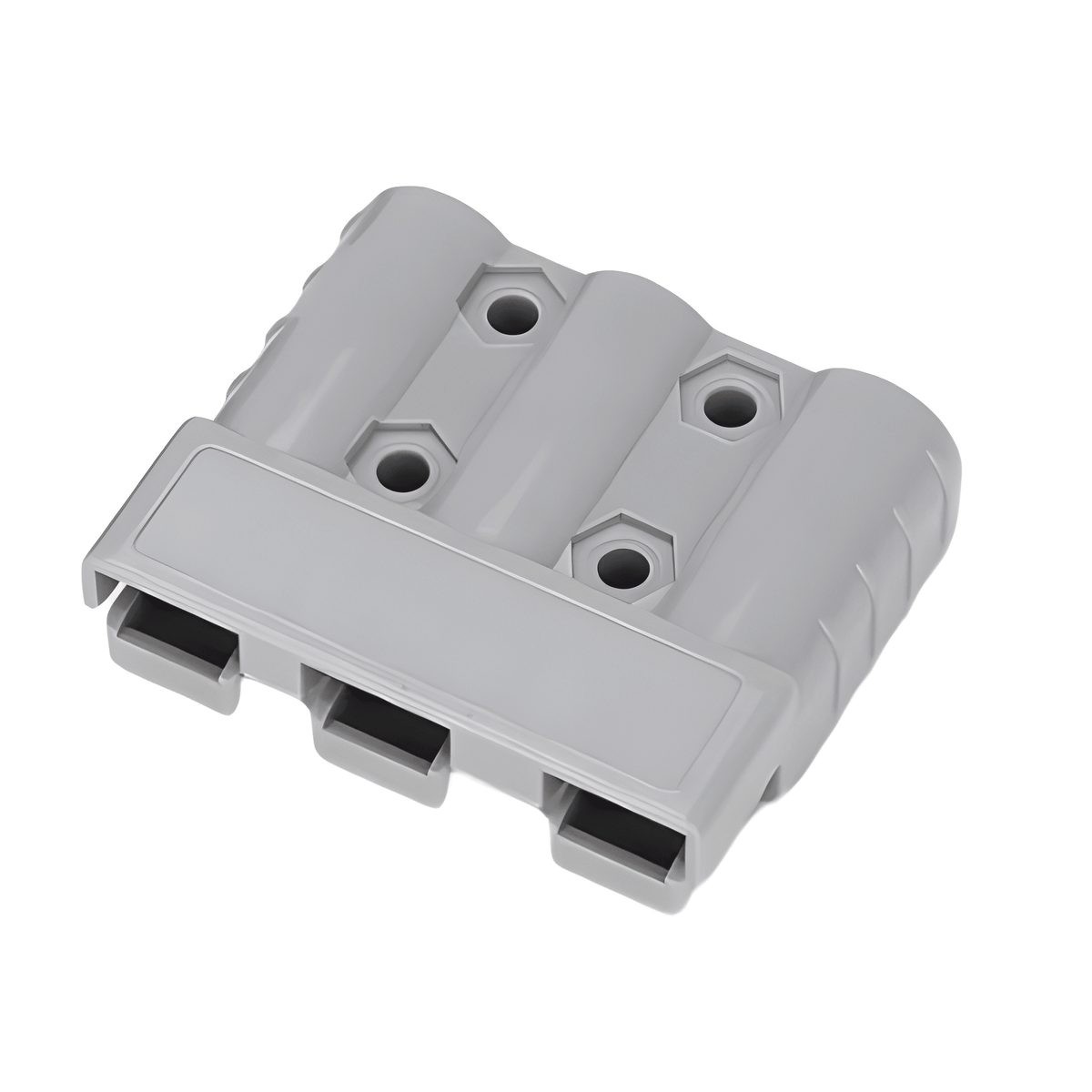

50A 3 Pin Grey Anderson Type Connector Heavy Duty Quick Connect Plug MURE GAC50/3

50A 3 Pin Grey Anderson Type Connector Heavy Duty Quick Connect Anderson Type Plug

GAC50/3

These 50A 3-pin DC power connectors are engineered for reliable power transmission in solar setups, caravans, motorcycles, and battery charging applications.

Key Features

• Durable Construction: Built with high-quality PC material and silver-plated copper terminals for extended service life in high-power and high-temperature conditions.
• Secure Engineering: Features a mechanically keyed housing that prevents accidental mating and a flat-wipe contact system that cleans surfaces upon disconnection.
• Efficient Design: The genderless, neutral design allows any connector to plug into another, simplifying assembly and inventory.
• Versatile Installation: Terminals can be easily crimped or soldered to the cable.
• Reliable Performance: Suitable for use in high-end large vehicles such as ships, yachts, RVs, and buses.

Technical Specifications

• Electrical Rating: 50A current and 600V voltage.
• Operating Temperature: -20°C to 105°C.
• Contact Resistance: 0.055 ± 0.005 mΩ.
• Insulation Resistance: 5000 MΩ.
• Durability: Rated for up to 10,000 no-load contact/disconnect cycles.
• Safety Rating: UL94-V0 fire protection and IP20 protection level.

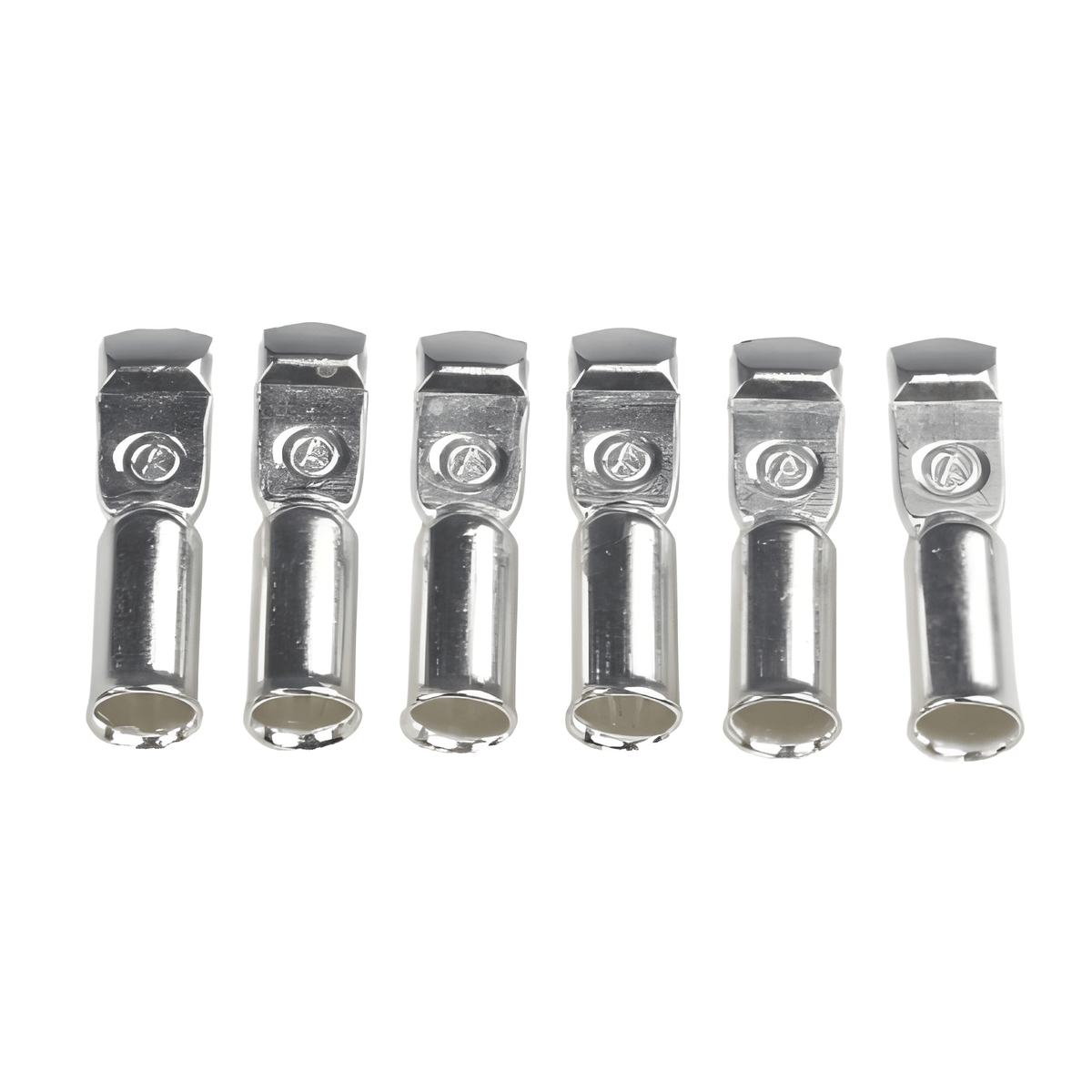

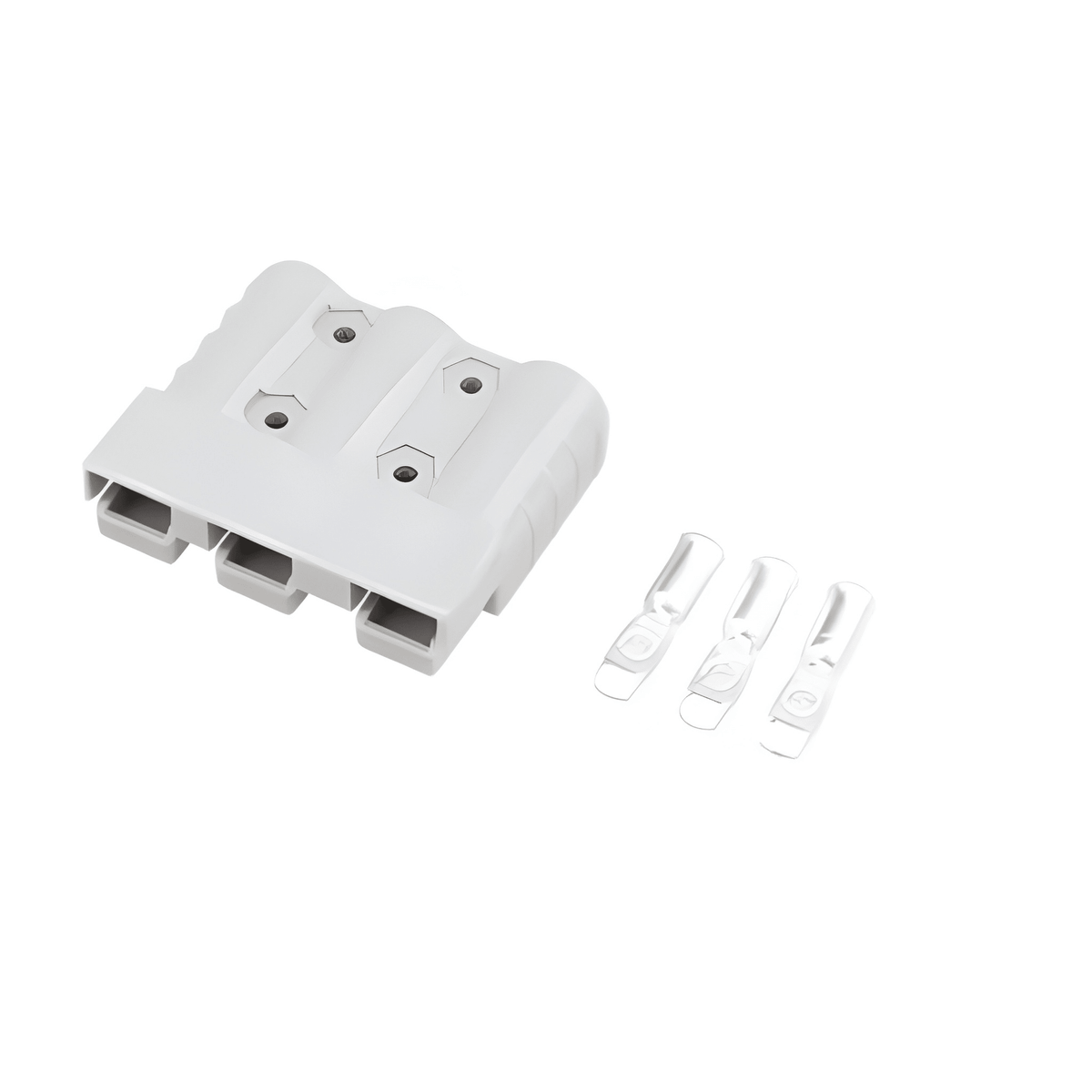

• Package Includes: Each individual unit contains 1 plug and 3 terminals.
