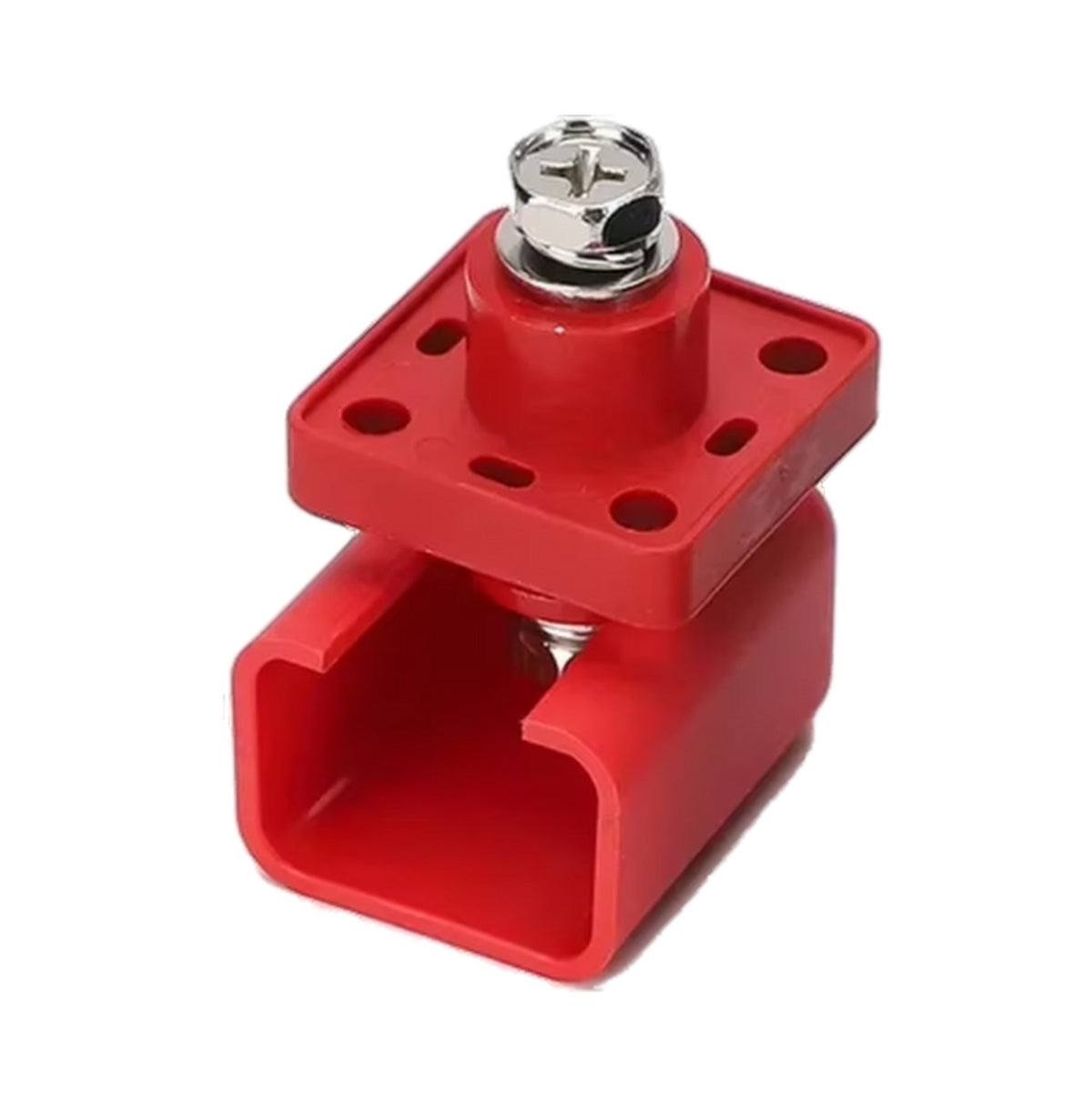

8mm Stud Thru Panel Red Positive Battery Terminal Cable Connector
TPBTS200AR
This type of connector is normally used on locations such as 12v & 24v bulkheads where you need an insulated connection on the other side of the panel. Bolt this connector in with the supplied fixing screws & you have an insulated cable connecting point.
- Ideal for 12 Volt & 24 Volt Applications
- Product type: Panel mounted
- Rated current A: 200
- Rated voltage V: DC1000V
- Installation : 4 x screw fixing
- Product Type: Terminal Blocks
- Wire connector studs diameter mm: M8
- Socket type: fixed terminal
- Shell material: flame retardant PA66
- Installation : panel installation
- Widely used in automotive and marine applications
- Color: red

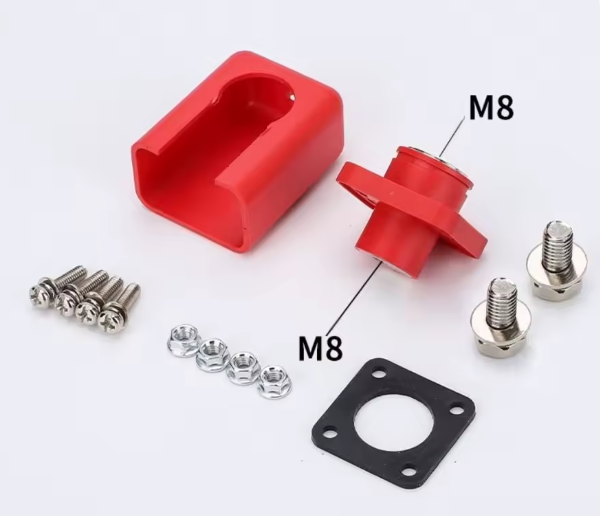

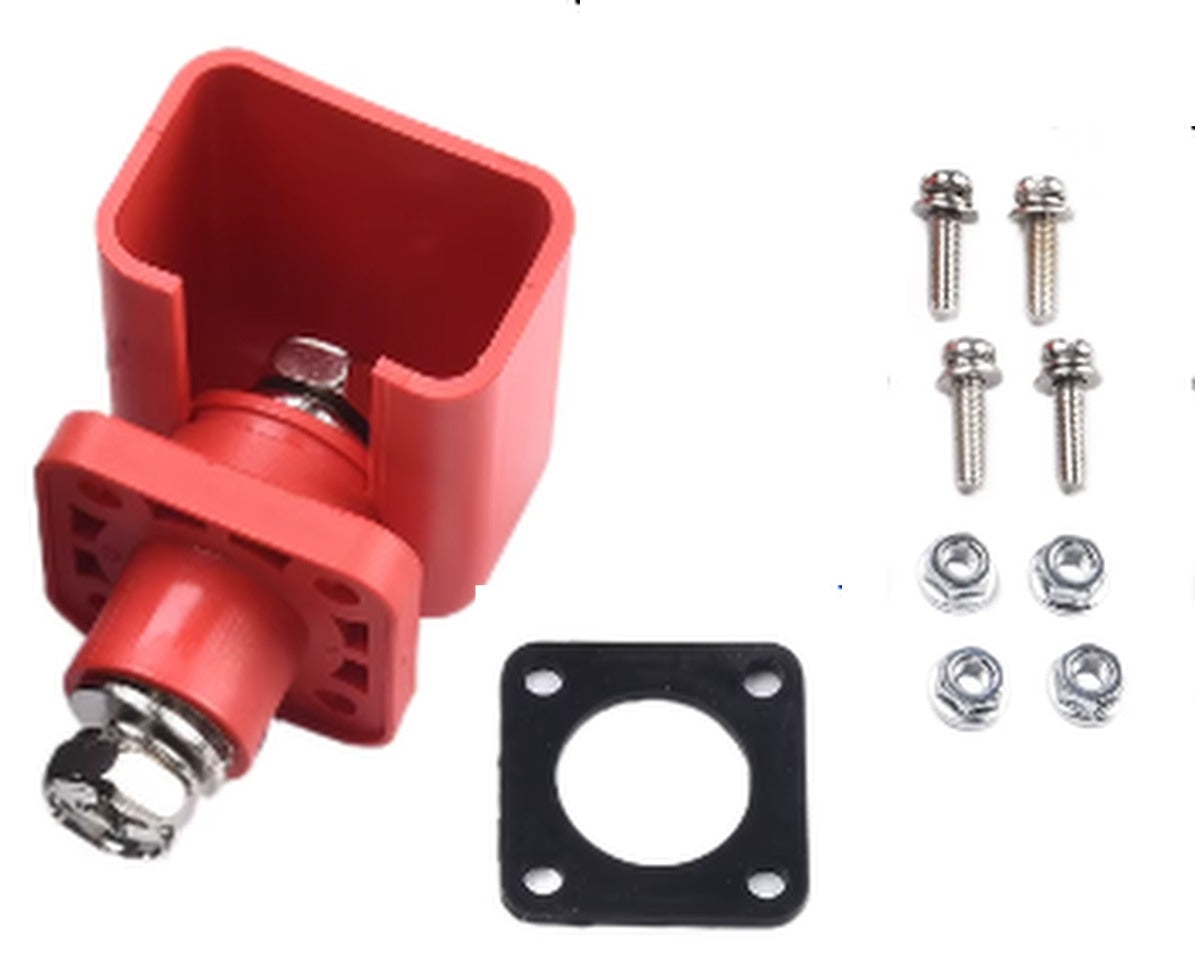

Package Contents:
- 1x Terminal block
- 4 x Mounting Studs & Nuts
- 1 x Gasket
- 2 x 8mm Bolts (For the cable connection)
- 1 x Plastic Cover
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
