Battery Isolator Cut Off Marine Boat 200Amp 12V 24V Fixed Key Wood Auto
BIS1035
This is a heavy-duty 200 Amp Battery Isolator Switch designed for safe disconnection and isolation of DC electrical systems. Ideal for boats, caravans, 4x4s, show cars, trailers, winch power cables, and more. The compact, durable design ensures reliable operation while maintaining a sleek modern appearance.
Key Features:
- Application: Isolate and secure DC electrical systems
- Positions: 2-position rotary dial (ON / OFF) with spring-loaded keeper to lock position
- Construction: Sturdy and durable, compact size
- Use Case: Safely disconnects the battery to eliminate power draw when vehicle or boat is not in use
Technical Specifications:
- Nominal Voltage: 32V
- Campatibility: Works wth 12V and 24V
- Maximum Continuous Operating Current: 200A @ 32V DC
- Highest Load: 1000A for 5 seconds
- Protection Degree: IP56

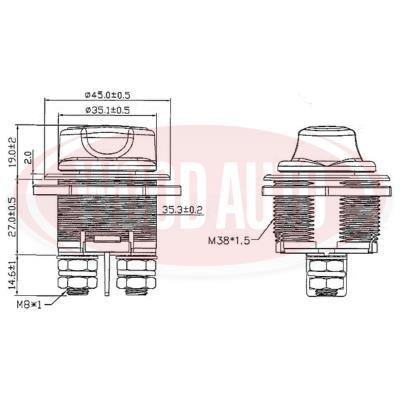

- Terminals: M8 Bolts
- Switch Type: SPST, 2-position
- Panel Cut-Out Diameter: 40mm
- Actuator: Fixed
Another High-Quality Product from Wood Auto
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
