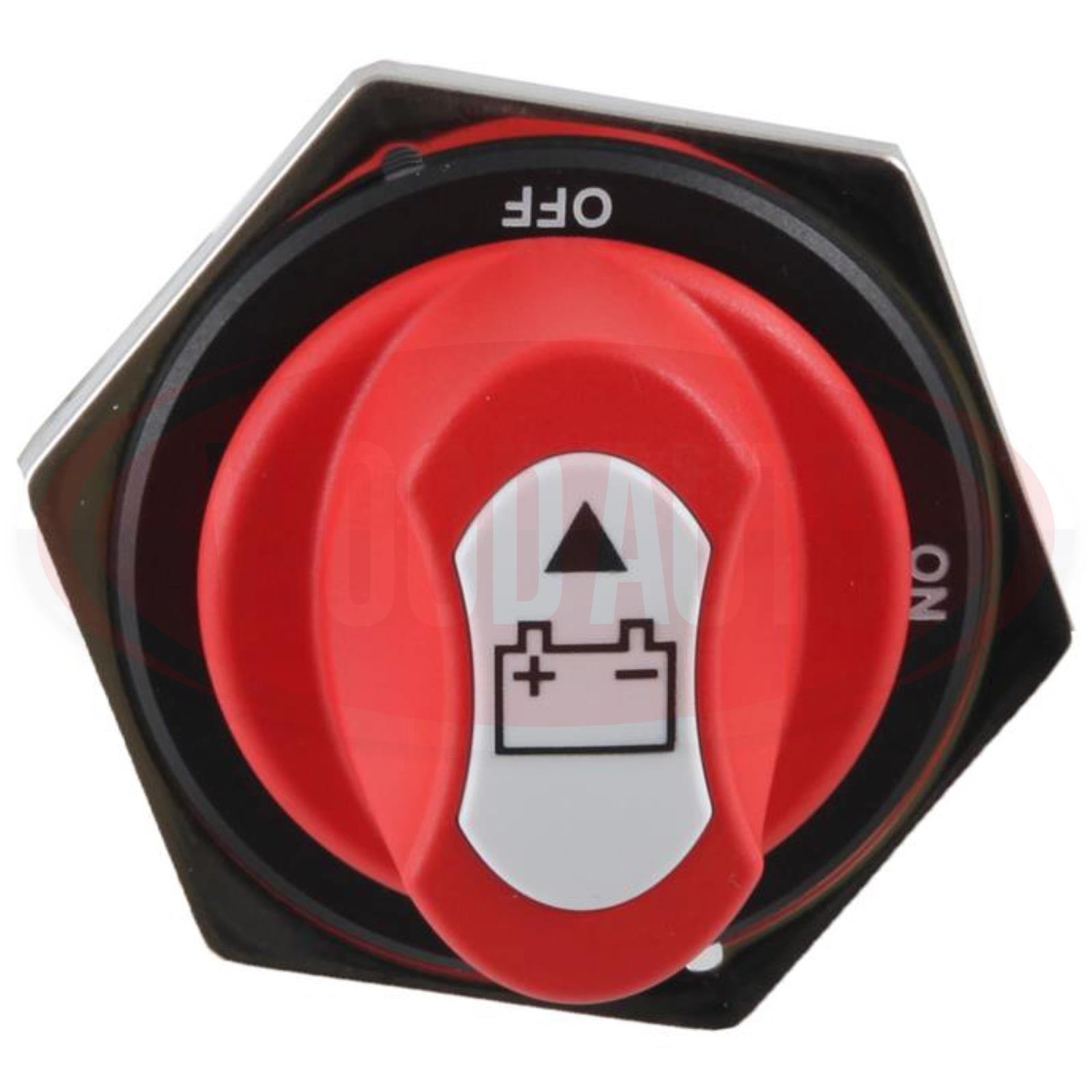

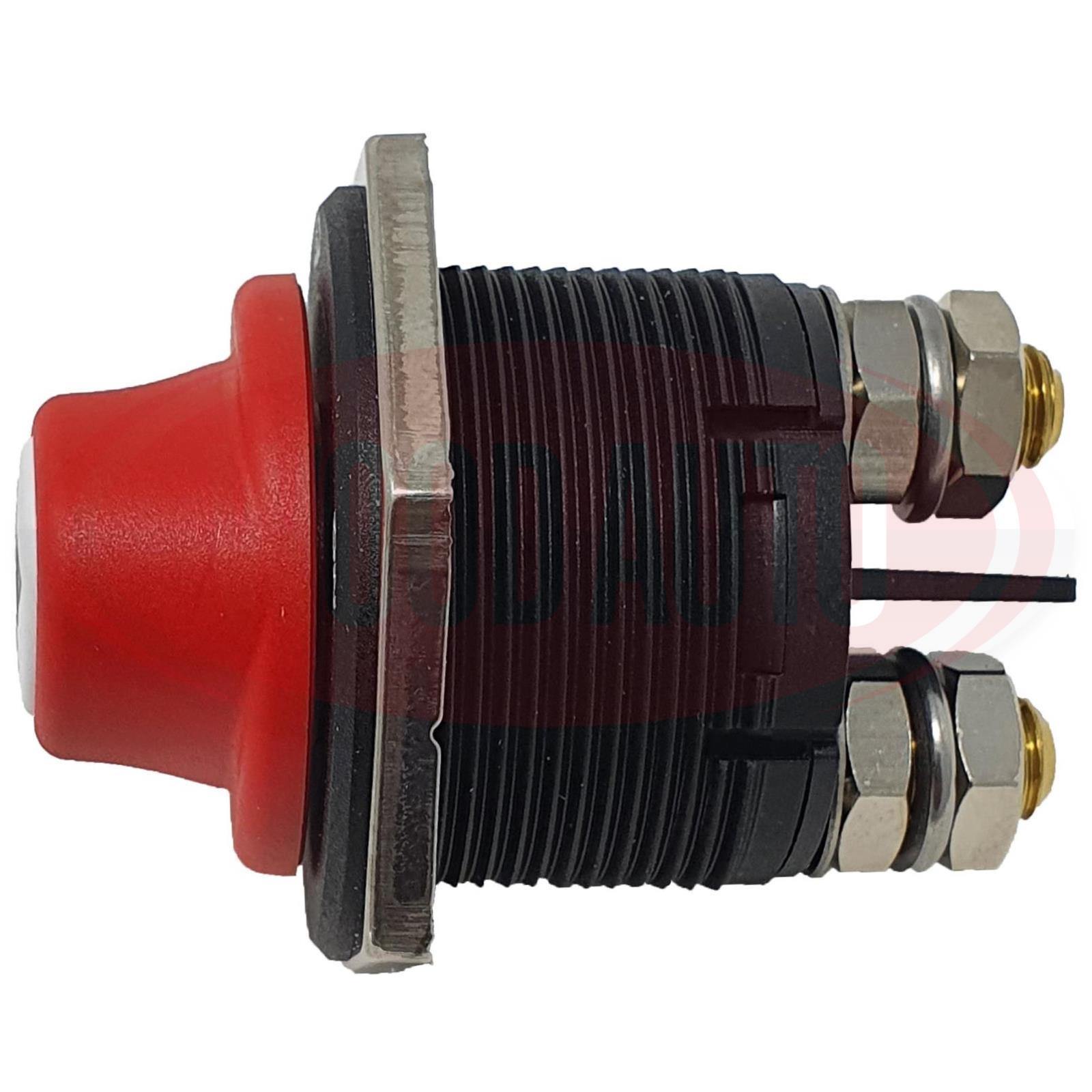

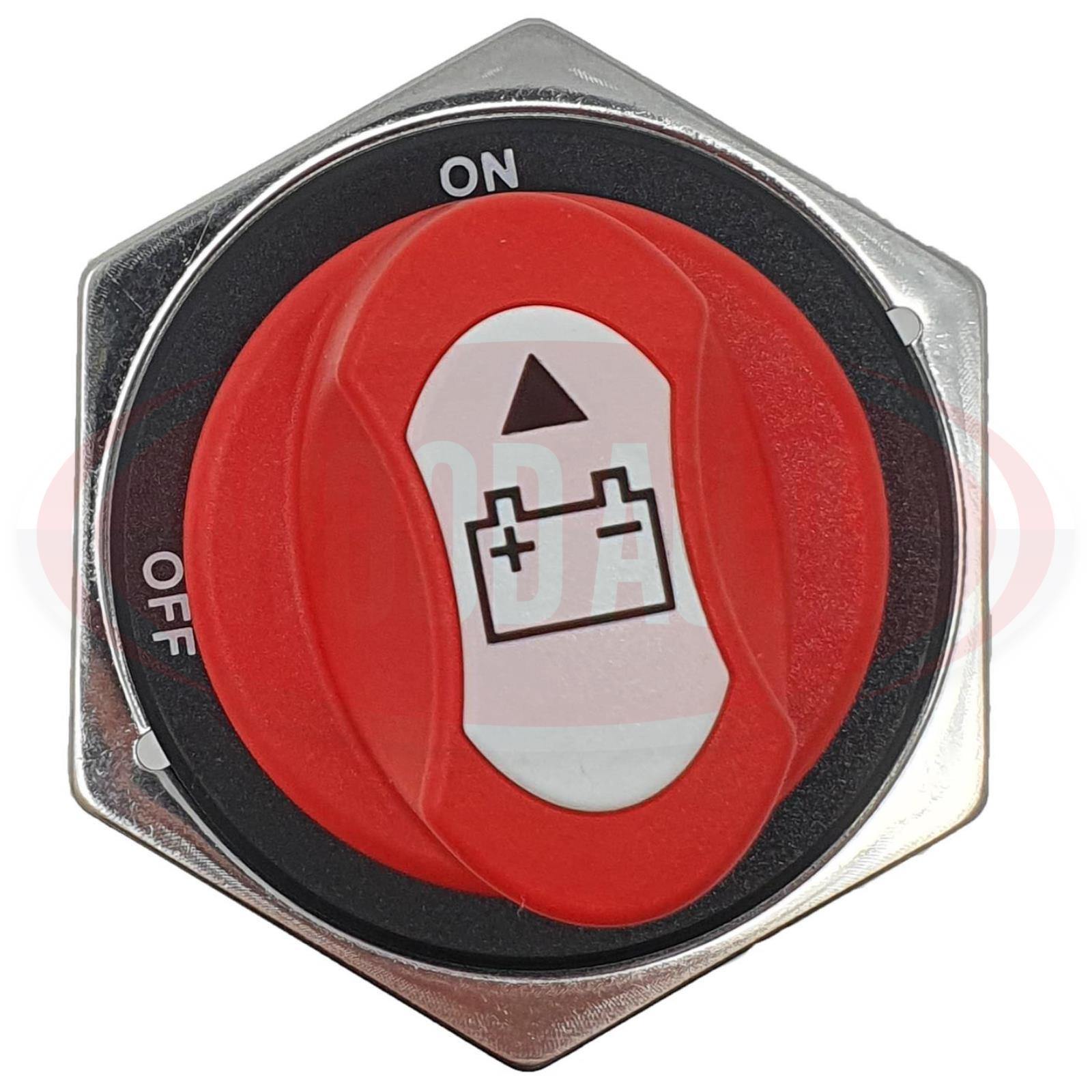

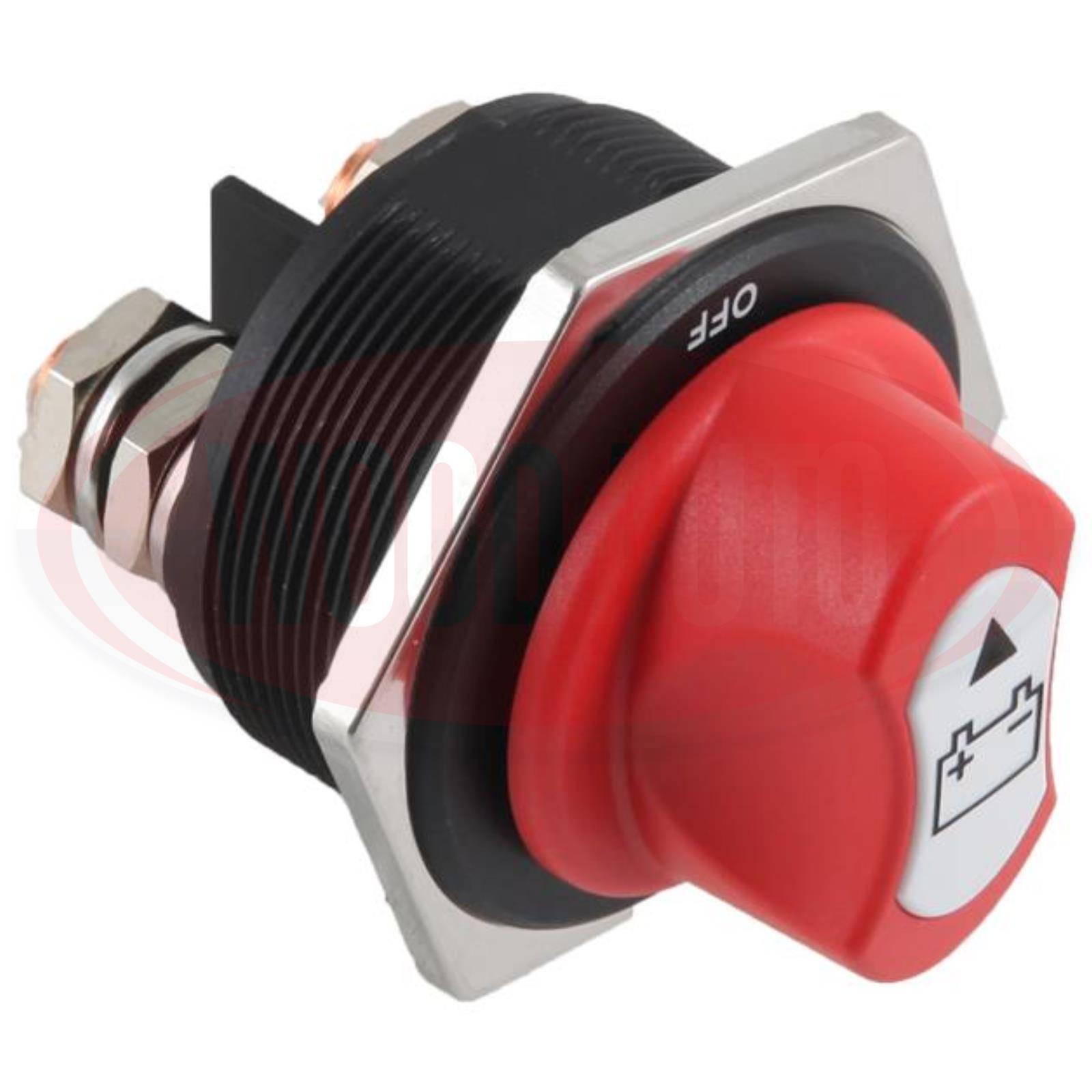

Battery Isolator Cut Off Marine Boat 300Amp 12V 24V Fixed Key Wood Auto
Bis1037
This is a heavy-duty 300 Amp Battery Isolator Switch designed for safe disconnection and isolation of DC electrical systems. Ideal for boats, caravans, 4x4s, show cars, trailers, winch power cables, and more. The compact, durable design ensures reliable operation while maintaining a sleek modern appearance.
Key Features:
- Application: Isolate and secure DC electrical systems
- Positions: 2-position rotary dial (ON / OFF) with spring-loaded keeper to lock position
- Construction: Sturdy and durable, compact size
- Use Case: Safely disconnects the battery to eliminate power draw when vehicle or boat is not in use
- Actuator: Fixed
Technical Specifications:
- Nominal Voltage: 32V
- Maximum Continuous Operating Current: 300A @ 32V DC
- Highest Load: 1000A for 10 seconds
- Protection Degree: IP56

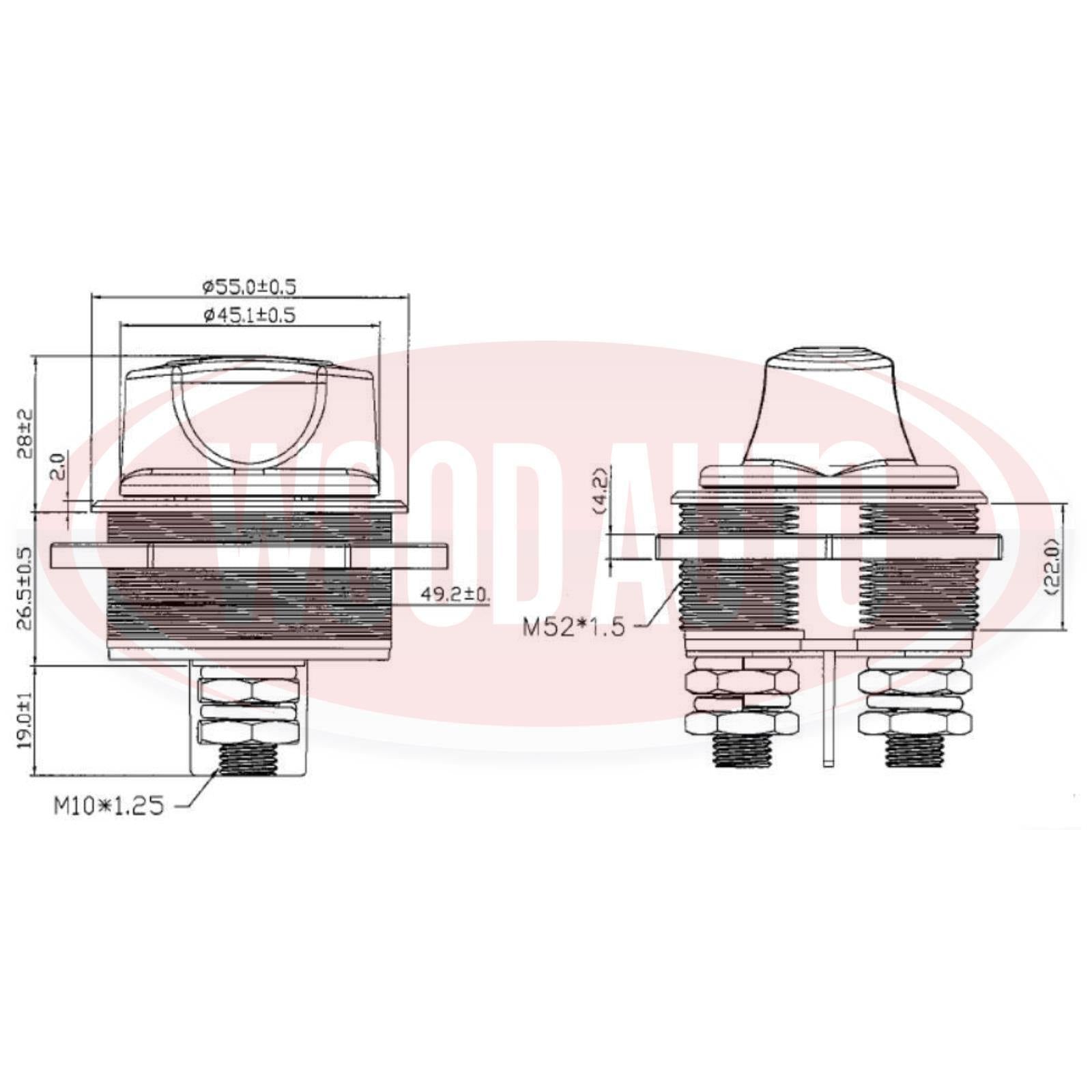

- Terminals: M10 Bolts
- Switch Type: SPST, 2-position
- Panel Cut-Out Diameter: 53mm
Another High-Quality Product from Wood Auto
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
