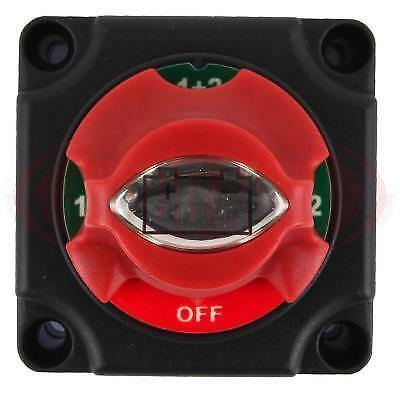

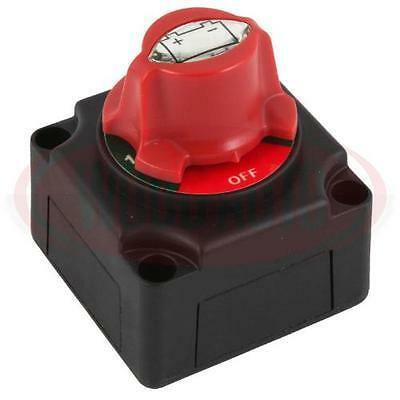

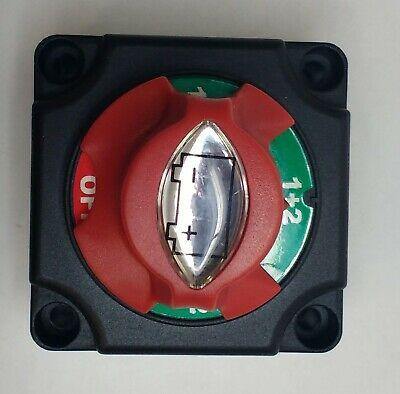

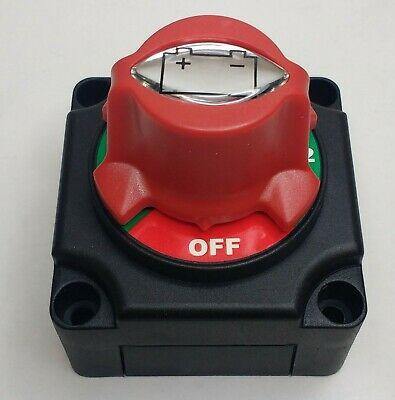

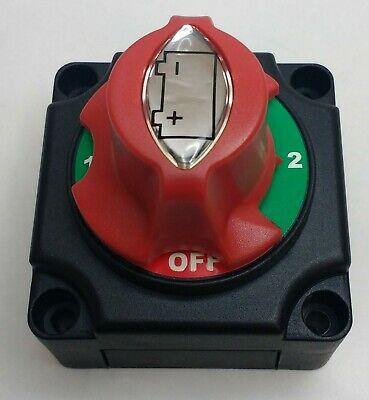

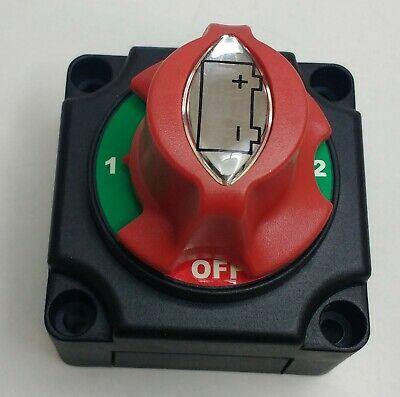

Battery Isolator Switch 4 Position Marine Max 300A Changeover Wood Auto BIS1015

BATTERY ISOLATOR SWITCH 4 POSITION MARINE MAX 300A CHANGEOVER WOOD AUTO BIS1015

300 Amp Battery Isolator Switch Marine Changeover

• 4 Position
• ON, 1-ON, 2-ON, 1+2-OFF

BIS1015

• Great for your boat, caravan, 4x4, showcar, trailer, winch power cable, and more Heavy Duty
• 4-Position: ON, 1-ON,2-ON, 1+2-OFF positions
• Can be used with 8V up to 50V DC systems to isolate and secure the electrical system
• Disconnects the battery safely, to eliminate any power draw from the battery when vehicle or boat is not in use
• Compact size, sleek modern appearance, sturdy and durable
• Rotary dial has a spring-loaded keeper to lock the selected position
• UV stabilised construction - Built to last in marine conditions

1015 Battery Isolator Switch, 4 pos, Marine

• Max Cont Op Current 300A @ 48V
• Highest Load 1000A / 5s

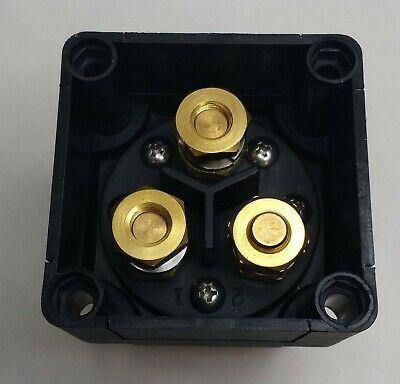

• Terminals M10
• Note 1 Marine Battery Isolator Switch
• Note 2 4 position
• Note 3 L: 69mm x W: 77mm x H:69mm
• Note 4 On 1-On 2-On 1+2-Off

CROSS REFERENCE

• Durite 0-605-09
