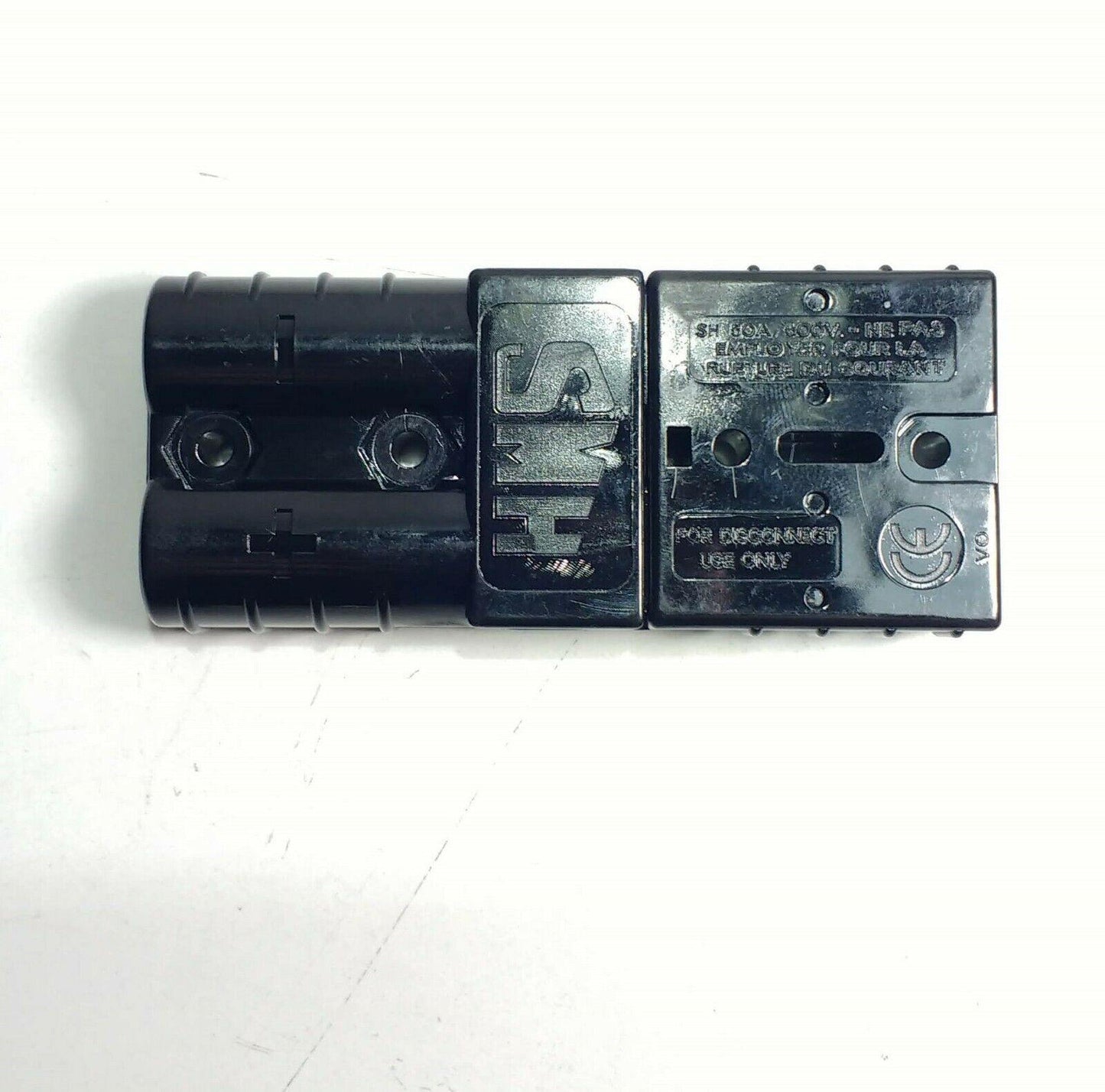

Black Replacing Anderson Connectors 50A Battery Plug & Socket Kit Mure Bac50
1 x ANDERSON TYPE CONNECTOR 50 Amp Battery plug, jump connector for batteries, jump leads, race...
1 x ANDERSON TYPE CONNECTOR 50 Amp Battery plug, jump connector for batteries, jump leads, race cars, boats, trucks, forklifts etc. This kit is for a Pair of Anderson Type connectors with two #2/0 AWG crimp contacts. Anderson connectors will only mate with connectors of the same size and colour. This series of connector provides a secure quick disconnect for power distribution systems. The 50 amp connector is often used in battery and / or inverter connection systems. Housing Color: Black AWG 2/0 Current Rating (Amperes):50 Voltage Ratings (Volts):600 PLEASE NOTE: THE PART OF THE TERMINAL WHERE THE CABLE IS TO BE INSERTED, MEASURES APPROX. 5.3mm DIA Electrical specifications Voltage 600 Amp 50 Physical specifications Model CB50 Temp - Min °C -40 Temp - Max °C +125 Material Polycarbonate Colour Black Mount. Solder/crimp Resistant to acid Yes Solvent Yes Hydrocarbons Yes Material 2 Electrolytic copper w/ galvanic silver plating Cable dim. mm² 16 Approx Plug Dimensions (mm) 48 X 35 x 16 Suitable for Cable size up to 16 mm² Kit Contains: (1) 2 x 50amp Black Housing (2) 2 x Sets of two AWG contacts (4) (3) 2 x Rubber Boots
