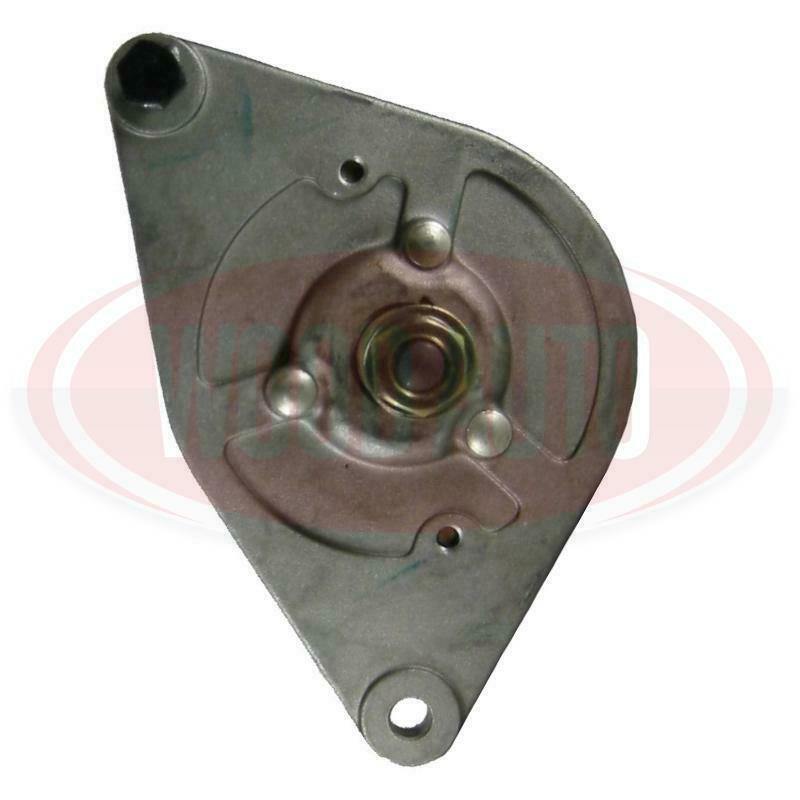

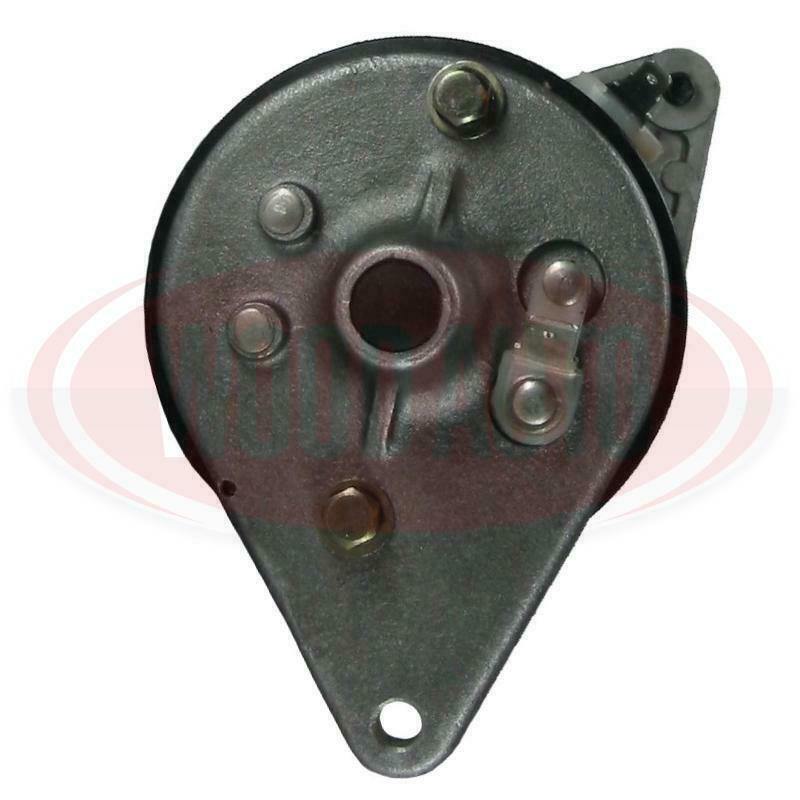

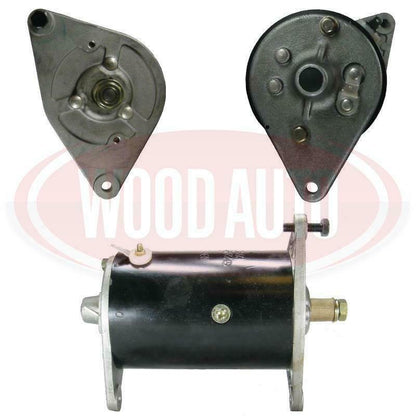

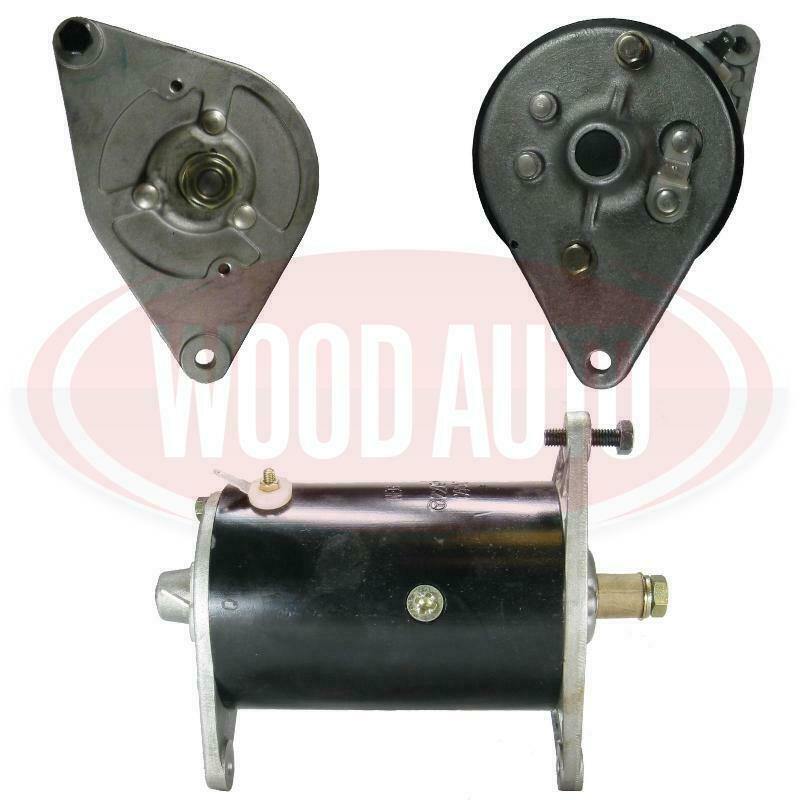

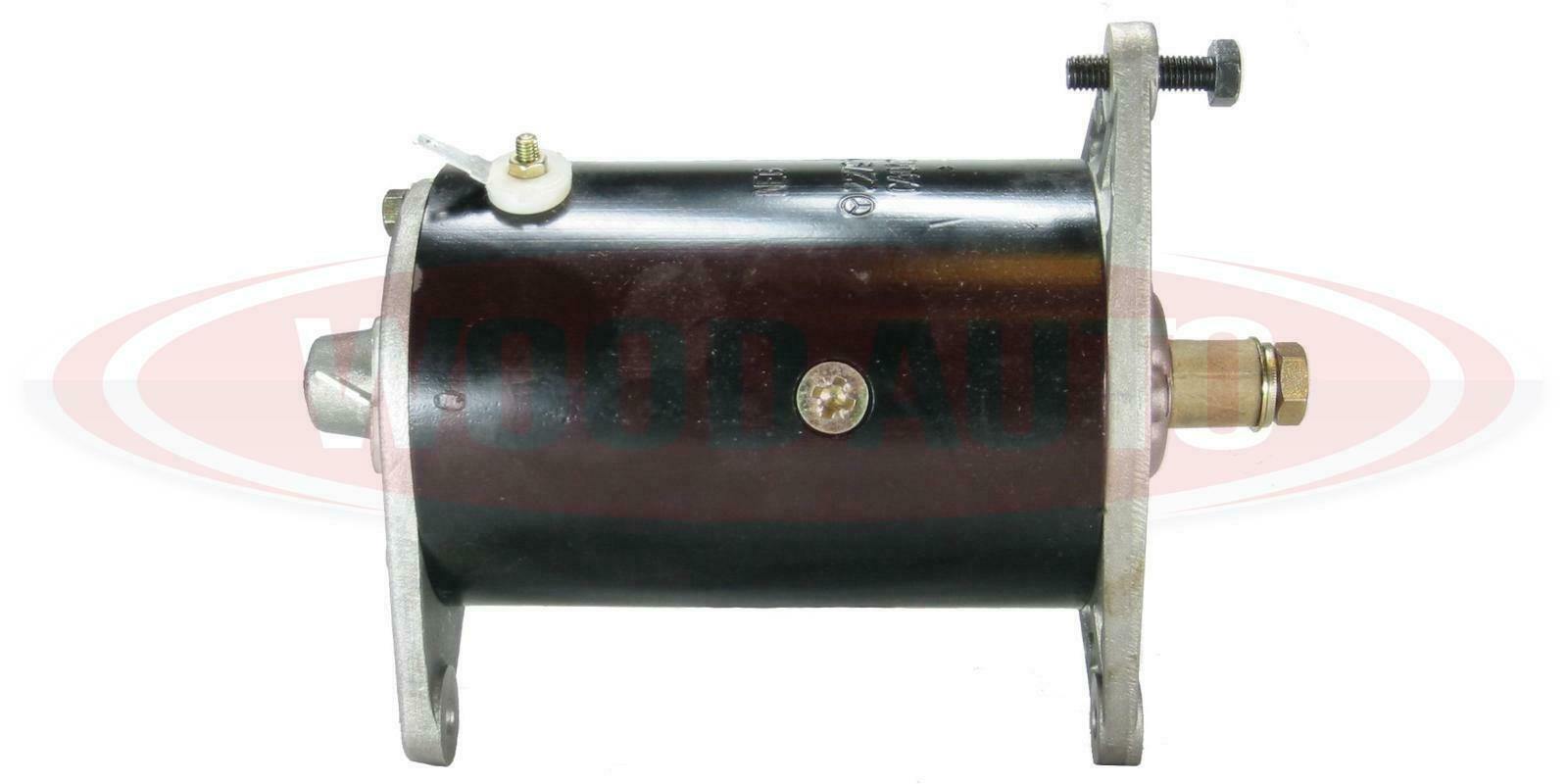

C40A Dynamo Lucas Style Non-Vented Fits Case Massey Ferguson 12V Wood Auto Wg15
NEW DYNAMO REPLACES LUCAS TYPE CLOSED ENDS
This Unit Has Spade Terminals, Field Terminal = 6.3mm &...
NEW DYNAMO REPLACES LUCAS TYPE CLOSED ENDS
This Unit Has Spade Terminals, Field Terminal = 6.3mm & D Terminal = 9.5mm
This product is compatible with the brand names mentioned in this listing
WG15
Electrical specifications
- Voltage 12
- Amp 11
Physical specifications
- Mount. hole D1 8.00
- D2 M8
- D3 8.00
- Dist. E1 10.00
- E2 50
- OD mm 144.00
- Length mm 226.00
- Fan w/o
- Pulley Type Not fitted
- Note 1 C40A Dynamo, Not Ventilated
- Note 2 With side mounted B+ stud spade connection
CROSS REFERENCE
- BOSCH 0986030071
- BOSCH 3007
- BUTEC/PRESTOLITE 20200101
- BUTEC/PRESTOLITE 26021104
- CASE 3049871R91
- CASE K908882
- FEMSA DNL12E42
- LISTER PETTER 282250
- LUCAS 22250
- LUCAS 22255
- LUCAS 22259
- LUCAS 22703
- LUCAS 22703K
- LUCAS 22703M
- LUCAS 22719
- LUCAS 22719H
- LUCAS 22719J
- LUCAS 22733
- LUCAS 22733E
- LUCAS 22733J
- LUCAS 22780
- LUCAS 22788
- LUCAS 22791
- LUCAS 26021104
- LUCAS LRD00101
- LUCAS LRD101
- LUCAS NDB101
- MASSEY FERGUSON 1867787M1
- MASSEY FERGUSON 892447M91
- MASSEY FERGUSON 897104R2
- MASSEY FERGUSON 897104R92
- MASSEY FERGUSON 960022R1
- PERKINS 22763R
- PERKINS 2871170
- PERKINS 2871170T
- PERKINS 2871175
- PERKINS 2871180
- PERKINS 2871182
- PERKINS 2871182T
ANOTHER HIGH QUALITY PRODUCT FROM Wood Auto
