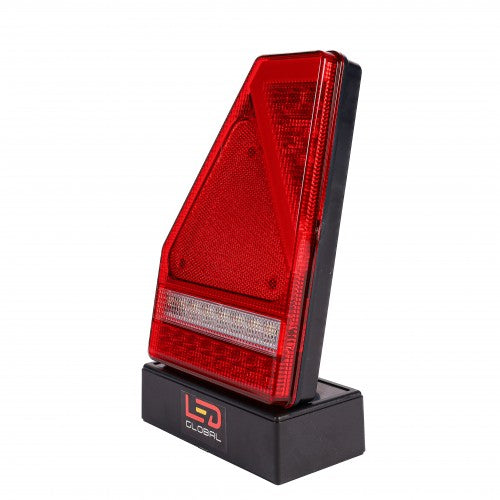

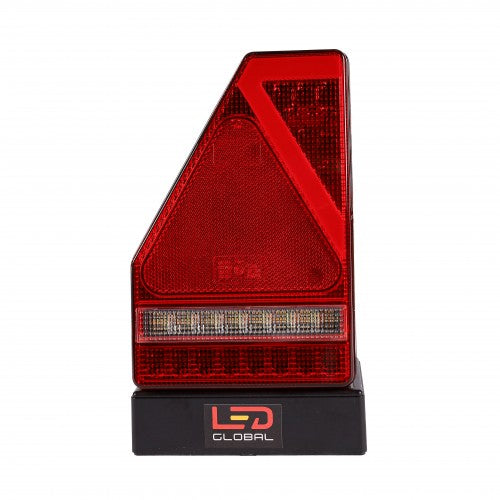

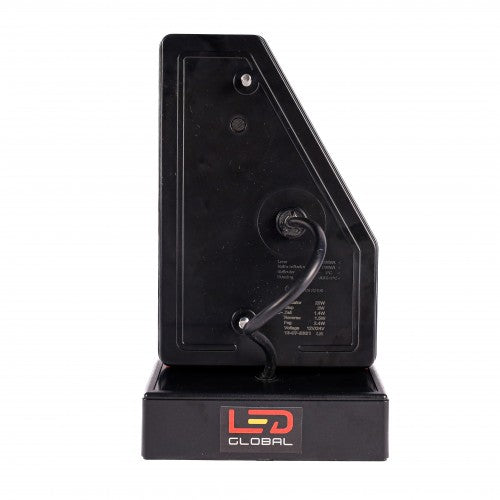

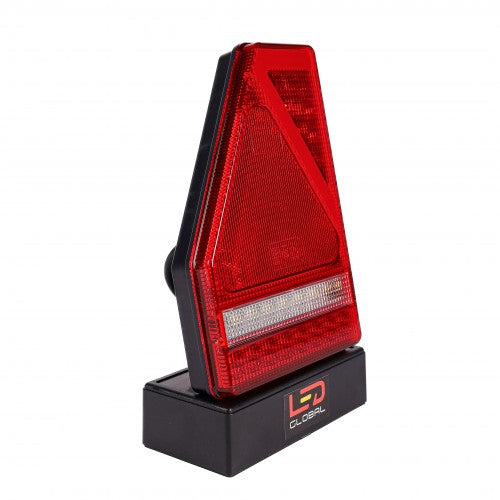

9-33v LED Triangle Shaped Tail Lamp, Stop, Tail, Indicator, Fog, Reverse, Reflector LED GLOBAL RH
LG571
Features
- Application: LED Trailer Tail Light Combination
- Direction: Right hand Side
- Stop/Tail/Indicator/Fog/Reverse/Reflector
- Built in smart load resistance on indictors
- 50,000h / E Mark Certified / IP67
- ECE R10, R3, R6, R7, R23, R38, R91 Approved
- EMC - CISPR25 Class 4 (Radio Frequency Suppression)
- Supplied with socket & 30cm of cable
- Built in Smart Load Resistance on Indicators
- Supplied with socket & 30cm of cable
ELECTRICAL CHARACTERISTICS
- High intensity CREE XTE LEDs
- Suitable for 9/33V DC
- Vibration Test to 15G
DIMENSIONS IN MM.
- Lamp width: 218 mm
- Lamp height: 145 mm
- Lamp thickness: 35 mm
Technical Wiring Diagram
- White is Earth
- Grey is Tail
- Blue is Brake
- Brown is Fog
- Yellow/Green is Indicator
- Black is Reverse
TOP SERIES: CREE LEDs that illuminates everything.
