Ctie 10 X Duraseal Type Blue Glue Heat Shrink Butt Splice Terminals Crimp Hsb2.0

Ctie 10 X Duraseal Type Blue Glue Heat Shrink Butt Splice Terminals Crimp Hsb2.0

Vendor:CTIE UK

Availability: 274 in stock

Product Type:1911u*10

Product Indentifier:731084219919

Regular price

£3.68 £3.07 ex VAT

Regular price £3.53 Sale price £3.07 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

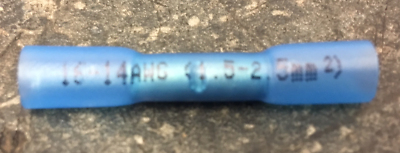

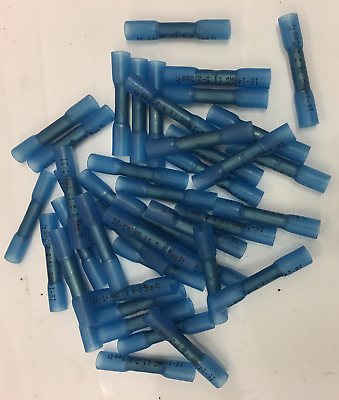

10 x INSULATED HEAT SHRINK BUTT SPLICES, BLUE DURASEAL TYPE CRIMP CONNECTORS

Pack of 10 Terminals

HSB2.0
1911U

ADHESIVE LINED FOR WATERTIGHT JOINT FOR CABLES

  • Material (Insulation) – High Density Polyethylene
  • Material (Terminal) – Copper
  • Material (Terminal Plating) – Electro Tin Plating
  • Maximum Electrical Rating – 600 Volts Max



Specification

  • Waterproof
  • Tip type: Heat shrink butt splice
  • Wire cross-section: 1.5 - 2.5mm2
  • Ferrule variant: insulated
  • Colour: Blue


Dimensions:

  • Length: 36.7mm
  • Width: widest part - 6.5mm
  • Narrowist part - 5.4mm



Directions

  • place the cable in the metallic barrel and crimp firmly, then shrink the plastic cover by heating in the usual way. An adhesive on the inside of the plastic cover bonds to the cable, securing and water proofing the connection. Made from tin-plated copper and heat-shrinkable PVC. Supplied in packs of 10.


Another Top Quality Product From Ctie UK
