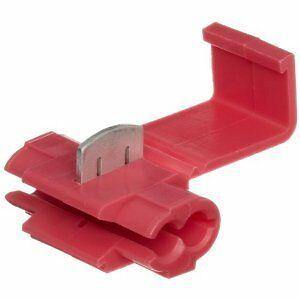

Ctie 100 5 Amp Red Scotch Lock Wire Quick Splice Connectors Terminal Crimp Scr

100 x QUICK SPLICE RED SCOTCH LOCK CONNECTORS 5AMP SCR

SW10001

A very quick and reliable way of connecting additional cables to existing wiring, for example fitting car alarms, radio-cassette units, etc. The cables to be joined are placed inside the snap-lock connector, the cover is pushed home with a pair of pliers and locks shut, thus completing the connection.


Features

• A simple and easy way to add extra wires onto difficult to reach wiring looms
• Slide the connector over the existing cable add the new wire and squeeze with pliers
• The metal blade cuts into the insulation of both wires and completes the connection
• Idea when soldering solutions are not suitable
• PP plastic with tin plated brass terminal

Specification

• To suit cable size 0.5mm to 1.5mm² / 18-22awg cable
• Colour: Red
• Connector Type: Snap-On
• Contact Material: Metal
• Insulator Material: Plastic
• Length: 20mm
• Termination Method: Snap-On

Another Quality Product from Ctie Uk
