Delphi 12V 24V 40A Max Waterproof Fuse Holder Lorry Marine Mure Fh-Il-Wp

DELPHI 12V 24V 40A MAX WATERPROOF FUSE HOLDER LORRY MARINE MURE FH-IL-WP

DELPHI WATERPROOF ATO BLADE FUSE HOLDER

For internal or external use

FH-IL-WP

(12033769 x1, 12033997 x2, 12034364 x1, 12033731 x1)

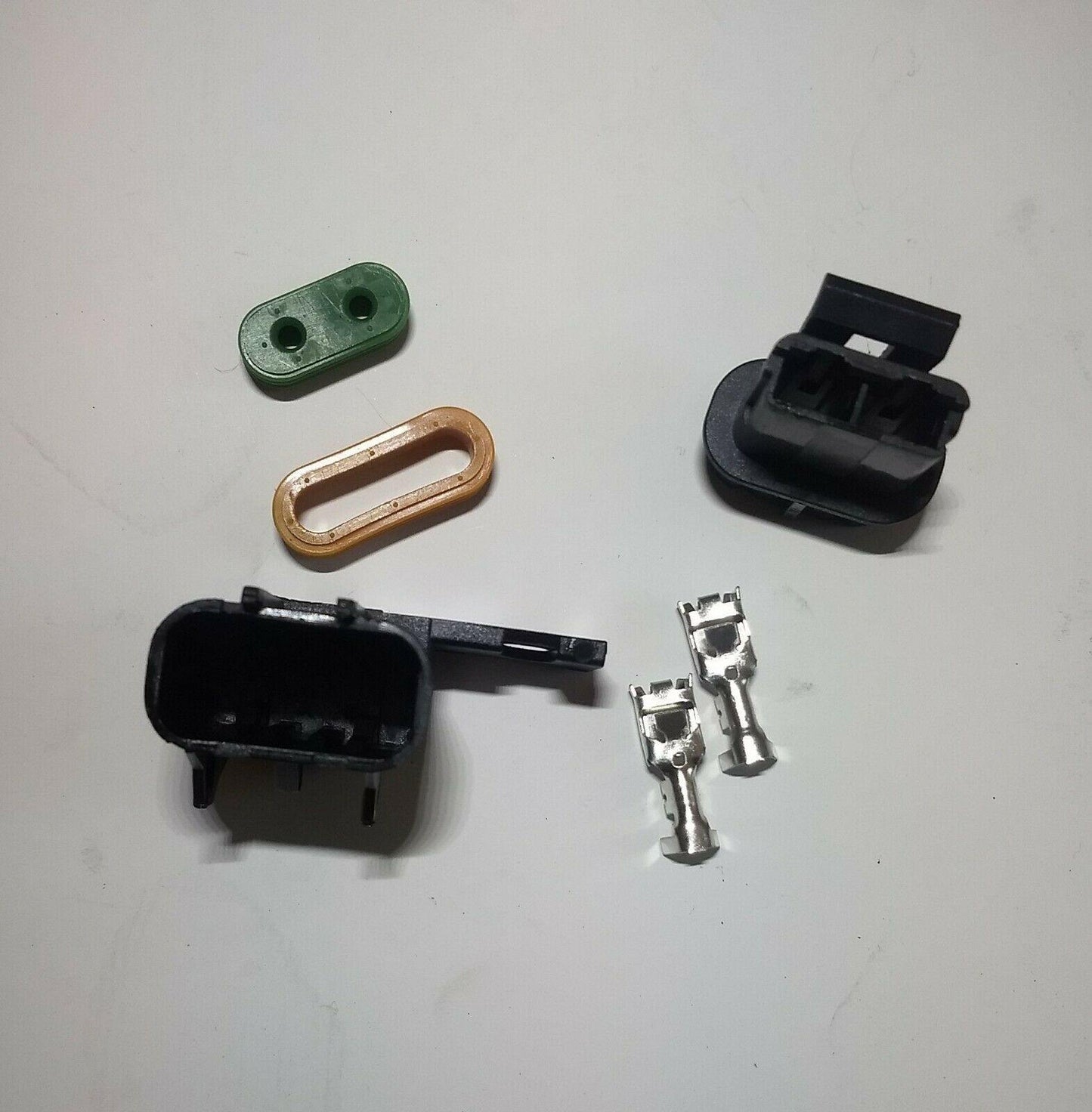

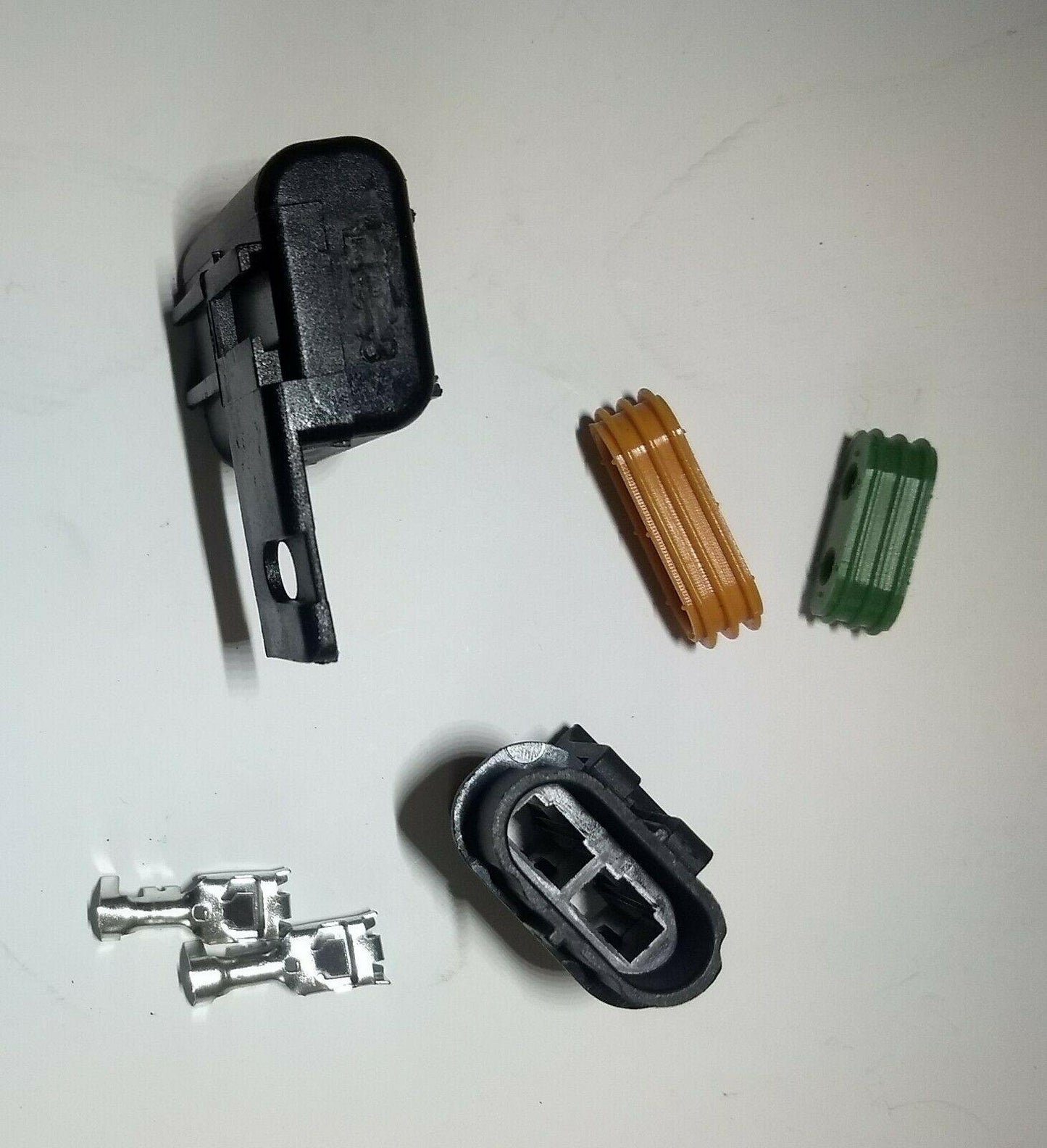

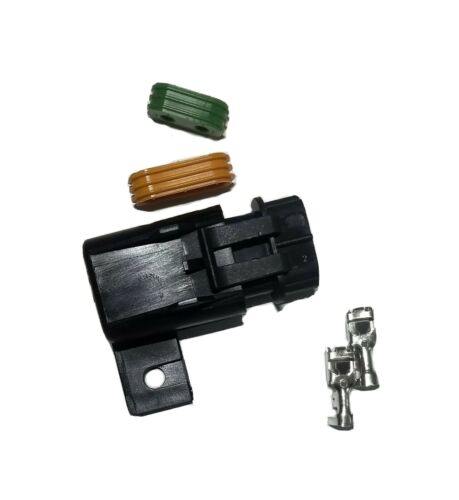

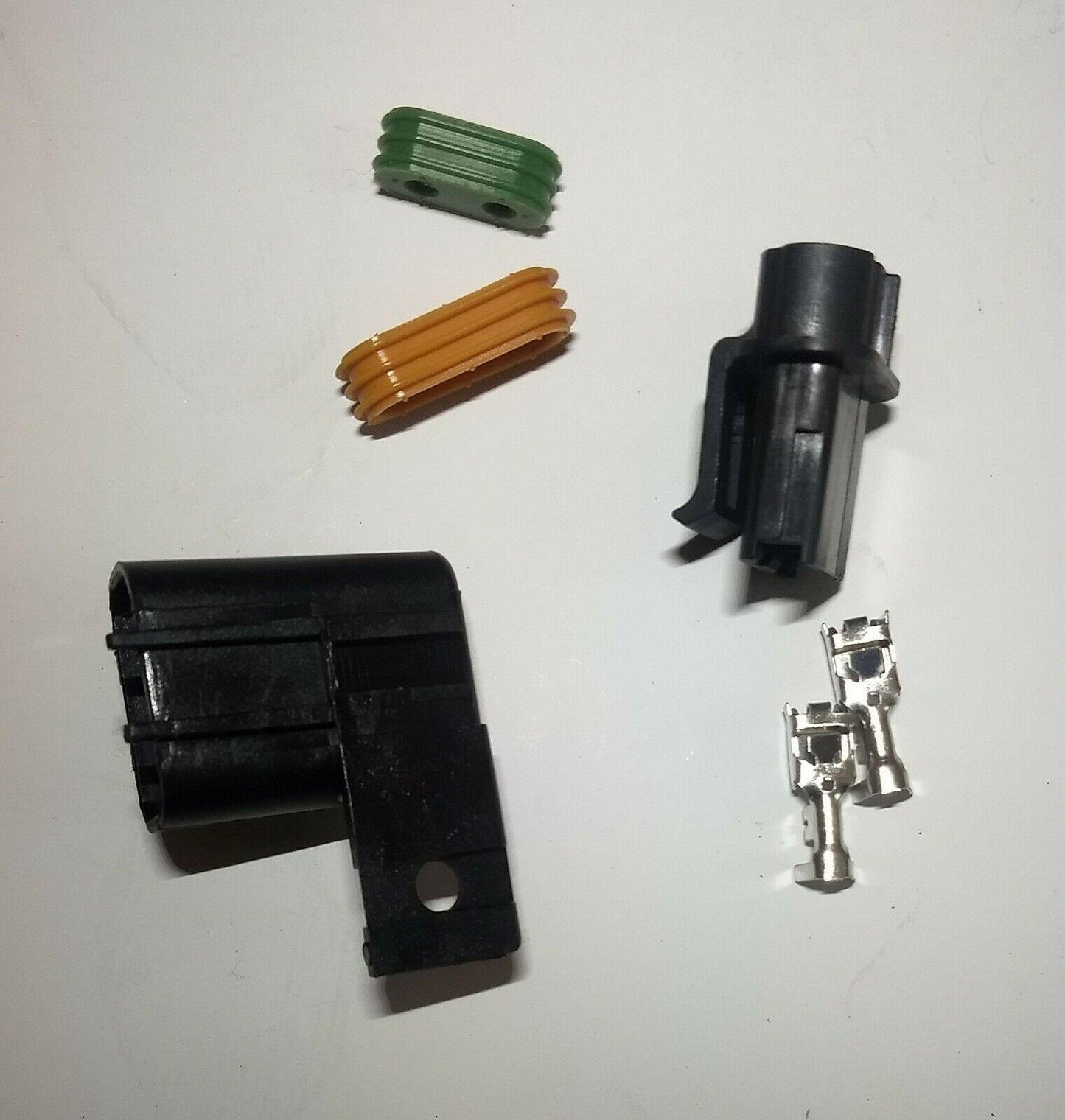

This item includes:

• 1 x Plug housing
• 2 x Pin Terminals
• 1 x Wire Seal
• 1 x Rubber Plug Seal
• 1 x Plug Cap Cover

**ATO FUSE NOT INCLUDED. THESE CAN BE PURCHASED SEPARATELY FROM OUR STORE**


Product Details

• Delphi Metri-Pack 630 Sealed Female Automotive Connectors
• From Delphi, a range of robust female housings from the Metri-Pack 630 series. These automotive connectors are designed to exceed requirements for marine, appliance and industrial control applications. Made from a tough PBT housing material, these connectors have an excellent resistance to temperature, chemicals and abrasion. The automotive connector housings can accommodate a cable range of 0.50 – 5.0 mm2 cable and utilise contacts with a 6.3mm blade width.

Delphi Metri-Pack 630 Series Cap Covers

• These Delphi covers are intended to work with the Delphi Metri-Pack 630 series of fuse holders.The covers help to create a sealed fuse holder for ATO fuses.

Specifications - Female Plug

• Number of Contacts 2
• Type Connector
• Gender Female & Male
• Number of Rows 1
• Current Rating 46A
• Mounting Type Cable Mount
• Series Metri-Pack 630
• Colour Black
• Termination Method Crimp
• Contact Plating Tin
• Housing Material PA 69
• Maximum Operating Temperature +125°C
• Minimum Operating Temperature -40°C
• Contact Material Tin Brass

Specifications - Fuse Cap Cover

• Attribute Value
• Accessory Type Connector Cover
• For Use With ATO Fuses
• Series Metri-Pack 630

**ATO FUSE NOT INCLUDED. THESE CAN BE PURCHASED SEPARATELY FROM OUR STORE**
