Delphi 2 Way Plug Socket Waterproof 12V 24V 46A Lorry Marine Mure Plk64

DELPHI 2 WAY PLUG SOCKET WATERPROOF 12V 24V 46A LORRY MARINE MURE PLK64

DELPHI 2 WAY WATERPROOF CONNECTOR

Male & Female Kit

For internal or external use

PLK64

(12033769 x1, 12033997 x2, 12034269 x1, 12034364 x2, 12064736 x2)

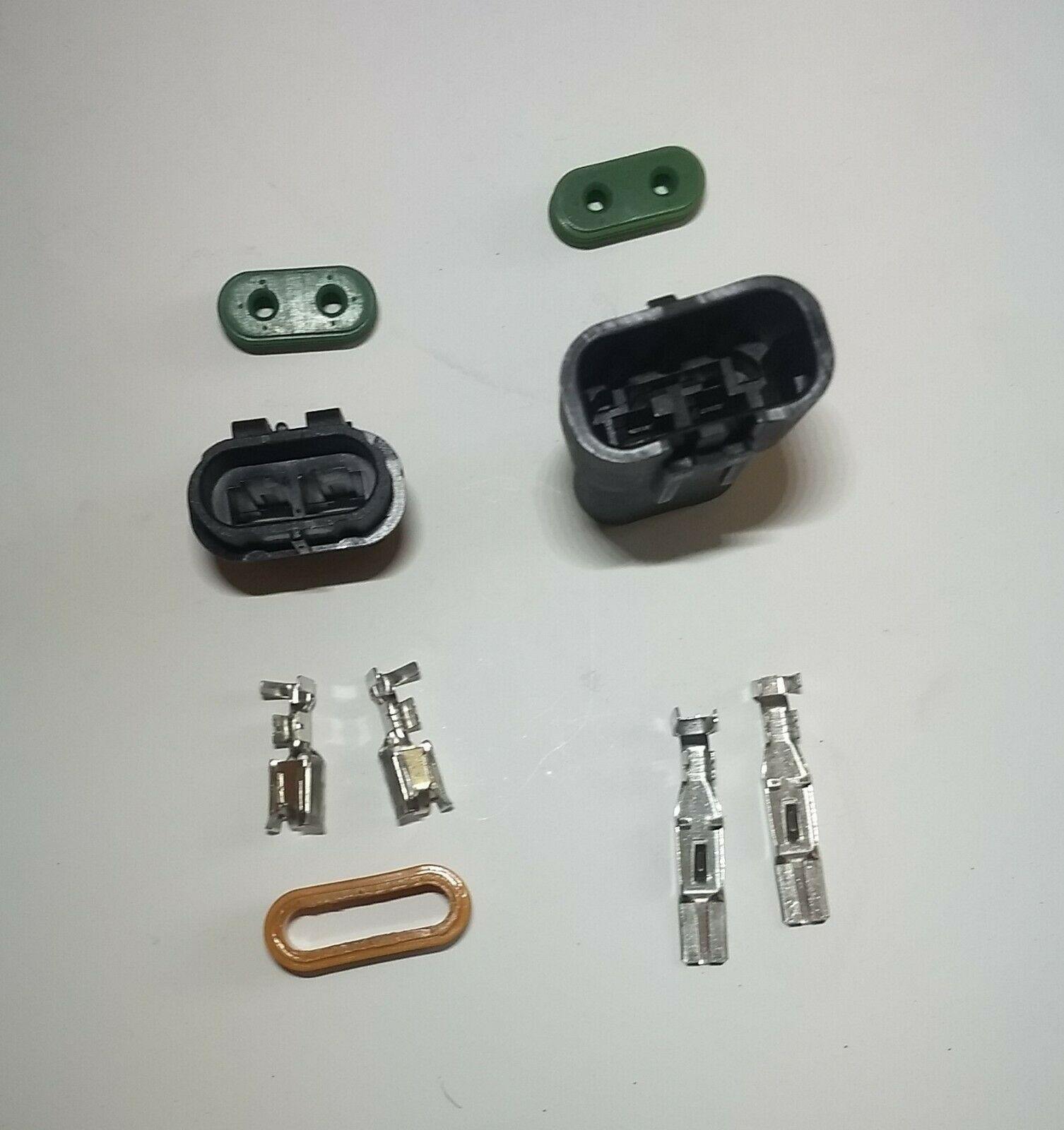

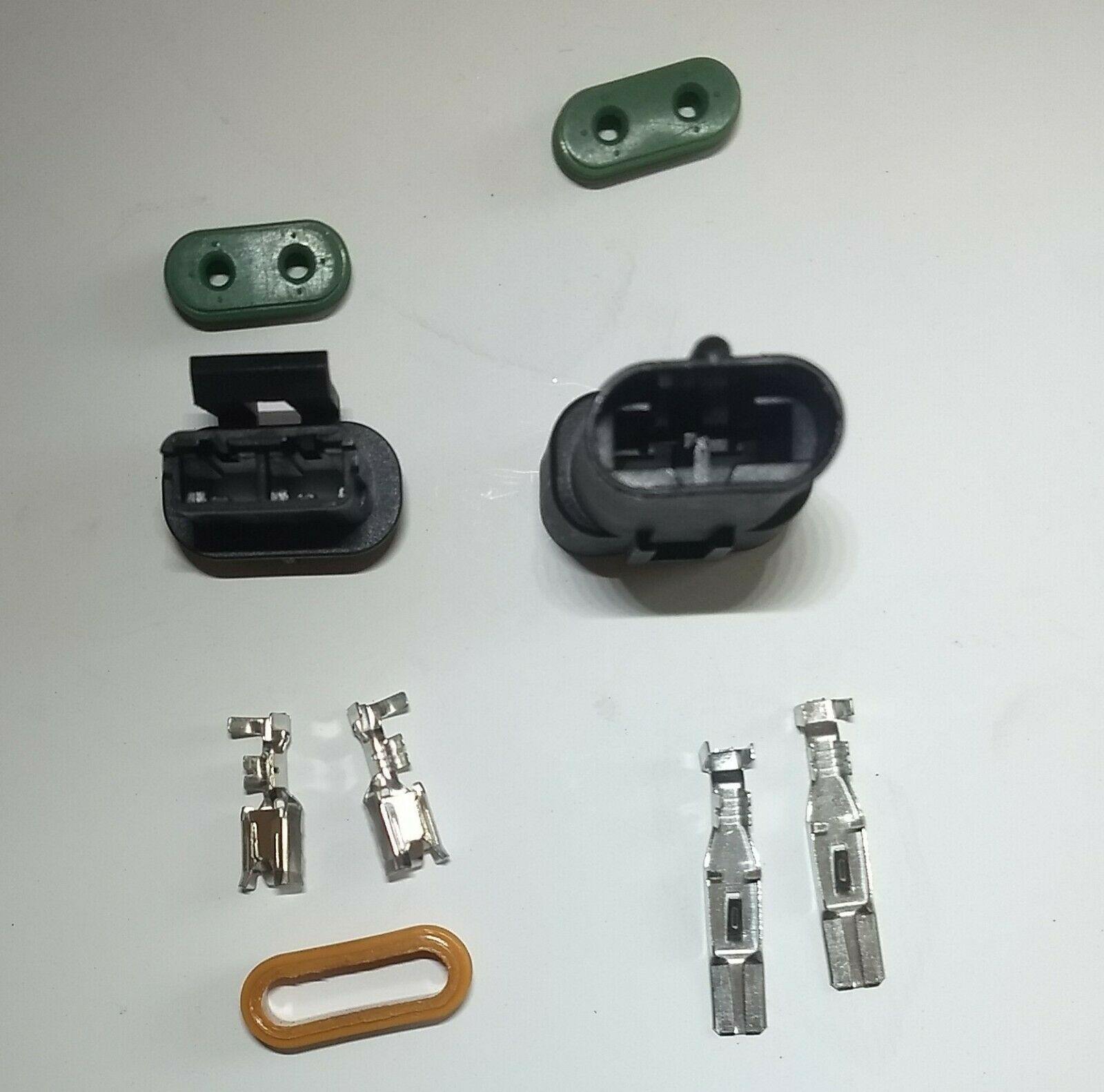

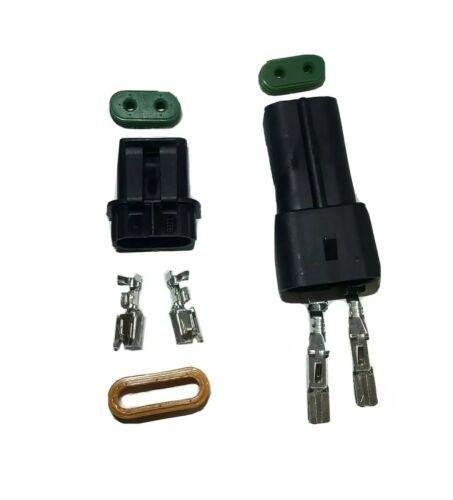

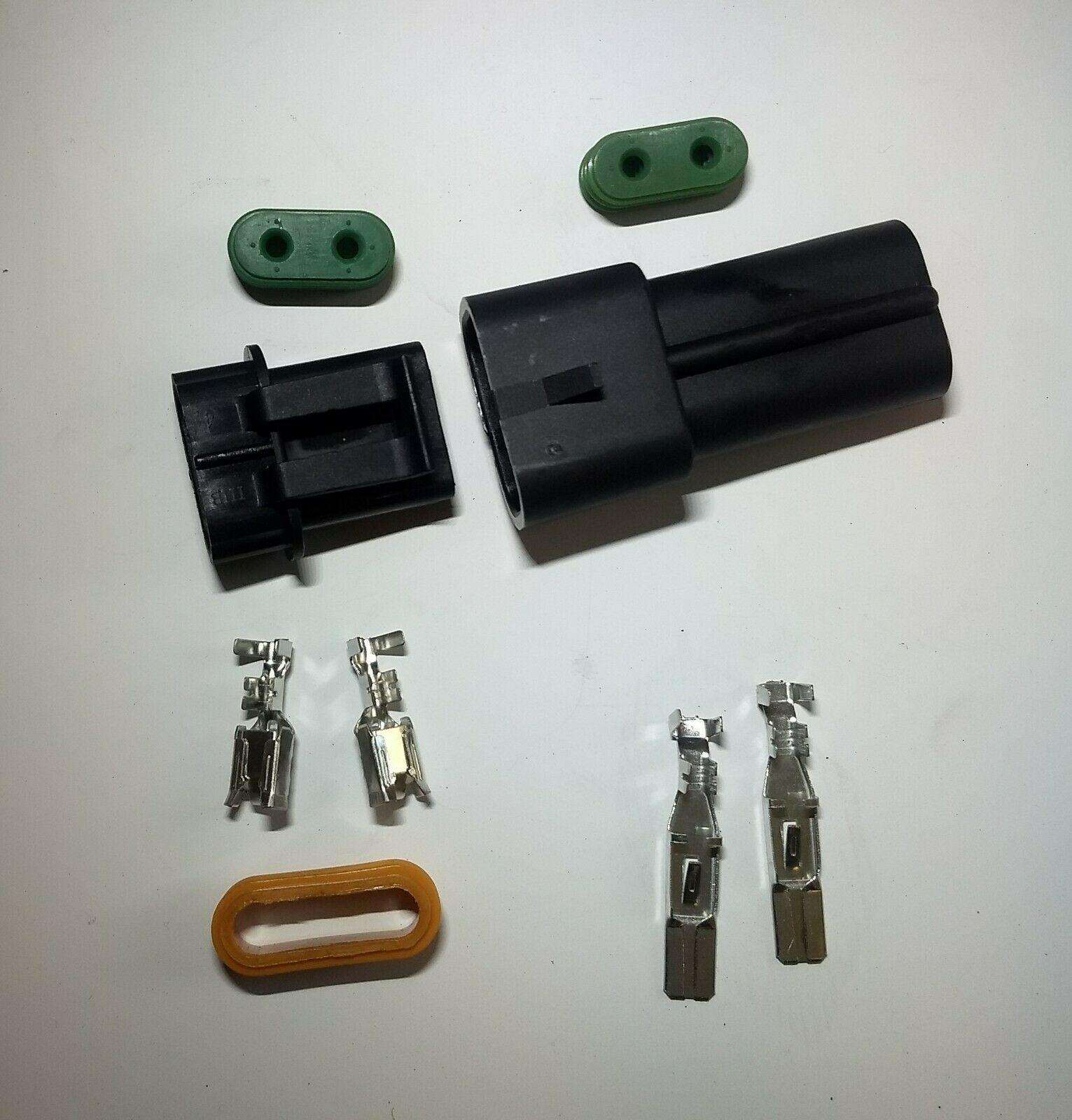

This item includes:

• 1 x Plug Housing
• 1 x Socket Housing
• 2 x Pin Terminals
• 2 x Receptacle Terminals
• 2 x Wire Seals
• 1 x Rubber Plug Seal

Product Details:

Delphi Metri-Pack 630 Sealed Female Automotive Connectors

• From Delphi, a range of robust female housings from the Metri-Pack 630 series. These automotive connectors are designed to exceed requirements for marine, appliance and industrial control applications. Made from a tough PBT housing material, these connectors have an excellent resistance to temperature, chemicals and abrasion. The automotive connector housings can accommodate a cable range of 0.50 – 5.0 mm2 cable and utilise contacts with a 6.3mm blade width.

Delphi Metri-Pack 630 Sealed Male Automotive Connectors

• From Delphi, a range of robust male housings from the Metri-Pack 630 series. These automotive connectors are designed to exceed requirements for marine, appliance and industrial control applications. Made from a tough PBT housing material, these connectors have an excellent resistance to temperature, chemicals and abrasion. The automotive connector housings can accommodate a cable range of 0.50 – 5.0 mm2 cable and utilise contacts with a 6.3mm blade width.

Specifications

• Number of Contacts 2
• Type Connector
• Gender Female & Male
• Number of Rows 1
• Current Rating 46A
• Mounting Type Cable Mount
• Series Metri-Pack 630
• Colour Black
• Termination Method Crimp
• Contact Plating Tin
• Housing Material PA 69
• Maximum Operating Temperature +125°C
• Minimum Operating Temperature -40°C
• Contact Material Tin Brass

**CONTACT US IF YOU REQUIRE THE MALE OR FEMALE PLUGS SEPARATELY**
