Flash/Off/Flash Square Rocker Mini Rectangle Switch 12V Car Dash Robinson K709

Flash/Off/Flash Square Rocker Mini Rectangle Switch 12V Car Dash Robinson

K709

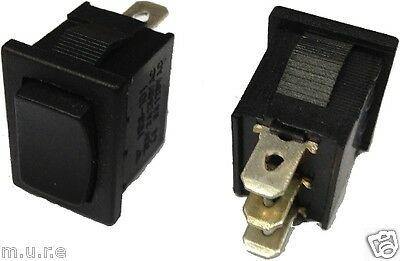

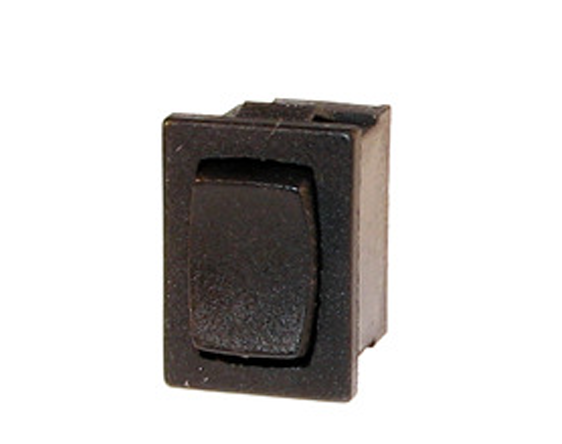

This is a black miniature rocker switch with a momentary Flash / Off / Flash switching action. It is designed for easy setup, requiring a $13\text{mm}\times 18.5\text{mm}$ mounting slot.

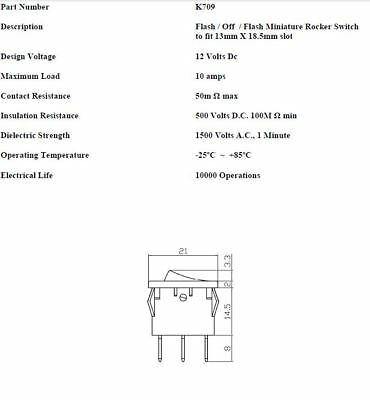

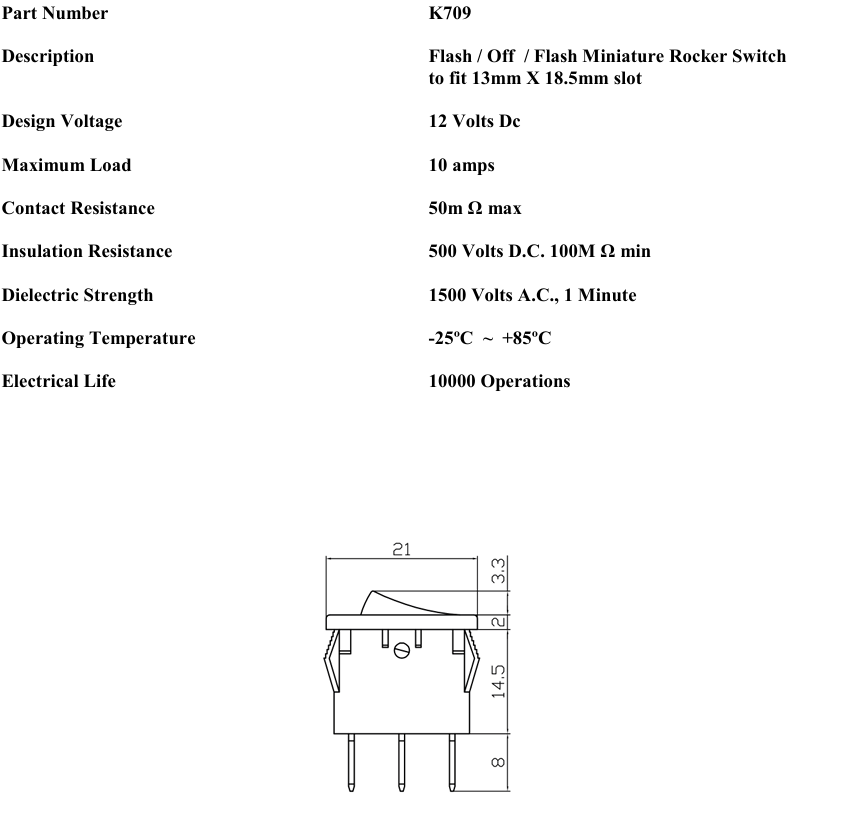

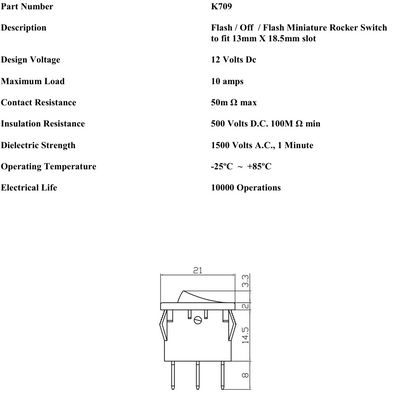

Product Specifications:

• Part Number: K709
• Switching Type: Flash-Off-Flash (Momentary)
• Design Voltage (DC): $12\text{ Volts DC}$
• Maximum Load (DC Contacts Rating): $10\text{ amps}$ / $12\text{V}$
• AC Contacts Rating: $6\text{A}/125\text{V}$
• Contacts Configuration: SPST
• Actuator Colour: Black
• Body Material: Polyamide
• Flammability Rating: UL94V-2
• Contact Resistance: $50\text{m}\max$
• Insulation Resistance: $500\text{ Volts D.C. }100\text{M}\min$
• Dielectric Strength: $1500\text{ Volts A.C., }1\text{ Minute}$
• Operating Temperature: −25C∼+85C
• Electrical Life: $10000\text{ Operations}$
• Leads: $4.8\times 0.8\text{mm}$ connectors

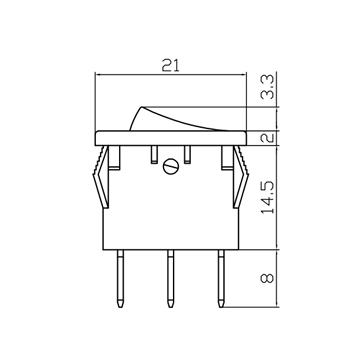

• Mounting Hole: $13\text{mm}\times 18.5\text{mm}$

$\text{ANOTHER QUALITY PRODUCT FROM ROBINSON}$
