Genuine Anderson 50 Amp Small Grey 600V Battery Connector Plug Wood Auto Ter3010

Genuine Anderson 50 Amp Small Grey 600V Battery Connector Plug Wood Auto Ter3010

Vendor:Anderson Power Products

Availability: 20 in stock

Product Type:TER3010

Product Indentifier:731084221608

Regular price

£7.44 £6.20 ex VAT

Regular price £7.13 Sale price £6.20 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

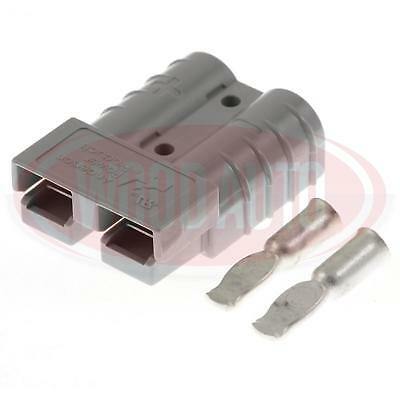

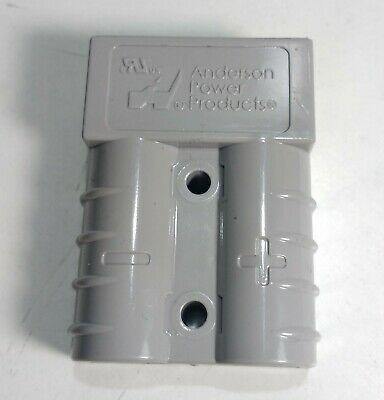

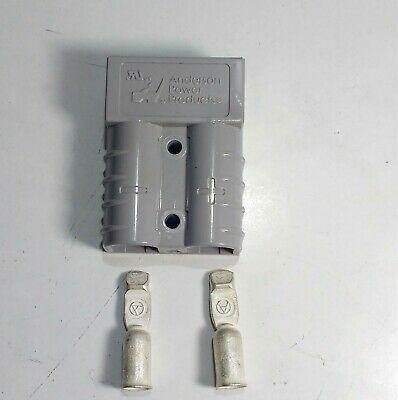

1 x GENUINE GREY ANDERSON CONNECTOR PLUG 50 Amp 600v

TER3010

Battery plug, jump connector for batteries, jump leads, race cars, boats, trucks, forklifts etc.

This kit is for a single Anderson connector with two #2/0 AWG crimp contacts. Anderson connectors will only mate with connectors of the same size and colour. If you already have an Anderson connector in a different colour, it will not connect to the grey connector.

  • This series of connector provides a secure quick disconnect for power distribution systems.
  • The 50 amp connector is often used in battery and / or inverter connection systems.
  • Housing Color:Grey
  • AWG
  • Current Rating (Amperes):50
  • Voltage Ratings (Volts):600

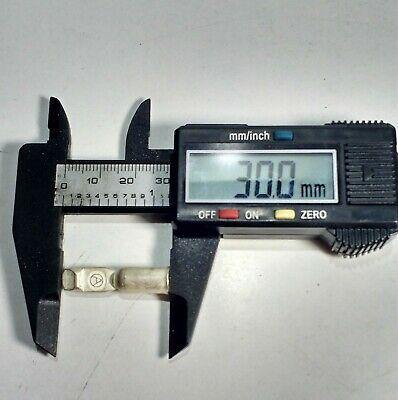

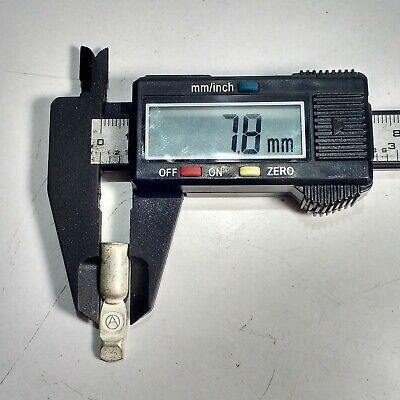

PLEASE NOTE: THE PART OF THE TERMINAL WHERE THE CABLE IS TO BE INSERTED, MEASURES APPROX. 5.3mm DIA

Electrical specifications

  • Voltage 600
  • Amp 50

Physical specifications

  • Model CB50
  • Temp - Min °C -40
  • Temp - Max °C +125
  • Material Polycarbonate
  • Colour Grey
  • Mount. Solder/crimp
  • Resistant to acid Yes
  • Solvent Yes
  • Hydrocarbons Yes
  • Material 2 Electrolytic copper w/ galvanic silver plating
  • Cable dim. mm² 16

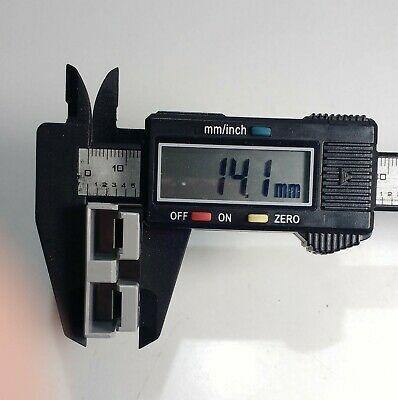

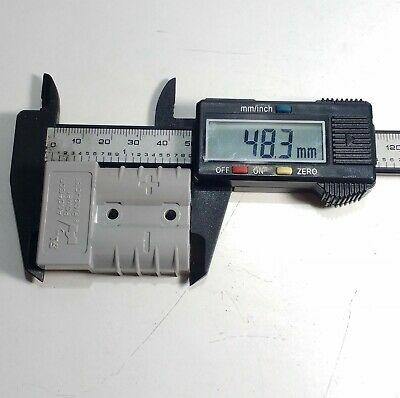

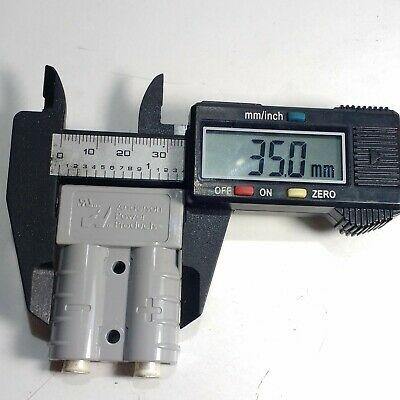

  • Approx Plug Dimensions (mm)
  • 48 X 35 x 16
  • Suitable for Cable size
  • up to 16 mm²


Kit Contains:

  • (1) 50amp Housing (Available in grey only)
  • (1) Set of two AWG contacts
