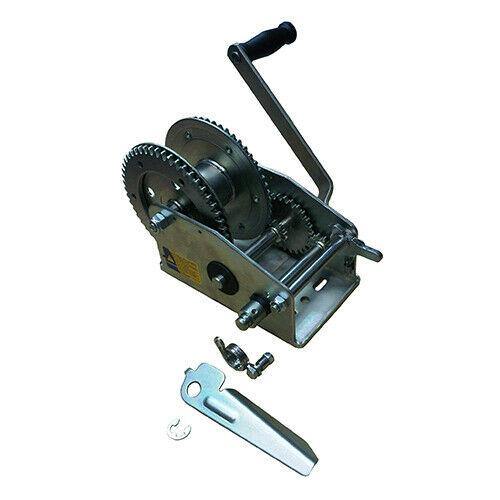

Heavy Duty Professional 2 Speed Geared Hand Winch 1454Kg 3200Lb Maypole MP1432

Heavy Duty Hand Winch Professional 1454kg Max 2 Speed

MP1432

Description:

• Heavy-duty construction for pulling heavy loads, a great alternative to Dutton-Lainson and Fulton
• 2 speeds geared for optimal winching speed versus effort (mechanical advantage)
• Solid gear construction
• Two-way ratchet with precise gear tooth engagement
• Hand brake supplied as standard on all models
• Universal drum will accept a cable or strap (not supplied)
• 500hr red-rust resistant plating for marine use
• Accessories and spares available
• CE approved
• Max rolling load 1950Kg
• Brake Supplied

• CE Rated Working Capacity – 750kg
• Manufacturer’s Recommended Max. Capacity – 1454kg / 3200lb
• Speeds – 2
• Gear Ratio – 5.1:1 / 12.1:1
• Min / Max Mechanical Advantage – 86:1 / 203:1
• Operating Force Required – 8.72kg / 3.69kg
• Drive Gear – Dual
• Finish – Salt Spray Test Red Rust Resistance – 500 hour
• Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg
