High Power 12v 3.2Kw Reduction Gear Starter Motor To Fit Perkins Engines, Massey Matbro IS1201 STR60623
Details and
Details and description
Voltage 12, kW 3.2, Mount. flange 89.00, Drive dist. 29.50, Dist./back 200.00, Dist./front 76.00, No. of teeth10, B+ M8, B- M8, Gear type GR, Dist. mm 127.00, Dist. 2 89.85, Dist. 3 89.85, Rotation CR, No./mount. holes 3 (0), Terminal 30h M10, Total length mm 296.50,
Electrical specifications
Voltage 12
kW 3.2

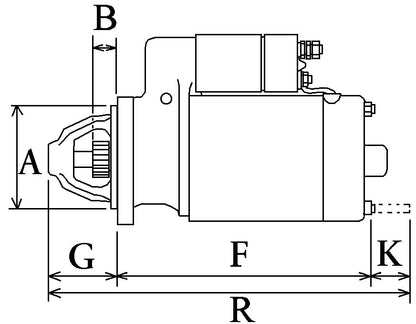

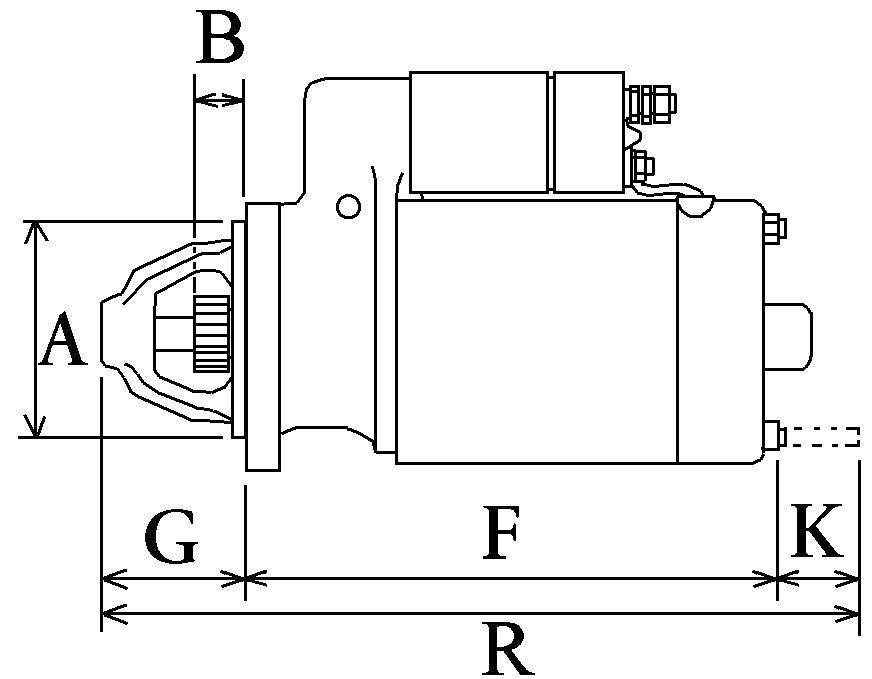

Physical specifications
A Mount. flange 89.00
B Drive dist. 29.50
F Dist./back 200.00
G Dist./front 76.00
H No. of teeth 10
I B+ M8
S B- M8
N Gear type GR

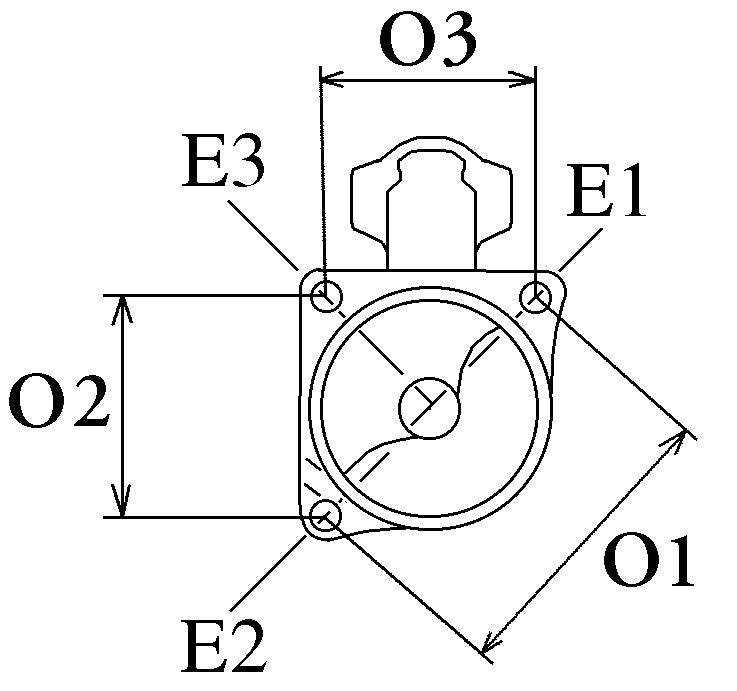

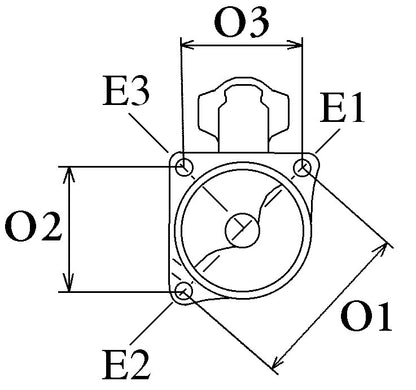

O Dist. mm 127.00
O Dist. 2 89.85
O Dist. 3 89.85
P Rotation CR
T Terminal 30h M10
R Total length mm 296.50
Further information
No./mount. holes 3 (0)
Replacing
Iskra Letrika
AZE4150
AZE4170
AZE4173
AZE4175
AZE4197
AZE4201
AZE4220
AZF4545
11.131.077
11.131.605
11.131.761
11.131.781
11.131.793
11.131.942
11.131.947
11.131.989
11.132.036
Perkins
2873K624
2873K625
2873K626
2873K634
3873k625
JCB
714-40159
714-40231
714-40531
714-40536
MASSEY FERGUSON
3821818M91
CATERPILLAR
225-3149
Bobcat
7169477
Prestolite
860715
MAGNETON (PAL/SKODA)
9142903
HATTAT TARIM
9HT12010A6A
MAHLE
72736027
MS399
Fits
Massey Starter Motor
Perkins Starter Motor
Matbro Starter Motor
Jcb Starter Motor
Hattat Tarim Starter Motor
