LED Double Layer Flexi Pole Beacon Amber & Green 12V/24V 4 Flash Patterns IP67 LED GLOBAL LG670

LED Double Layer Flexi Pole Beacon Amber & Green 12V/24V 4 Flash Patterns IP67 LED GLOBAL

LG670

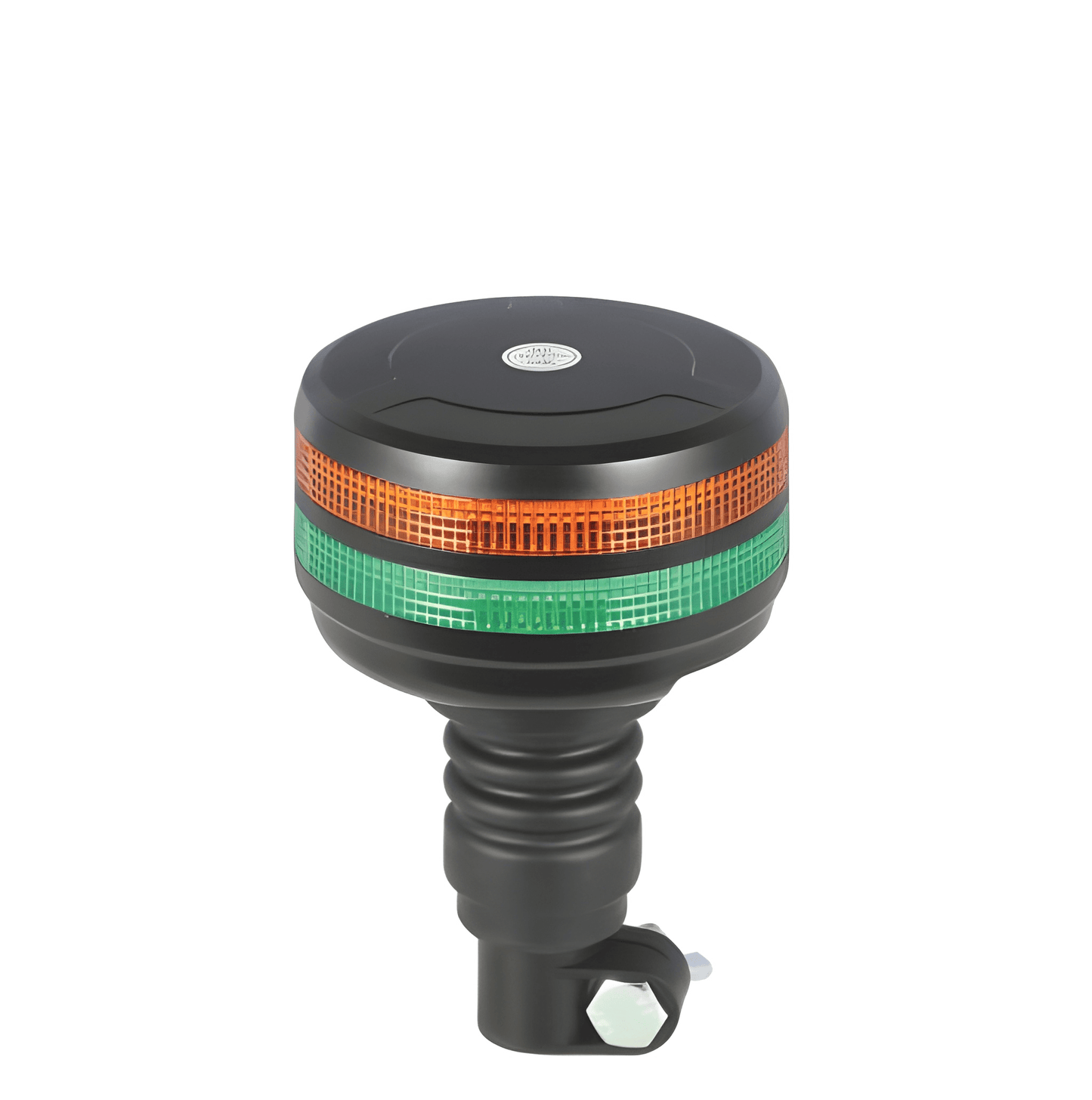

• Dual-Color LED Technology: The LG670 features a unique double-layer design with vibrant amber and green LEDs, ensuring maximum visibility in all conditions.
• Certified Performance: With ECE R65 Class 1 and ECE R10 certifications, this beacon meets the highest European standards for warning light intensity and electromagnetic compatibility, making it a reliable and compliant choice. It also holds CE and UKCA certifications.
• Flexible & Durable Design: The flexible Din pole mount allows the beacon to withstand impacts without damage, making it perfect for rugged working environments. The IP67 rating ensures it is fully protected against dust and water ingress.
• Multiple Flash Patterns: Choose from 4 different flash patterns to suit your specific needs. The separate buttons for amber and green lights allow for easy and independent control.

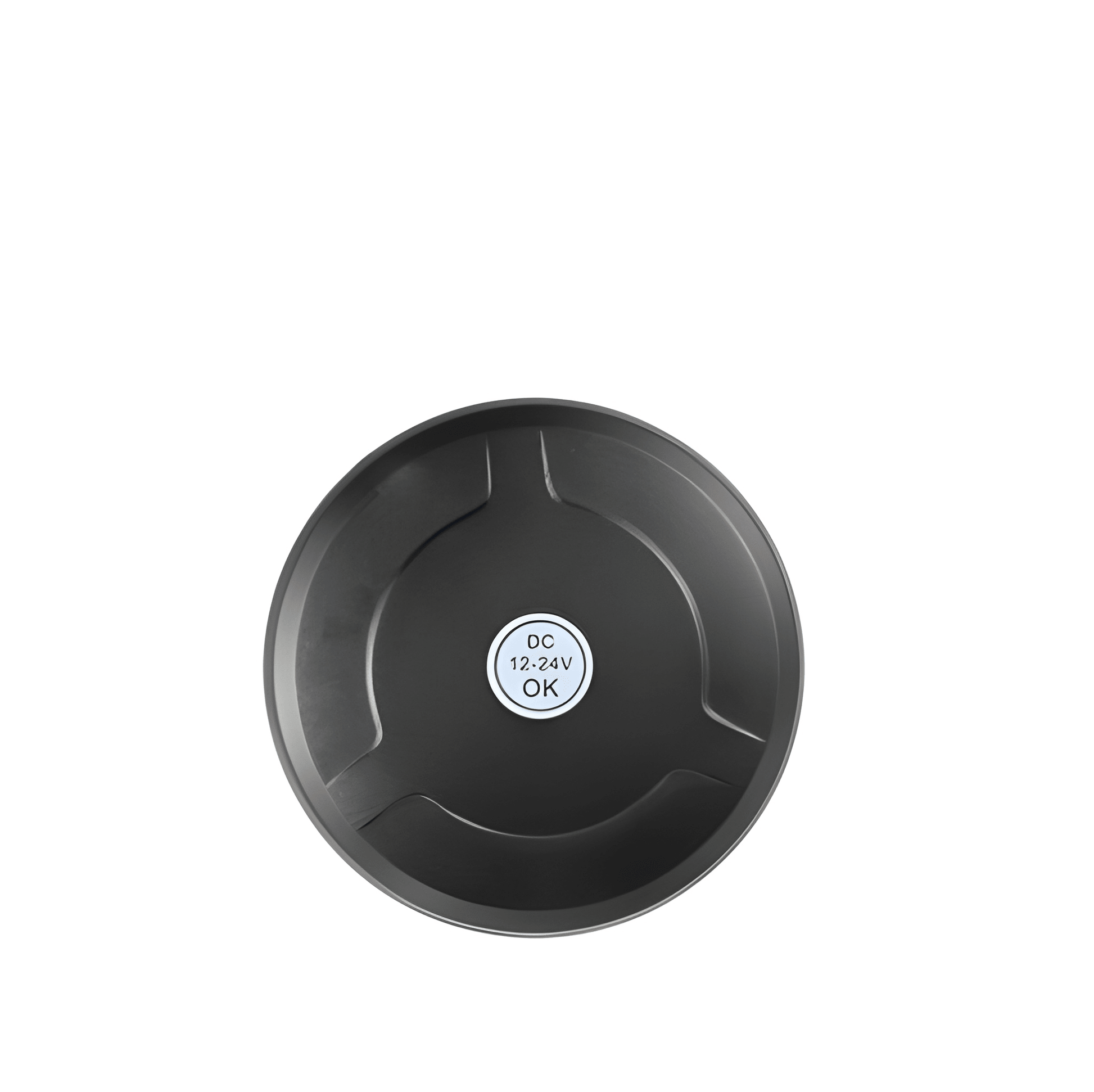

• Wide Voltage Compatibility: Operating on a versatile 12-24V DC power supply, this LED beacon is compatible with virtually any vehicle.
• High-Intensity LEDs: Equipped with 48 x 1W LEDs, it delivers a powerful and bright light output, ensuring you are seen from a distance.

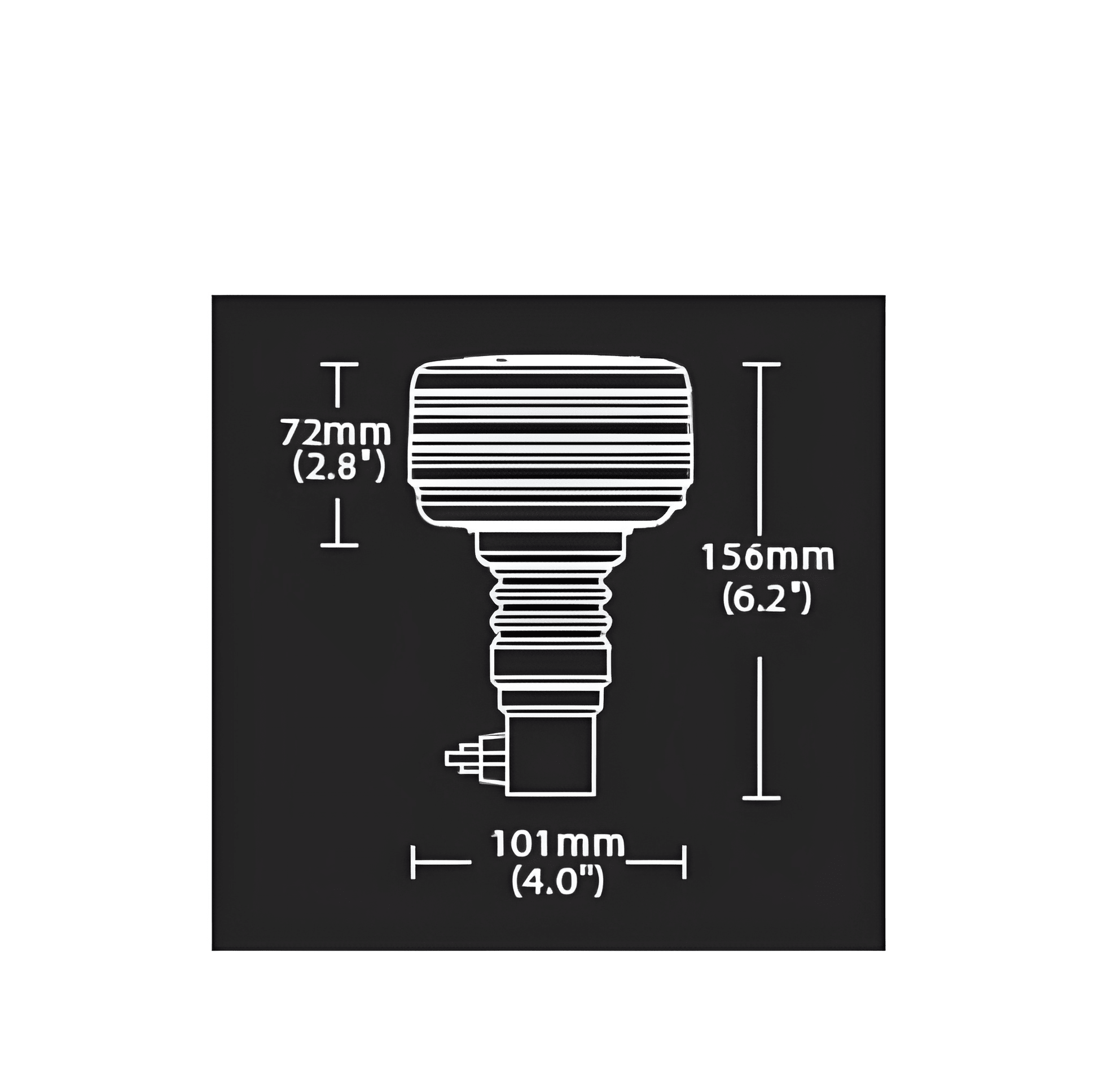

• Dimentions: 101mm x 156mm

Pole Mount Preparation:

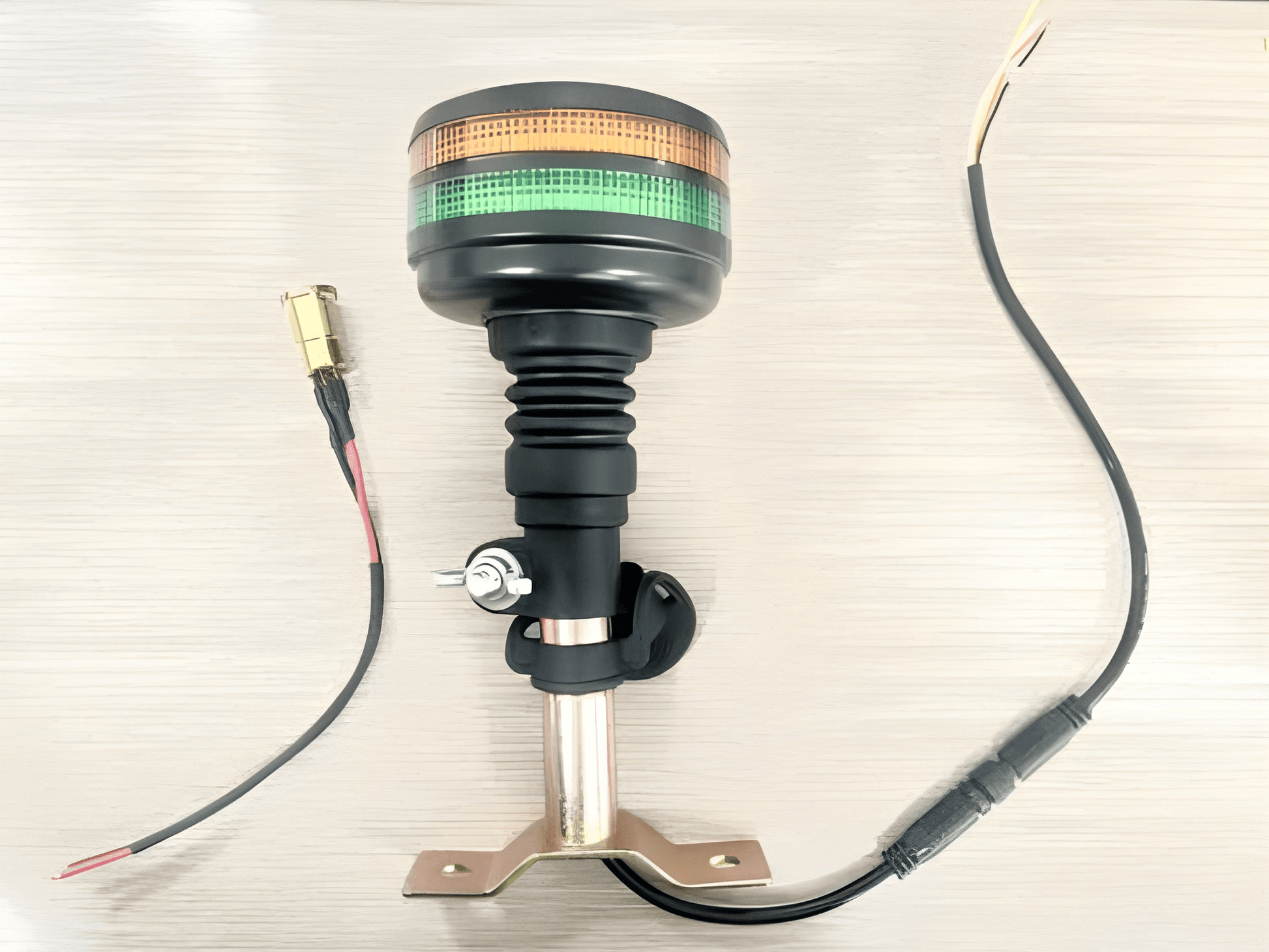

** The pole in the second image is for demonstration purposes only, it's NOT included with the beacon**

Install a new pole mount on your vehicle. Remove the center screw from the pole mount to allow the beacon’s wire to be fed through the center.

Wiring the Beacon:

Feed the wire attached to the beacon through the center of the pole mount and route it inside the vehicle.

• Pin 1 (Black): Negative (Ground)
• Pin 2 (Red): Positive – Controls the amber section of the beacon
• Pin 3 (Yellow): Positive – Controls the green section of the beacon
• Pin 4 (White): Synchronization wire

Connector Details:

The beacon wire terminates in a four-pin screw connector, which can be opened for wiring. Connect the other side of this four-pin screw connector to your vehicle’s wiring as follows:

Synchronization of Multiple Beacons:

If installing more than one LG670 beacon, connect the white synchronization wires of all beacons together. This will ensure all beacons flash in the same synchronized pattern.

Changing Flash Patterns:

To change the beacon’s flash pattern, use the buttons located at the base of the beacon:

• Press the Green button to change the green light pattern
• Press the Yellow button to change the amber light pattern
