New 12V 1.0KW Starter Motor 9 Teeth Fits: Kubota, Mitsubishi 113211 / STR70502
113211
STR70502
Electrical specifications
Voltage - 12
KW - 1.0

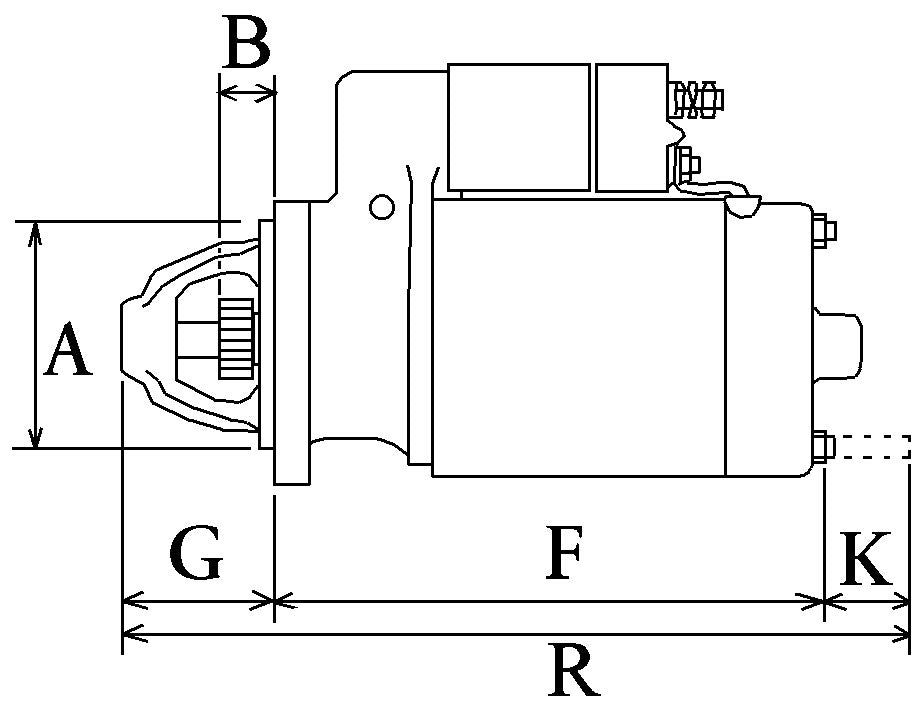

Physical specifications
A Mount. flange - 66.00
B Drive dist. - 19.00

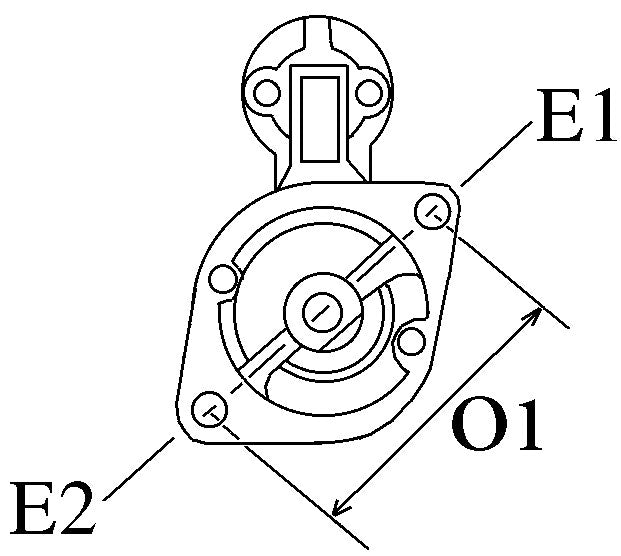

E Mount. hole 2 mm - 9.00
E Mount. hole 1 mm - 9.00
F Dist./back - 150.50
G Dist./front - 52.50
H No./teeth - 9
I B+ M8
L Terminal 50 - 6.30
N Gear type - DD
O Dist. mm - 110.00
P Rotation - CW
R Total length mm - 213.00
No./mount. holes - 2 (0)
Additional information
Clutch type - Dry
Drive type - Steel
Waterproof - No
Oil sealed - No
Replacing
0986UR1547 Bosch Exchange
113211 HC-Cargo
114194 HC-Cargo
18417N WAI
18417R WAI
1G02363010 Kubota
1G02363011 Kubota
1G02363012 Kubota
20130138 AES
20130139 AES
2280005910 Denso
2280005911 Denso
2280007480 Denso
2280007481 Denso
2280807481 Denso
24312141 Dixie
6798031150 Kubota
6798031151 Kubota
6798031152 Kubota
690513092 PSH
91295554 Wilson
9722809591 Denso
AKS972 ATK
AKS997 ATK
DENDSN2075 Wood Auto
DENDSN2076 Wood Auto
DRS0148 Delco Remy
DSN2075 Denso
F032113211 HC-Cargo
K351181410 Kubota
K351181411 Kubota
K351181412 Kubota
LRS02300 Lucas
LRS2300 Lucas
M000T90883 Mitsubishi
M0T90883 Mitsubishi
RNL2280005910 RNL
S8941 Dixie
S8941R Dixie
SR5056X Bosch (USA)
STR30014 Wood Auto
STR70293 Wood Auto
STR70502 Wood Auto
WOOSTR70502 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
