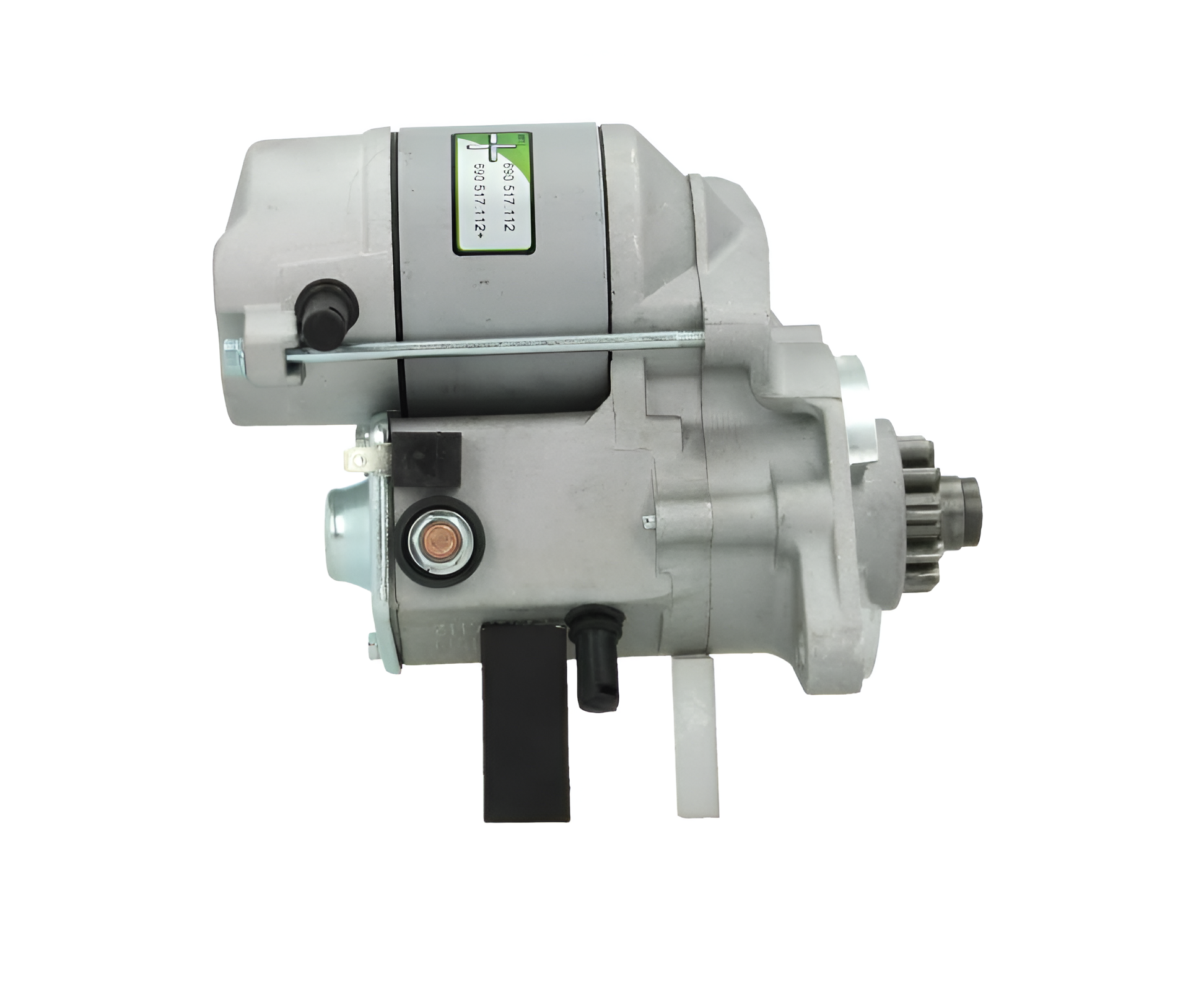

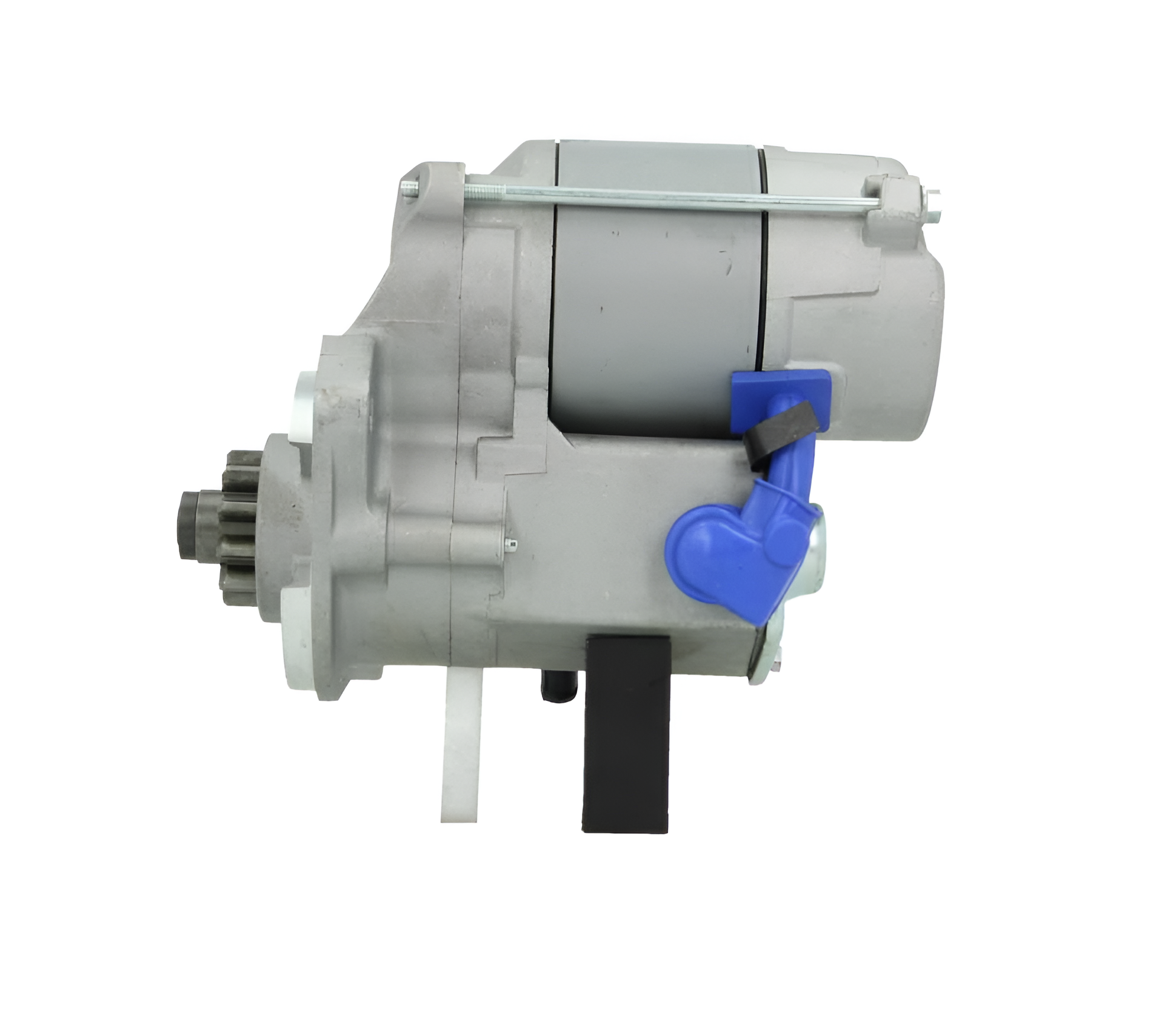

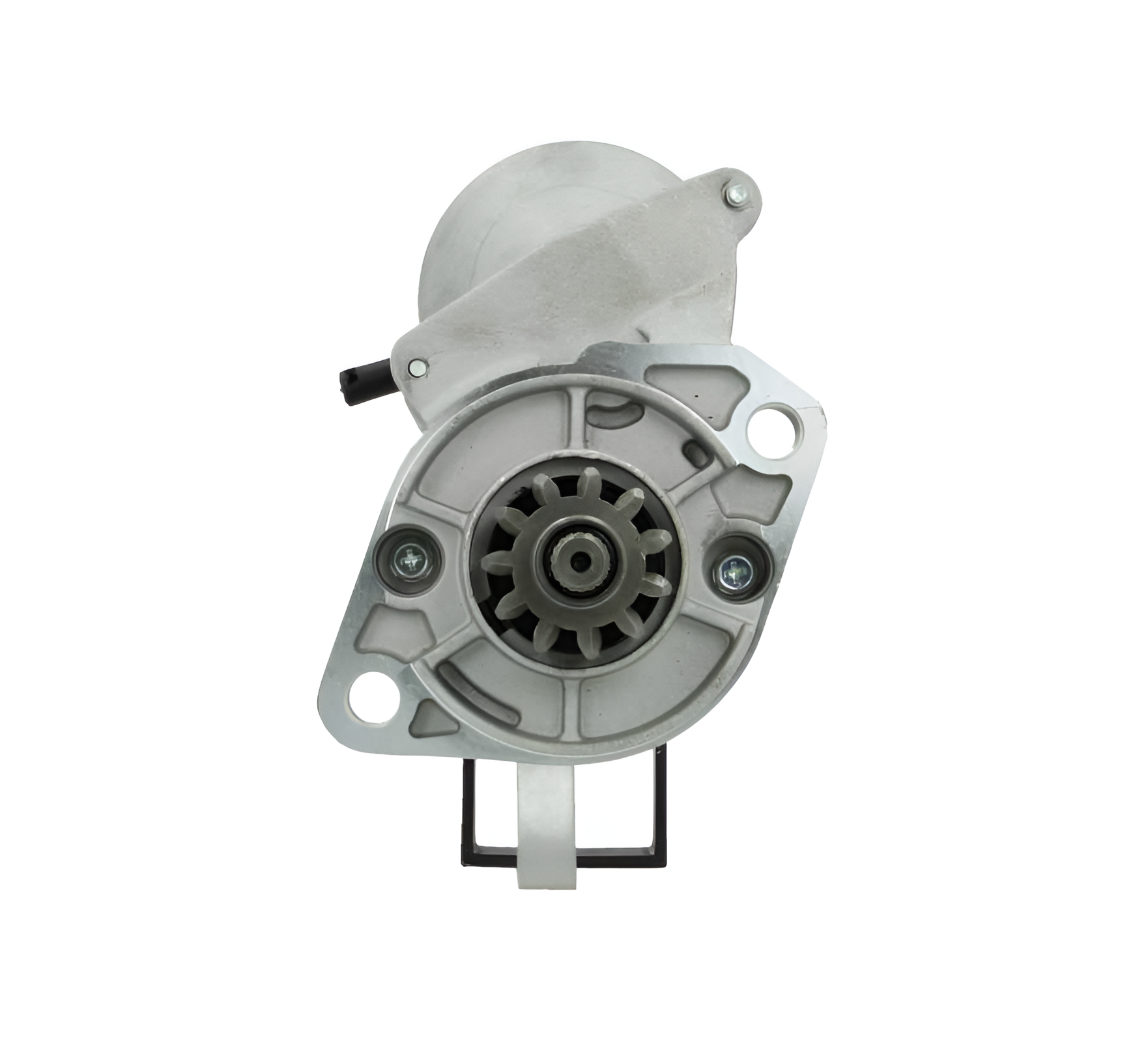

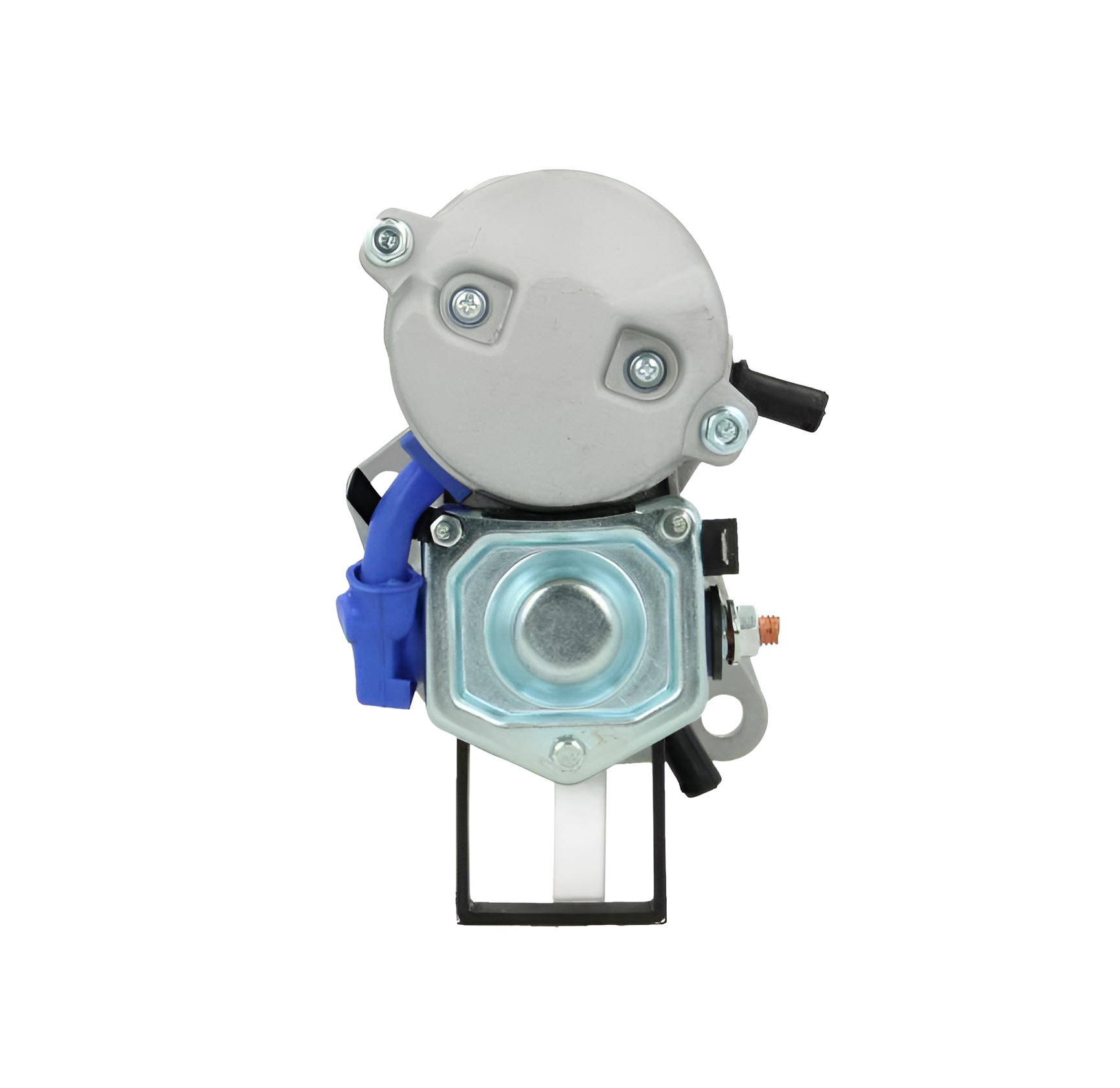

New 12V 1.4KW Starter Motor 11 Teeth Fits: Kubota, Agriculture Vehicles, Carrier 110940 / STR70490

New 12V 1.4KW Starter Motor 11 Teeth Fits: Kubota, Agriculture Vehicles, Carrier 110940 / STR70490

110940

STR70490

Electrical specifications

• Voltage - 12
• KW - 1.4

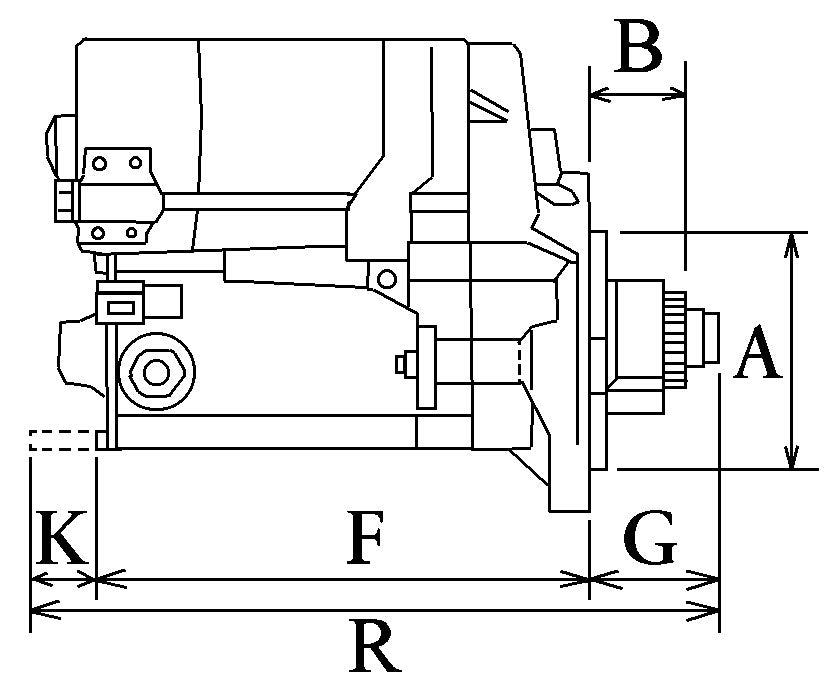

Physical Specifications

• A    Mount. flange - 82.50

• B    Drive dist. - 25.00

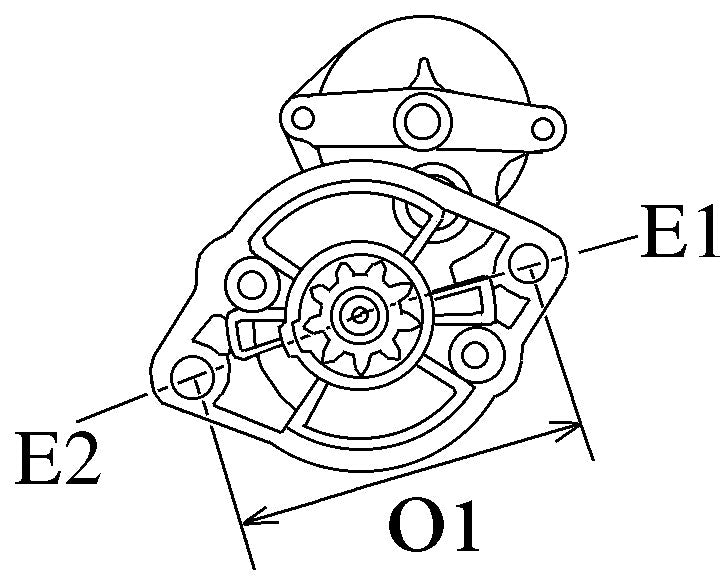

• E    Mount. hole 2 mm - 11.40

• E    Mount. hole 1 mm - 11.40

• F    Dist./back - 123.00

• G    Dist./front - 31.50

• H    No./teeth - 11

• I    B+ M8

• L    Terminal 50 - 6.30

• N    Gear type - GR

• O    Dist. mm - 105.00

• P    Rotation - CW

• R    Total length mm - 188.00

• No./mount. holes - 2 (0)

Additional Information

• Drive type - Steel

• Waterproof - No

• Oil sealed - No

Replacing

• 110940    HC-Cargo

• 1551163010    Kubota

• 1733163010    Kubota

• 1733163011    Kubota

• 1738163010    Kubota

• 1738163015    Kubota

• 18141N    WAI

• 18141R    WAI

• 20130129    AES

• 22733ND    WAI

• 22733ND2    WAI

• 2280001040    Denso

• 2280001041    Denso

• 2280001042    Denso

• 2280801041    Denso

• 503470    New Holland

• 690552112    PSH

• 91295310    Wilson

• AKS973    ATK

• AKS989    ATK

• AKS999    ATK

• DENDSN2085    Wood Auto

• DSN2085    Denso

• F032110940    HC-Cargo

• KEARS17381    Kubota

• LRS01547    Lucas

• LRS1547    Lucas

• STR70490    Wood Auto

• STR8111    Unipoint

• TRS142    TWA

• WOOSTR70490    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
