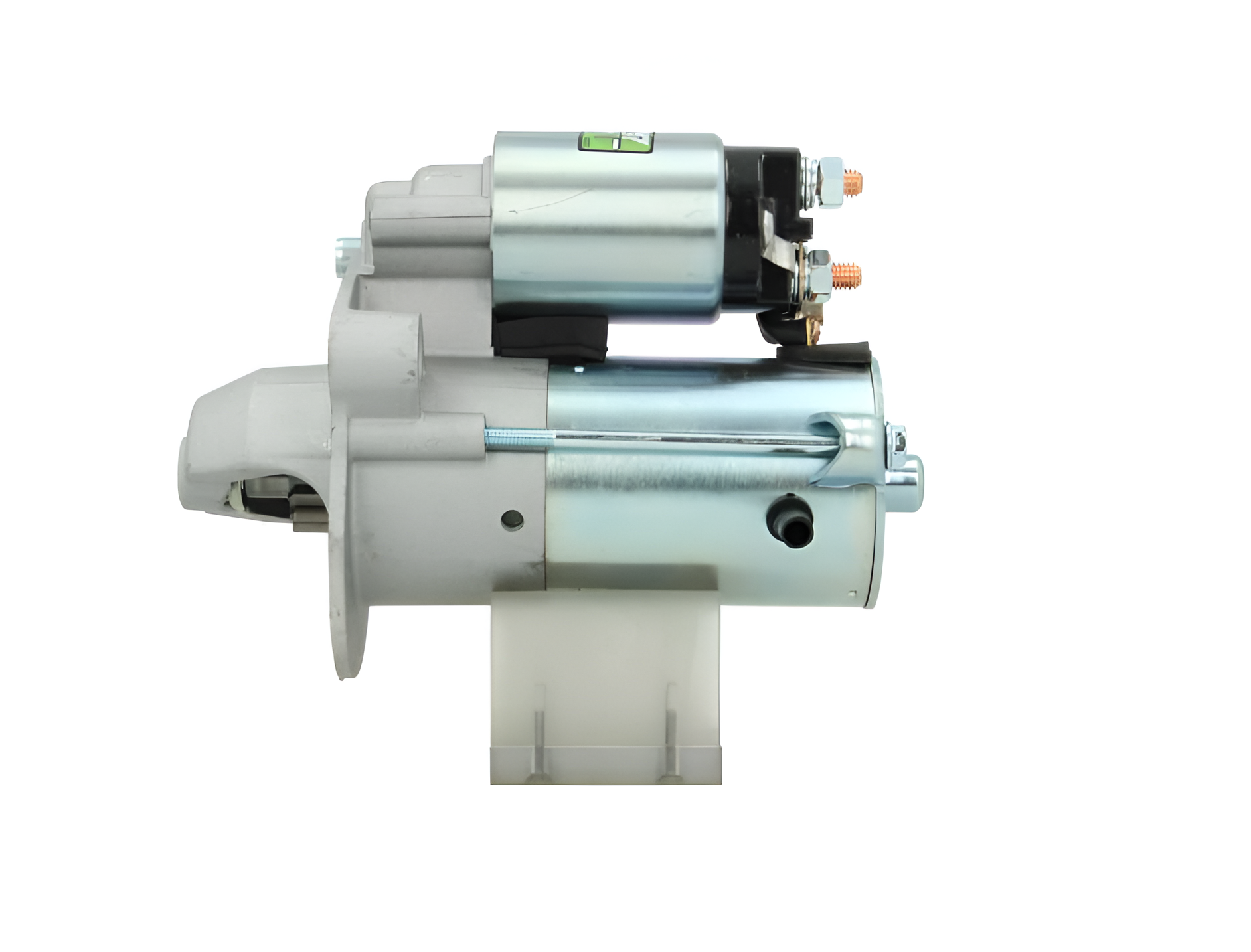

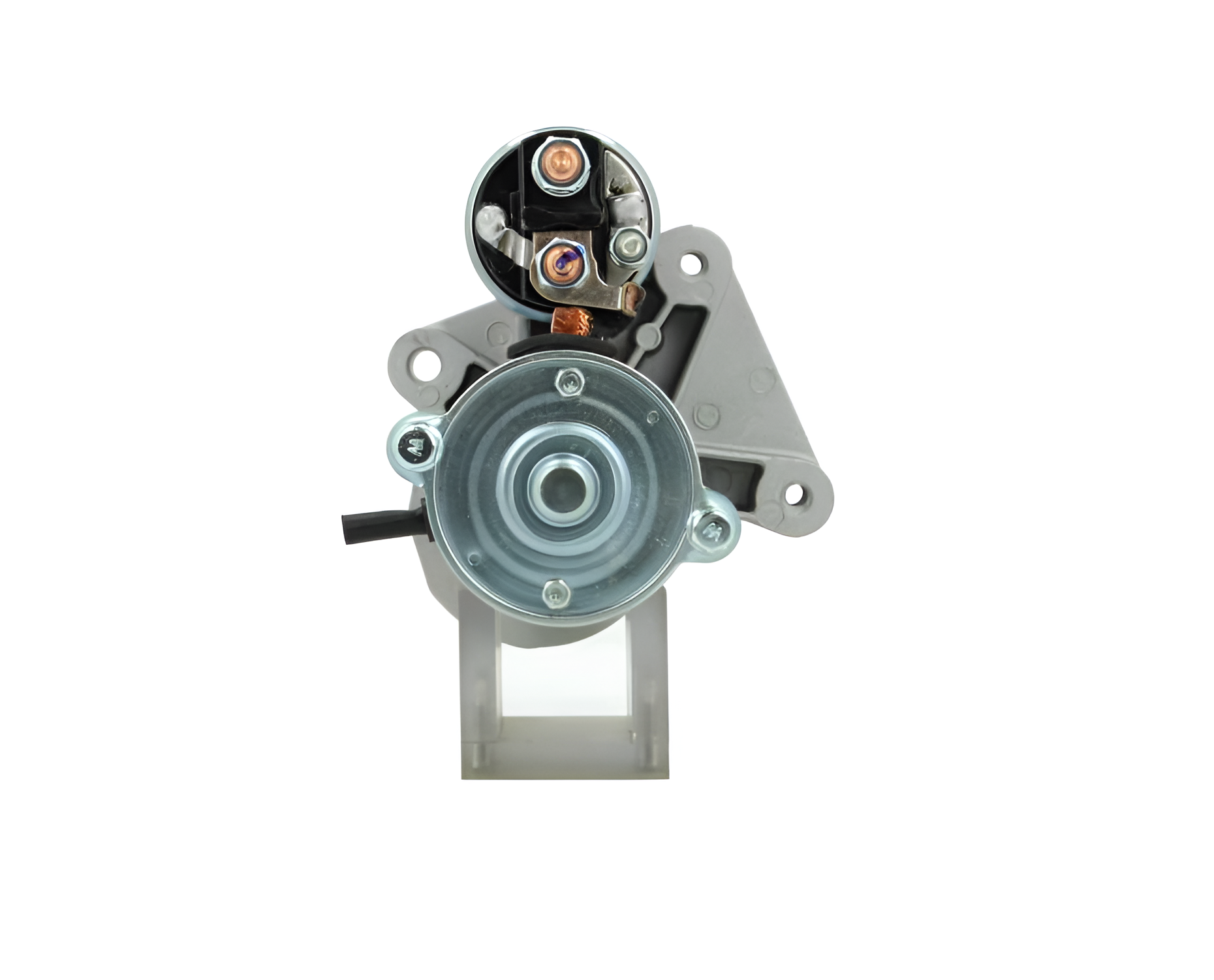

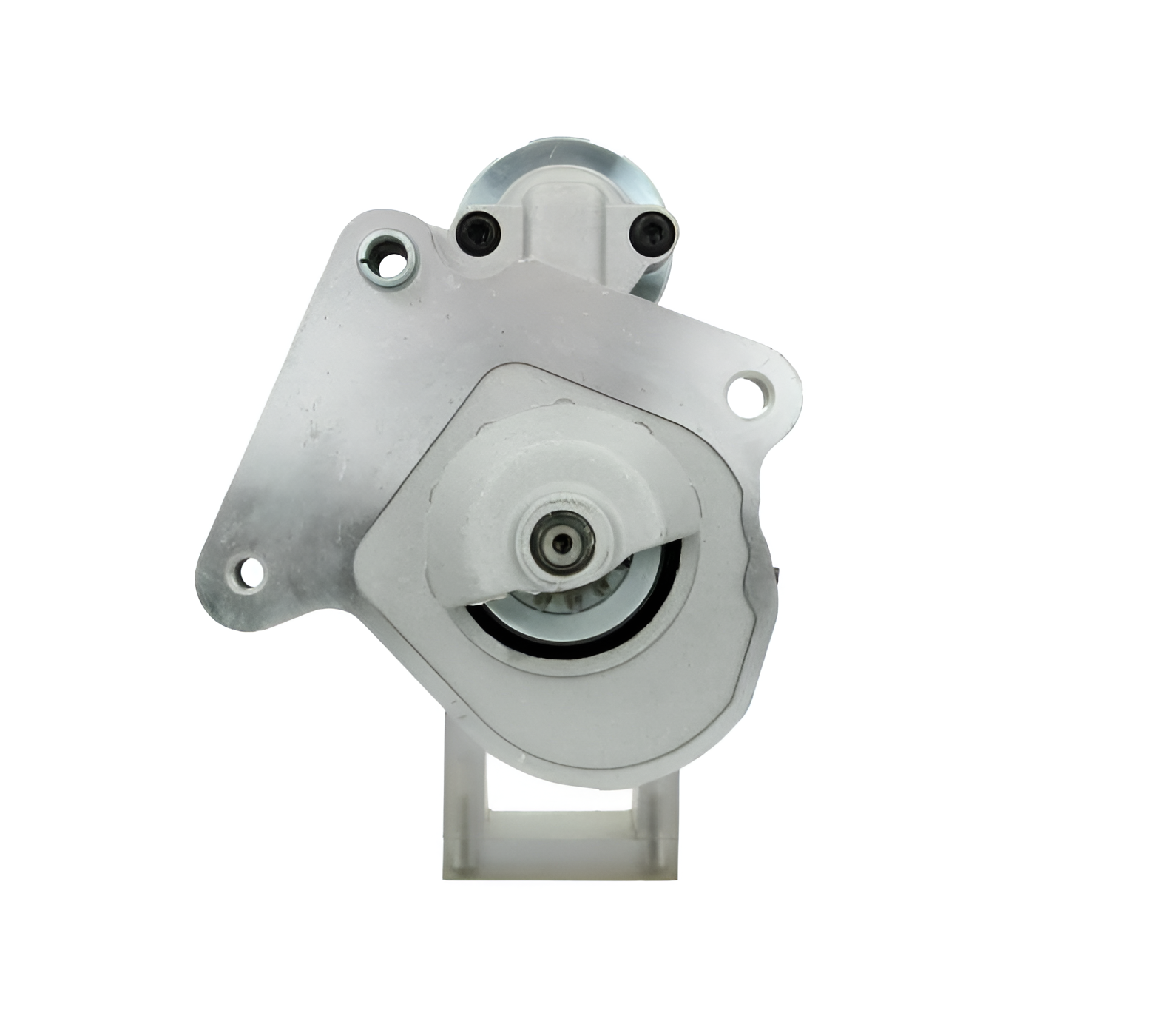

New 12V 1.4KW Starter Motor 12 Teeth Fits: Ford, Mazda 116159 / STR61805
116159
STR61805
Electrical specifications
Voltage - 12
KW - 1.4

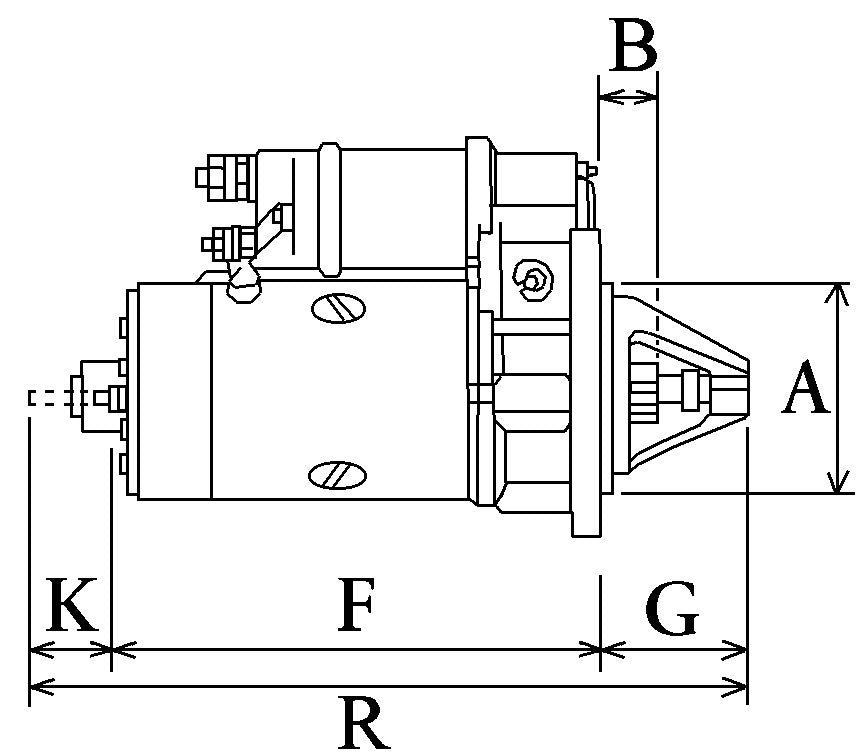

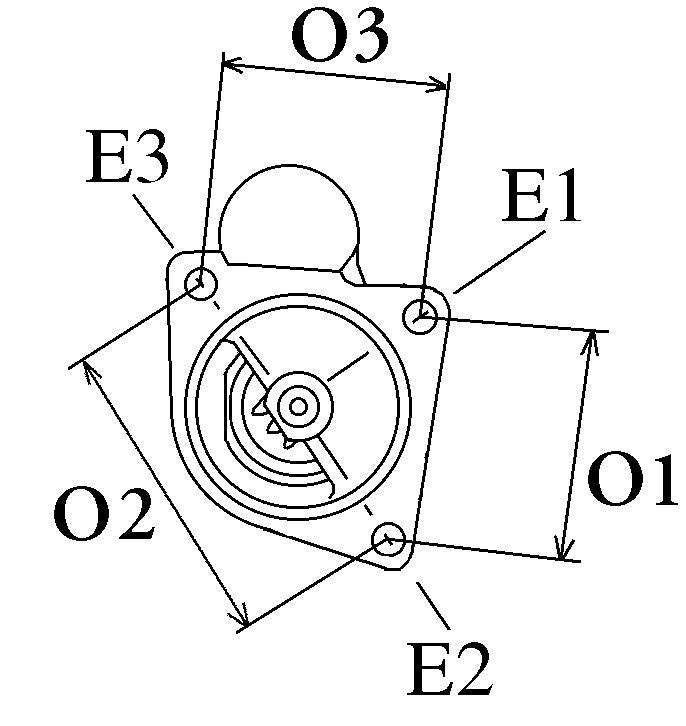

Physical specifications
B Drive dist. 14.00
E Mount. hole 3 mm M8
E Mount. hole 1 mm 9.00
F Dist./back 154.50
G Dist./front 45.50
H No./teeth 10,12
I B+ M8
L Terminal 50 M6
N Gear type GR
O Dist. 2 74.50
O Dist. 3 83.00
O Dist. mm 115.50
P Rotation CW
R Total length mm 200.00
No./mount. holes 3 (2)
Additional information
Drive type - Steel
Waterproof - No
Oil sealed - No
Replacing
063280021010 Magneti Marelli
0986022121 Bosch Exchange
113905 HC-Cargo
1140757 Ford
1144505 Ford
116159 HC-Cargo
1350459 Ford
1368974 Ford
1483817 Ford
15130012 AES
1734633 Ford
1762873 Ford
1858879 Ford
2010001021 Visteon
2010001048 Visteon
2S6U11000EA Ford
2S6U11000EB Ford
2S6U11000EC Ford
2S6U11000ED Ford
2S6U11000EE Ford
2S6UEA Ford
2S6UEB Ford
2S6UEC Ford
2S6UED Ford
2S6UEE Ford
32516N WAI
32516R WAI
4041587 Delco Remy
458640 Valeo
590538123 PSH
63280021 Magneti Marelli
63280021010 Magneti Marelli
CS1275 HC-Parts
DRS3957 Delco Remy
DRS3957N Delco Remy
F032116159 HC-Cargo
F042S0H066 Bosch
HCS1275 HC-Parts
LES0430 Lucas
LRS01717 Lucas
LRS1717 Lucas
MSN8021 Magneti Marelli
OSM10246 Optimum
RAS34068 Delco Remy
RNL2S6UEE RNL
RNL2S6UEET RNL
STR61805 Wood Auto
STRH066 Unipoint
UNISTRH066 Wood Auto
WOOSTR61805 Wood Auto
Y40118400 Mazda
Y40118400A Mazda
Y40118400B Mazda
Y40518400 Mazda
Y40518400B Mazda
Y40518400C Mazda
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
Ford Fiesta 1.4 TDCi
Ford Fusion 1.4 TDCi
Mazda 2 1.4 CD
Mazda 2 1.4 MZR-CD
