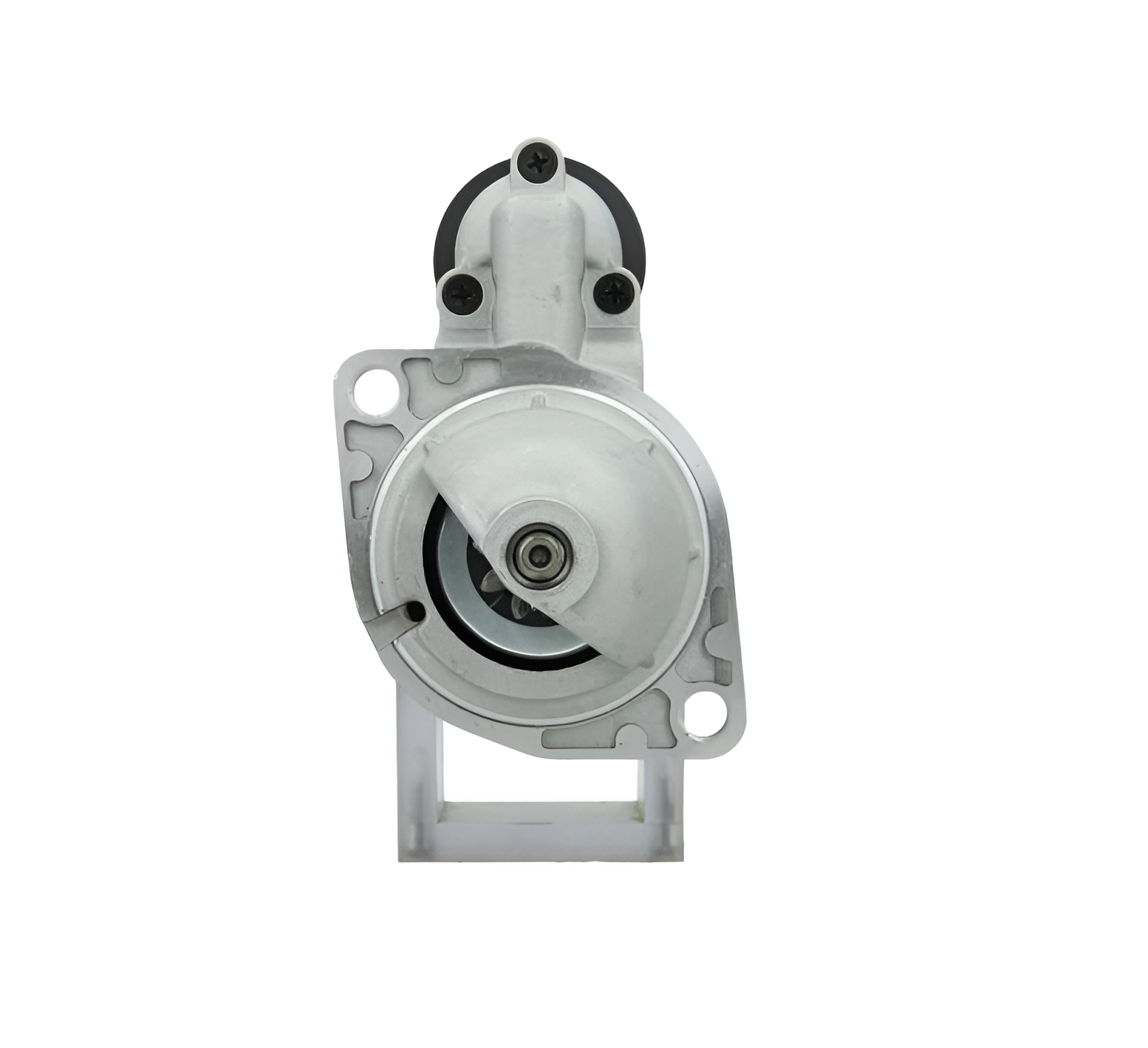

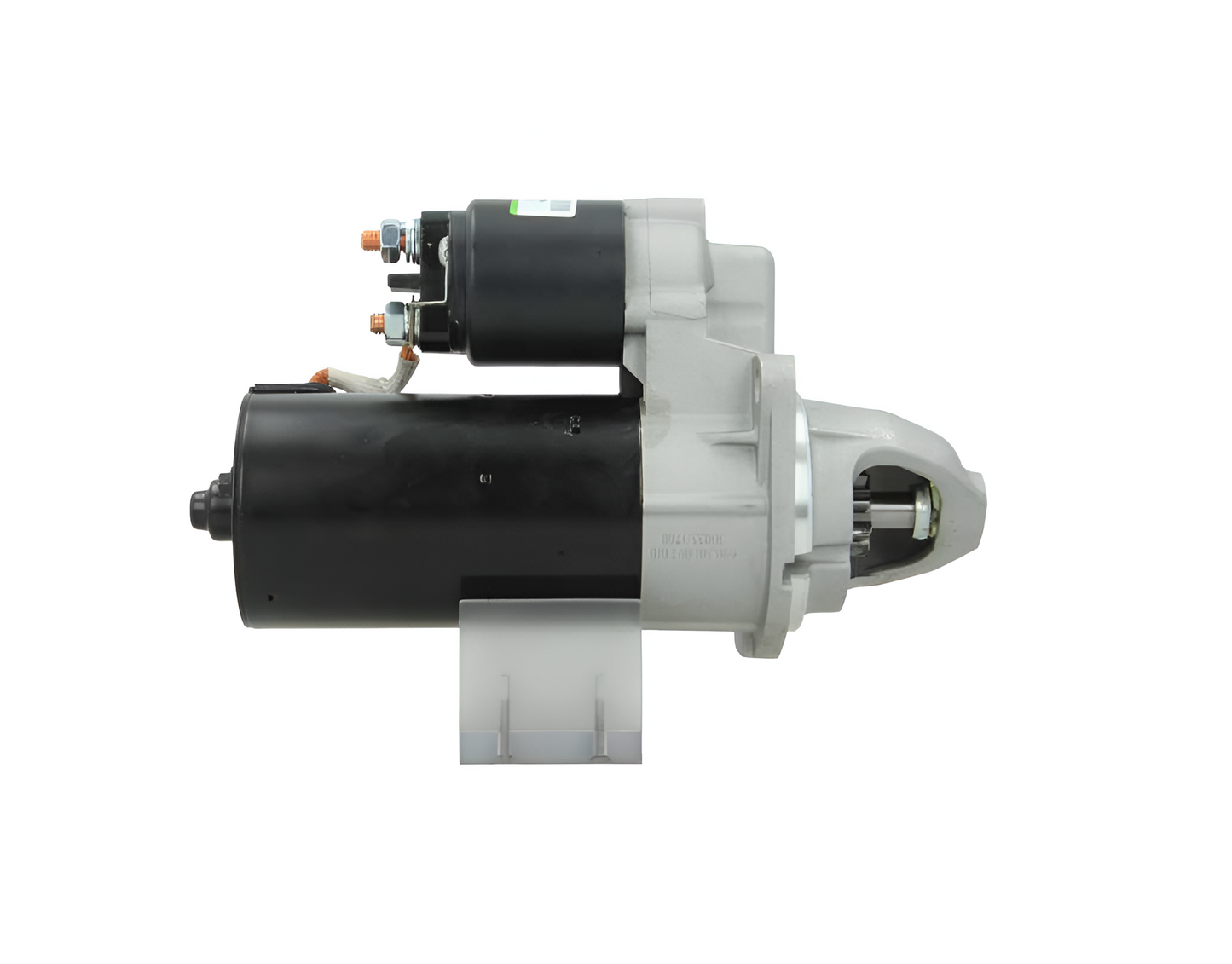

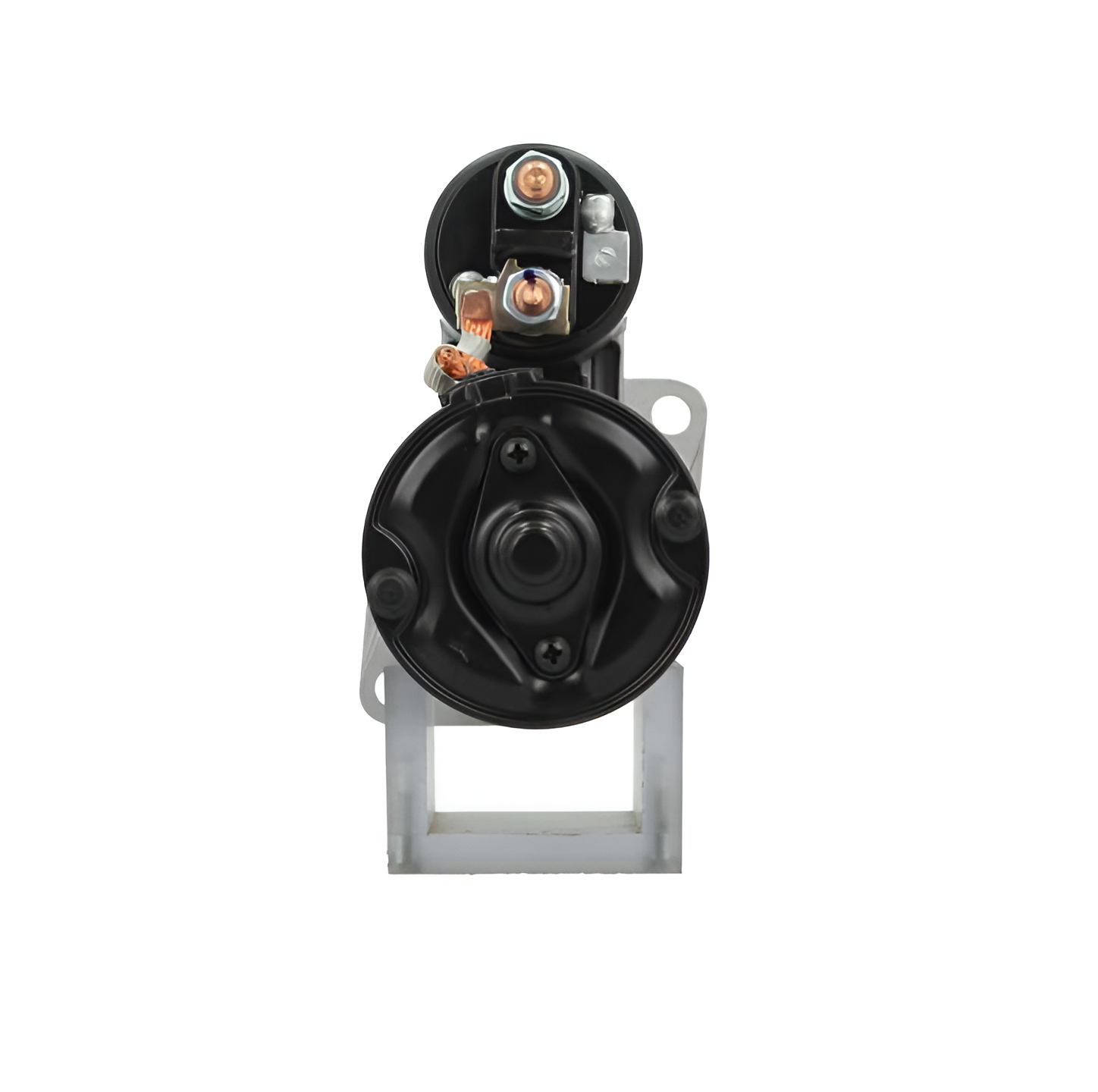

New 12V 1.4KW Starter Motor 9 Teeth Fits: Ferrari, Lombardini, BMW etc. 115816 / STR22070
115816
STR22070
Electrical specifications
Voltage - 12
KW - 1.4

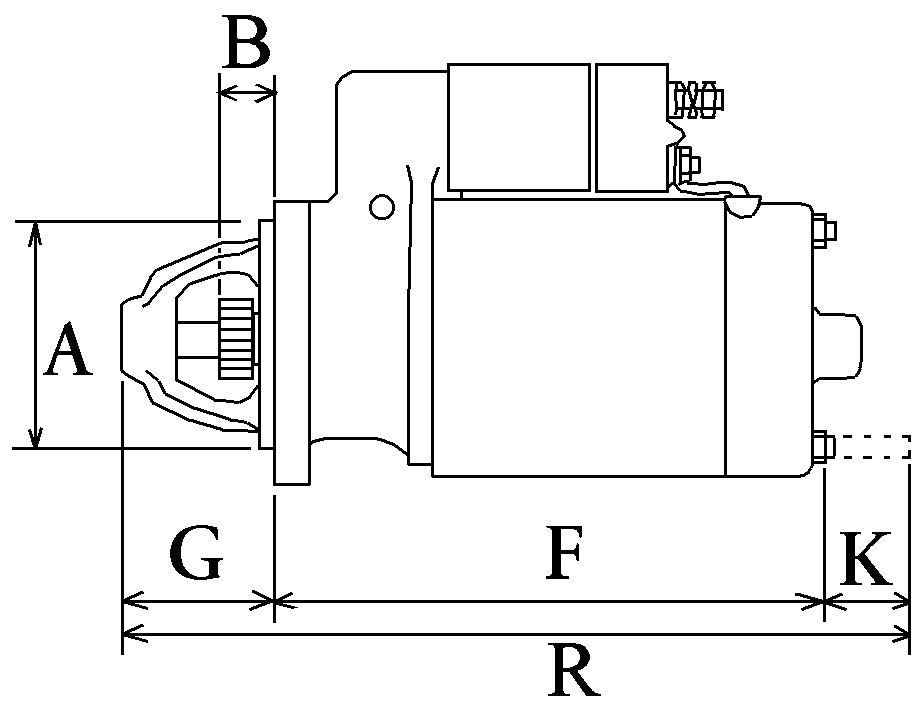

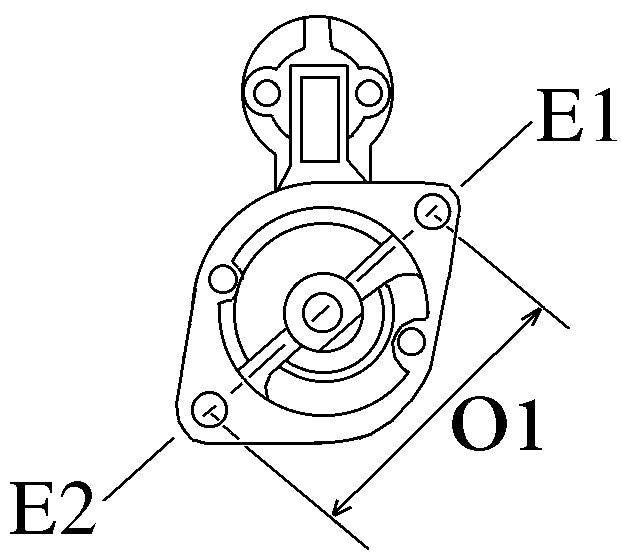

Physical specifications
A Mount. flange - 76.20
B Drive dist. - 28.00
E Mount. hole 2 mm - 10.50
E Mount. hole 1 mm - 10.50
F Dist./back - 173.00
G Dist./front - 62.50
H No./teeth - 9
I B+ M8
L Terminal 50 - 6.30
N Gear type - GR
O Dist. mm - 105.00
P Rotation - CW
R Total length mm - 247.00
No./mount. holes - 2 (0)
Replacing
0001109009 Bosch
0001115034 Bosch
0001115035 Bosch
0001117013 Bosch
0001314001 Bosch
063521150350 Magneti Marelli
0986019347 Bosch Exchange
0986021767 Bosch Exchange
0986022500 Bosch Exchange
1000194387 Weidemann
1005821194 Lombardini
115816 HC-Cargo
12130215 AES
1514890 Ford
1713898 BMW
1720636 BMW
1720664 BMW
18365N WAI
18365R WAI
1986S00762 Bosch
230347 HC-Cargo
58401470 Lombardini
5840224 Lombardini
58402240 Lombardini
63521150 Magneti Marelli
690501092 PSH
726112 Valeo
763241127 Lombardini
9002901237 Volvo
91157076 Wilson
944280148900 Magneti Marelli
BOS0001115034 Wood Auto
BOS0001115035 Wood Auto
BX109009 Bosch (USA)
CS1545 HC-Parts
DRS3876 Delco Remy
ED0058402240S Lombardini
F002G70047 Bosch
F032115816 HC-Cargo
LRS01439 Lucas
LRS1439 Lucas
MSN2030 Magneti Marelli
MSR403 Magneti Marelli
RNL2250 RNL
SEG0001115034 Wood Auto
SEG0001115035 Wood Auto
SR5055X Bosch (USA)
SR95X Bosch (USA)
STR22070 Wood Auto
STR50541 Wood Auto
WOOSTR22070 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
Ferrari 412 4.9 L
Lombardini Agricultural
Mosa Div. types
