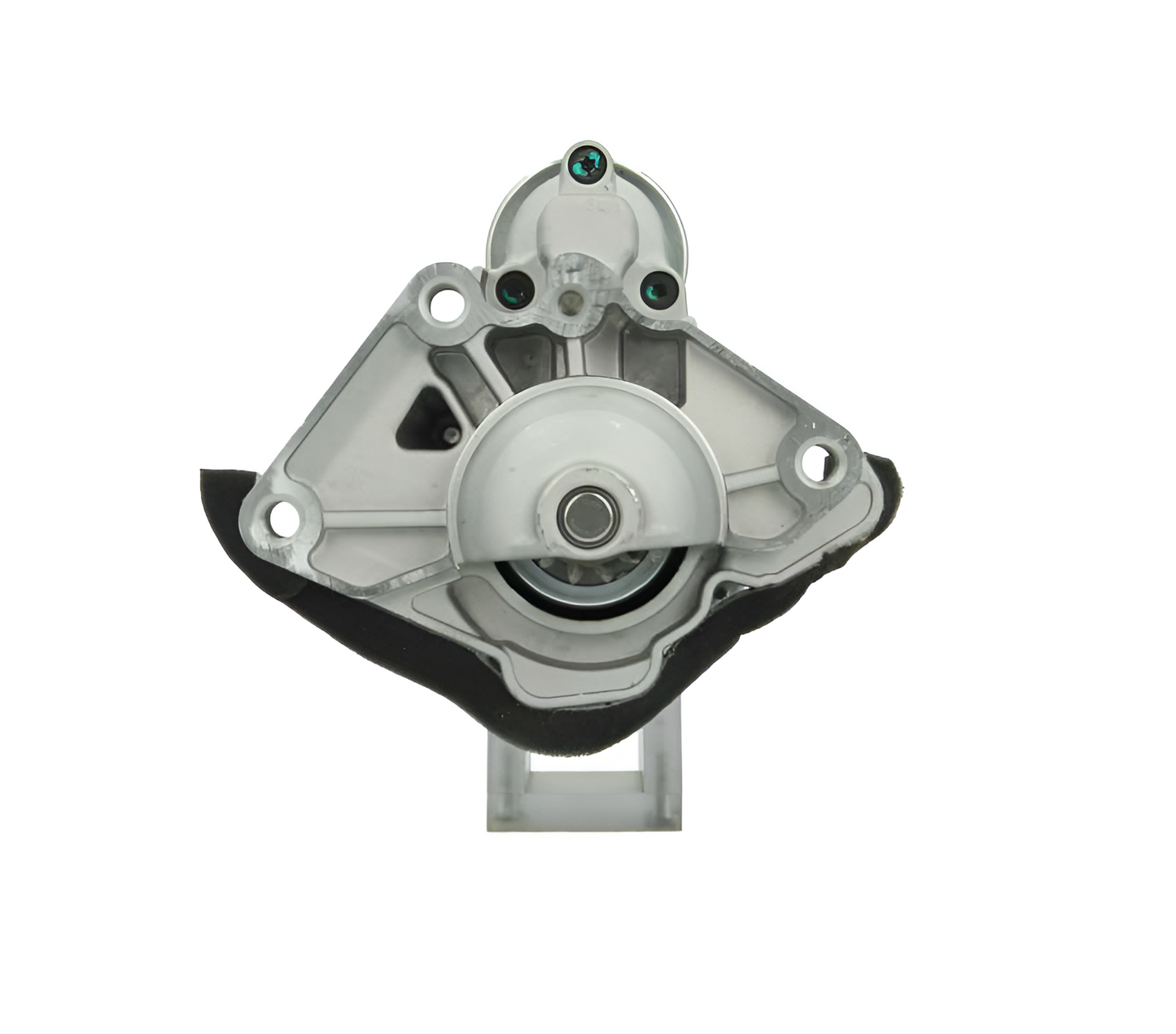

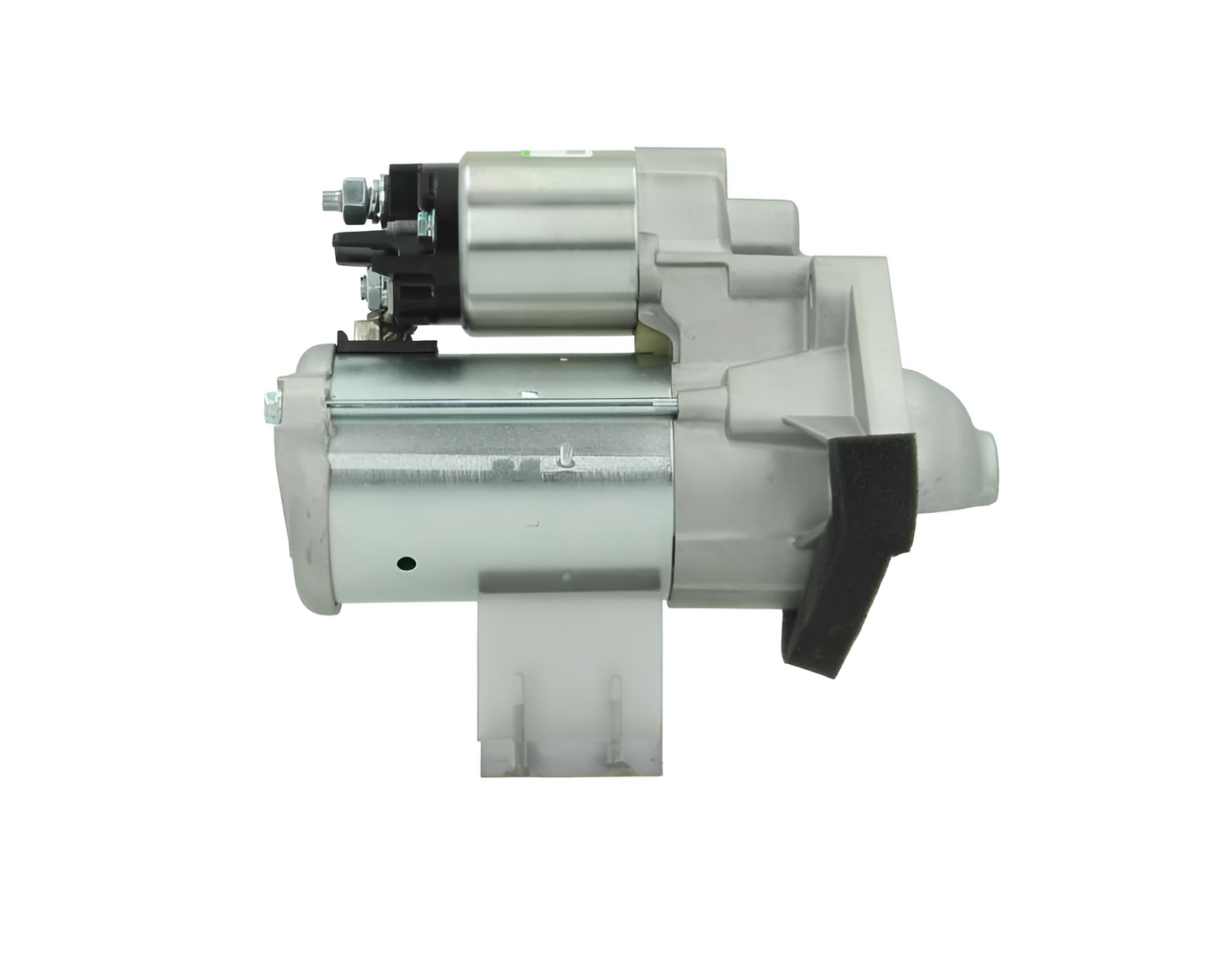

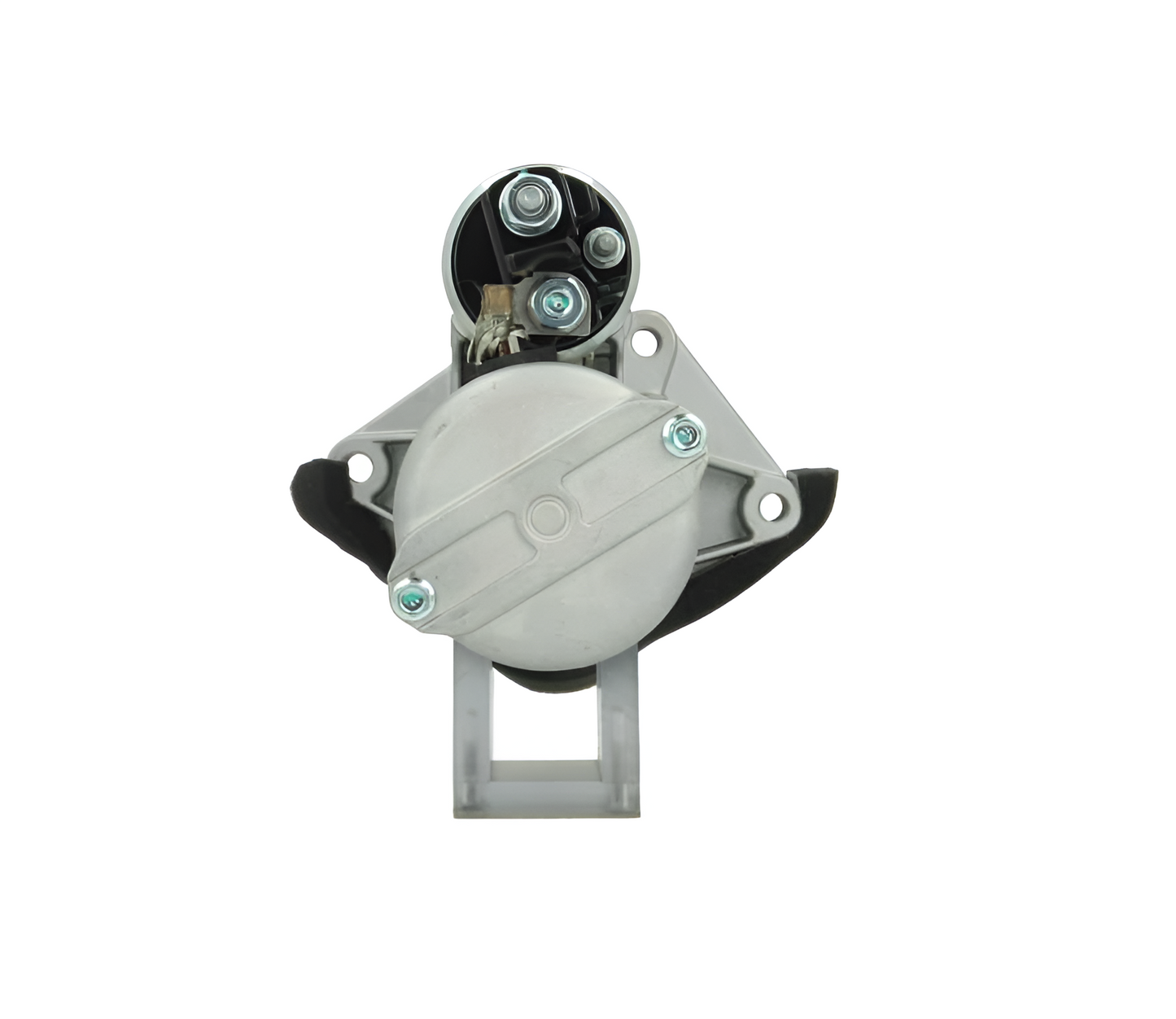

New 12V 1.5KW Starter Motor 12 Teeth Fits: Renault, Vauxhall, Nissan, Fiat 116278 / STR50755
116278
STR50755
Electrical specifications
Voltage - 12
KW - 41.5

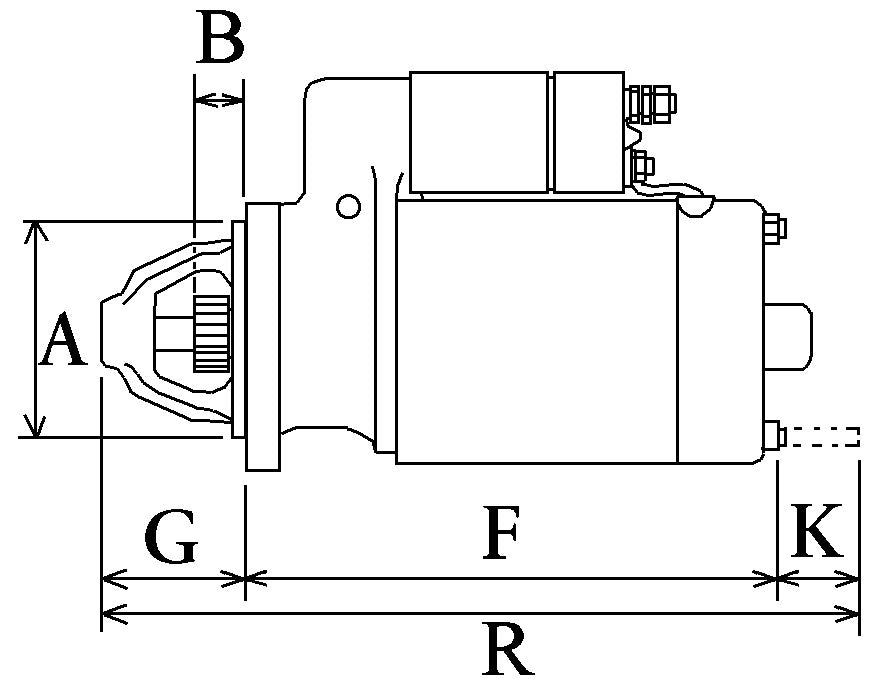

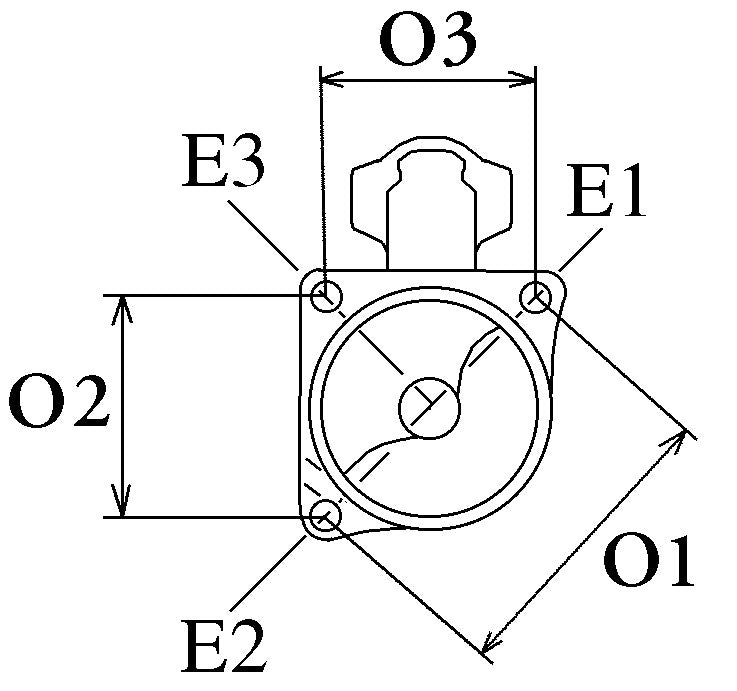

Physical specifications
A Mount. flange 64.00
B Drive dist. 0.00
E Mount. hole 3 mm M10
F Dist./back 164.00
G Dist./front 34.50
H No./teeth 12
I B+ M8
L Terminal 50 M5
N Gear type GR
O Dist. 2 63.00
O Dist. 3 94.50
O Dist. mm 126.00
P Rotation CW
R Total length mm 198.50
No./mount. holes 3 (3)
Replacing
0001170606 Bosch
0001170607 Bosch
0001170607RR RNL
0001170616 Bosch
0001170617 Bosch
0001170620 Bosch
0001170621 Bosch
0001170622 Bosch
0001170623 Bosch
0001170632 Bosch
0001170633 Bosch
0001170633RR RNL
0001B01504 Bosch
0986026790 Bosch Exchange
0986026940 Bosch Exchange
116278 HC-Cargo
1986S00998 Bosch
233000686R Nissan
33340N WAI
570587123 PSH
DRS1068 Delco Remy
F032116278 HC-Cargo
LRS03907 Lucas
LRS3907 Lucas
RNL170607 RNL
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
