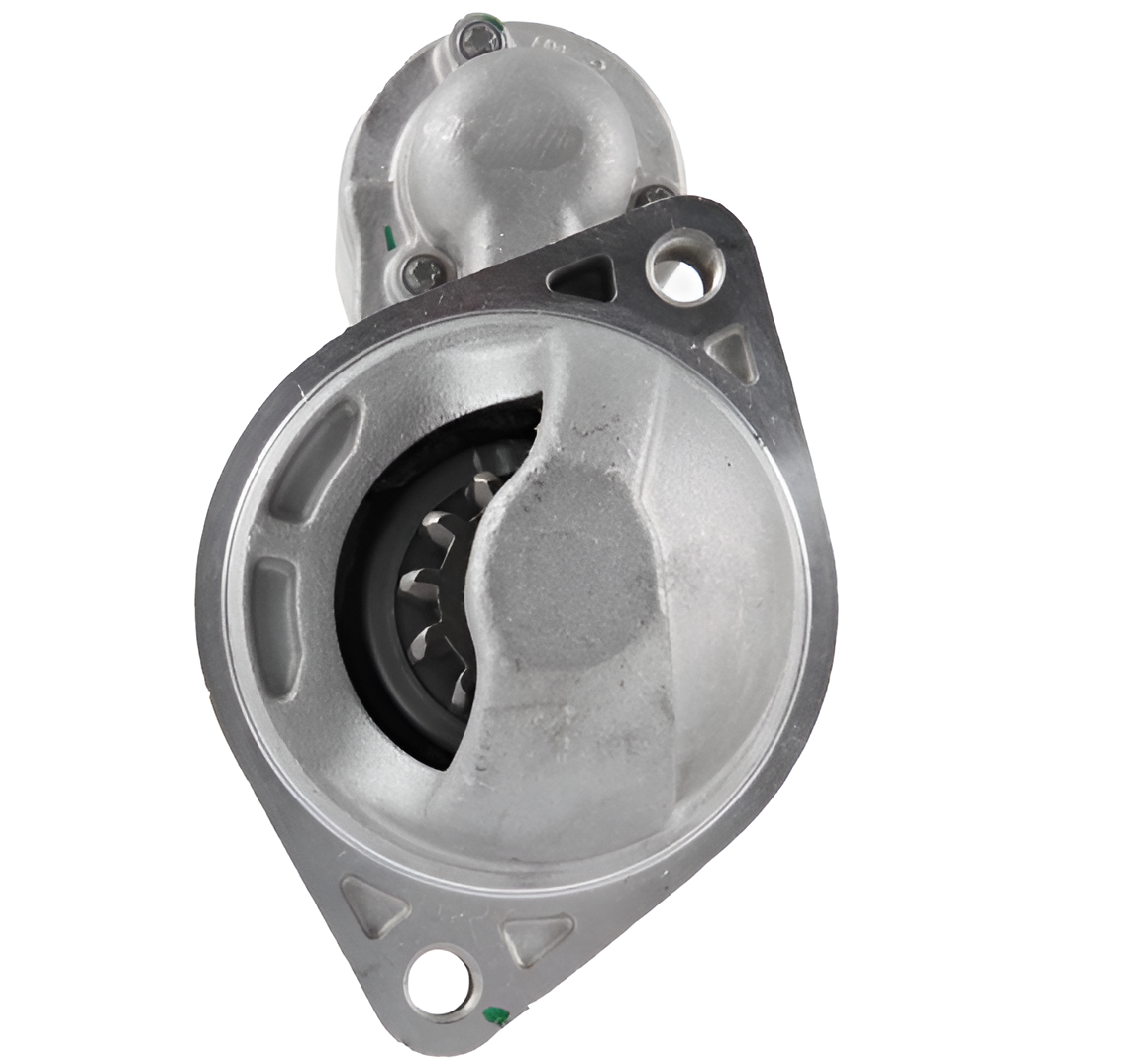

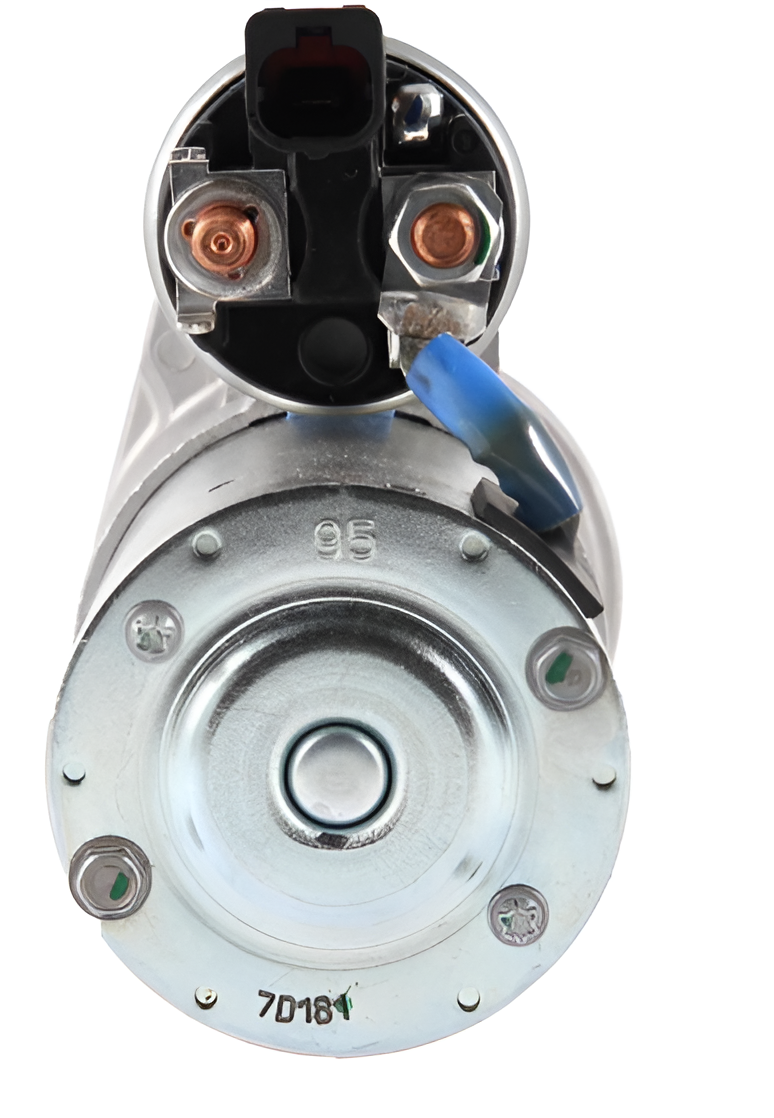

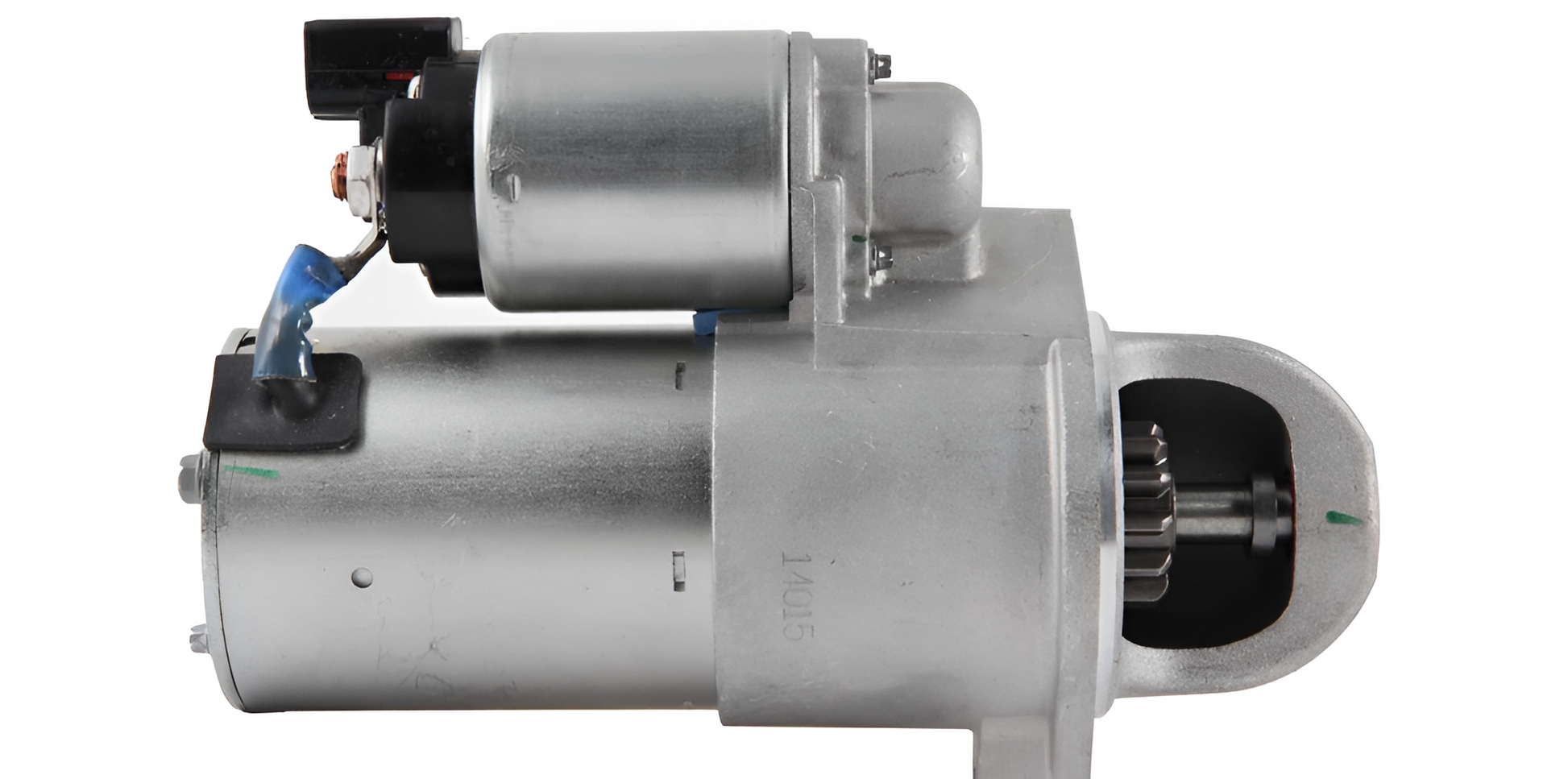

New 12V 1.7KW Starter Motor 12 Teeth Fits: Hyundai, Kia 115446 / STR80184
115446
STR80184
Electrical specifications
Voltage - 12
KW - 1.7

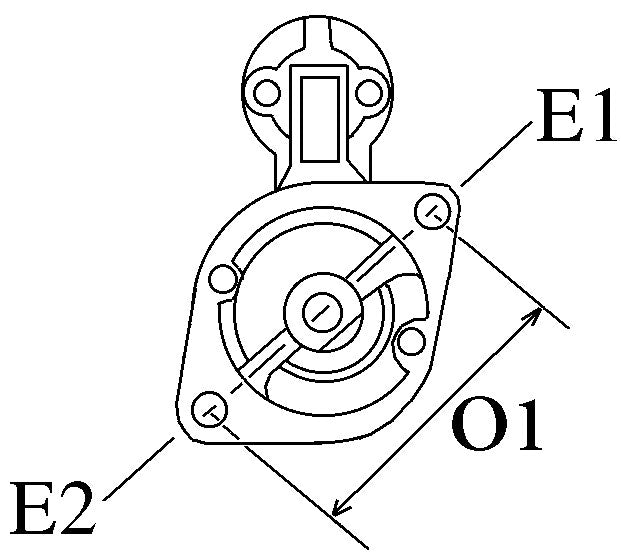

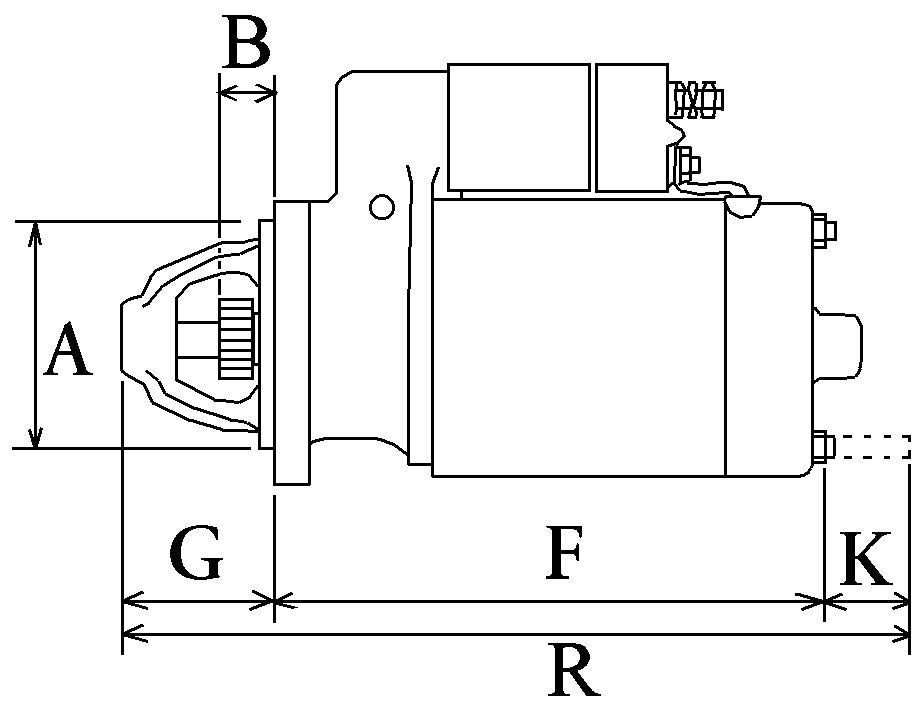

Physical specifications
A Mount. flange - 77.00
B Drive dist. - 16.00
F Dist./back - 166.50
G Dist./front - 55.50
H No./teeth - 11,12
I B+ M8
L Terminal 50 - Plug
N Gear type - GR
O Dist. mm - 102.00
P Rotation - CW
R Total length mm - 222.00
No./mount. holes - 2 (2)
Replacing
115446 HC-Cargo
150944122 PSH
361002A830 Hyundai
8000511 Delco Remy
LRS03793 Lucas
LRS3793 Lucas
RNL8000511 RNL
STR80184 Wood Auto
WOOSTR80184 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
