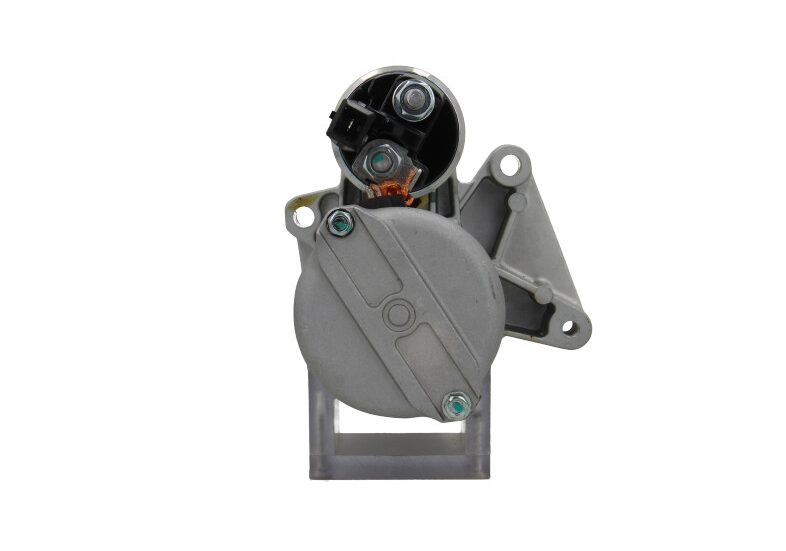

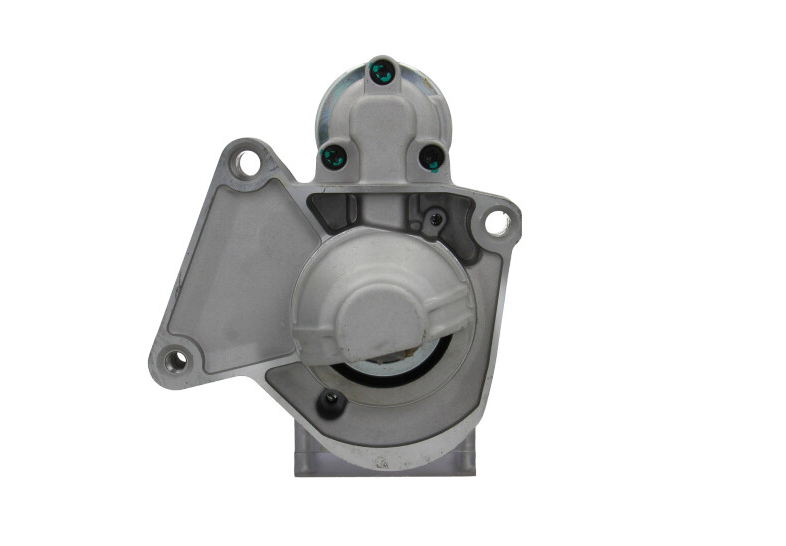

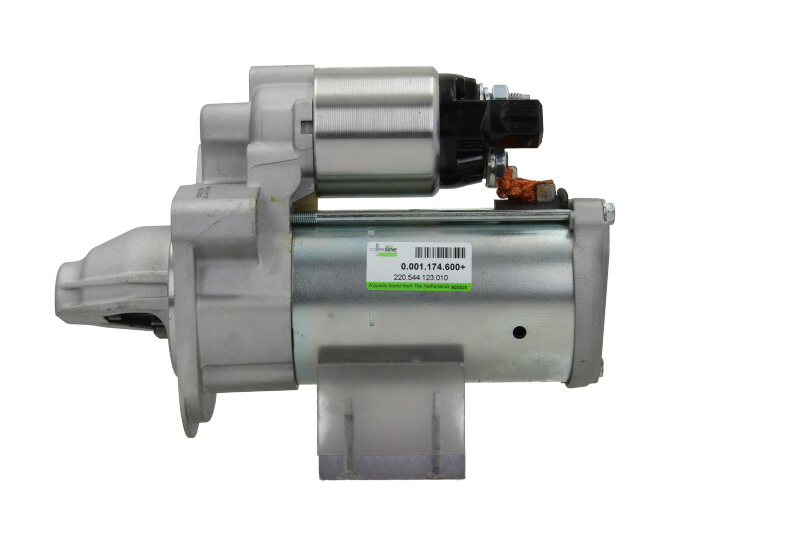

New 12V 1.7KW Starter Motor 12 Teeth Fits: Peugeot, Citroen, Toyota etc. Start Stop
116282
STR50825
Electrical specifications
- Voltage - 12
- KW - 1.7

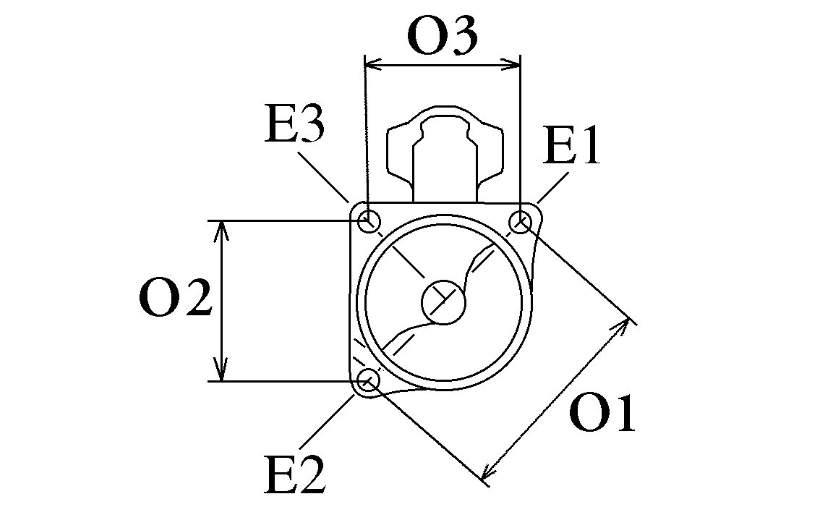

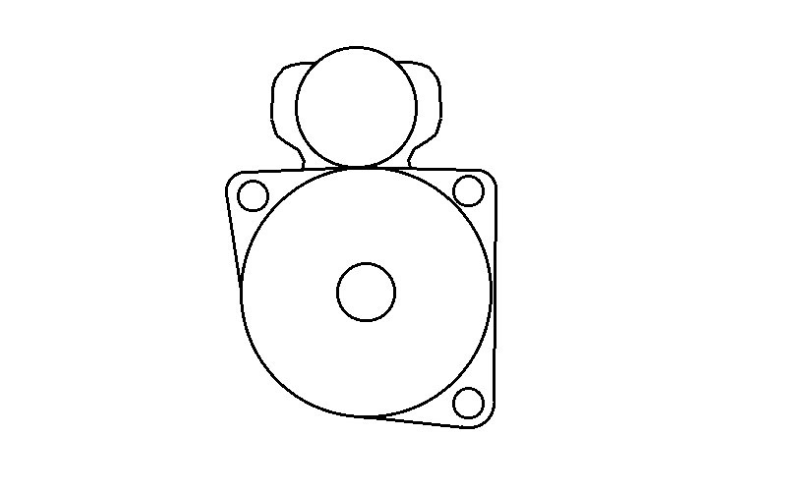

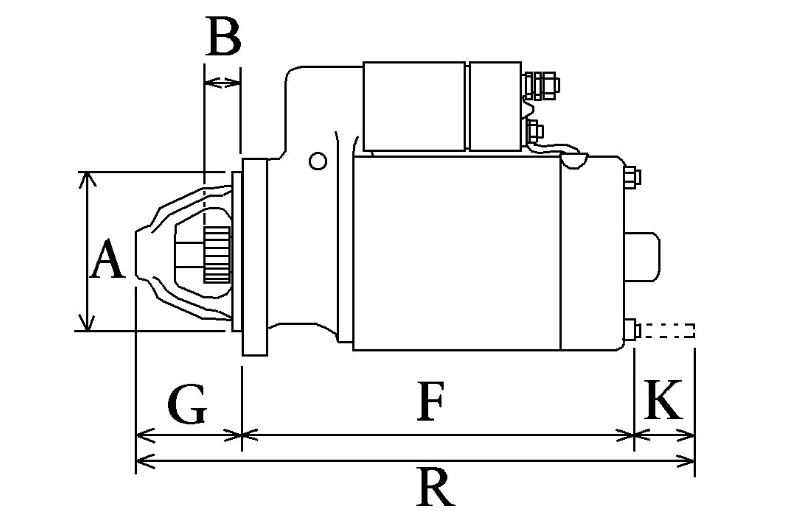

Physical specifications
- No./mount. holes 3 (1)
- Rear Distance 168.00
- Gear type GR
- Front Distance 51.50
- Distance 391.50
- Drive Distance 13.50
- No./teeth 12
- Distance 274.50
- B+ M8
- Terminal 50 Plug
- Mounting Flange 64.00
- Distance 124.00
- Mounting Hole 39.00
- Rotation CW
- Position 47
- Mounting Hole 19.00
- B+ Position 5
- Total Length 220.00
Additional information
- Starter type - Start/Stop
Replacing
- 0001174600 Bosch
- 0001174601 Bosch
- 0001A01305 Bosch
- 0986026280 Bosch Exchange
- 116282 HC-Cargo
- 12130455 AES
- 1627650980 PSA
- 1986S00879 Bosch
- 220544123 PSH
- 30839N WAI
- 30839OS WAI
- 3640268 Opel
- 438526 Valeo
- 458890 Valeo
- 95525946 Vauxhall
- 9675660680 PSA
- DRS1087 Delco Remy
- DRS1148 Delco Remy
- DS2197 Delco Remy
- F032116282 HC-Cargo
- LRS03952 Lucas
- LRS3952 Lucas
- RNL174601 RNL
- SEG0001174600 Wood Auto
- ST240 FAI
- STR50825 Wood Auto
- WOOSTR50825 Wood Auto
- WURT5B700719 Würtemberg
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
-
