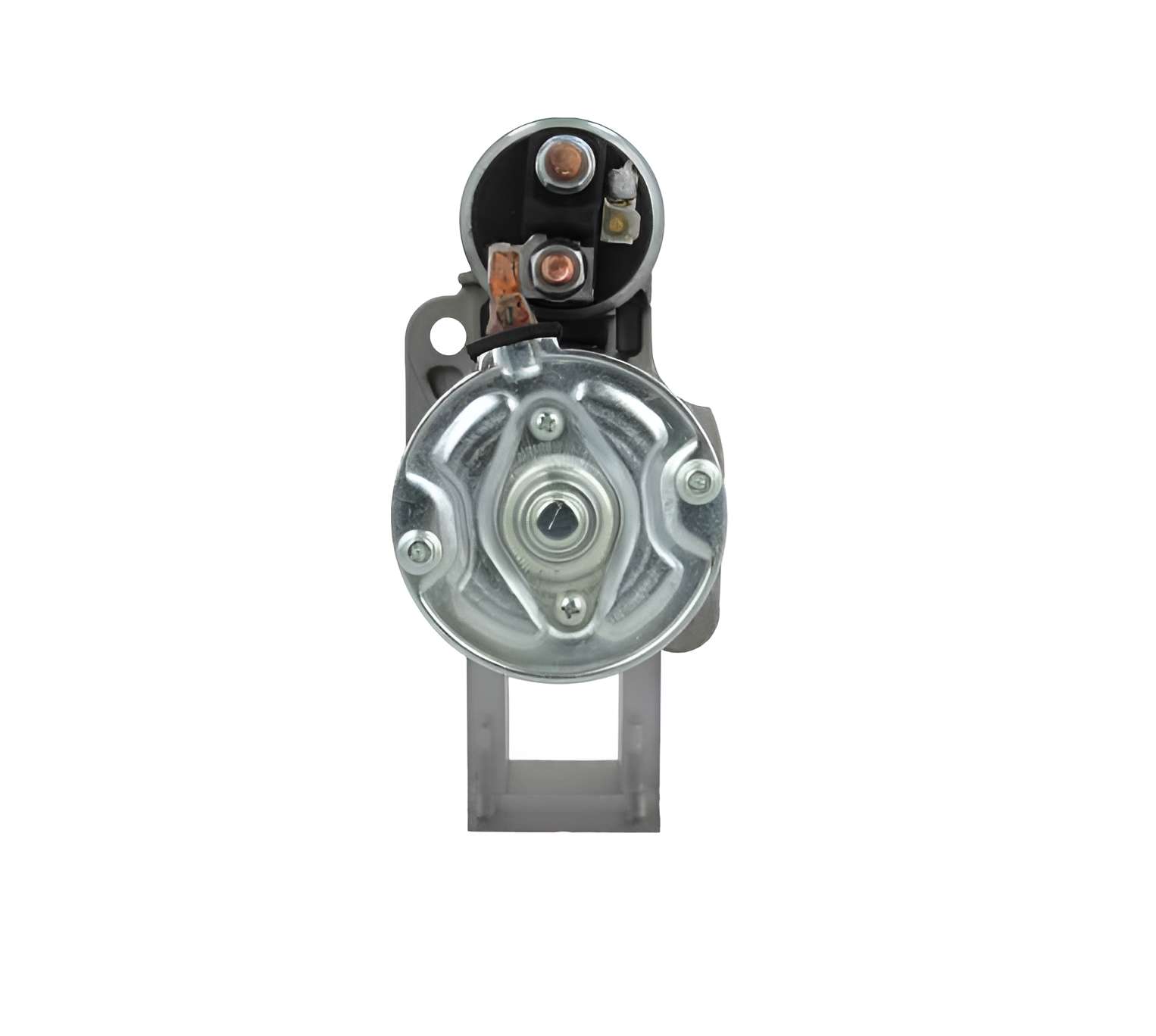

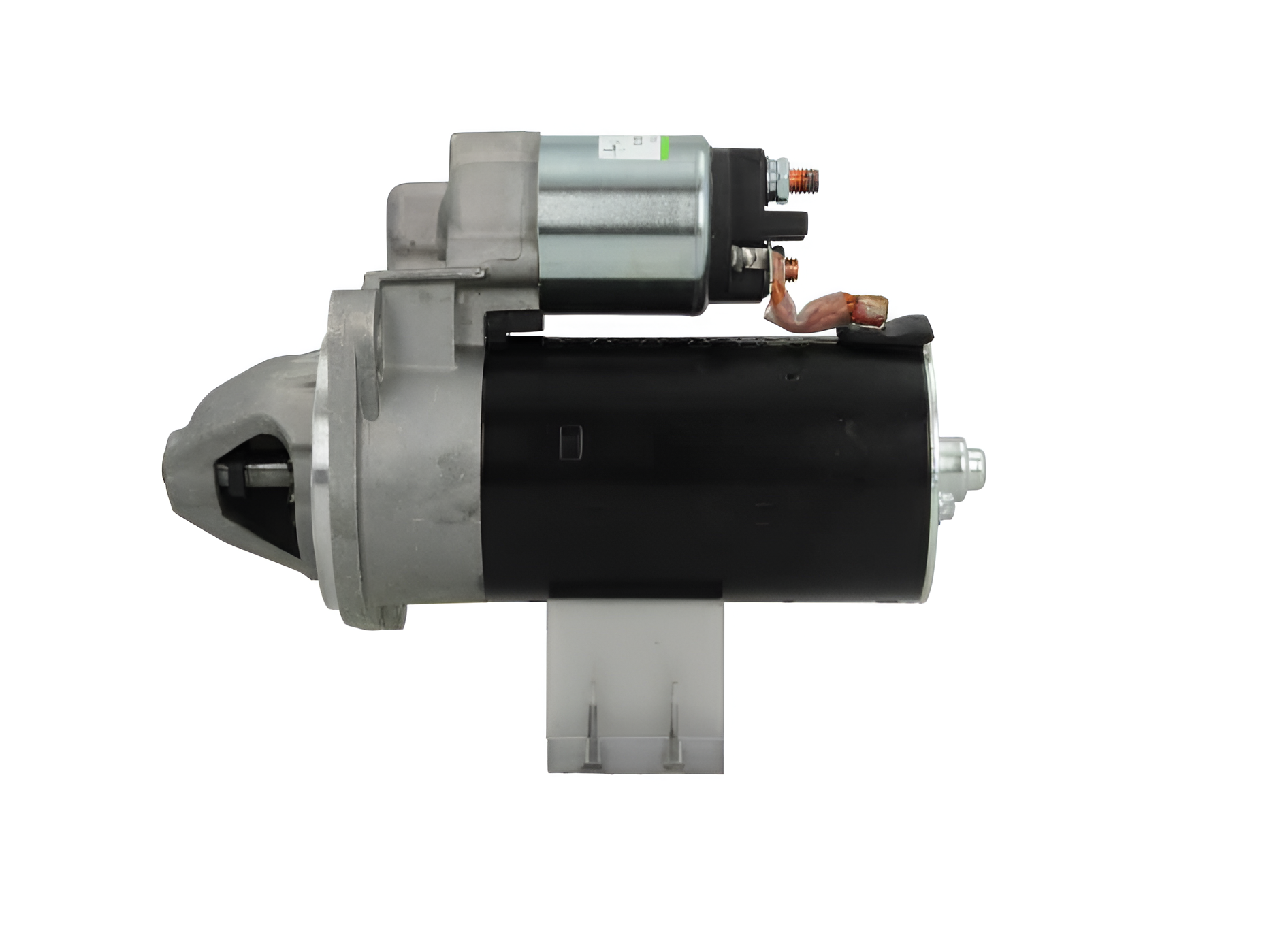

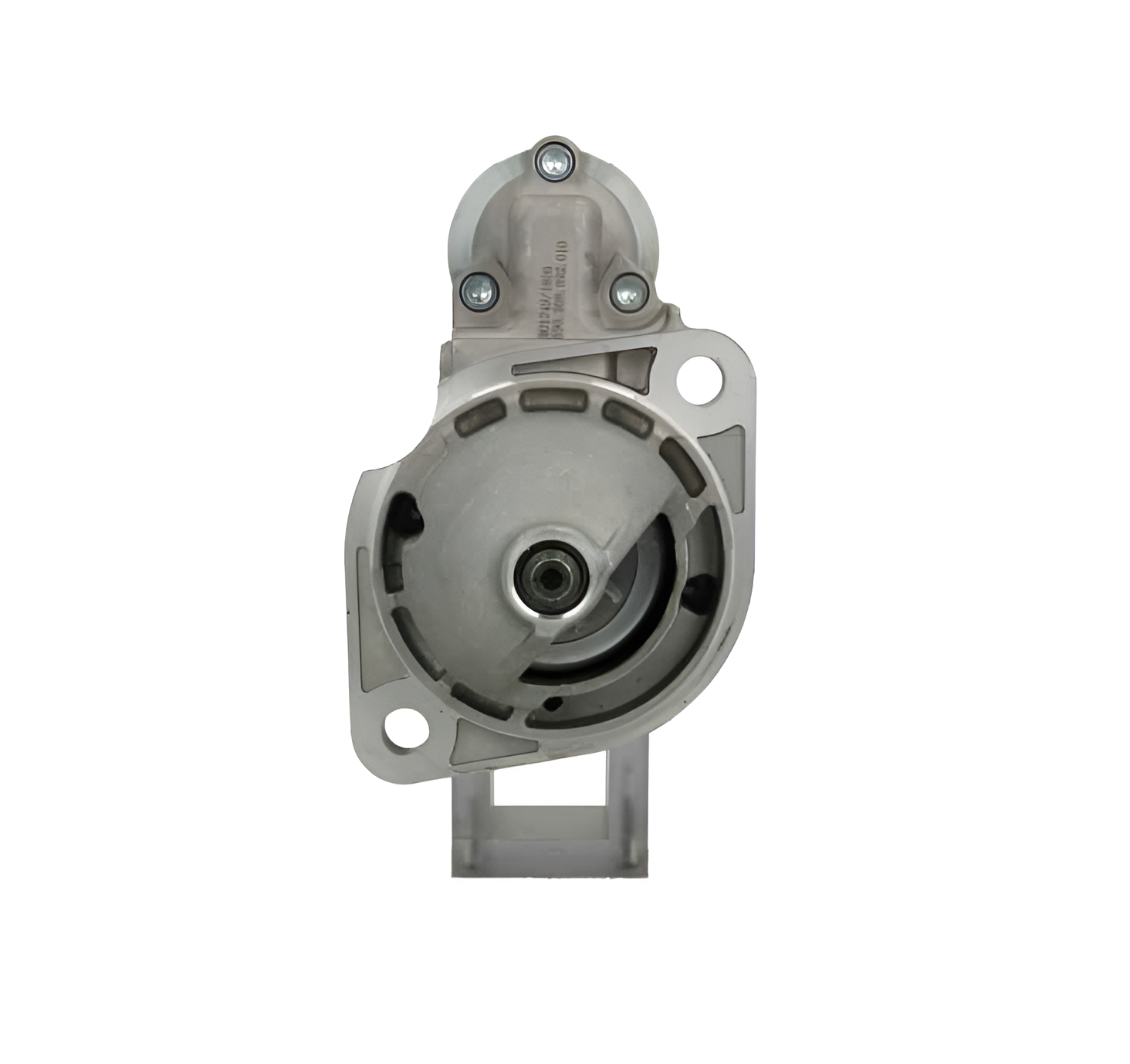

New 12V 2.0KW Starter Motor 9 Teeth Fits: Lombardini, JCB 114053 / STR50111
114053
STR50111
Electrical specifications
Voltage - 12
KW - 2.0

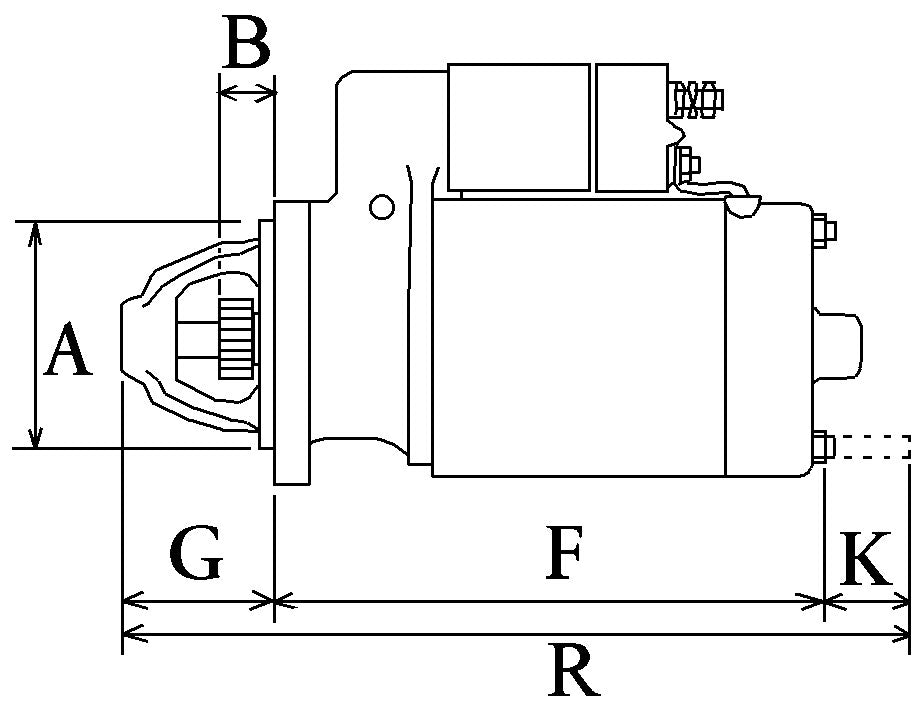

Physical specifications
A Mount. flange - 82.50
B Drive dist. - 16.00

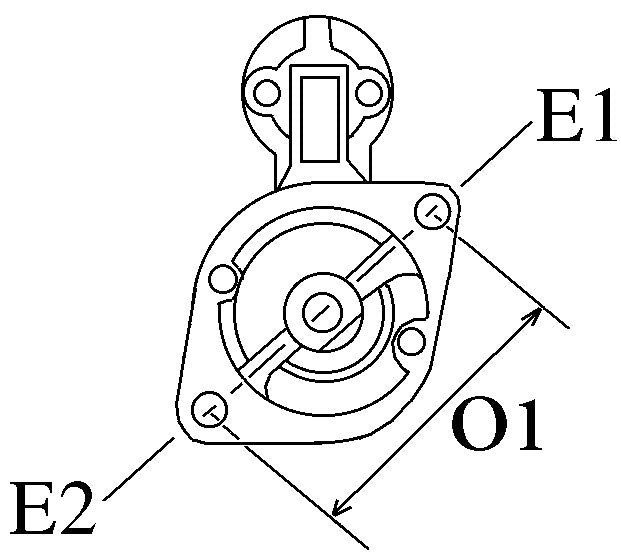

E Mount. hole 2 mm - 11.00
E Mount. hole 1 mm - 11.00
F Dist./back - 173.00
G Dist./front - 55.00
H No./teeth - 9
I B+ M8
L Terminal 50 - 6.30
N Gear type - GR
O Dist. mm - 105.00
P Rotation - CW
R Total length mm - 240.50
No./mount. holes - 2 (0)
Additional information
Drive type - Steel
Waterproof - No
Oil sealed - No
Replacing
0001109019 Bosch
0001109031 Bosch
0001109419 Bosch
0001109420 Bosch
0001218161 Bosch
0986024090 Bosch Exchange
1000338865 Weidemann
11130921 Mahle
114053 HC-Cargo
12130226 AES
12130318 AES
19785N WAI
1986S00718 Bosch
26020106 Dixie
333C1432 JCB
333H5787 JCB
5840191 Lombardini
58401910 Lombardini
5840281 Lombardini
58402810 Lombardini
690508092 PSH
72422840 Mahle
91157176 Wilson
9141424 Magneton
9142782 Magneton
9842788 Fiat Group
AZE2588 Mahle
BOS0001109019 Wood Auto
BOS0001109031 Wood Auto
DRS0013 Delco Remy
ED0058102810 Lombardini
ED0058402810 Lombardini
F032114053 HC-Cargo
IS1463 Mahle
LRS01975 Lucas
LRS1975 Lucas
MAHMS732 Wood Auto
MS732 Mahle
RNL109031 RNL
SEG0001109019 Wood Auto
STR50111 Wood Auto
WOOSTR50111 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
