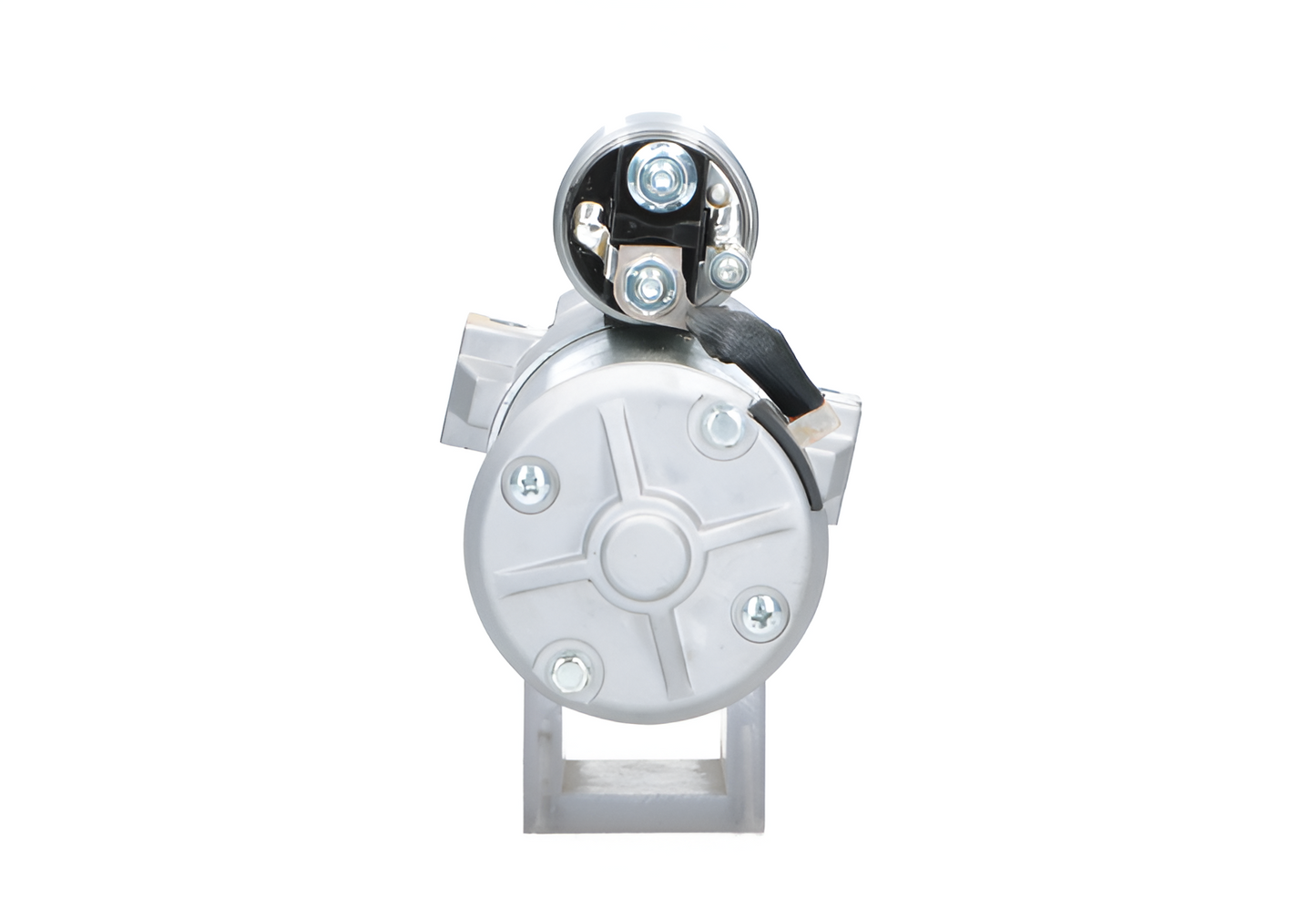

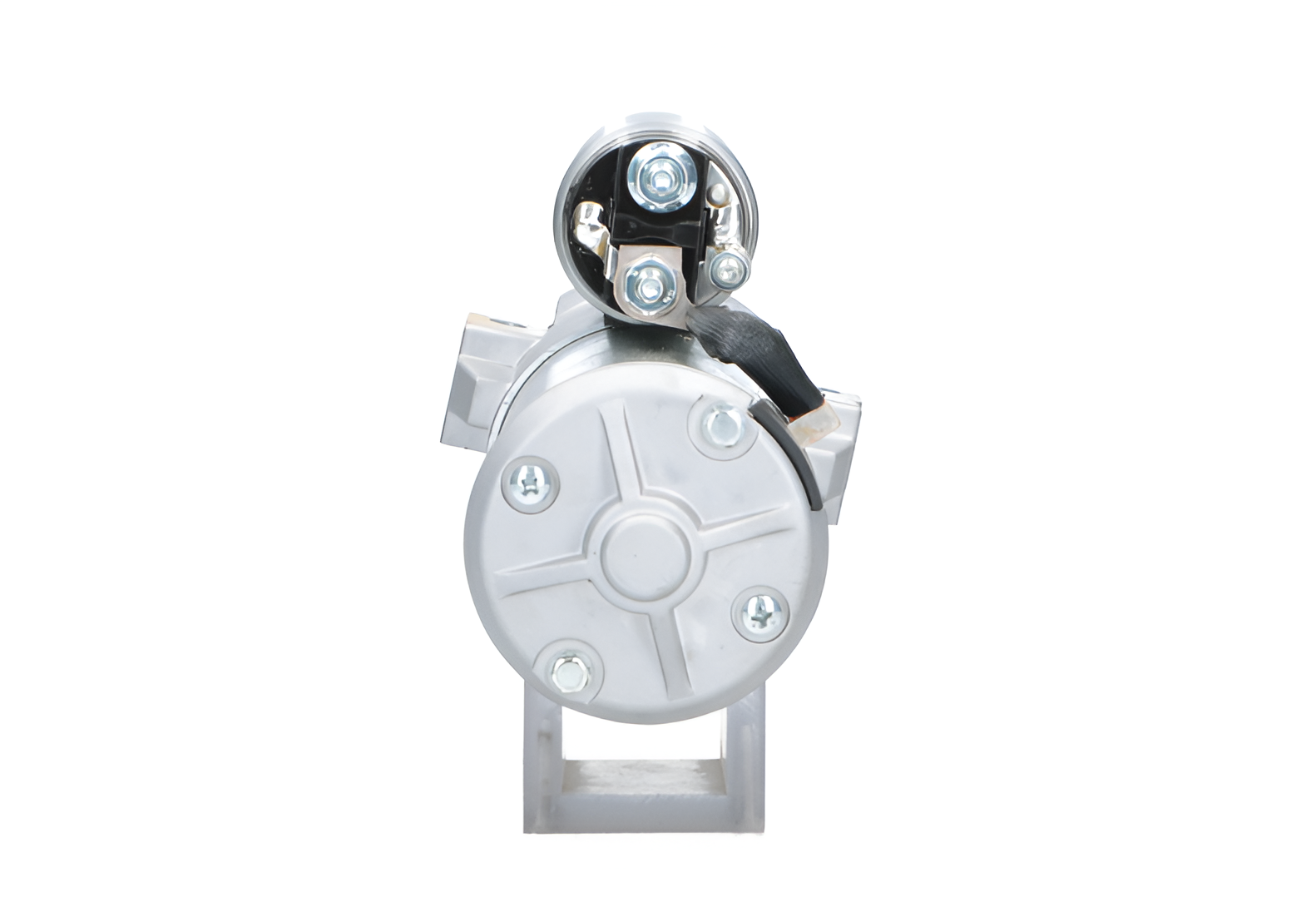

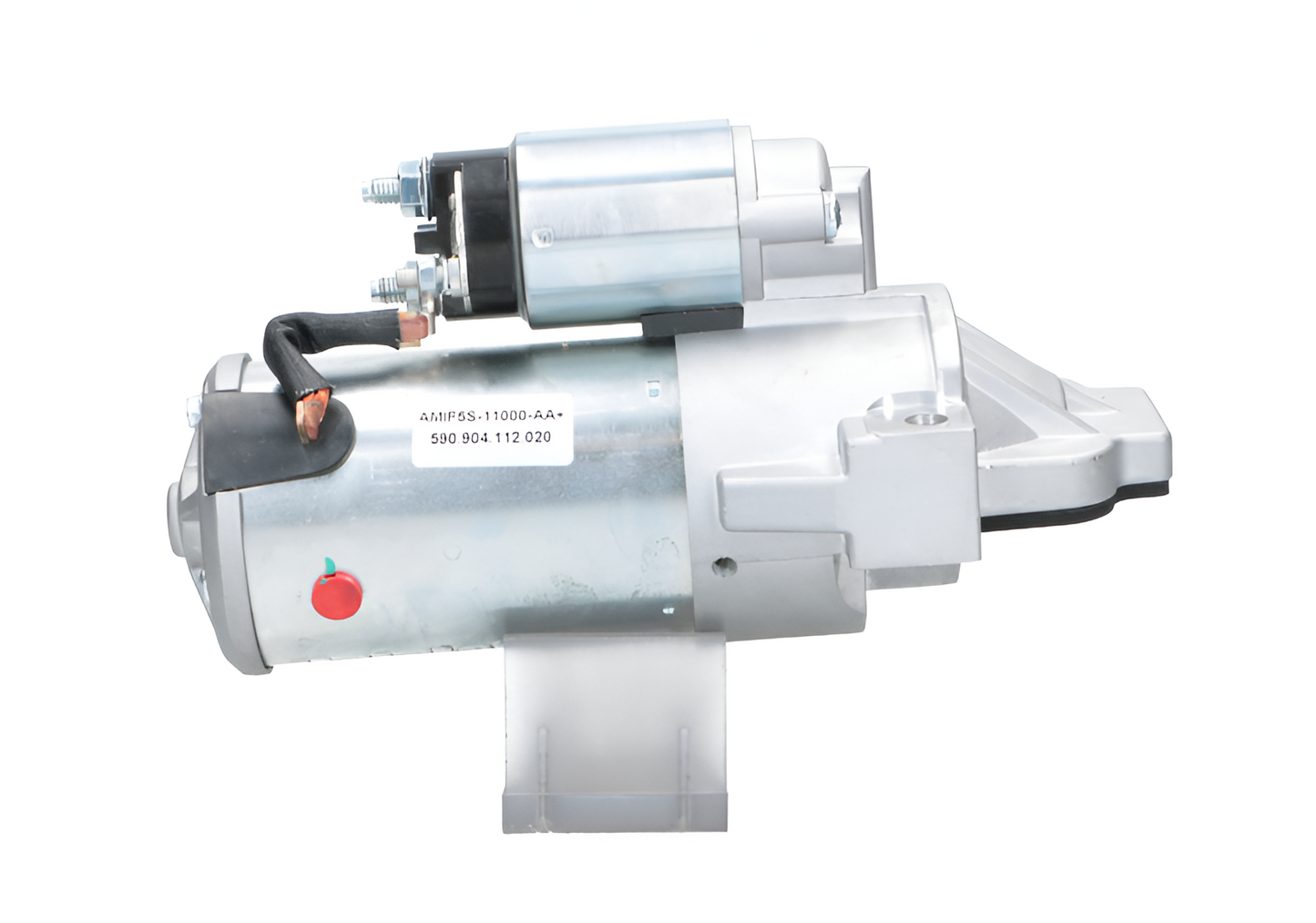

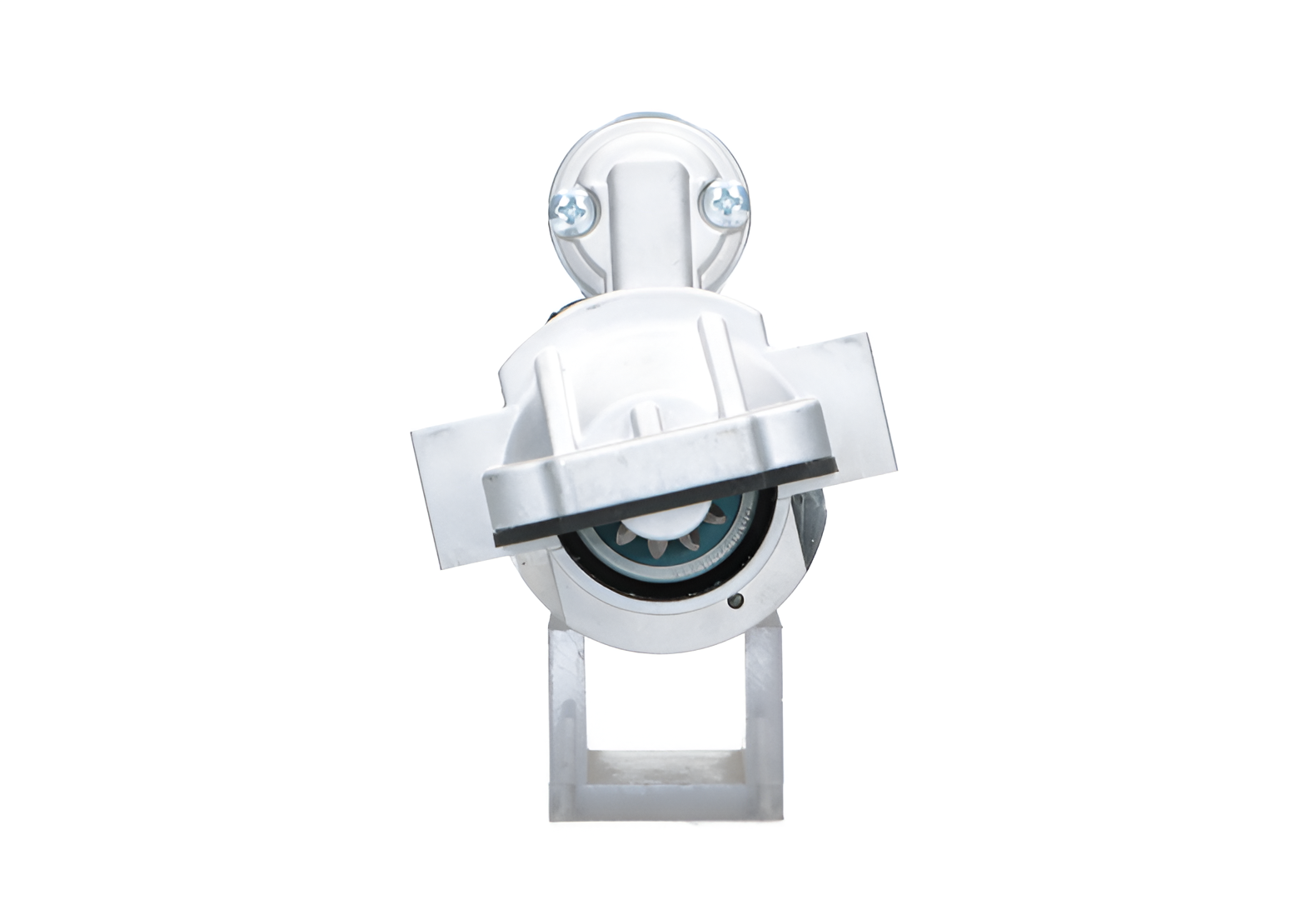

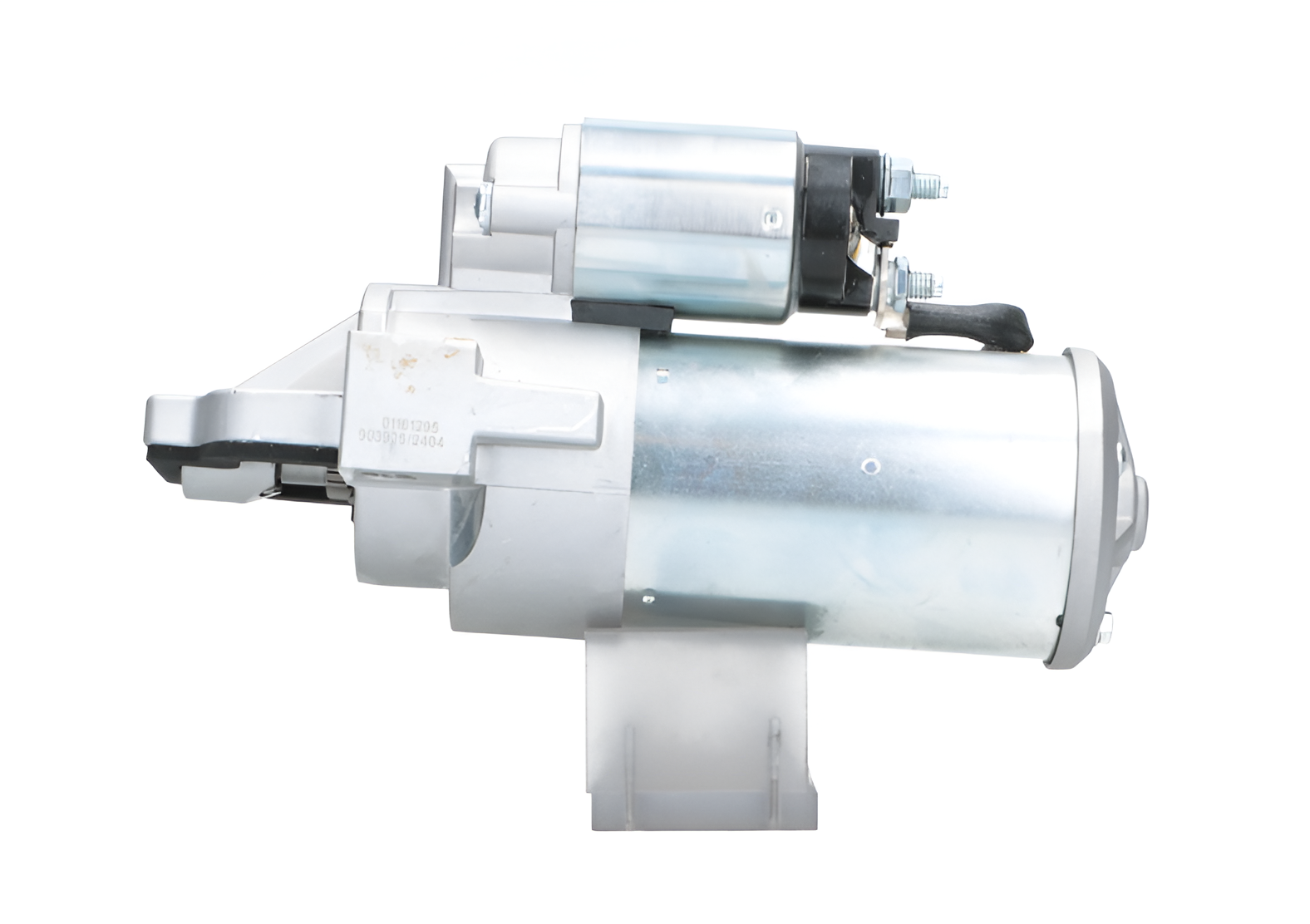

New 12V 2.2KW Starter Motor 11 Teeth Fits: Ford Transit 2.0 TDCI
116758
STR61830
Electrical specifications
Voltage - 12
KW - 2.2

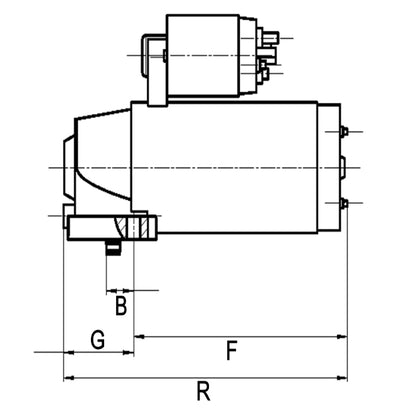

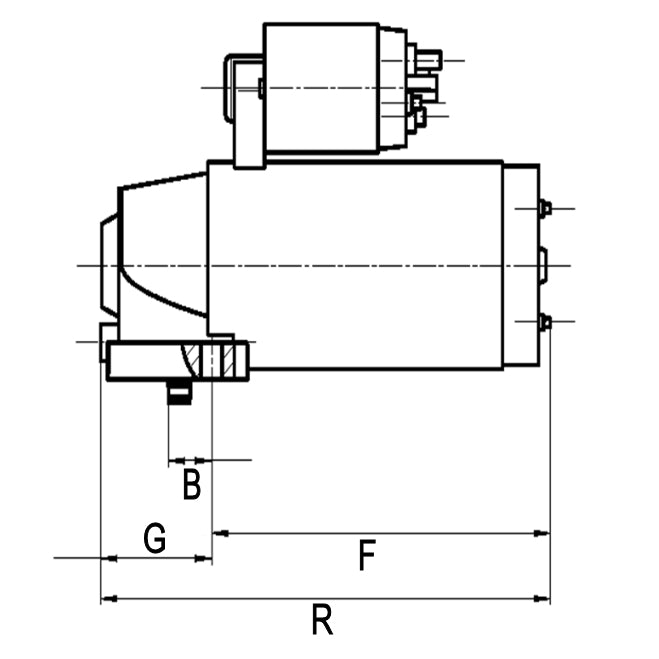

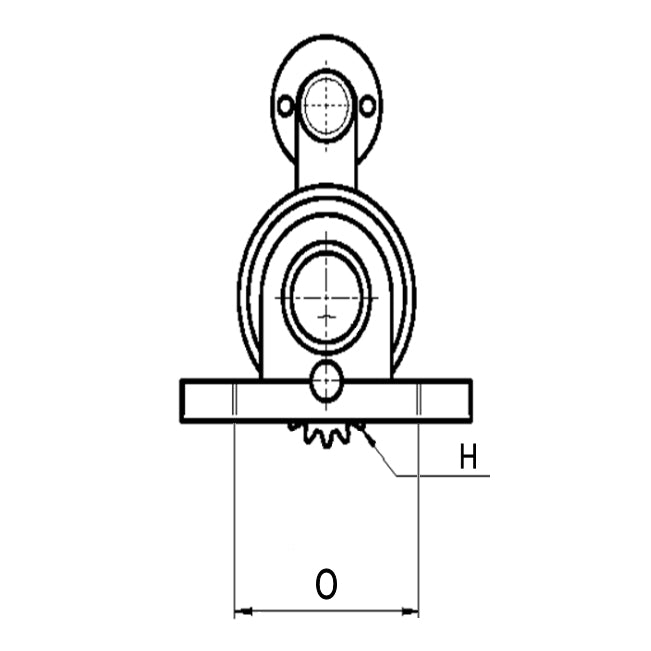

Physical specifications
B Drive dist. 20.00

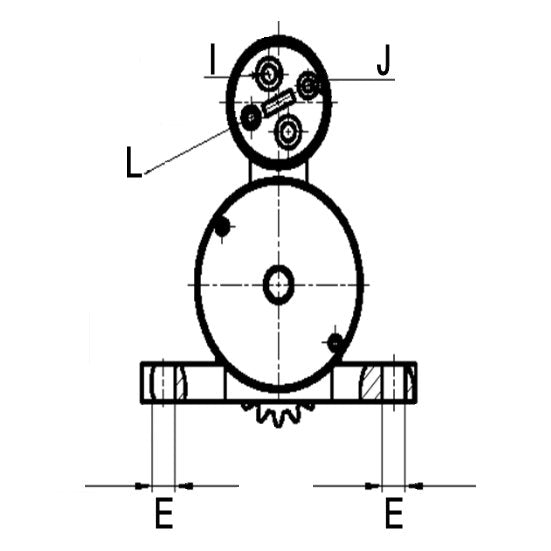

E Mount. hole 2 mm 10.50
E Mount. hole 1 mm 10.50
F Dist./back 178.50
G Dist./front 68.50
H No./teeth 11
I B+ M8
L Terminal 50 M6
N Gear type GR
O Dist. mm 89.00
P Rotation CW
R Total length mm 247.00
No./mount. holes 2 (0)
Replacing
116708 HC-Cargo
15130160 AES
2011358 Ford
2212499 Ford
2214299 Ford
2529636 Ford
30950N WAI
30950OS WAI
438633 Valeo
590904112 PSH
AMGK2T11000BD Visteon
AMIF5S11000AA Ford
F5S11000AA Ford
GK2T11000BA Ford
GK2T11000BB Ford
GK2T11000BC Ford
GK2T11000BD Ford
IF5S11000AA Ford
IF5SAA Ford
LRS04024 Lucas
LRS04425 Lucas
LRS4024 Lucas
RNLAMIF5S11000AA RNL
STR61829 Wood Auto
WOOSTR61829 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
