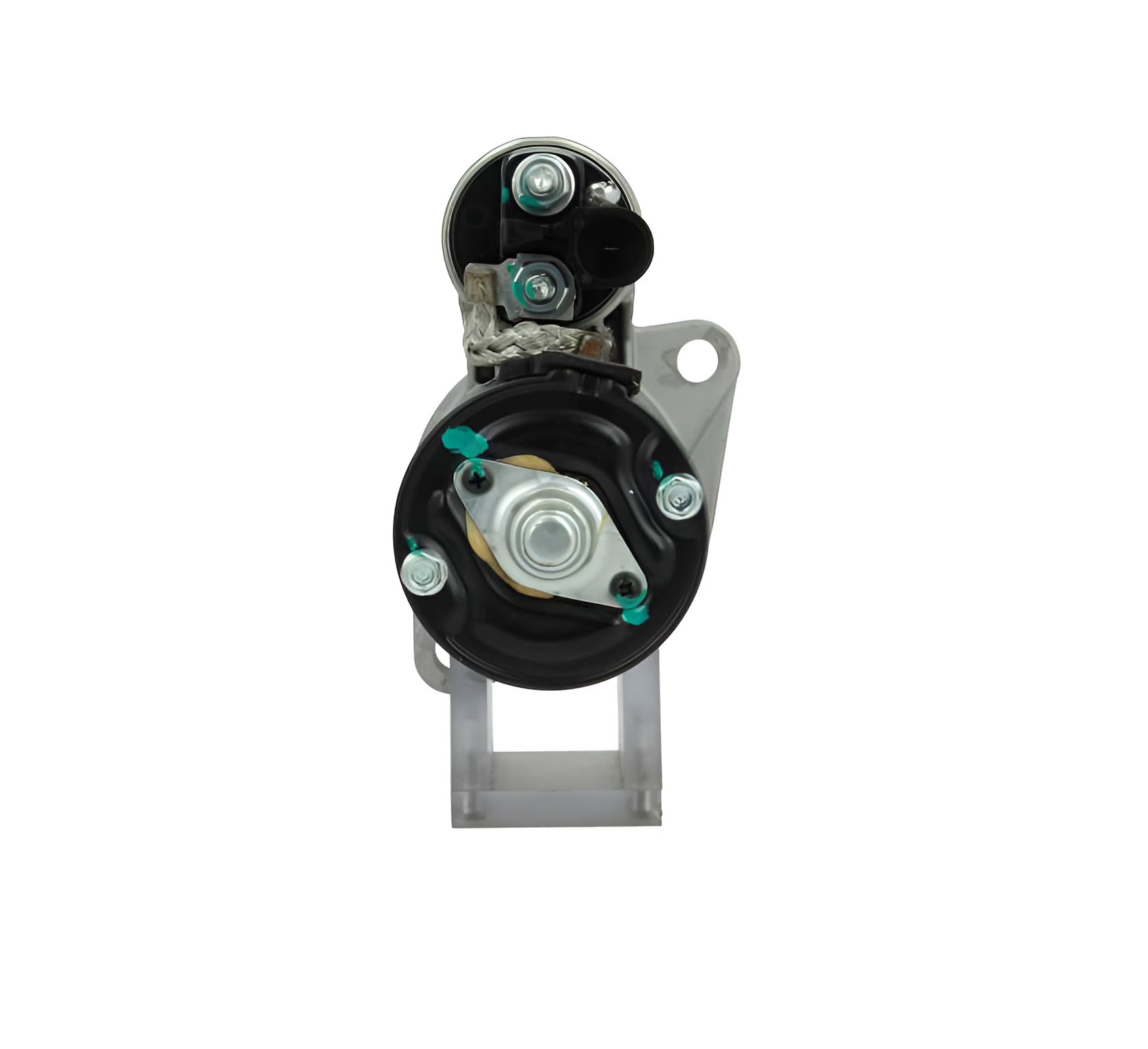

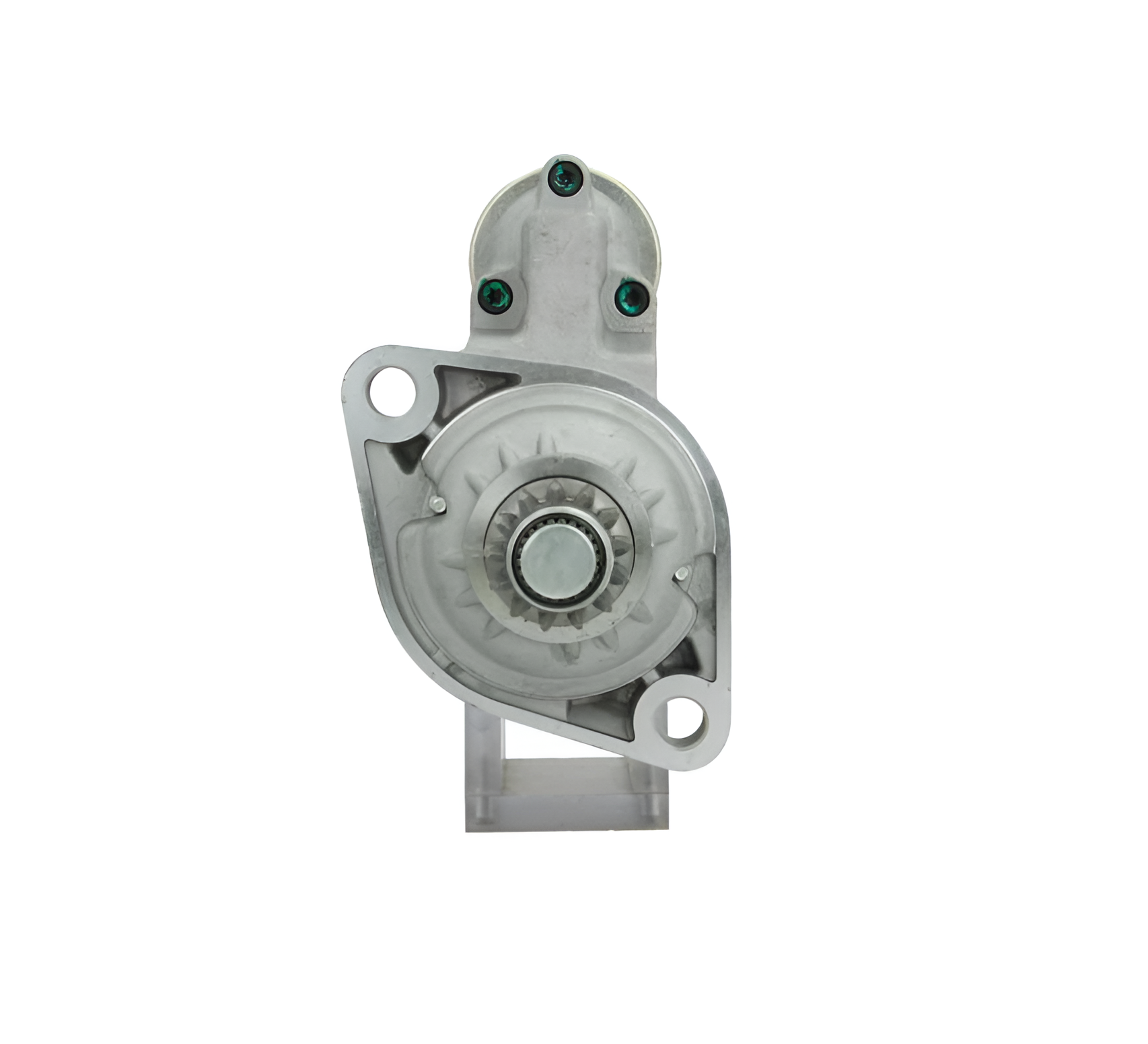

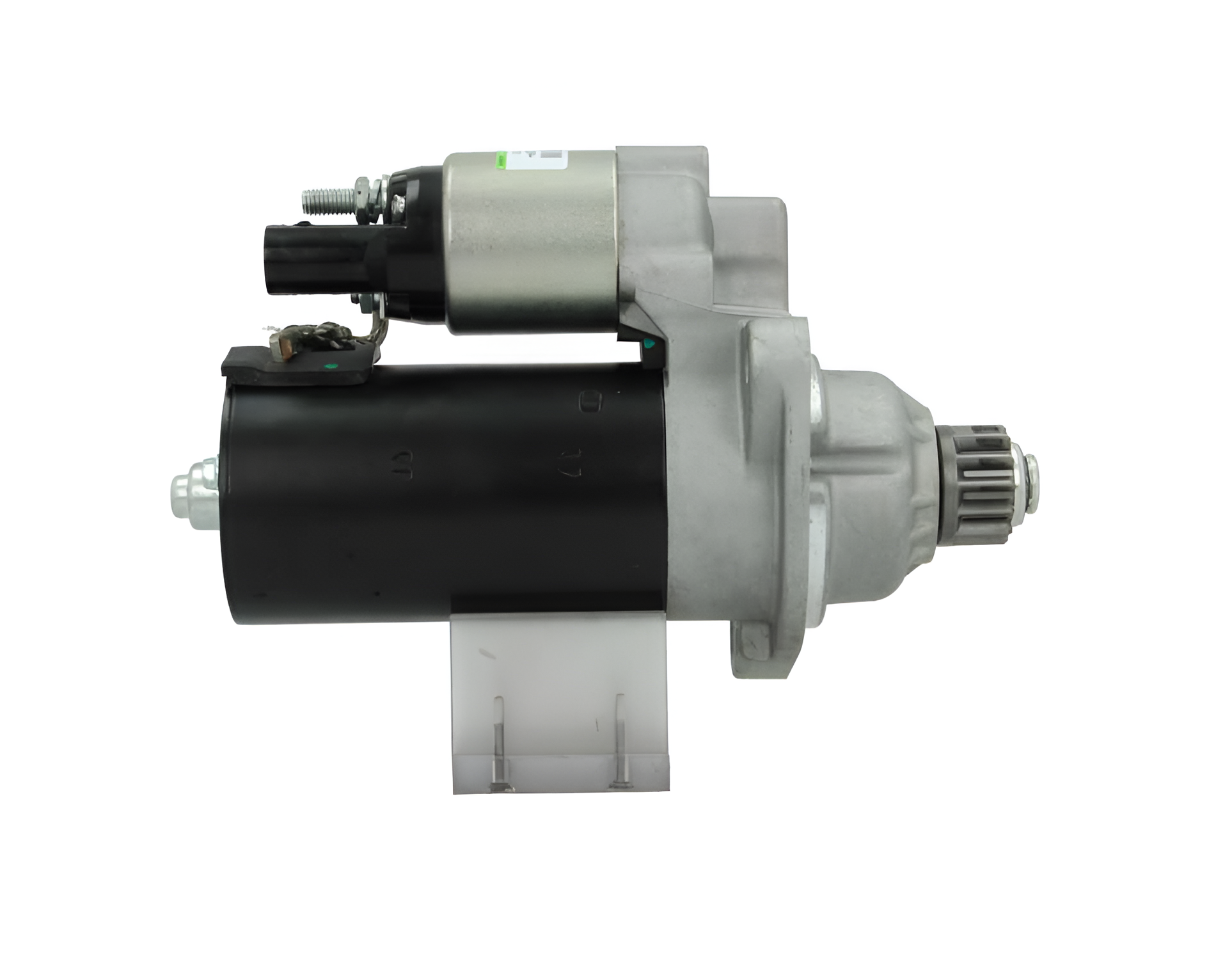

New 12V 2.2KW Starter Motor 13 Teeth Fits: VW, Audi, Skoda, Seat 115402 / STR50617 Start Stop
115402
STR50617
Electrical specifications
Voltage - 12
KW - 2.2

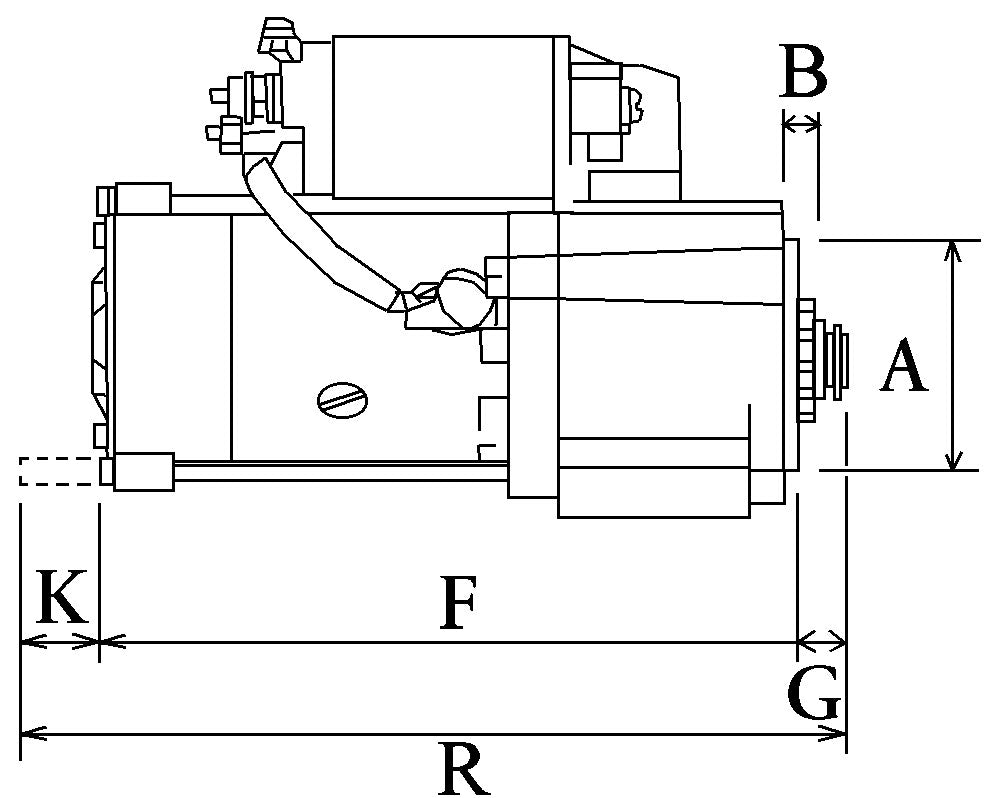

Physical specifications
A Mount. flange - 79.00
B Drive dist. - 61.00

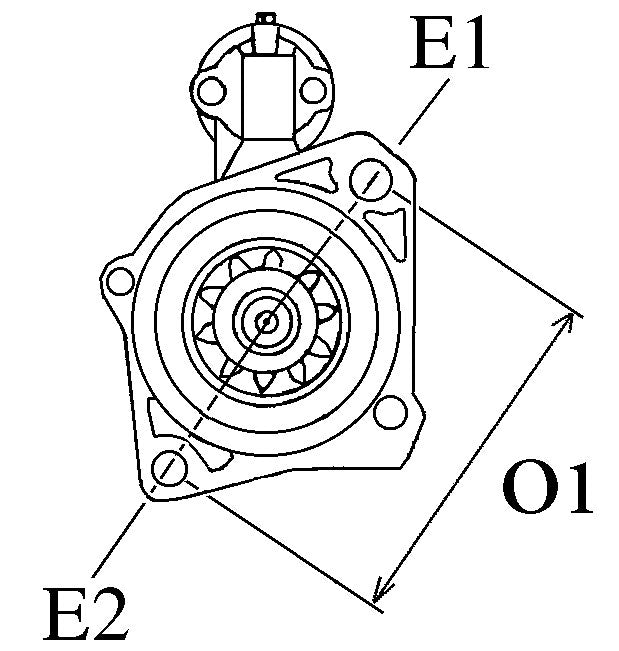

E Mount. hole 2 mm - 11.00
E Mount. hole 1 mm - 11.00
F Dist./back - 165.00
G Dist./front - 71.00
H No./teeth - 13
I B+ M8
L Terminal 50 - Plug
N Gear type - GR
O Dist. mm - 112.00
P Rotation - CCW
R Total length mm - 248.00
No./mount. holes - 2 (0)
Additional information
Starter Type - Start/Stop
Replacing
0001145003 Bosch
0001153009 Bosch
0001153010 Bosch
0986025110 Bosch Exchange
12130271 AES
12130393 AES
14130204 AES
300903132 PSH
30301N WAI
5428000603 Ford
65262016002 MAN
BOS0001153009 Wood Auto
CS1508 HC-Parts
EWS20ER123 Valeo
LRS02394 Lucas
LRS2394 Lucas
RNL153009 RNL
SEG0001153009 Wood Auto
STR50617 Wood Auto
WOOSTR50617 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
