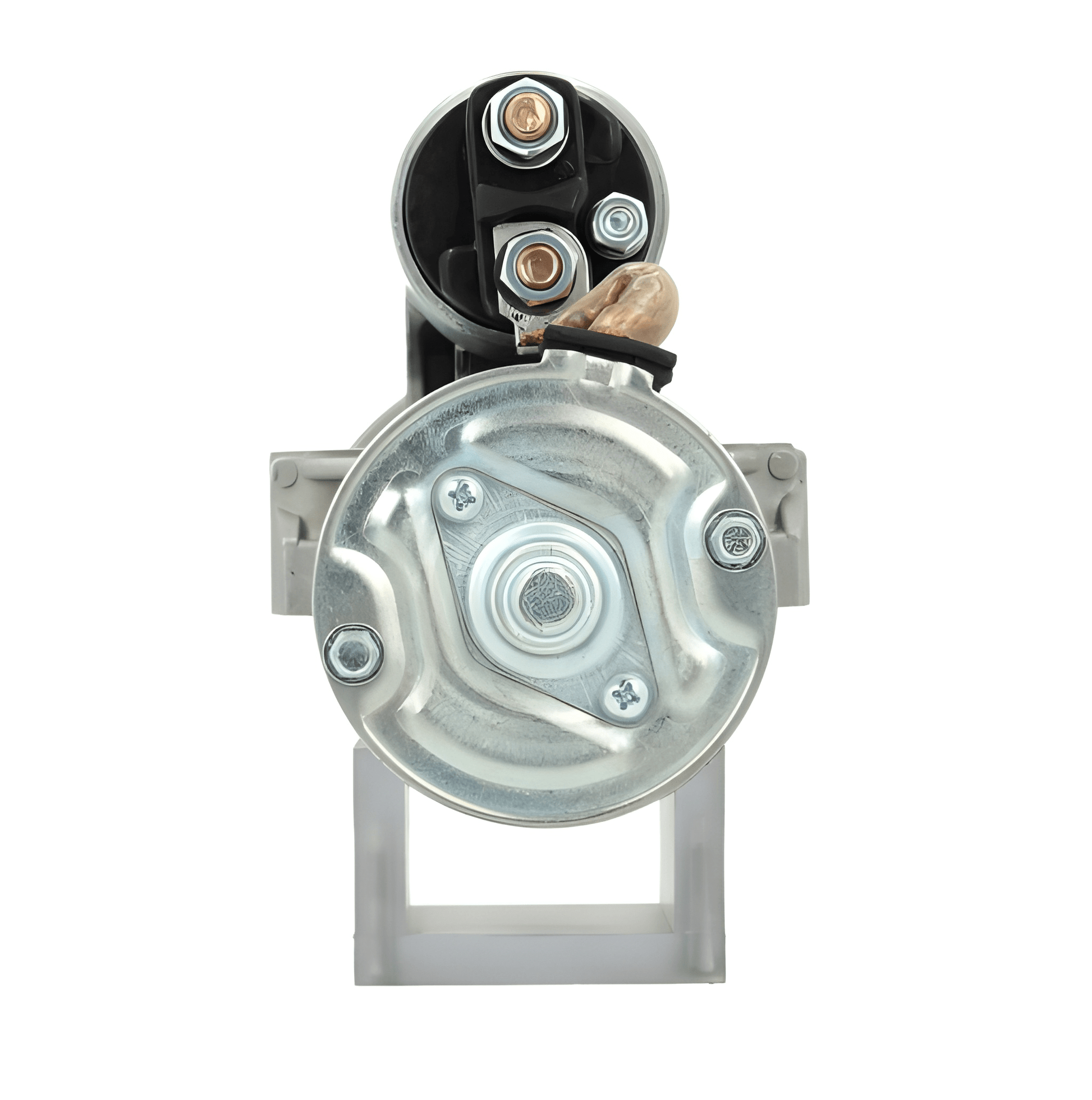

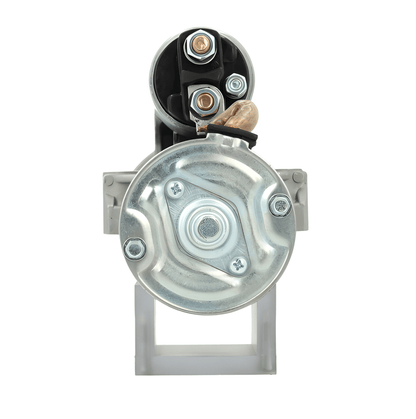

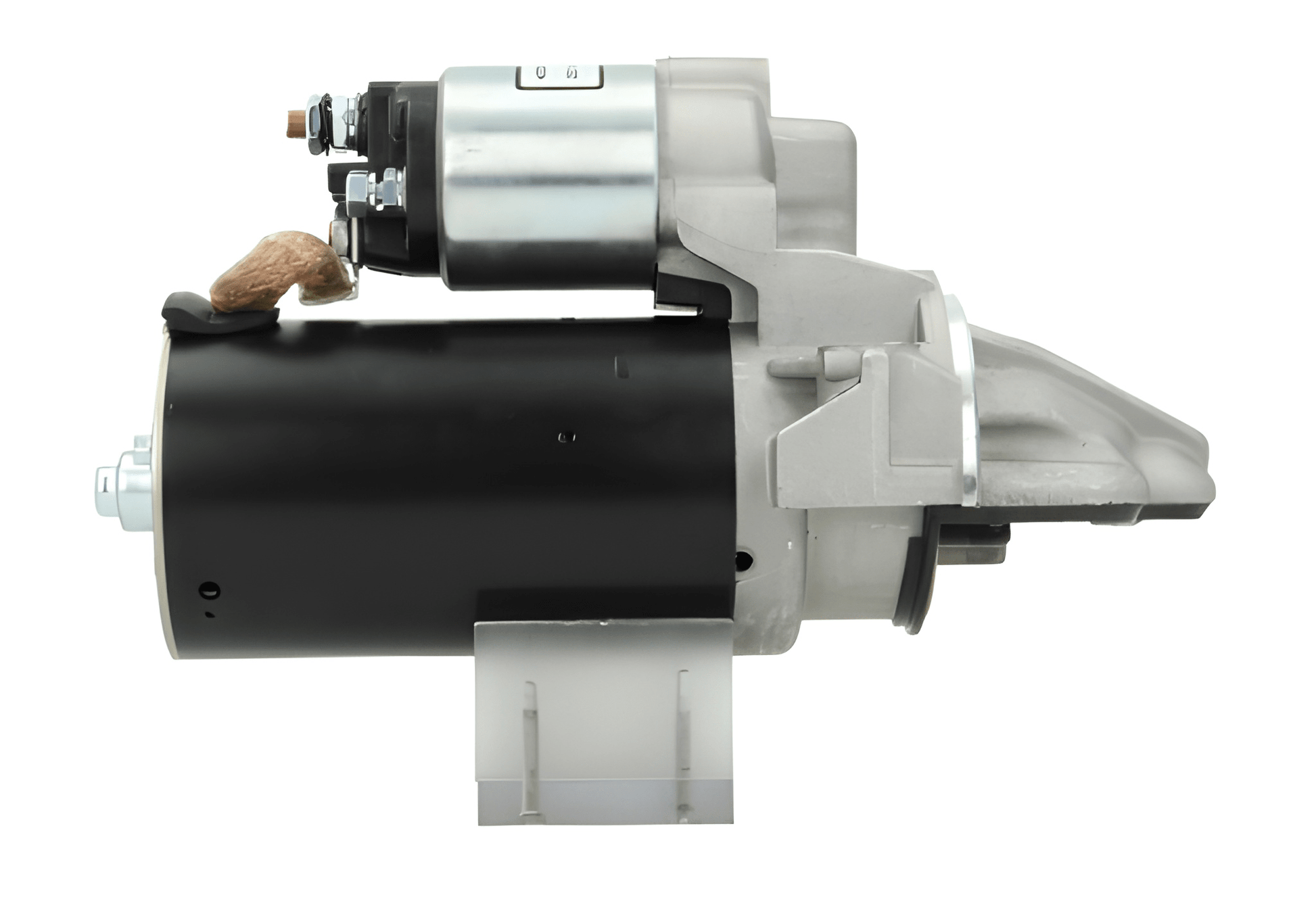

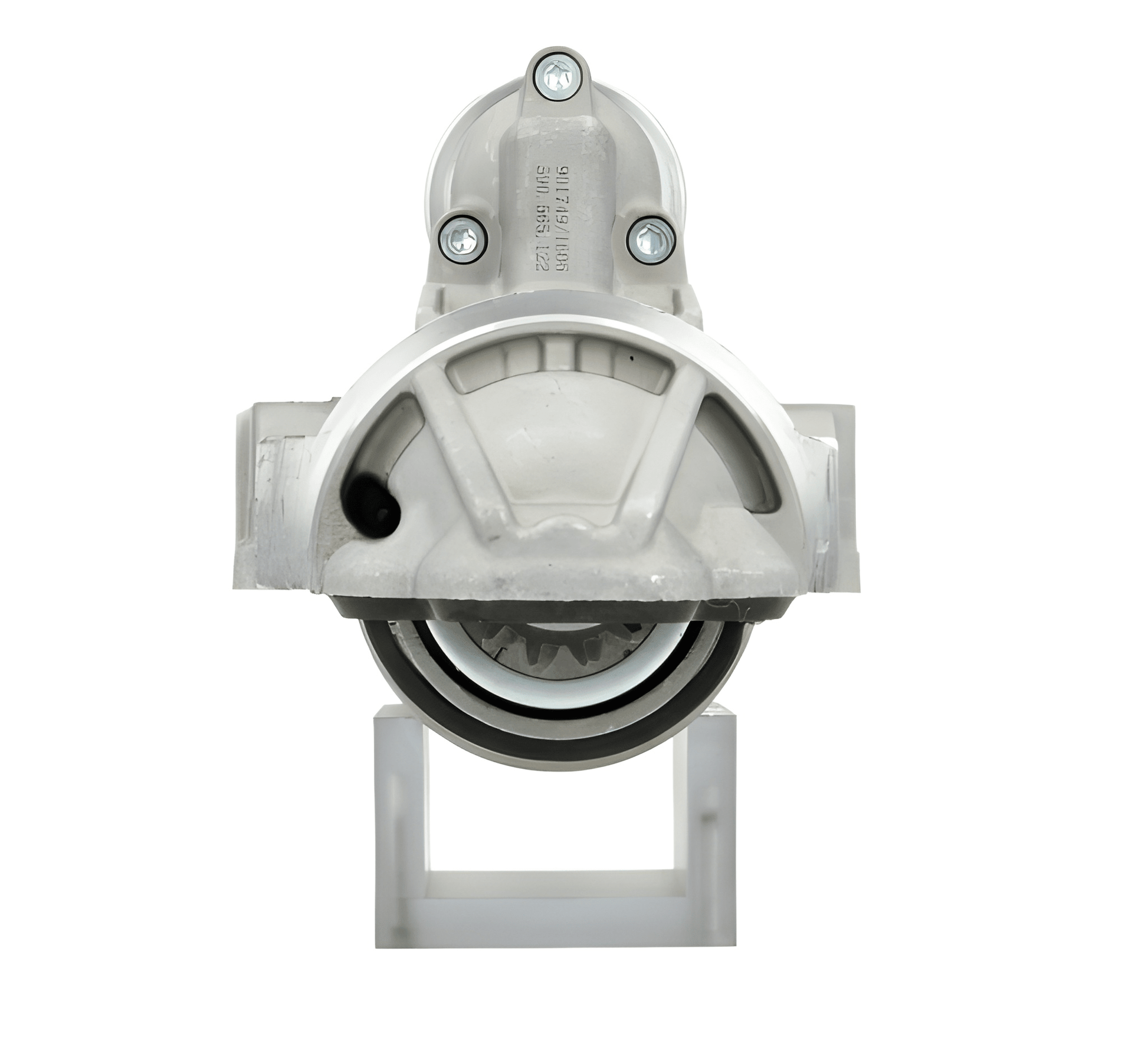

New 12V 2.5KW Starter Motor 12 Teeth Fits: Ford Transit, Tourneo Stop Start
115986
STR50664
Electrical specifications
Voltage - 12
KW - 2.5
Physical Specifications

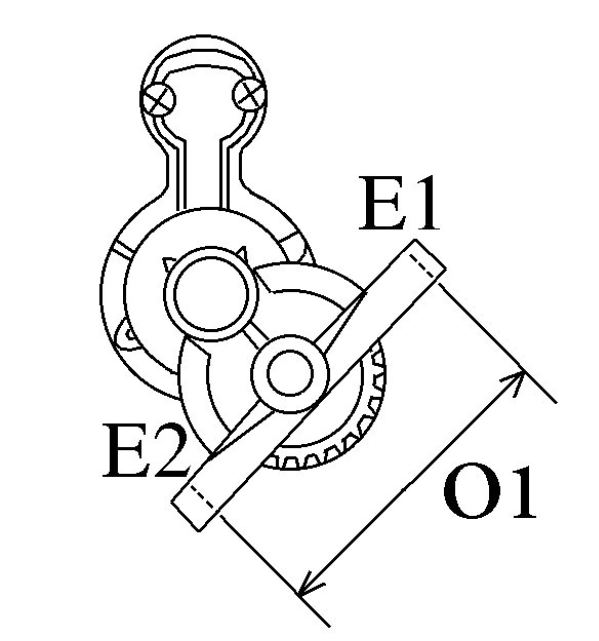

No./mount. holes 2 (0)
Mounting Hole 2 11.00

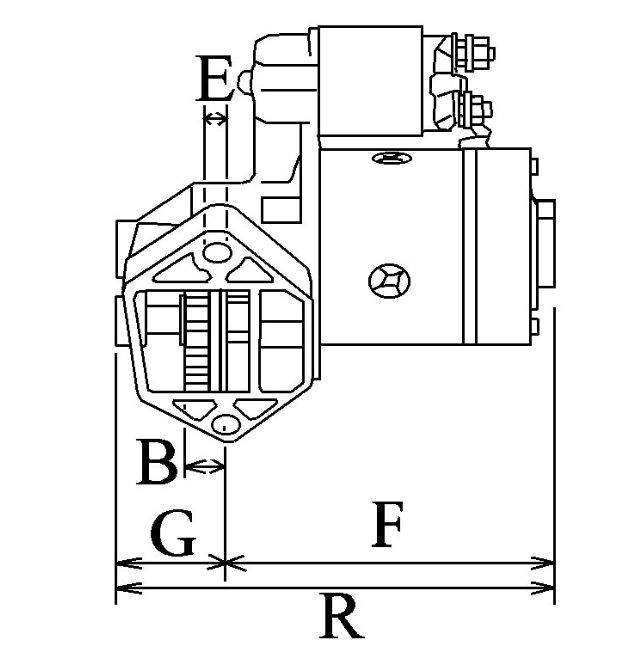

Rear Distance 159.00
Gear type GR
Front Distance 82.00
Drive Distance 35.00
No./teeth 12
B+ M8
Terminal 50 M6
Mounting Flange 89.00
Distance 89.00
Rotation CW
Position 20
Mounting Hole 1 11.00
Total Length 255.00
Additional information
Starter type - Start/Stop
Replacing
0001139023 Bosch
0001139024 Bosch
0986027010 Bosch Exchange
115986 HC-Cargo
12130325 AES
12130392 AES
1731765 Ford
1740948 Ford
1745176 Ford
1986S00841 Bosch
2033120 Ford
2329679 Ford
30229N WAI
30229R WAI
458876 Valeo
590565122 PSH
9678690180 PSA
BOS0001139023 Wood Auto
CC1T11000DA Ford
CC1T11000DB Ford
CC1T11000DC Ford
CC1T11000DD Ford
CC1TDA Ford
CC1TDB Ford
CC1TDC Ford
CC1TDD Ford
DRS0856 Delco Remy
F032115986 HC-Cargo
K9678690180 Fiat Group
LRS02623 Lucas
LRS2623 Lucas
OSM11956 Optimum
RAS31967 Delco Remy
RNL139023 RNL
S1389B Prestolite
SEG0001139023 Wood Auto
STR50664 Wood Auto
WOOSTR50664 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
Ford Tourneo 2.2 TDCi 12/12
Ford Transit 2.2 TDCI 10/11
