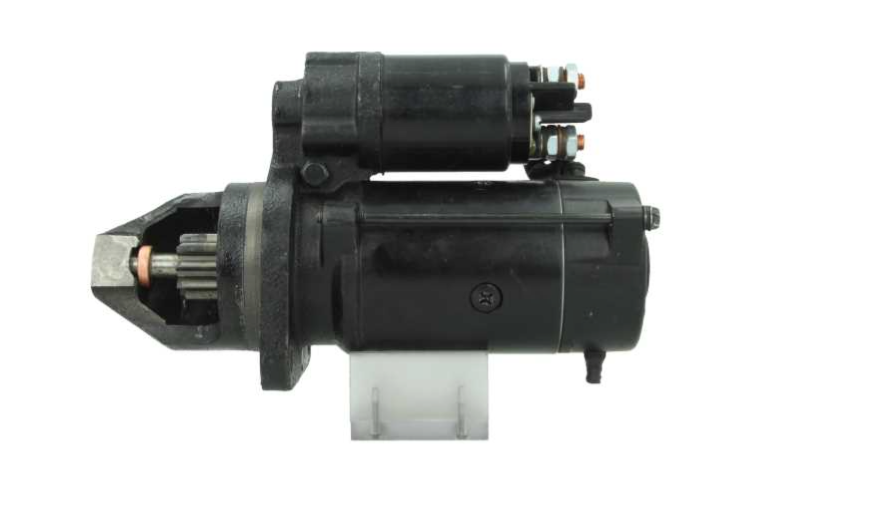

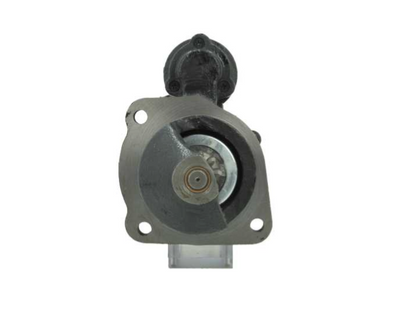

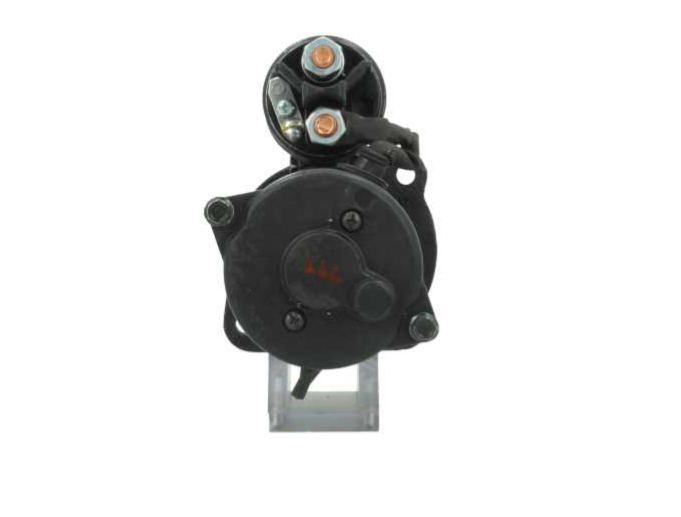

New 12V 3.2KW 9 Teeth R/Gear Starter Motor Fits Zetor 116596 / STR60723

New 12V 3.2KW 9 Teeth R/Gear Starter Motor Fits Zetor

116596

STR60723

Electrical information

• Voltage 12 V
• Kw 3.2

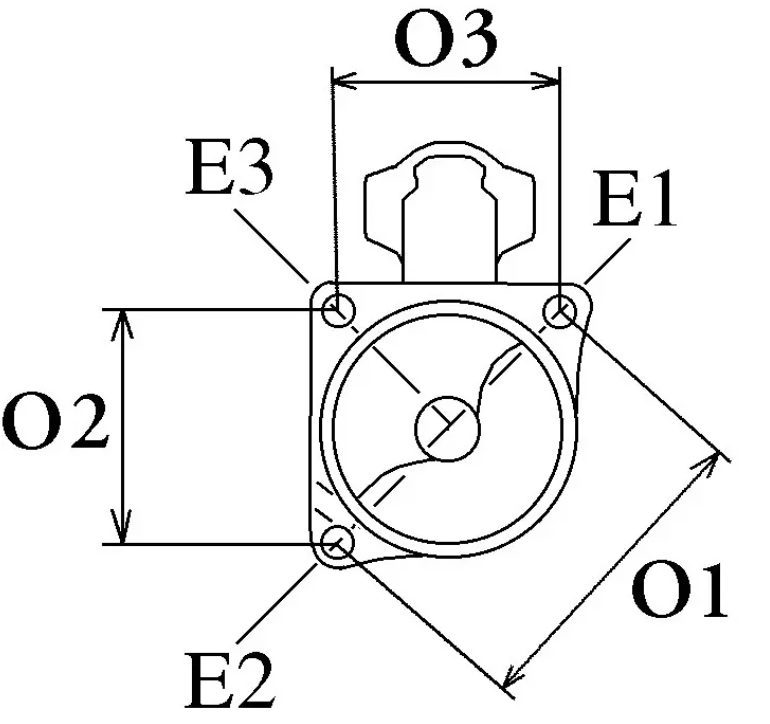

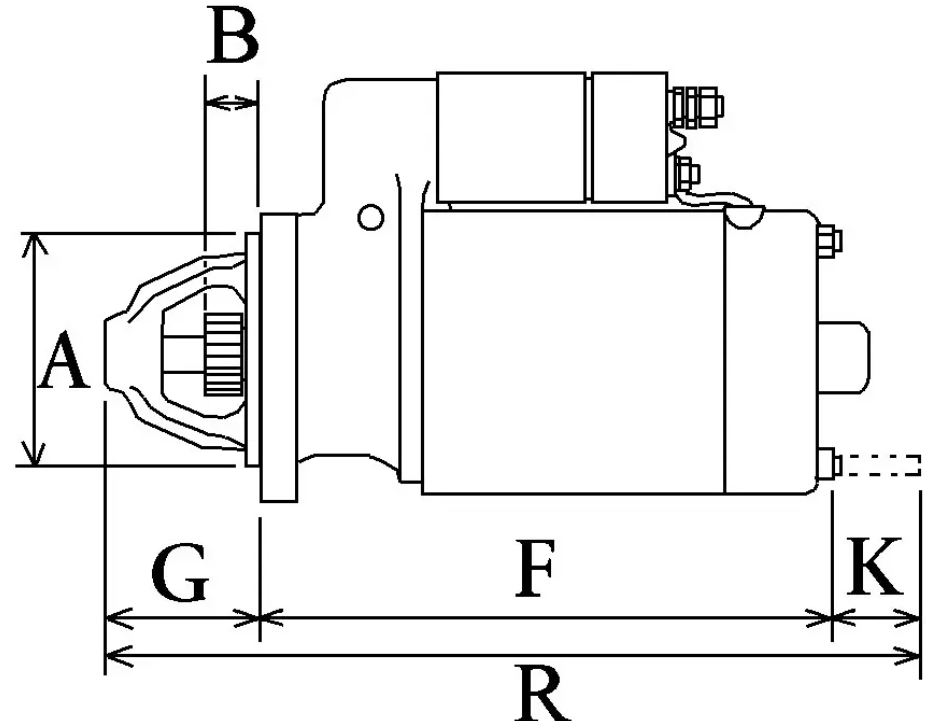

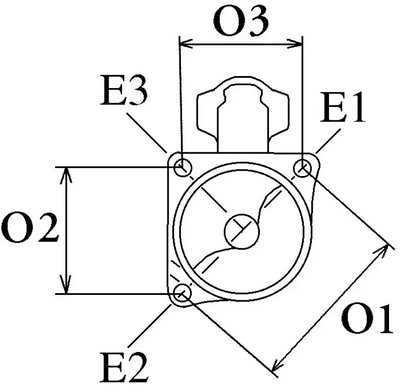

Physical information

• Mounting Flange 89.00
• Mounting Hole 3 11.00
• Distance 90.00
• Mounting Hole 2 11.00
• Rear Distance 193.00
• Distance 2 90.00
• Distance 3 127.00
• Drive Distance 48.00
• Terminal 50 M4
• B+ M10
• Rotation CW
• No./mount. Holes 3 (0)
• Front Distance 92.00
• Total Length 285.00
• Position 15
• Mounting Hole 1 11.00
• Mounting Holes with Thread 0
• B+ Position 60
• Amount of Mounting Holes 3
• Gear type GR
• No./teeth 9

Raplacing:

• 11131957    Mahle

• 116596    HC-Cargo

• 16359124    Zetor

• 31777N    WAI

• 450115114763    Magneton

• 580502092    PSH

• 72735662    Mahle

• 91399501    Wilson

• AZE4205    Mahle

• F032116596    HC-Cargo

• IS1297    Mahle

• LETIS1297    Wood Auto

• MAHMS34    Wood Auto

• MN16359124    Zetor

• MS34    Mahle

• RNLMS34    RNL

• RNLMS34A    RNL

• STR60723    Wood Auto

• WOOSTR60723    Wood Auto

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
