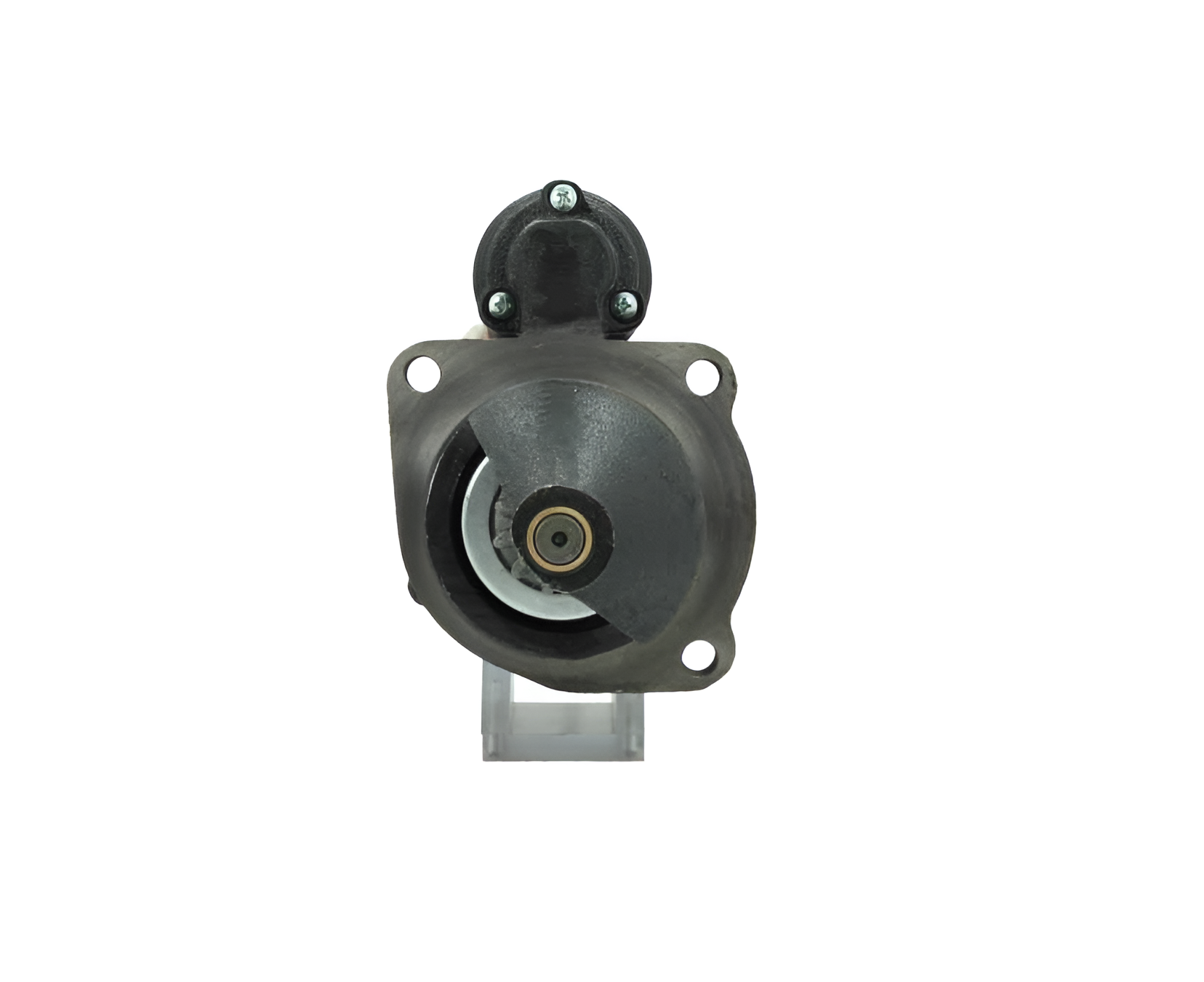

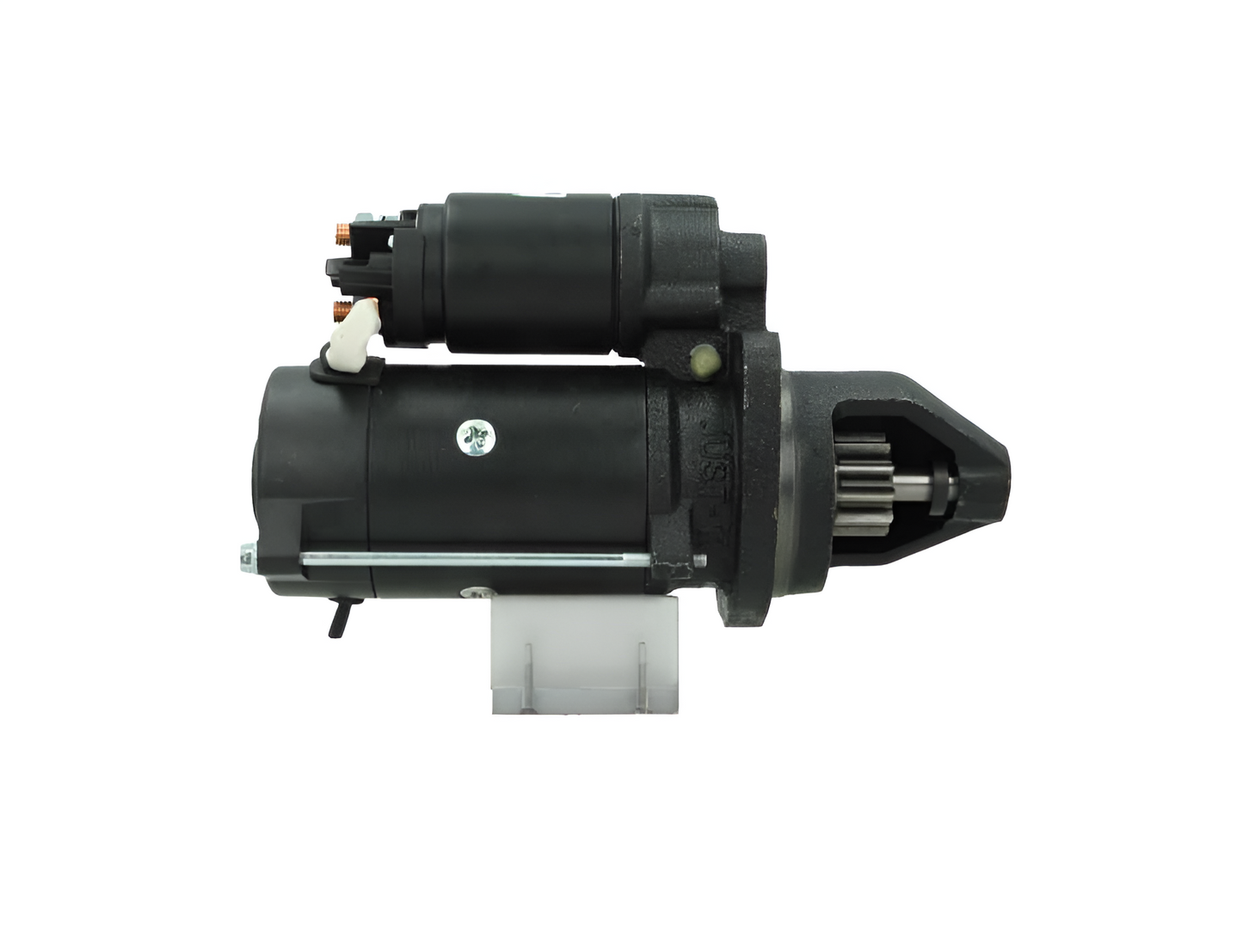

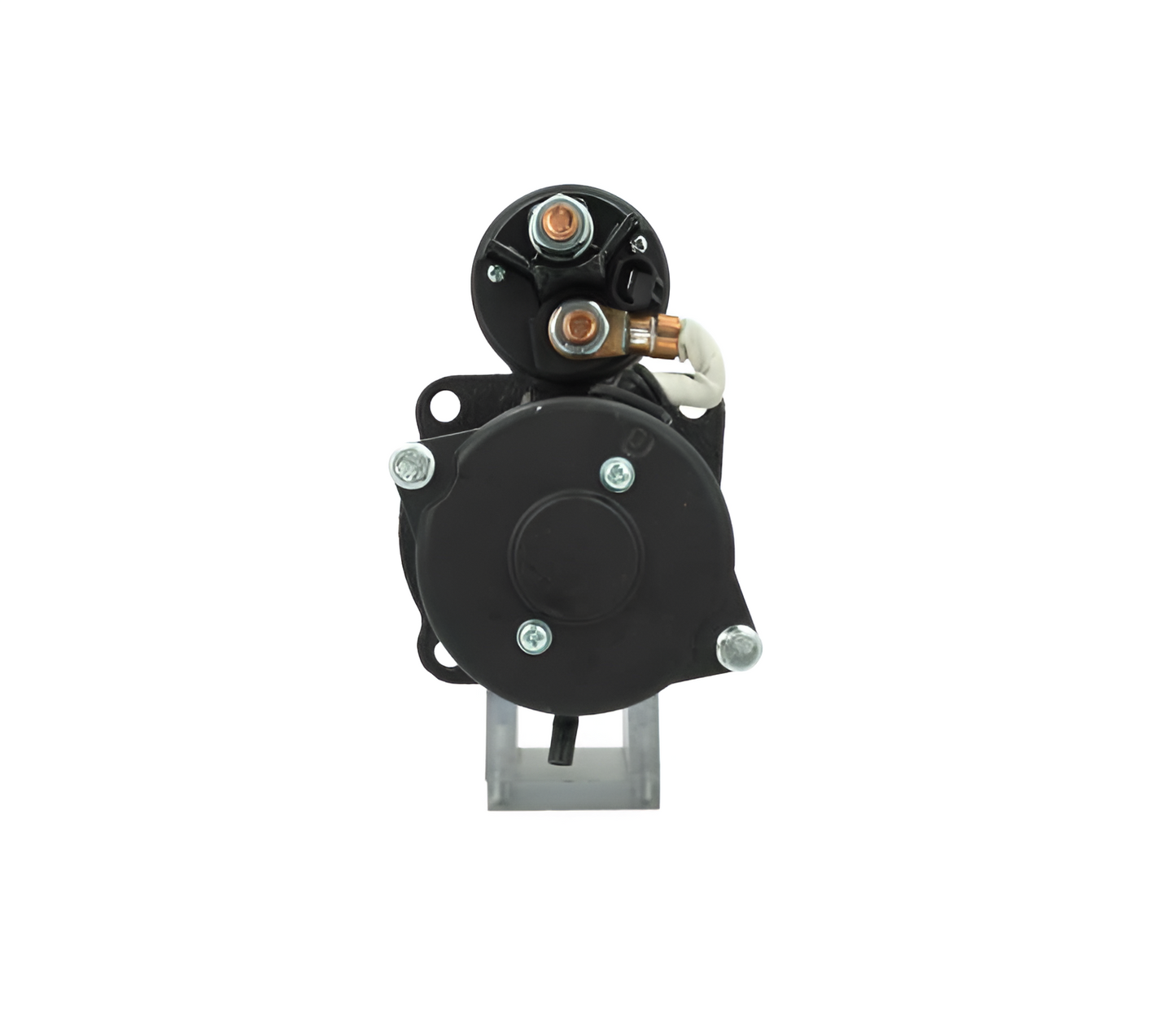

New 12V 3.2KW Starter Motor 11 Teeth Fits: Case, Valtra, Zetor, Valmet 113901 / STR60649
113901
STR60649
Electrical specifications
Voltage - 12
KW - 3.2
Physical specifications

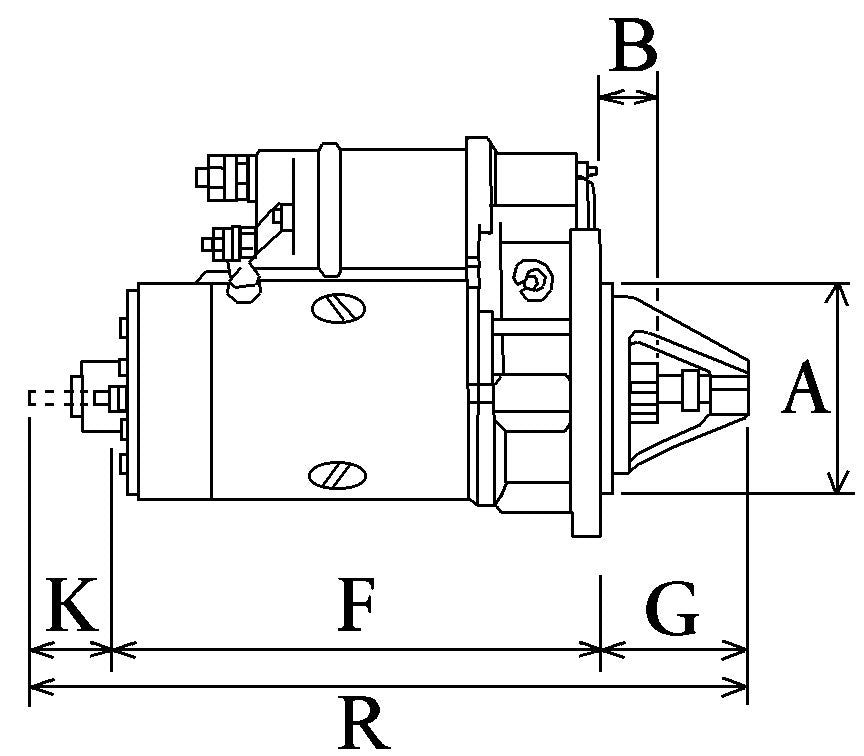

A Mount. flange - 88.60
B Drive dist. - 48.00

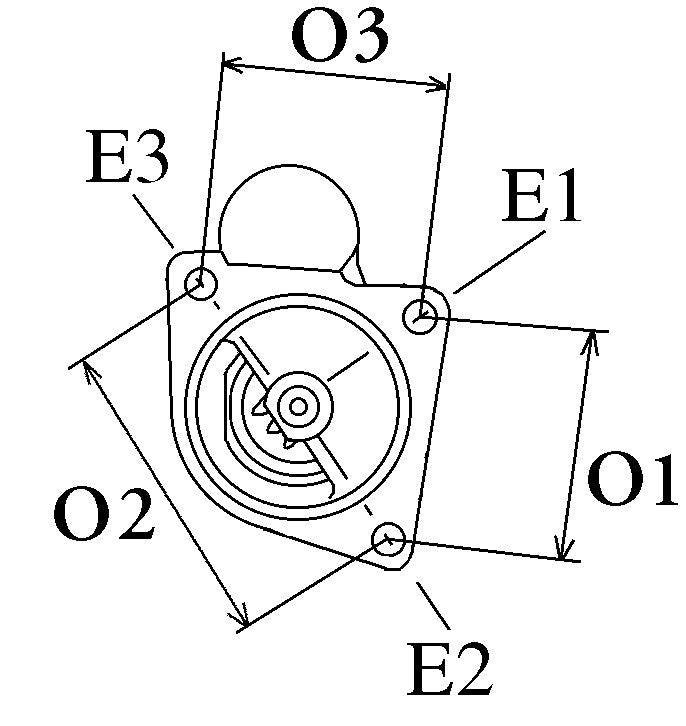

E Mount. hole 3 mm - 11.00
E Mount. hole 2 mm - 11.00
E Mount. hole 1 mm - 11.00
F Dist./back - 200.50
G Dist./front - 92.00
H No./teeth - 11
I B+ M10
L Terminal 50 - 6.30
N Gear type - GR
O Dist. 2 - 89.50
O Dist. 3 - 126.50
O Dist. mm - 89.50
P Rotation - CW
R Total length mm - 297.50
Source - Mahle Letrika
No./mount. holes - 3 (0)
Additional information
Drive type - Steel
Waterproof - No
Oil sealed - No
Replacing
11131116 Mahle
11131426 Mahle
11131728 Mahle
11131746 Mahle
11131970 Mahle
11132101 Mahle
11132169 Mahle
113901 HC-Cargo
30528N WAI
3541277 Cummins
72735863 Mahle
72740526 Mahle
72740715 Mahle
800504113 PSH
83646400 Valtra
836673289 Agco
836673353 Agco
AZE4166 Mahle
AZE4168 Mahle
AZE4209 Mahle
AZE4230 Mahle
AZE4540 Mahle
AZE4597 Mahle
AZF4540 Mahle
DRS0604 Delco Remy
IS1064 Mahle
IS1303 Mahle
LRS02444 Lucas
LRS2444 Lucas
MAHMS235 Wood Auto
MS235 Mahle
MS592 Mahle
MS634 Mahle
MS634OF Mahle
RNLMS235 RNL
STR60649 Wood Auto
V836673353 Agco
WOOSTR60649 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
Case International Industrial
Valtra Industrial
Valtra N-Serie 6400
Valtra N-Serie 6800
