New 12V 4.0KW Starter Motor 11 Teeth Fits: John Deere 114275 / STR50571
114275
STR50571
Electrical specifications
Voltage - 12
KW - 4.0
Physical specifications

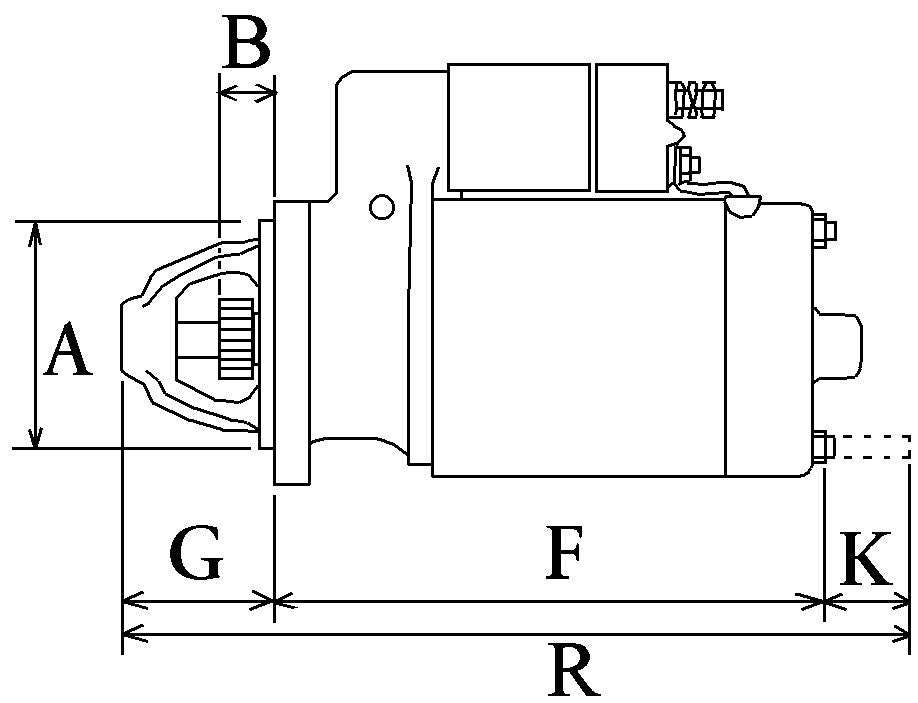

A Mount. flange - 89.00
B Drive dist. - 48.00

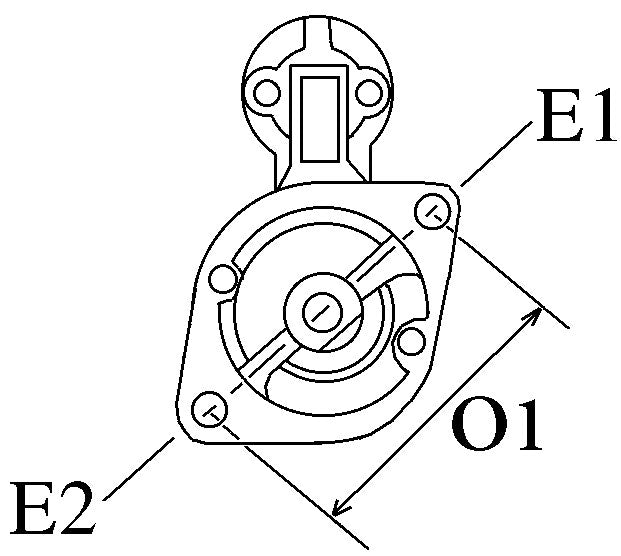

E Mount. hole 2 mm - 11.00
E Mount. hole 1 mm - 11.00
F Dist./back - 218.00
G Dist./front - 94.50
H No./teeth - 11
I B+ M10
L Terminal 50 - M5
N Gear type - GR
O Dist. mm - 127.00
P Rotation - CW
R Total length mm - 326.50
No./mount. holes - 2 (0)
Additional information
Drive Type - Steel
Replacing
0001260001 Bosch
0001260004 Bosch
0001260030 Bosch
0001260032 Bosch
0986025790 Bosch Exchange
11139179 Mahle
114275 HC-Cargo
12130367 AES
12130939 AES
19825N WAI
19825R WAI
1986S10041 Bosch
630517112 PSH
72483376 Mahle
91157317 Wilson
AZF4416 Mahle
BOS0001260004 Wood Auto
DRS0719 Delco Remy
F032114275 HC-Cargo
IS9480 Mahle
LES0340 Lucas
LRS02538 Lucas
LRS2538 Lucas
MAHMS894 Wood Auto
MS894 Mahle
RE526375 John Deere
RE527400 John Deere
RE541166 John Deere
RE542532 John Deere
RNL260001 RNL
SE501868 John Deere
SEG0001260004 Wood Auto
SEG0001260032 Wood Auto
STR50571 Wood Auto
WOOSTR50571 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
John Deere Industrial Equipment 6130
John Deere Industrial Equipment 6230
John Deere Industrial Equipment 6330
John Deere Industrial Equipment 6430
