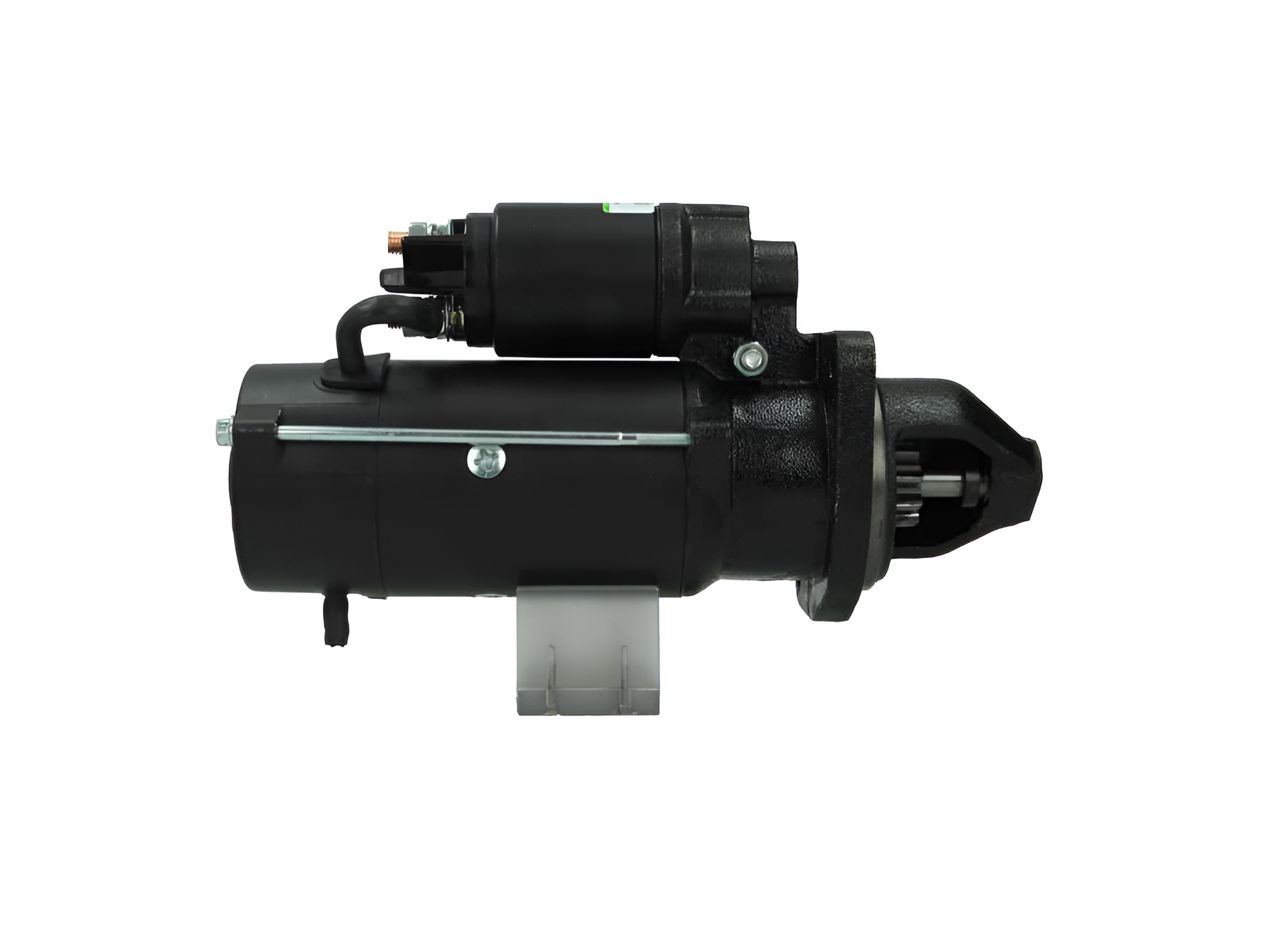

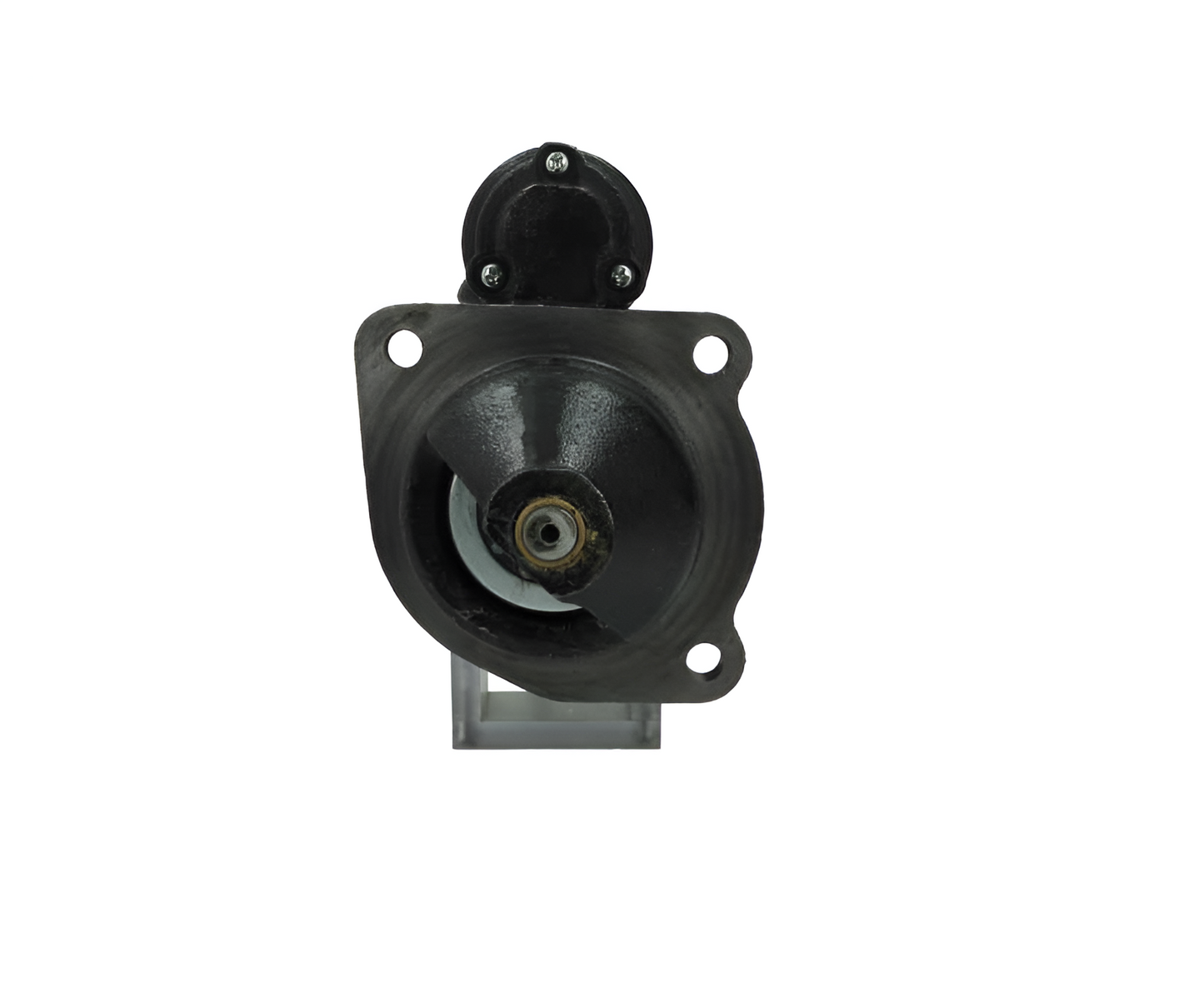

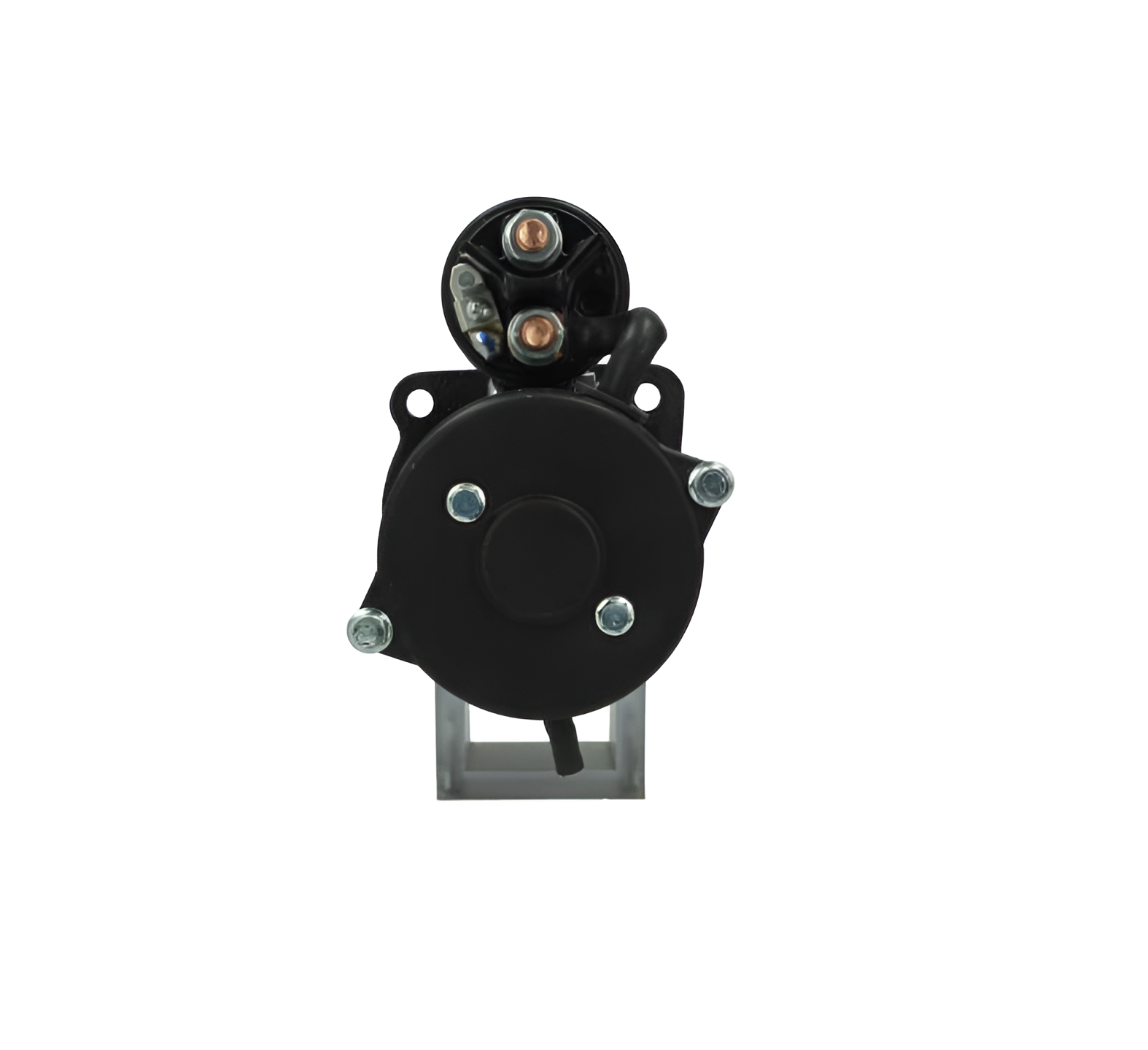

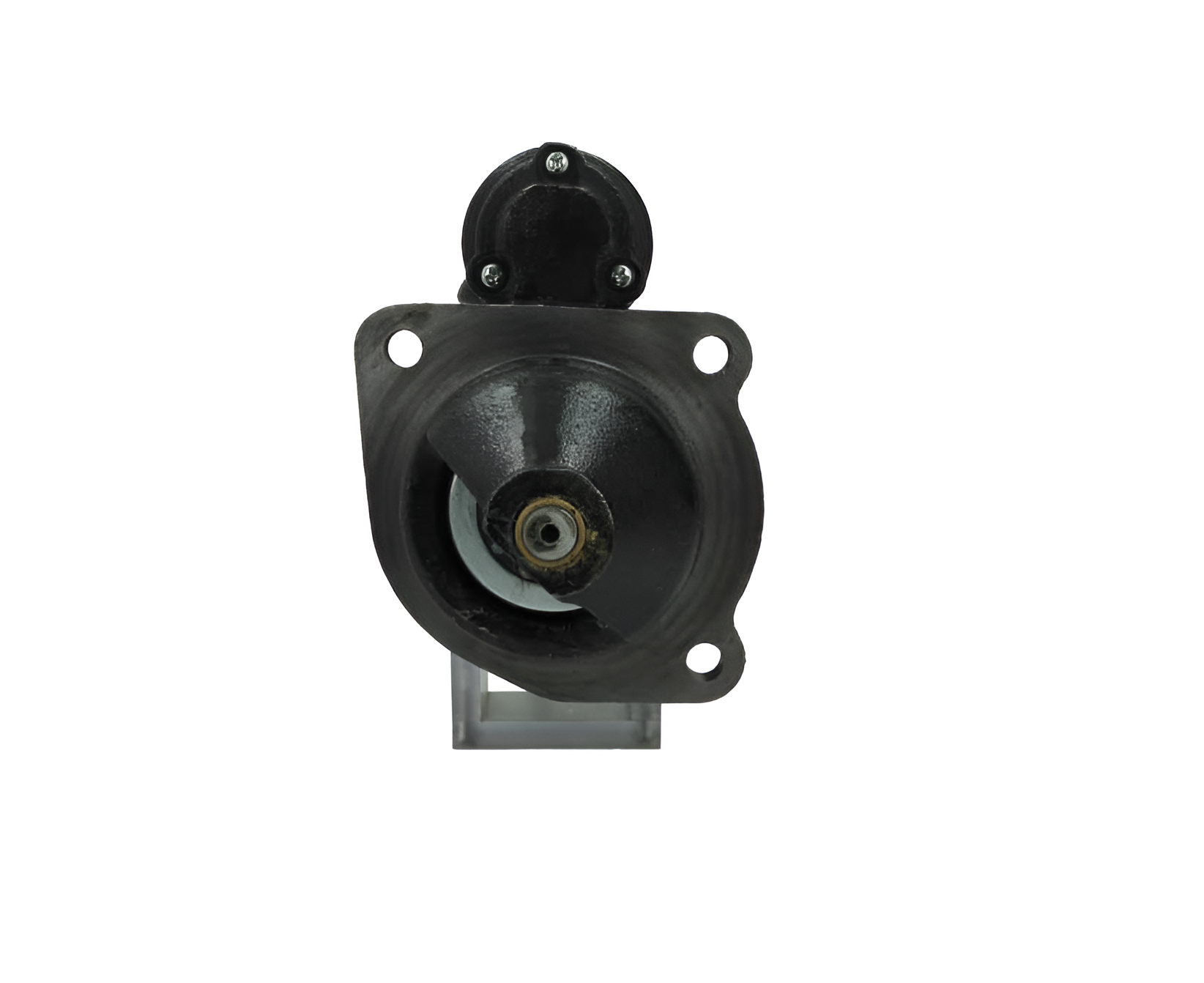

New 12V 4.2KW Starter Motor 10 Teeth Fits: Iveco, Case, New Holland etc. 114050 / STR60710
114050
STR60710
Electrical specifications
Voltage - 12
KW - 4.2
Physical specifications

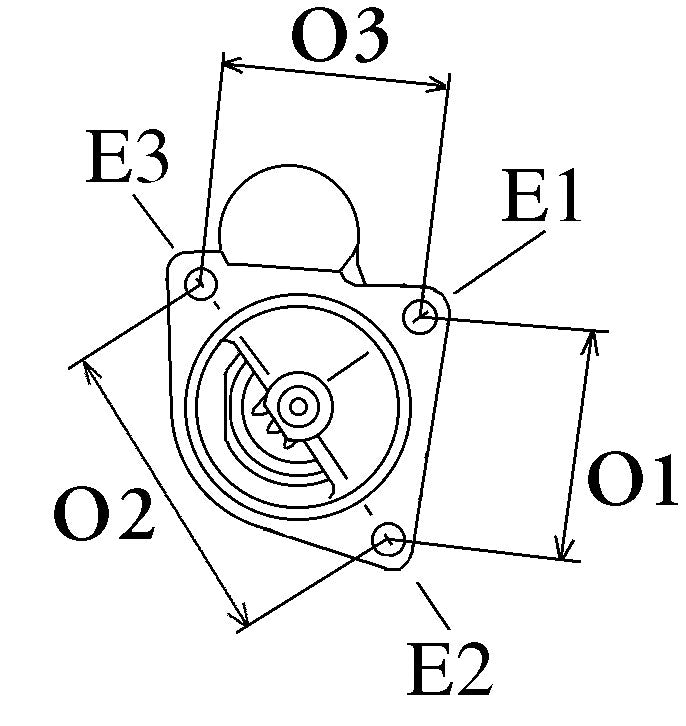

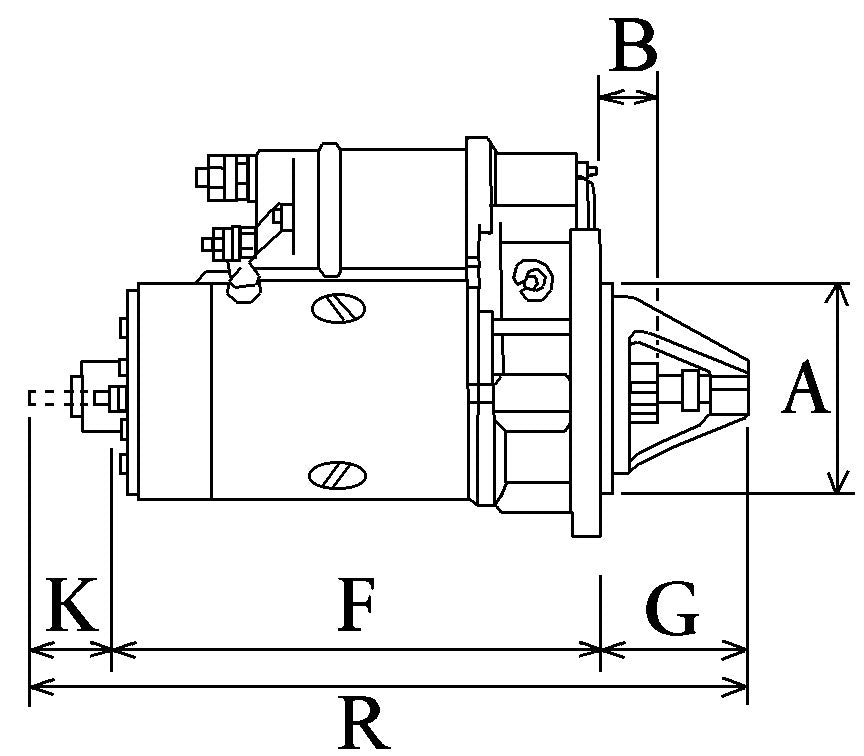

A Mount. flange - 89.00
B Drive dist. - 27.50
E Mount. hole 3 mm - 10.80
E Mount. hole 2 mm - 10.80
E Mount. hole 1 mm - 10.80
H No./teeth - 10
I B+ M10
L Terminal 50 - 6.30
N Gear type - GR
O Dist. 2 - 127.00
O Dist. 3 - 90.00
O Dist. mm - 90.00
P Rotation - CW
No./mount. holes - 3 (0)
Replacing
0001230022 Bosch
11130999 Mahle
11131464 Mahle
11131520 Mahle
11131550 Mahle
11131706 Mahle
11131824 Mahle
11131972 Mahle
11132072 Mahle
11132073 Mahle
11132283 Mahle
114050 HC-Cargo
19793N WAI
19793NIK WAI
3670185M92 Landini
3691576M91 Landini
47715263 New Holland
4897223 New Holland
500389864 Iveco
500549103 PSH
504036476 Iveco
504163666 Iveco
5801394270 Iveco
72735766 Mahle
72740713 Mahle
72740718 Mahle
7700068173 Claas
82032859 Ford
84151331 New Holland
87318375 Case
87318735 New Holland
87518735 New Holland
87524725 Iveco
87583926 New Holland
87653219 New Holland
AZF4122 Mahle
AZF4135 Mahle
AZF4143 Mahle
AZF4184 Mahle
AZF4219 Mahle
AZF4263 Mahle
AZF4290 Mahle
AZF4291 Mahle
AZF4355 Mahle
AZF4535 Mahle
BOS0001230022 Wood Auto
DRS0365 Delco Remy
F032114050 HC-Cargo
IS0999 Mahle
LETIS0999 Wood Auto
LRS02446 Lucas
LRS2446 Lucas
MAHMS138 Wood Auto
MS138 Mahle
MS632OF Mahle
MS637OF Mahle
RNLMS138 RNL
STR50219 Wood Auto
STR50455 Wood Auto
STR60710 Wood Auto
WOOSTR50455 Wood Auto
WOOSTR60710 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
