New 12V 4.2KW Starter Motor 11 Teeth Fits: JCB, Yale, John Deere etc. 114264 / STR60624
114264
STR60624
Electrical specifications
Voltage - 12
KW - 4.2

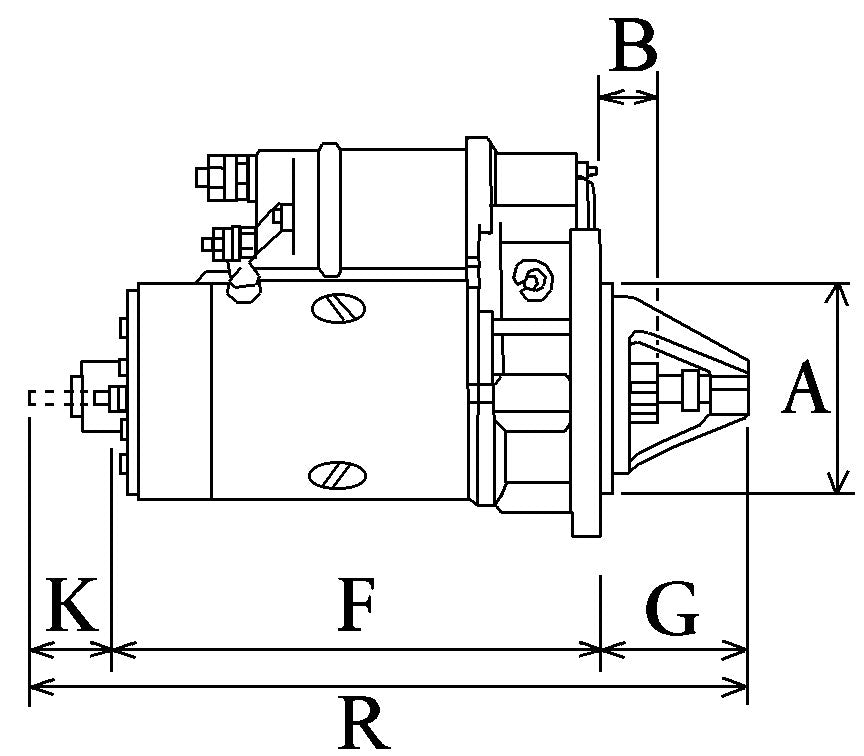

Physical specifications

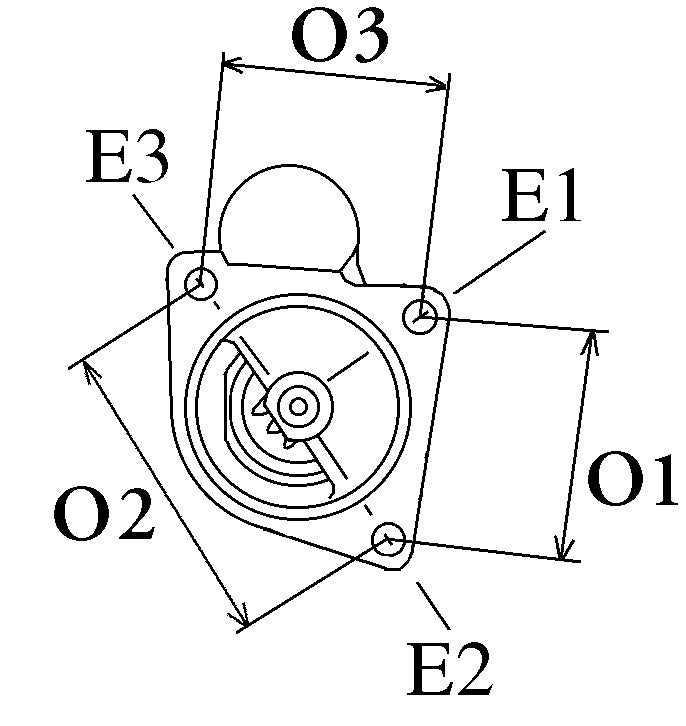

A Mount. flange - 89.00
B Drive dist. - 21.00
E Mount. hole 3 mm - 11.00
E Mount. hole 2 mm - 11.00
E Mount. hole 1 mm - 11.00
F Dist./back - 247.00
G Dist./front - 69.50
H No./teeth - 11
I B+ M10
K Thread length mm - 19.00
L Terminal 50 M4-6.30
N Gear type - GR
O Dist. 2 - 87.50
O Dist. 3 - 127.00
O Dist. mm - 89.50
P Rotation - CW
S B- M8
R Total length mm - 349.50
No./mount. holes - 3 (0)
Replacing
11131113 Mahle
11131292 Mahle
11131697 Mahle
11131711 Mahle
11131848 Mahle
11132113 Mahle
1131292 Mahle
114264 HC-Cargo
18101105 AES
19083047 Delco Remy
30230N WAI
32009022 JCB
32009026 JCB
32009032 JCB
32009035 JCB
32009144 JCB
32009346 JCB
32009409 JCB
32009452 JCB
32009454 JCB
320E9653 JCB
3552682M92 Massey Ferguson
700507113 PSH
72735712 Mahle
AZF4181 Mahle
AZF4186 Mahle
AZF4224 Mahle
AZF4301 Mahle
AZF4576 Mahle
DRS0117 Delco Remy
F032114264 HC-Cargo
IS1105 Mahle
LRS02489 Lucas
LRS2489 Lucas
MAHMS84 Wood Auto
MS84 Mahle
PRES5010L Wood Auto
RNL11131292 RNL
RNLAZF4181 RNL
S5010L Prestolite
STR60624 Wood Auto
TS6212 Dixie
WOOSTR60624 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
