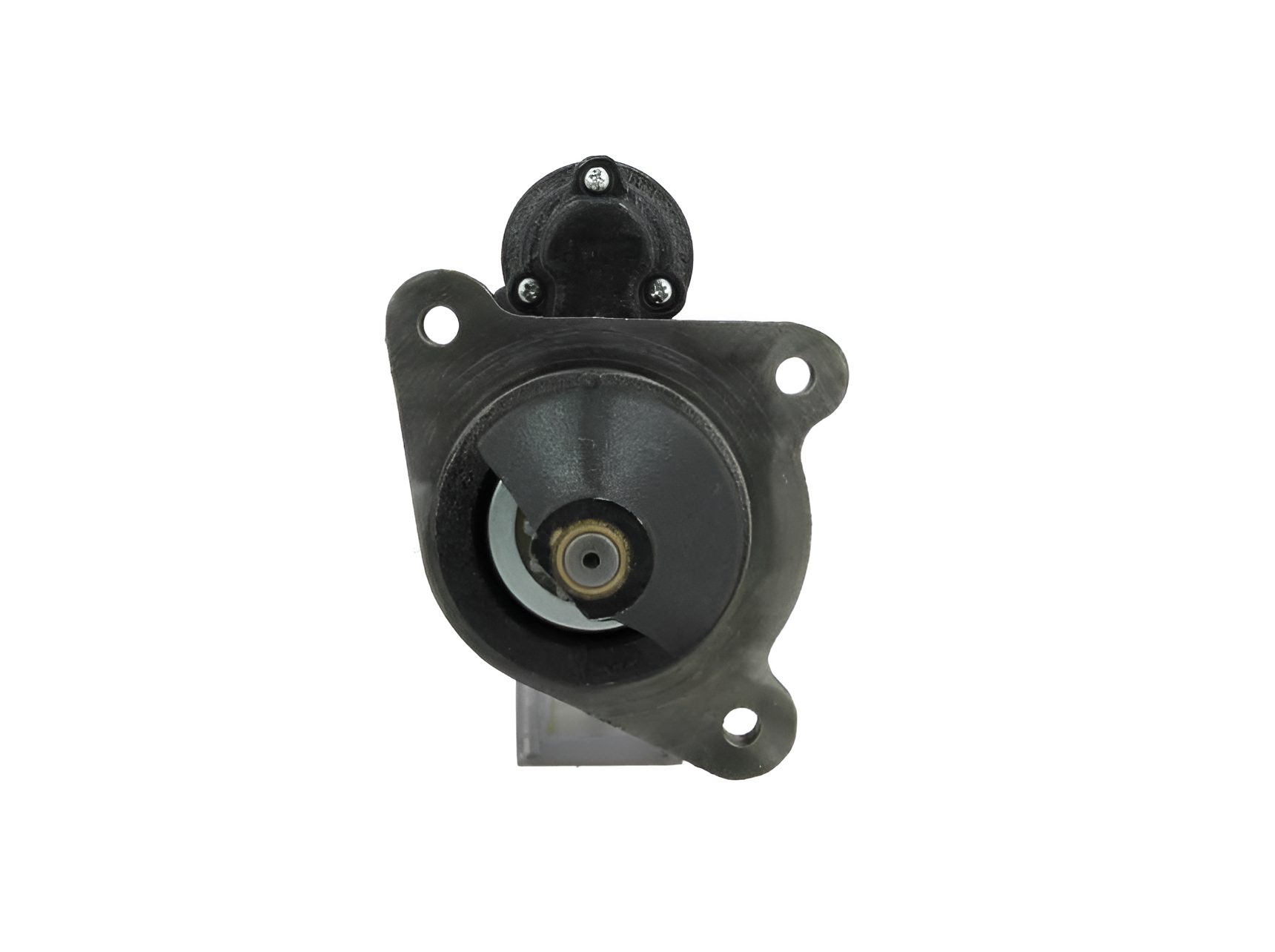

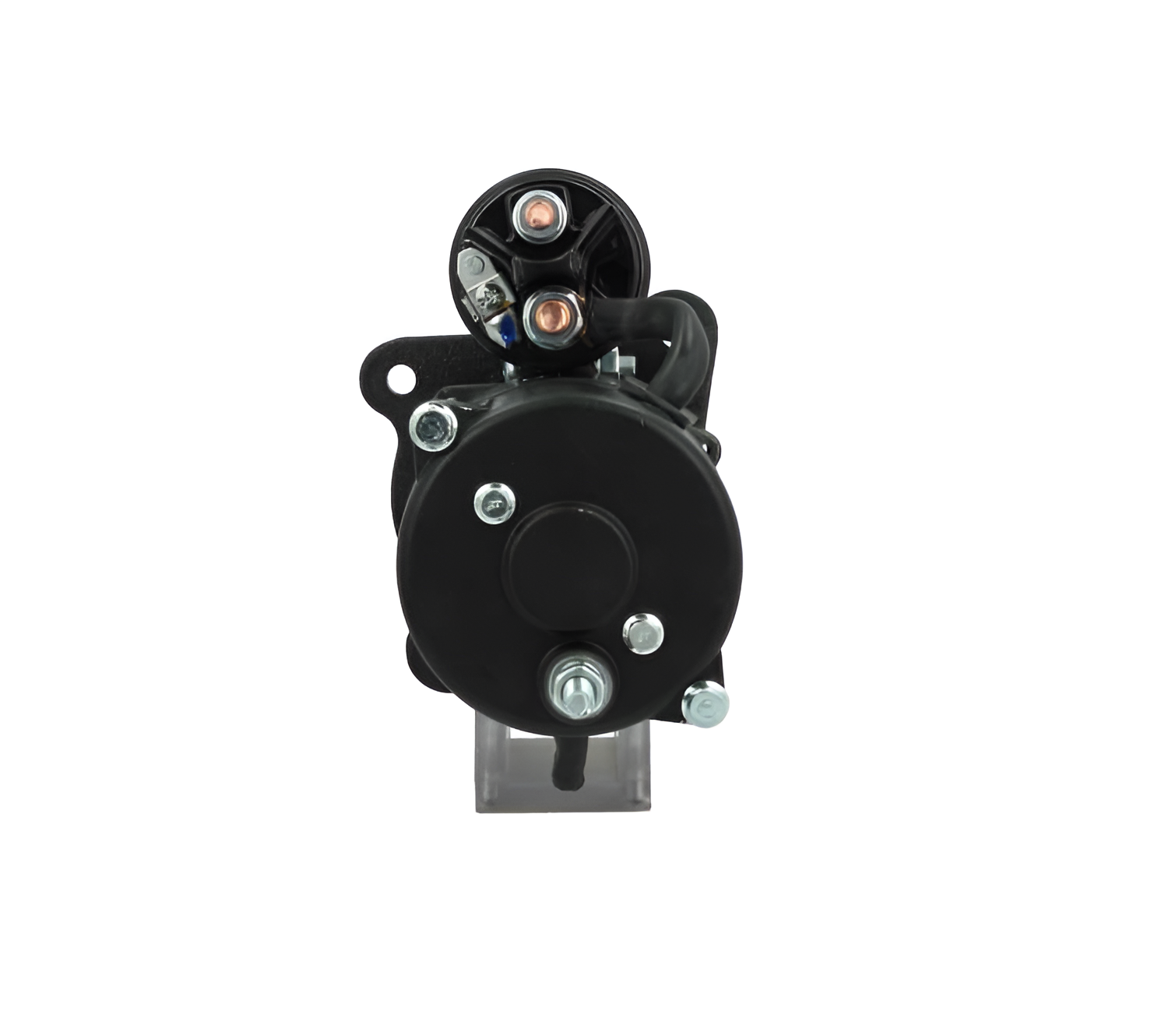

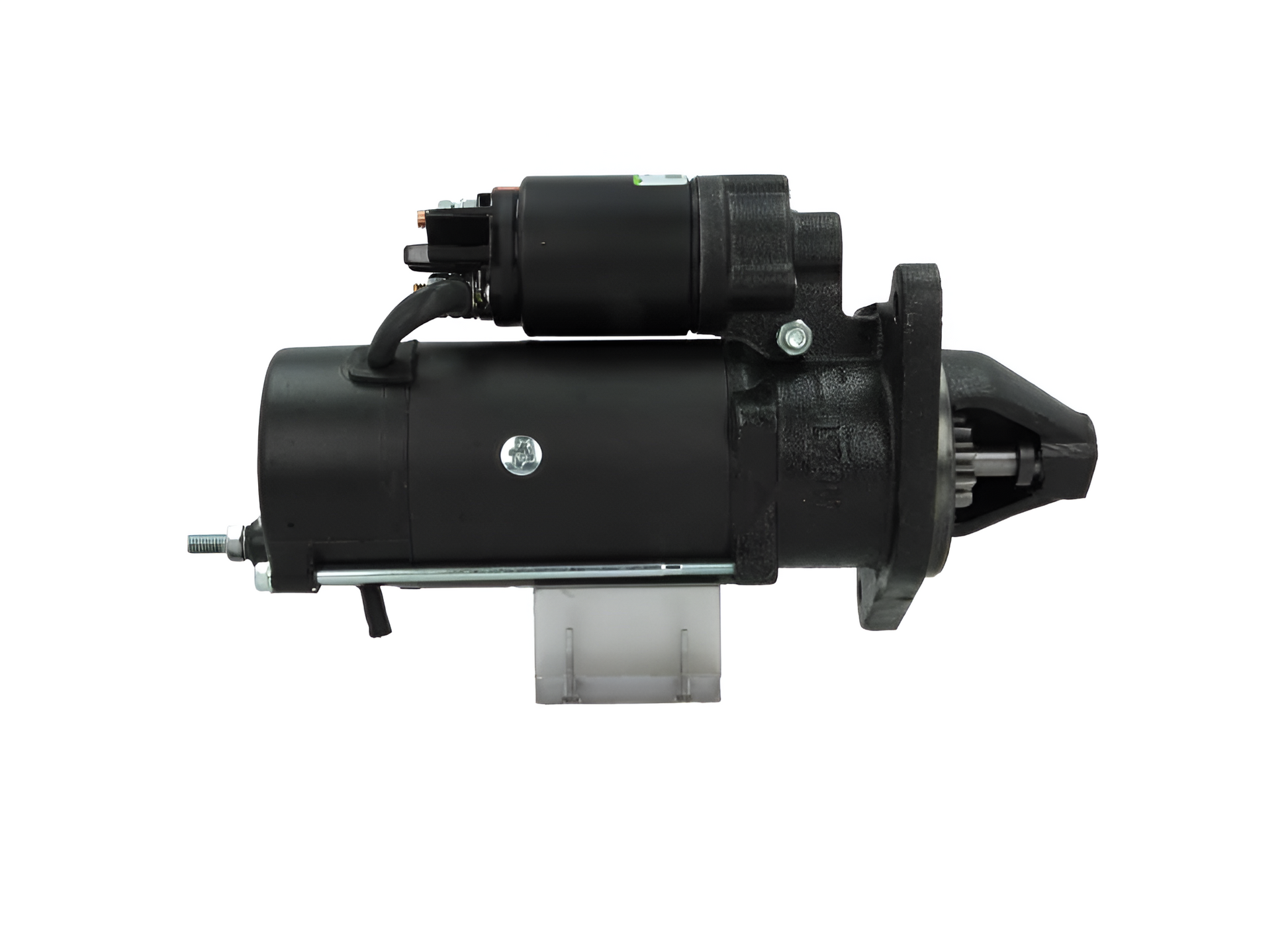

Reduction Gear Starter Motor To Fit New Holland, JCB & Ford Tractors 115391 / STR60685
115391
STR60685
Electrical specifications
Voltage12
kW4.2

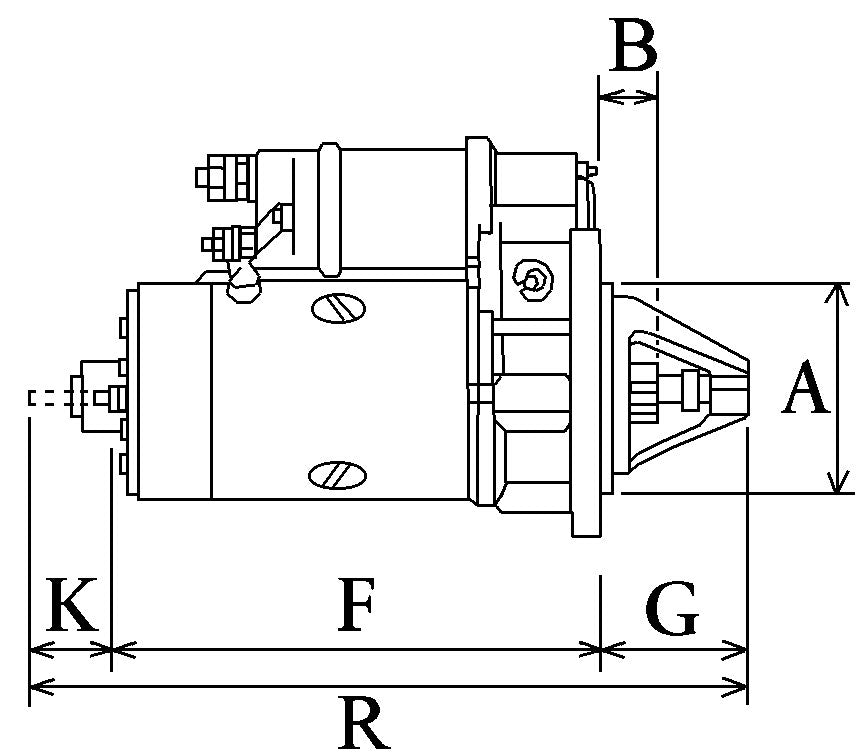

Physical specifications
H No./teeth 10
P Rotation CW
N Gear type GR
A Mount. flange 92.00
I B+ M8

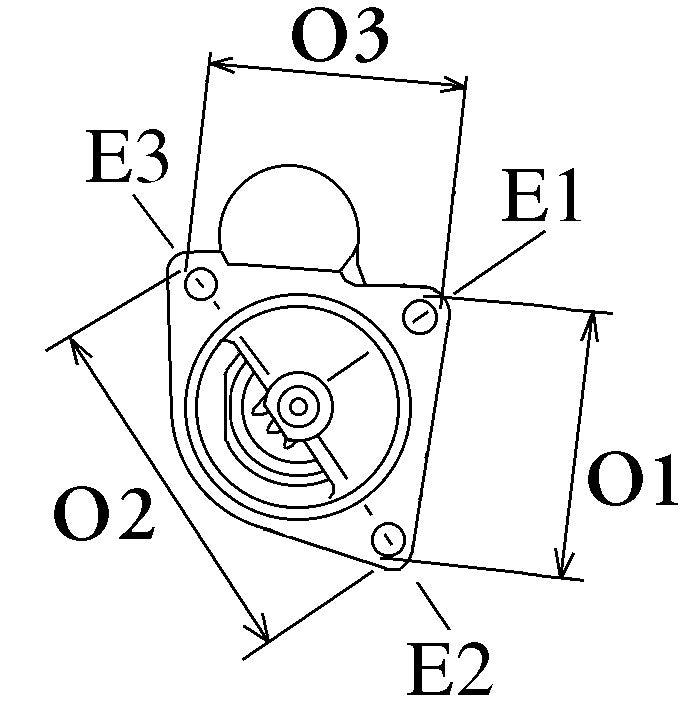

No./mount. holes 3 (0)
B Drive dist. 20.50
E Mount. holes 10.90
E Mount. hole 2 10.90
E Mount. hole 3 10.90
F Dist./back 260.00
G Dist./front 67.20
M Mount. bracket No
O Dist. mm 103.25
O Dist. 2 146.00
O Dist. 3 103.25
R Total length mm 327.20
Further information
No./mount. holes3 (0)
Replacing
11131573 Mahle
115391 HC-Cargo
18101158 AES
26147 Lucas
33407N WAI
590555103 PSH
72735919 Mahle
AZF4146 Mahle
F032115391 HC-Cargo
IS1158 Mahle
LETIS1158 Wood Auto
MAHMS291 Wood Auto
MS291 Mahle
MS922 Mahle
RNLMS291 RNL
STR60685 Wood Auto
WOOSTR60685 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
