New Starter Motor, Replaces Yanmar, John Deere Etc.
114197
STR70388
Electrical information
Voltage 12
Kw 1.1
Physical information
H No./teeth 9
P Rotation CW
N Gear type GR

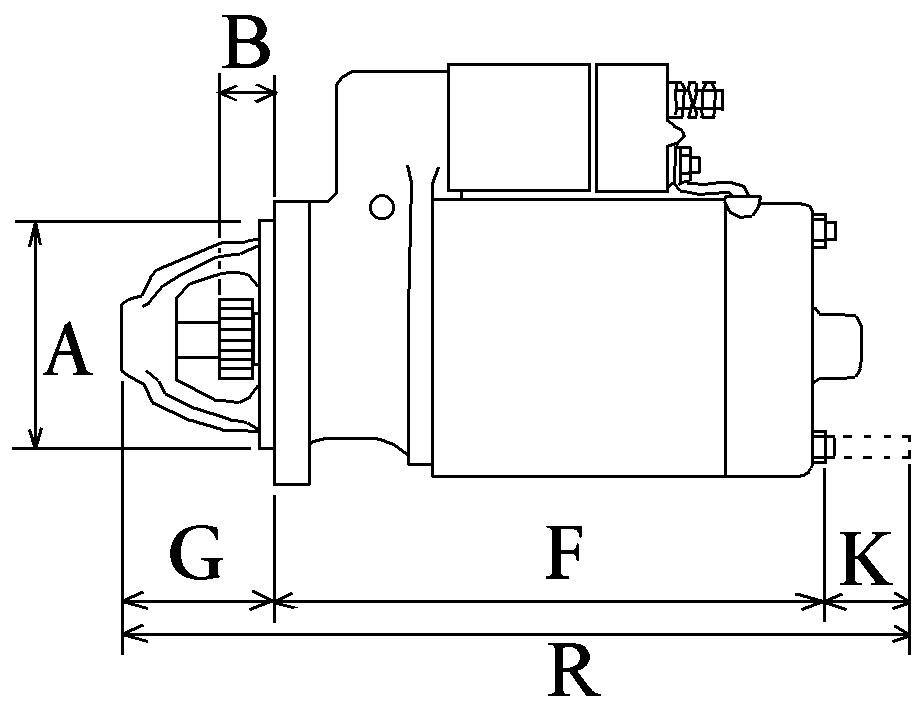

A Mount. flange 89.00
I B+ M8
No./mount. holes 2 (0)
B Drive dist. 17.00

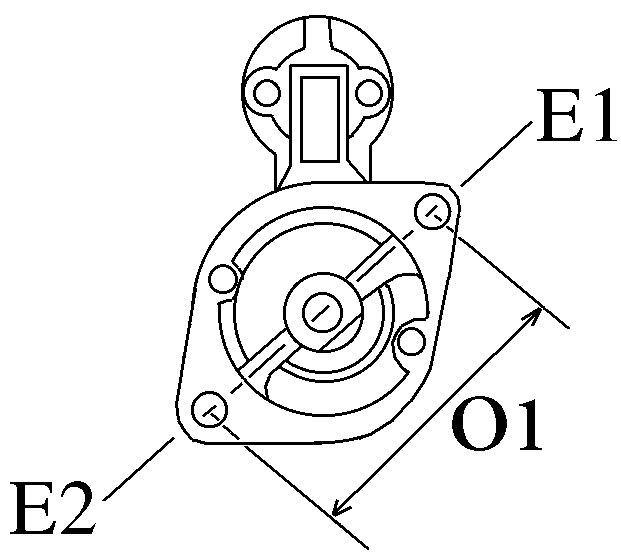

E Mount. holes 12.00
E Mount. hole 2 11.00
F Dist./back 153.00
G Dist./front 53.50
M Mount. bracket No
O Dist. mm 127.00
R Total length mm 209.00
Replacing
114197 HC-Cargo
11962677010 Yanmar
11962677011 Yanmar
18426N WAI
18426NMI WAI
18426R WAI
20130130 AES
2280006080 Denso
2280007470 Denso
2280007471 Denso
2280007472 Denso
2280807472 Denso
24312131 Dixie
4280000600 Denso
91295524N Wilson
9722809747 Denso
980542092 PSH
AM809215 John Deere
AM879204 John Deere
DENDSN2078 Wood Auto
DSN2078 Denso
F032114197 HC-Cargo
LES0283 Lucas
LRS02748 Lucas
LRS2748 Lucas
M809215 John Deere
RS41295 Delco Remy
S80090 Dixie
SE501858 John Deere
STR23004 Wood Auto
STR70388 Wood Auto
TY25238 John Deere
WOOSTR23004 Wood Auto
WOOSTR70388 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
