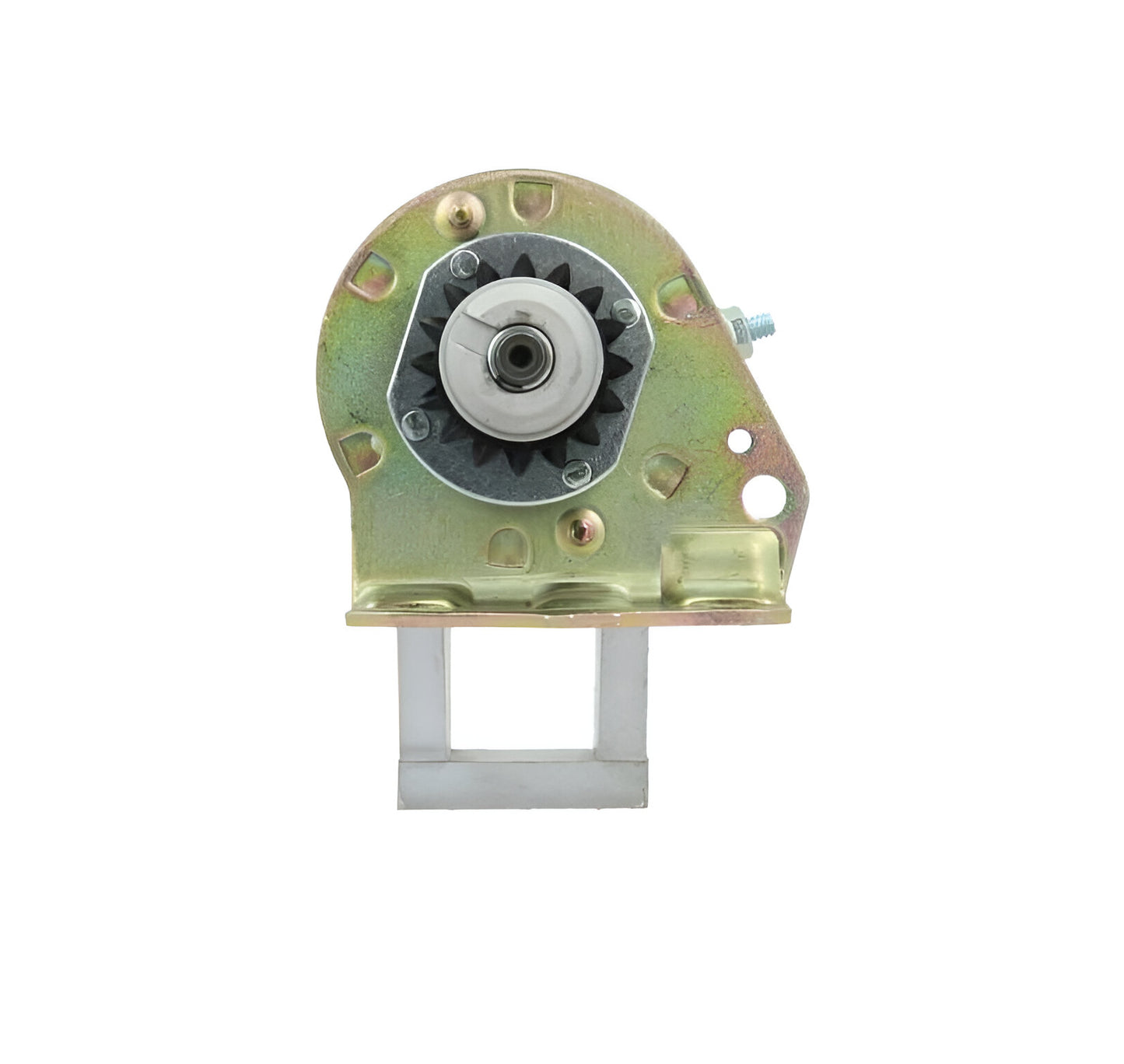

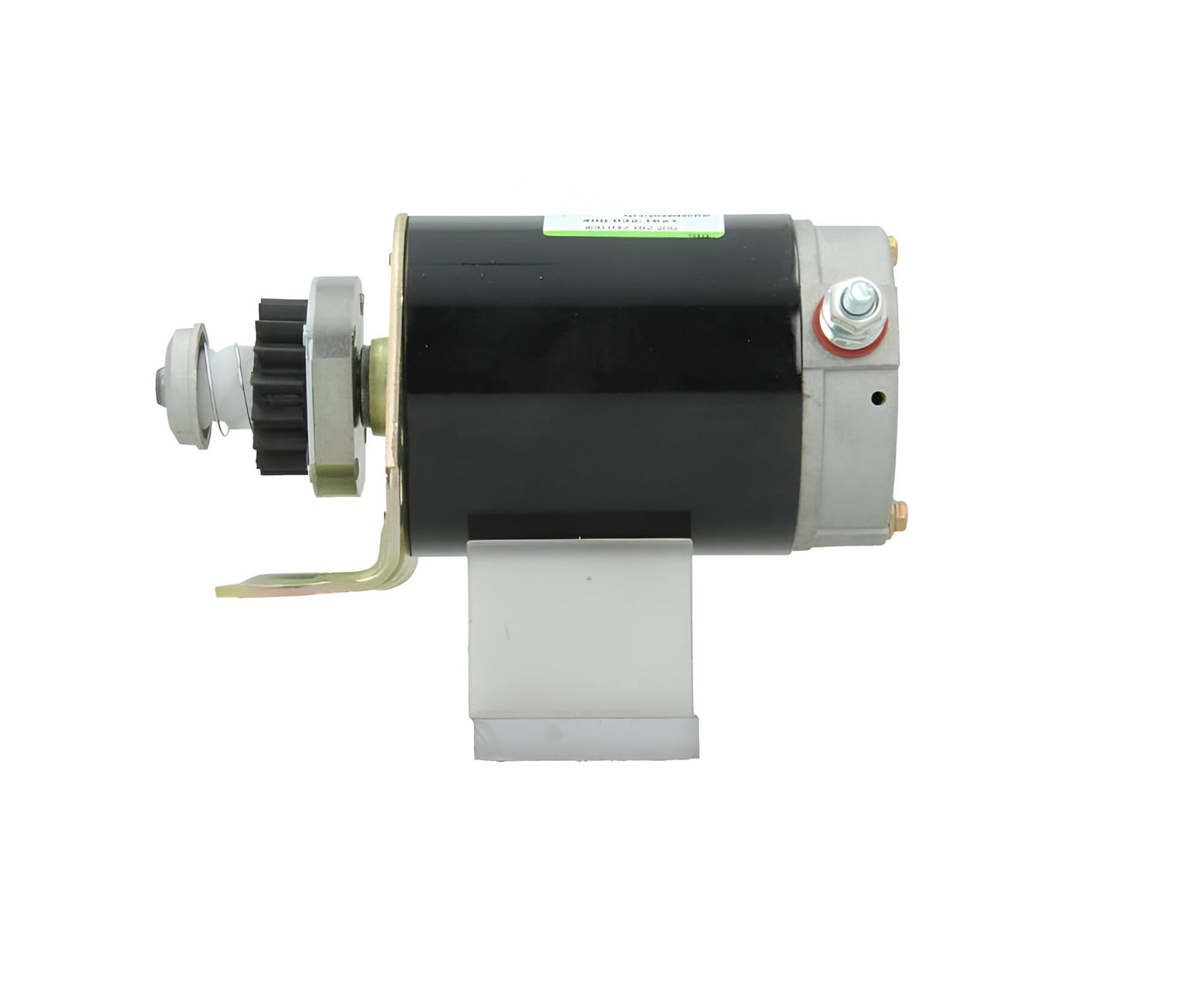

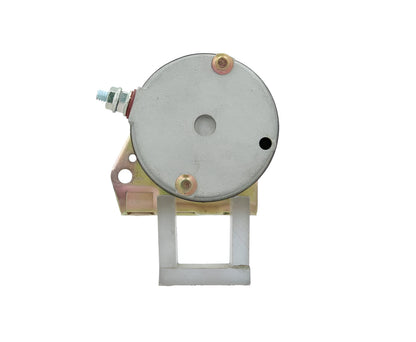

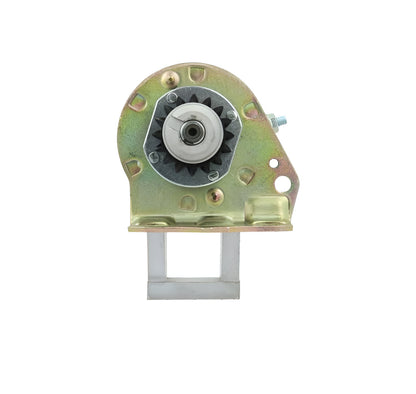

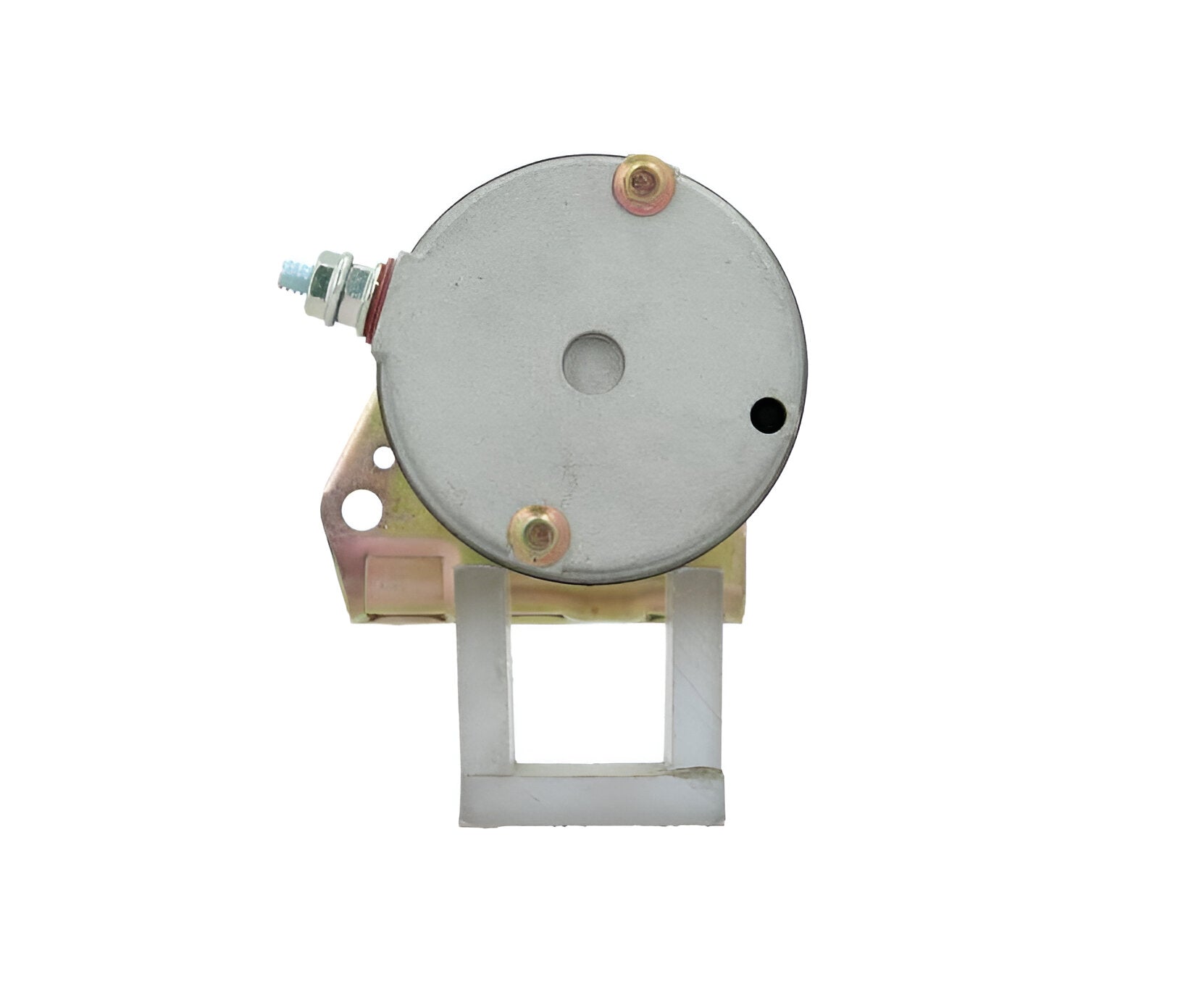

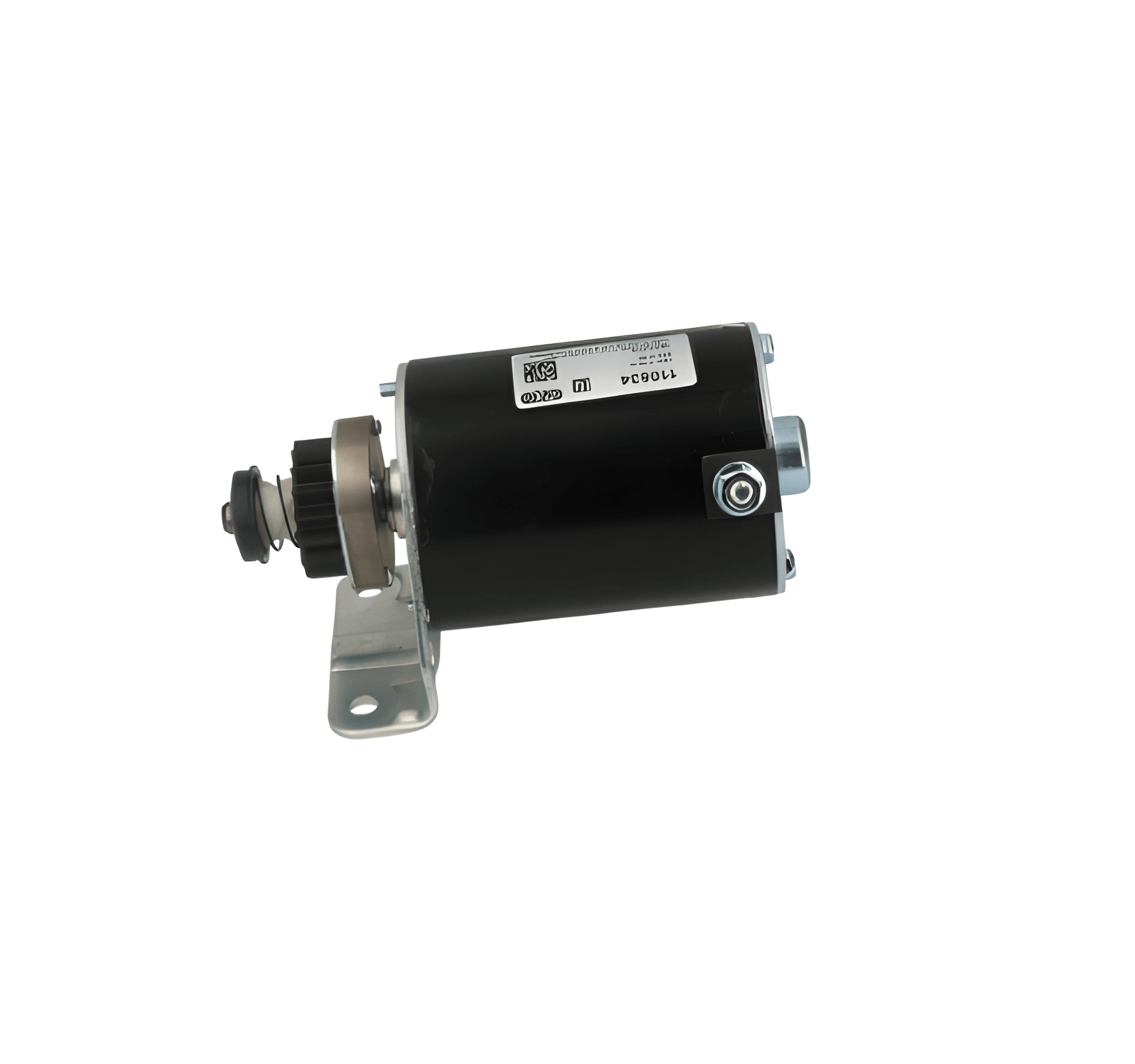

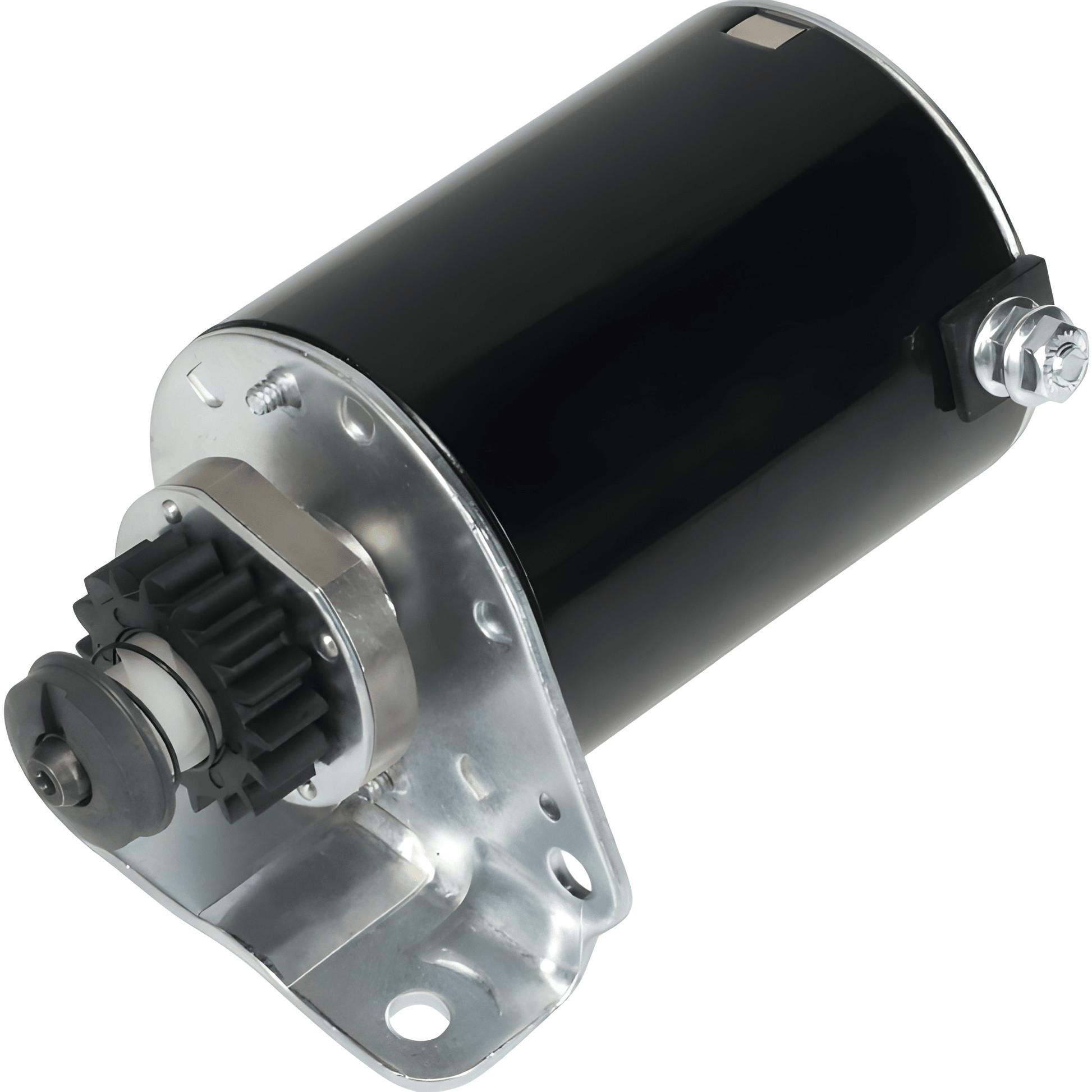

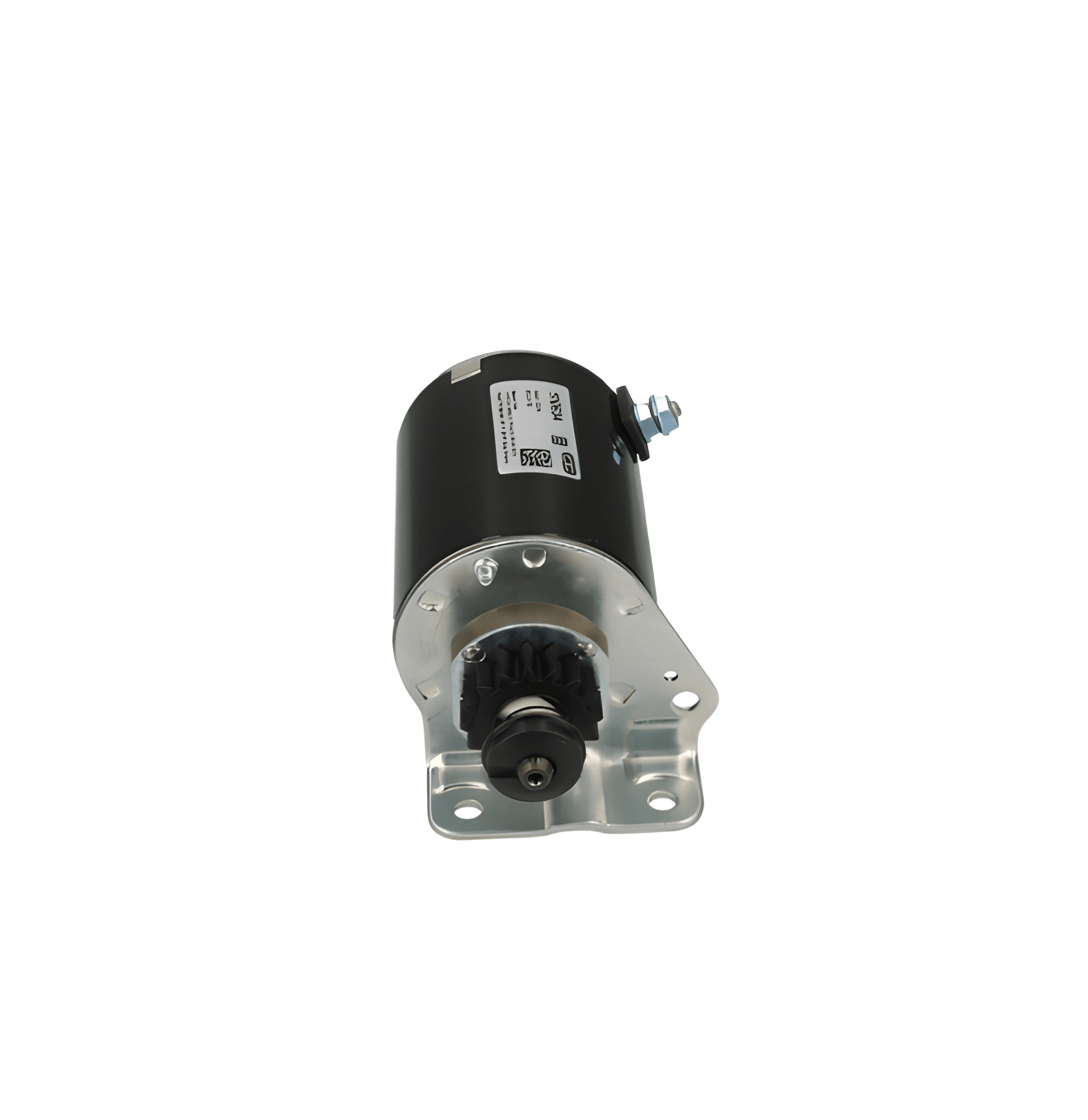

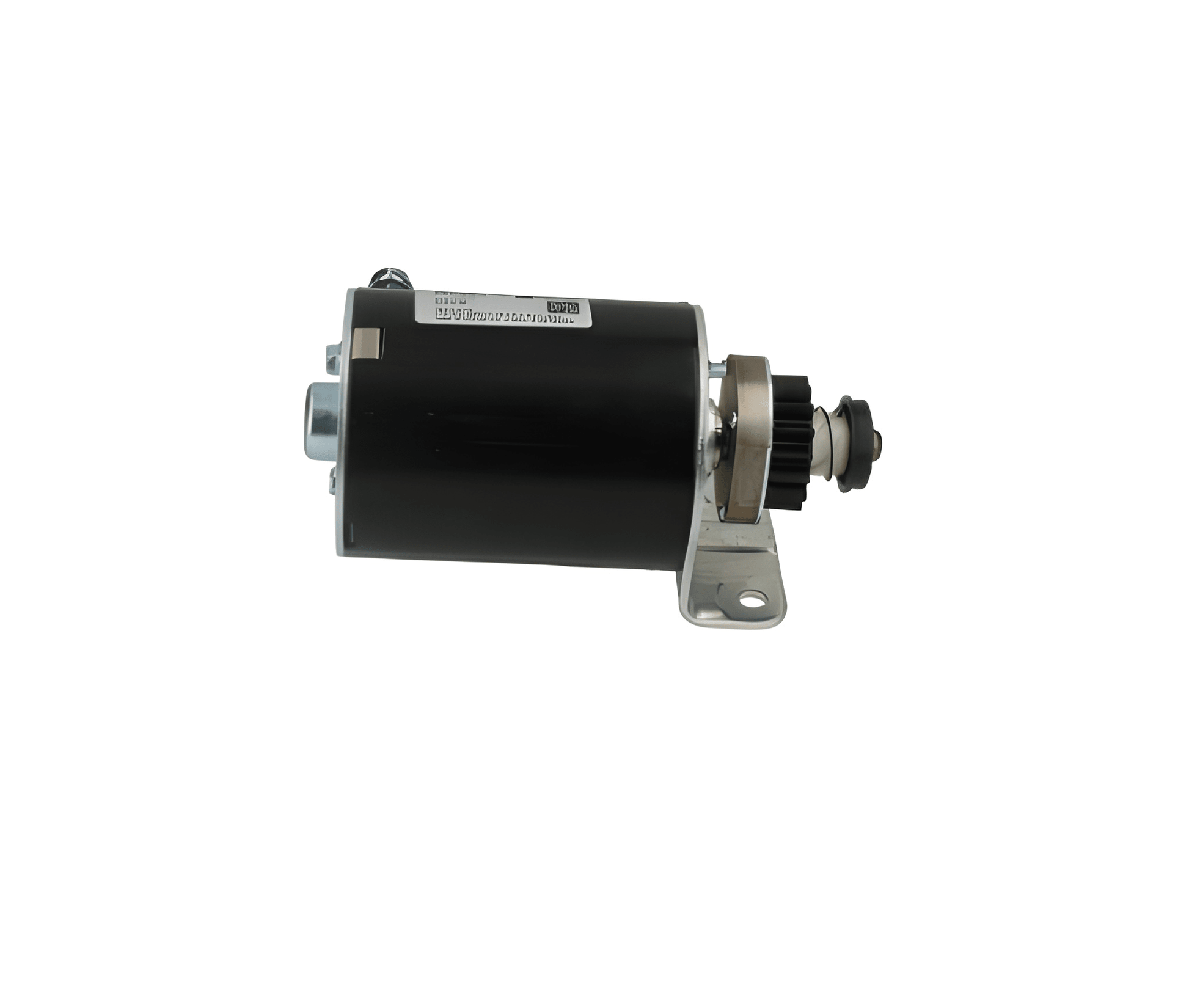

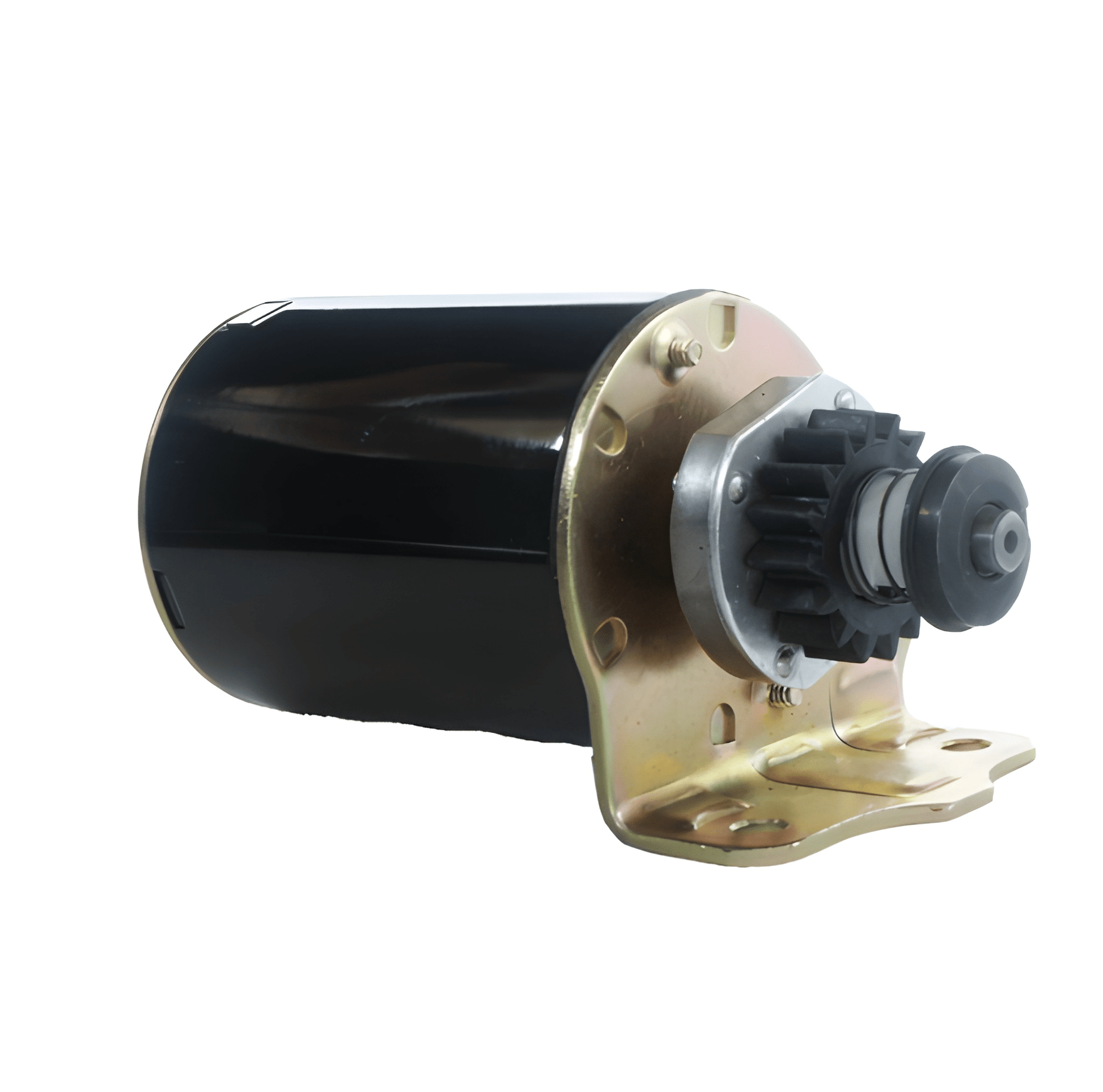

New 12v Starter Motor As Fitted To Briggs & Stratton John Deere (Short) 110634 / STR40004

New 12v Starter Motor As Fitted To Briggs & Stratton John Deere (Short) 110634 / STR 40004

110634

STR40004

Electrical specifications

• Voltage 12
• kW 0.7

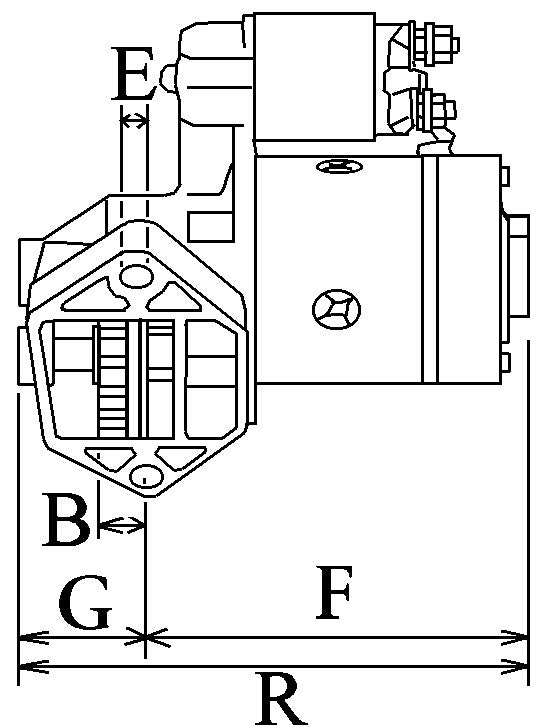

Physical specifications

• H No. of teeth 16
• I B+ 1/4" UNC
• N Gear type DD
• O Dist. mm 58.00
• P Rotation CCW
• R Total length mm 170.00

 Further information

• No./mount. holes 3 (0)
• Drive type - Plastic
• Oil sealed - No
• Waterproof - No

REPLACING

• 110634    HC-Cargo

• 20607103    Dixie

• 22170ND    WAI

• 22188    Lucas

• 25200A    Lucas

• 390838    Briggs Stratton

• 391423    Briggs Stratton

• 392749    Briggs Stratton

• 394805    Briggs Stratton

• 400032162    PSH

• 453303    Briggs Stratton

• 491766    Briggs Stratton

• 494990    Briggs Stratton

• 497595    Briggs Stratton

• 5742N    WAI

• 5742NHD    WAI

• 5742R    WAI

• 693054    Briggs Stratton

• 91091002    Wilson

• 9208191    Briggs Stratton

• 9401115M    Briggs Stratton

• 96763    Delco Remy

• ACS977    ATK

• AM122337    John Deere

• AM32092    John Deere

• AM34731    John Deere

• AM37352    John Deere

• AM39137    John Deere

• F032110634    HC-Cargo

• F04200D000    Bosch

• F042S0E000    Bosch

• HUS851    HC-Parts

• LG497595    John Deere

• LRS02170    Lucas

• LRS2170    Lucas

• M001T02271    Mitsubishi

• M1T02271    Mitsubishi

• RNL497595    RNL

• RNL5742    RNL

• RS41075    Delco Remy

• SM01965    United Technologies

• SMO1965    John Deere

• STR1001    Unipoint

• STR1001A    Unipoint

• STR40004    Wood Auto

• STR88300    Wood Auto

• US851    HC-Parts

• WOOSTR40004    Wood Auto

• WOOSTR88300    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
