New 12v 1KW 9 Teeth Starter Motor To Fit Kubota Engines and Various Agricultural Vehicles & Mini Diggers 110447 / STR30012

New 12v 1KW 9 Teeth Starter Motor To Fit Kubota Engines and Various Agricultural Vehicles & Mini Diggers 110447 / STR30012

Vendor:Wood Auto Supplies Ltd

Availability: Low stock: 1 left

Product Type:STR30012

Product Indentifier:7436204762797

Regular price

£123.88 £103.23 ex VAT

Regular price £135.65 Sale price £103.23 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

New 12v Starter Motor To Fit Kubota Engines and Various Agricultural Vehicles Mini Diggers 110447 / STR30012

110447

STR30012

Electrical specifications

Voltage 12
kW 1.0

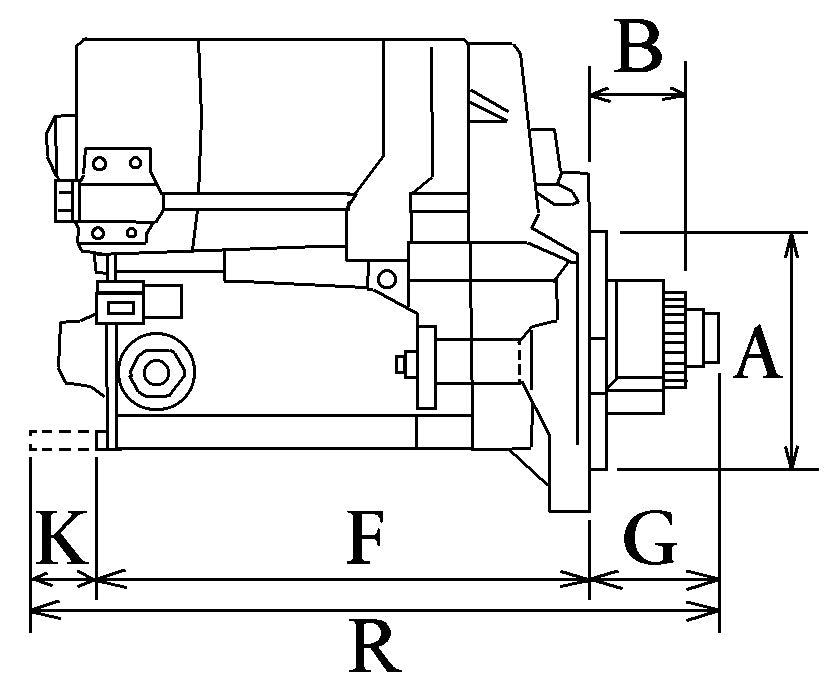

Physical specifications

  • A Mount. flange 66.00
  • B Drive dist. 17.00
  • F Dist./back 152.70
  • G Dist./front 29.80
  • H No. of teeth 9
  • I B+ M8
  • N Gear type GR
  • O Dist. mm 109.60
  • P Rotation CR
  • R Total length mm 199.50

Further information

  • No./mount. holes 2 (0)
  • Clutch type Dry
  • Drive type Steel
  • Oil sealed No
  • Waterproof No

Replacing

  • 0280008320    Denso
  • 0280008321    Denso
  • 0280008322    Denso
  • 0280008323    Denso
  • 0986023460    Bosch Exchange
  • 110447    HC-Cargo
  • 1280003590    Denso
  • 1280003591    Denso
  • 1280005260    Denso
  • 1280005261    Denso
  • 1280005262    Denso
  • 1280005263    Denso
  • 1280009950    Denso
  • 1280009951    Denso
  • 1280009958    Denso
  • 1550463010    Kubota
  • 1550463011    Kubota
  • 1550463012    Kubota
  • 1574163010    Kubota
  • 1574163011    Kubota
  • 1627163013    Kubota
  • 1661263010    Kubota
  • 1661263011    Kubota
  • 1661263012    Kubota
  • 1669563011    Kubota
  • 1669563012    Kubota
  • 1669563013    Kubota
  • 16695663013    Kubota
  • 1687163010    Kubota
  • 1687163011    Kubota
  • 1687163012    Kubota
  • 17028N    WAI
  • 17028R    WAI
  • 1759463011    Kubota
  • 1759463012    Kubota
  • 19130016    AES
  • 1940063011    Kubota
  • 1942063012    Kubota
  • 20513059    Prestolite
  • 2280000790    Denso
  • 2280000791    Denso
  • 2280000800    Denso
  • 2280000970    Denso
  • 2280001532    Denso
  • 2280007150    Denso
  • 2280007151    Denso
  • 297013000    Carrier
  • 690546092    PSH
  • 7000065461    Kubota
  • 866101    Terex
  • 91295115    Wilson
  • 91295215    Wilson
  • 91295217    Wilson
  • DRS3229    Delco Remy
  • F032110447    HC-Cargo
  • HJS730    HC-Parts
  • JS730    HC-Parts
  • K331196300    Kubota
  • LRS01169    Lucas
  • LRS01629    Lucas
  • LRS1169    Lucas
  • LRS1629    Lucas
  • RNL730JS    RNL
  • S8322    Dixie
  • STR30012    Wood Auto
  • TRS094    TWA
  • WOOSTR30012    Wood Auto

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
