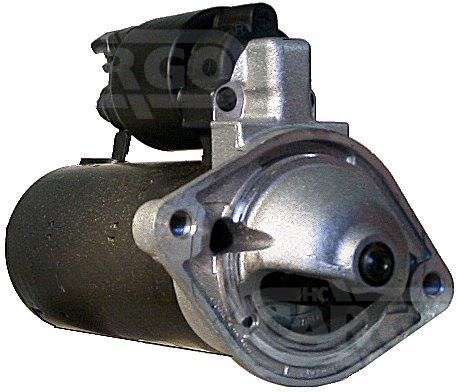

New 12v Starter Motor to fit Toyota Avensis Corolla 2.0D Cargo 112006
112006
Details and description
Voltage 12, kW 2.0, Mount. flange 74.00, Drive dist. 3.50, Dist./back 207.50, Dist./front 42.00, No. of teeth9,10, B+ M8, Gear type GR, Dist. mm 114.50, Rotation CR, No./mount. holes 2 (2), Drive type Steel, Total length mm 250.50, Oil sealed No, Waterproof No
Electrical specifications
- Voltage 12
- kW 2.0

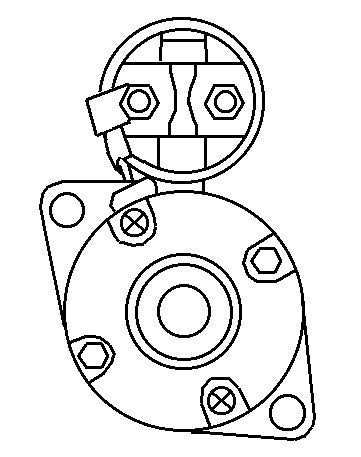

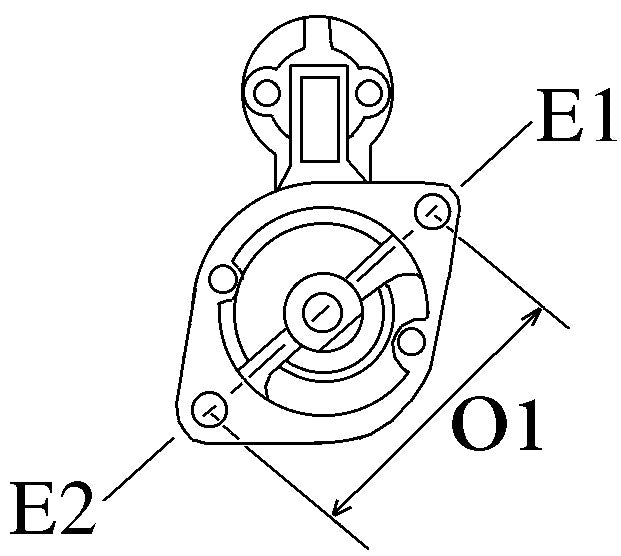

Physical specifications
- A Mount. flange 74.00
- B Drive dist. 3.50
- F Dist./back 207.50
- G Dist./front 42.00
- H No. of teeth 9,10
- I B+ M8
- N Gear type GR
- O Dist. mm 114.50
- P Rotation CR
- R Total length mm 250.50
Further information
- No./mount. holes 2 (2)
- Drive type Steel
- Oil sealed No
- Waterproof No
Replacing
BOSCH
- 0001109034
- 0001110132
TOYOTA
- 28100-0b010
- 28100-0b020
- 28100-0g010
- 28100-0G020
DENSO
- 428000-0720
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
Toyota Avensis 2.0 DT
Toyota Corolla
Toyota Avensis 2.0 DT
Toyota Corolla
