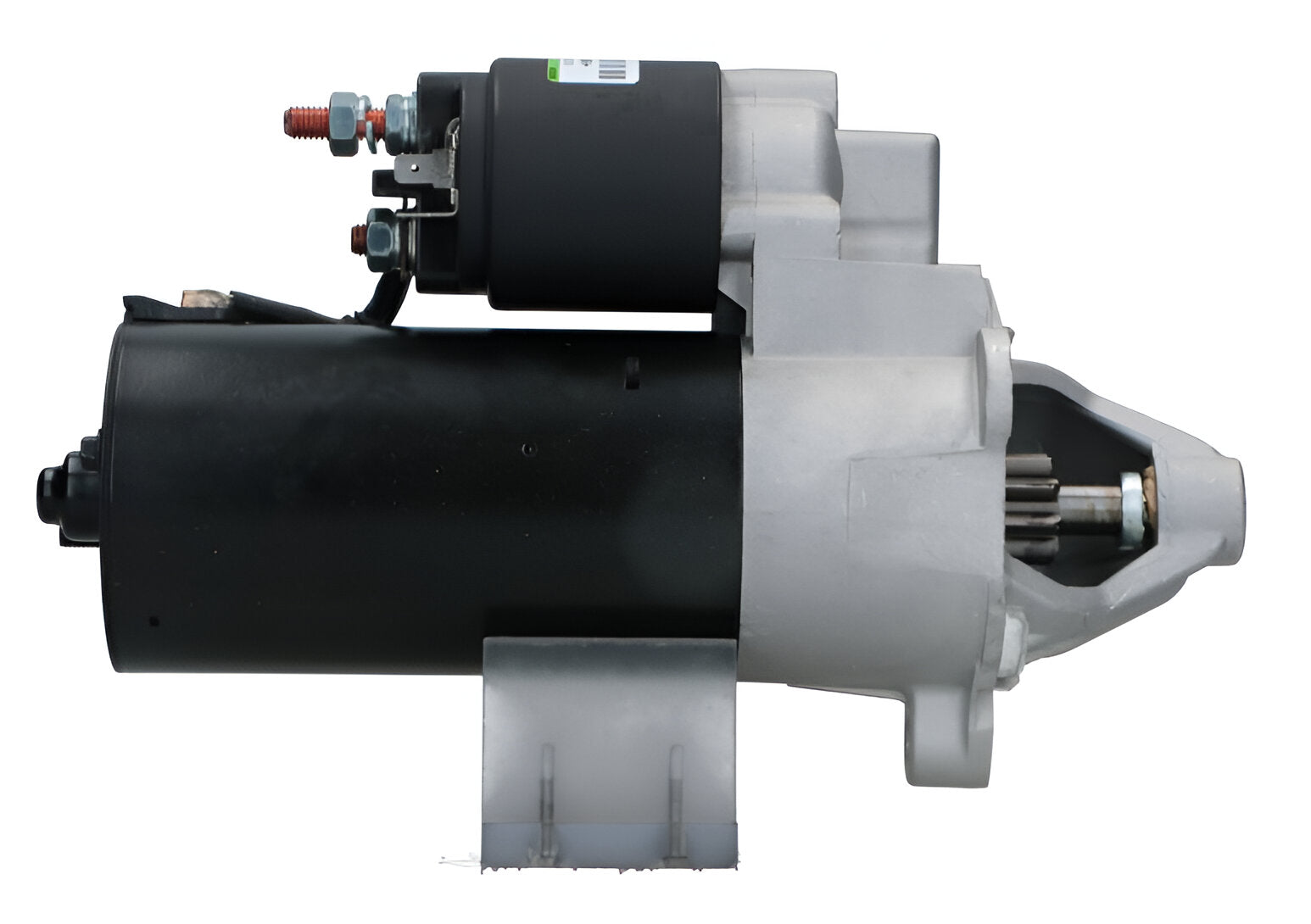

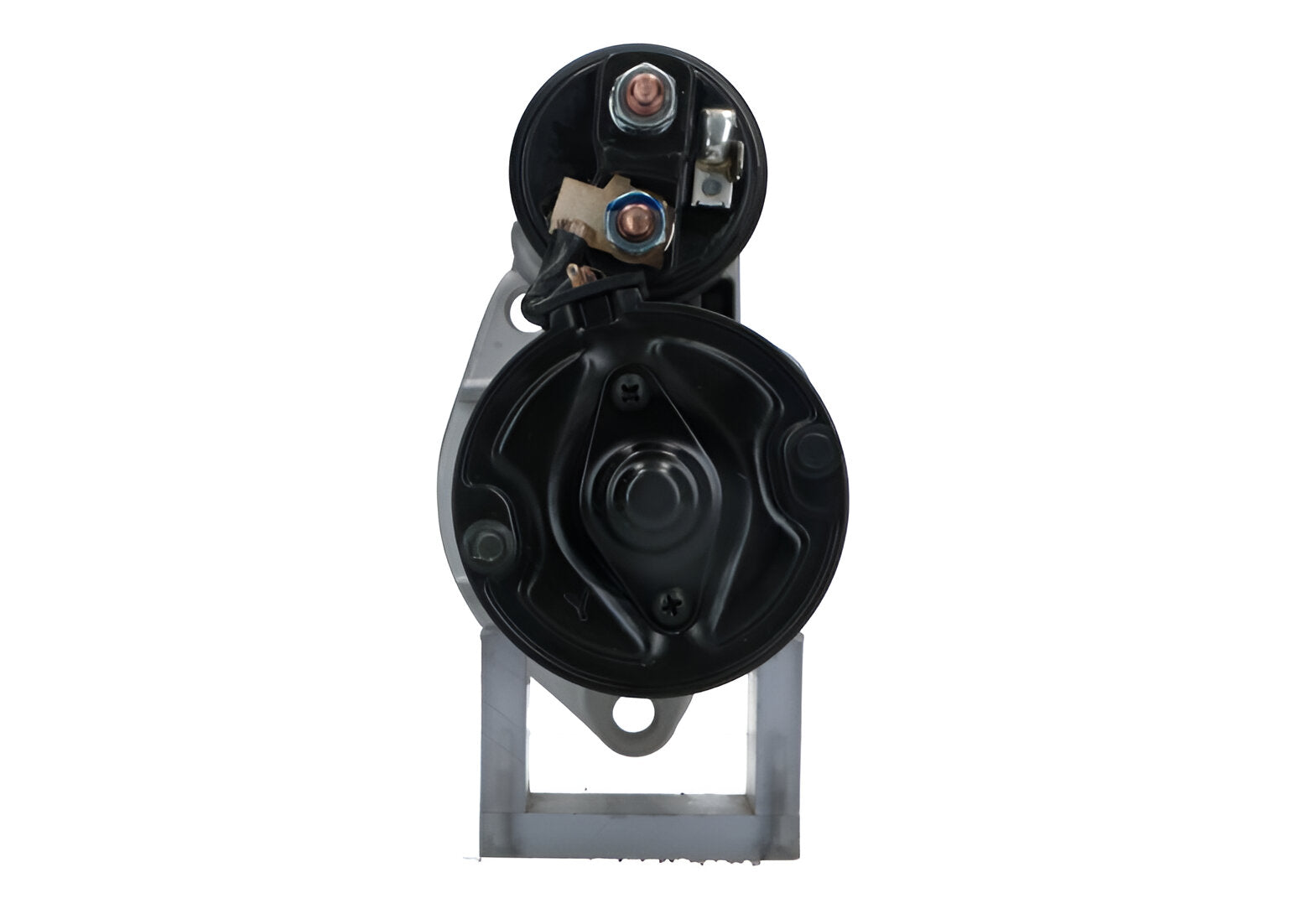

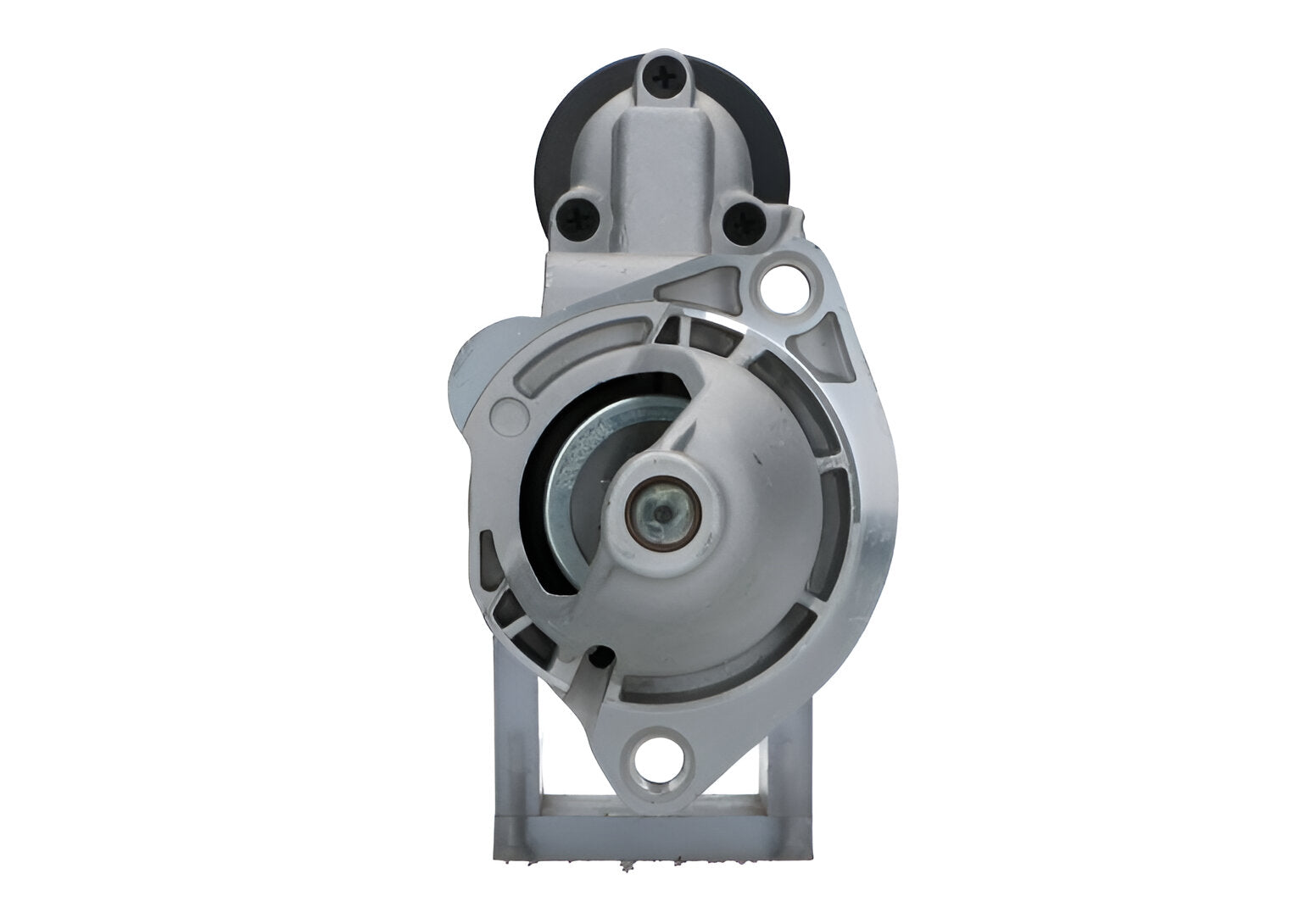

New 12v Starter Motor to fit VAG VW Passat, Audi A4 111694 / STR50231
111694
STR50231
Electrical specifications
- Voltage 12
- kW 1.8

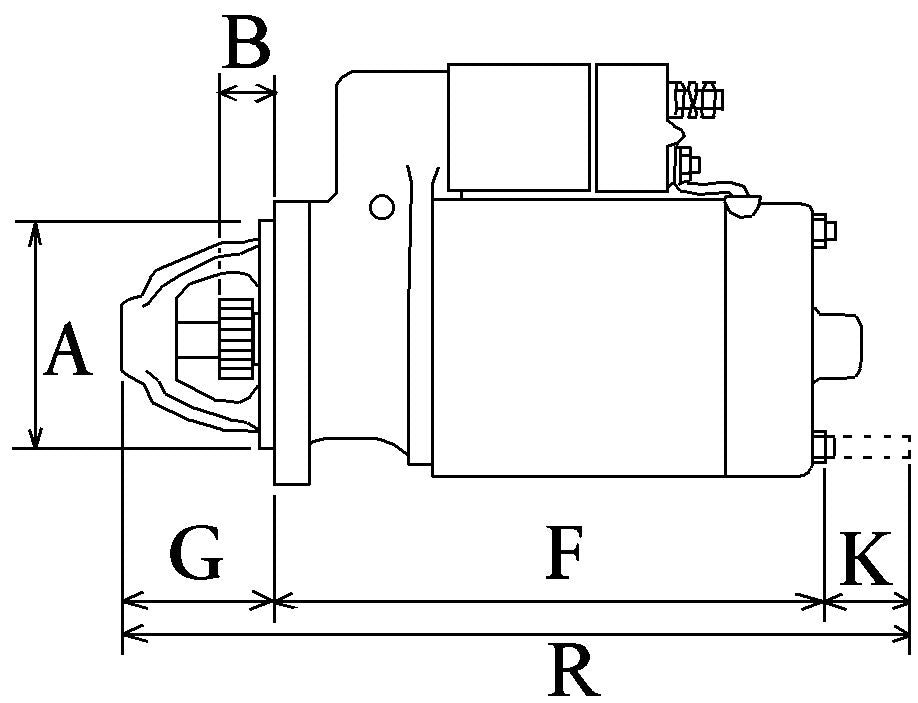

Physical specifications
- A Mount. flange 82.50
- B Drive dist. 16.00
- F Dist./back 215.00
- G Dist./front 56.50
- H No. of teeth 9,10
- I B+ M8
- N Gear type GR
- O Dist. mm 100.50
- P Rotation CR
- R Total length mm 270.00
Further information
- No./mount. holes 2 (2)
- Clutch type - Dry
- Drive type - Steel
- Oil sealed - No
- Waterproof - No
Replacing
- 0001110022 Bosch
- 0001110023 Bosch
- 0001110045 Bosch
- 0001110046 Bosch
- 0001110066 Bosch
- 0001110067 Bosch
- 0001110106 Bosch
- 0001110107 Bosch
- 0001110108 Bosch
- 0001110122 Bosch
- 0001110123 Bosch
- 0001110126 Bosch
- 0001110127 Bosch
- 0001110128 Bosch
- 0001110129 Bosch
- 0001110136 Bosch
- 0001110137 Bosch
- 0001110138 Bosch
- 0001110139 Bosch
- 063521101060 Magneti Marelli
- 063521101380 Magneti Marelli
- 063720018010 Magneti Marelli
- 063720624010 Magneti Marelli
- 068911023P Volkswagen AG
- 068911023PX Volkswagen AG
- 068911023R Volkswagen AG
- 068911023RX Volkswagen AG
- 068911023S Volkswagen AG
- 068911023SX Volkswagen AG
- 068911024B Volkswagen AG
- 068911024BV Volkswagen AG
- 068911024BX Volkswagen AG
- 068911024C Volkswagen AG
- 068911024CX Volkswagen AG
- 068911024E Volkswagen AG
- 068911024EX Volkswagen AG
- 068911024F Volkswagen AG
- 068911024FX Volkswagen AG
- 068911024G Volkswagen AG
- 068911024GX Volkswagen AG
- 068911024S Volkswagen AG
- 068911024SX Volkswagen AG
- 068911024T Volkswagen AG
- 0986014620 Bosch Exchange
- 0986014628 Bosch Exchange
- 0986016240 Bosch Exchange
- 0986016247 Bosch Exchange
- 0986016248 Bosch Exchange
- 11130773 Mahle
- 11130911 Mahle
- 111694 HC-Cargo
- 120238C Opel
- 12130015 AES
- 12130204 AES
- 137269 Ferrari
- 14130041 AES
- 17977N WAI
- 17977R WAI
- 1986S00760 Bosch
- 200508092 PSH
- 20500783 Prestolite
- 2605405160 Denso
- 4352144 Clark
- 436048 Valeo
- 438072 Valeo
- 455933 Valeo
- 527505 Valeo
- 63720624 Magneti Marelli
- 68911024E Volkswagen AG
- 68911024G Volkswagen AG
- 726044 Valeo
- 726844 Valeo
- 72735932 Mahle
- 91157206 Wilson
- 943251323010 Magneti Marelli
- 943251416 Magneti Marelli
- 944251323010 Magneti Marelli
- 944280162400 Magneti Marelli
- 9710100 Still
- AES5055 Dennis
- AZE2541 Mahle
- AZE2578 Mahle
- BOS0001110106 Wood Auto
- BOS0001110108 Wood Auto
- BOS0001110136 Wood Auto
- BOS0001110138 Wood Auto
- BX110106 Bosch (USA)
- BX1462 Bosch (USA)
- BX1624 Bosch (USA)
- CS548 HC-Parts
- CS624 HC-Parts
- D7R33 Valeo
- DENDSN3015 Wood Auto
- DRS4620 Delco Remy
- DRS6240 Delco Remy
- DSN1515 Denso
- DSN3015 Denso
- F032111694 HC-Cargo
- F032US0020 Bosch
- F042002069 Bosch
- F042S02069 Bosch
- HCS548 HC-Parts
- HCS624 HC-Parts
- IS0773 Mahle
- LES0359 Lucas
- LRS00783 Lucas
- LRS02003 Lucas
- LRS2003 Lucas
- LRS783 Lucas
- MAHMS304 Wood Auto
- MQS018 Magneti Marelli
- MQS624 Magneti Marelli
- MRS16240 Magneti Marelli
- MS304 Mahle
- MSN2028 Magneti Marelli
- MSN2088 Magneti Marelli
- MSR400 Magneti Marelli
- MSR401 Magneti Marelli
- MSR903 Magneti Marelli
- PBNS0783 Prestolite
- RAS37351 Delco Remy
- RNL1624 RNL
- RNL1624T RNL
- RNLD7R33 RNL
- S26007 Hitachi
- S27074 Hitachi
- S6241 Dixie
- SEG0001110138 Wood Auto
- SR0423X Bosch (USA)
- STR2216 Wood Auto
- STR2216A Unipoint
- STR50231 Wood Auto
- UNISTR2216 Wood Auto
- VAL438072 Wood Auto
- VALD7R33 Wood Auto
- VS277 Valeo
- WOOSTR2216 Wood Auto
- WOOSTR50231 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
