New 24V 4.5KW Starter Motor 9 Teeth Fits: Isuzu, Nikko, JCB, John Deere, New Holland 111254 / STR29002
111254
STR29002
Electrical specifications
- Voltage - 24
- KW - 4.5

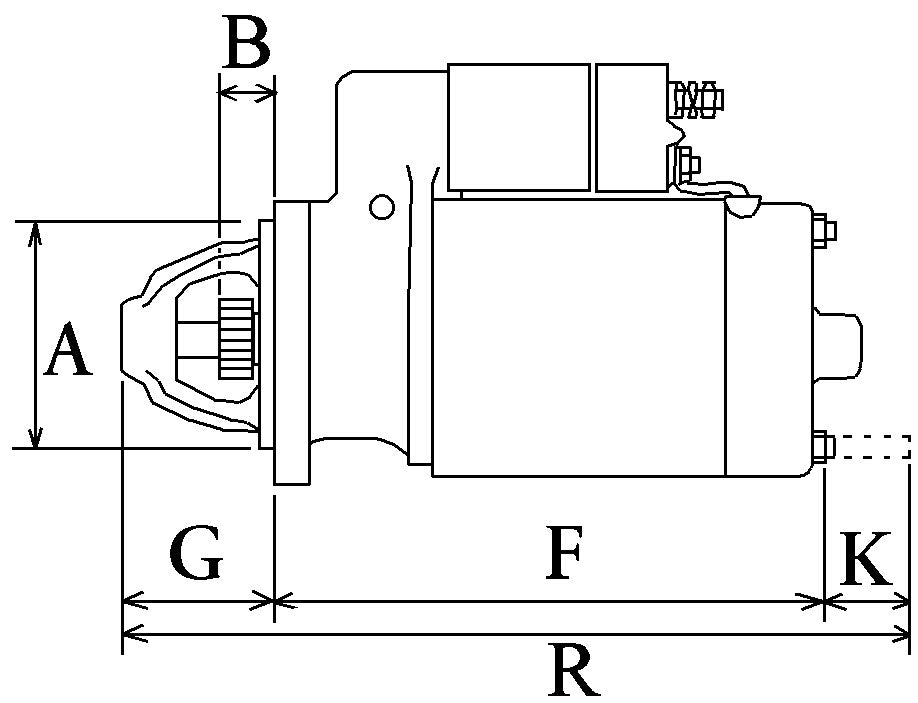

Physical specifications
- A Mount. flange - 95.00
- B Drive dist. - 19.00

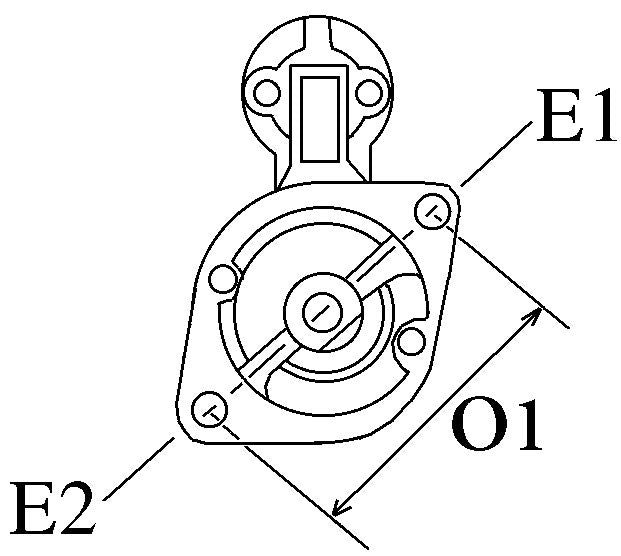

- E Mount. hole 2 mm - 13.50
- E Mount. hole 1 mm - 13.50
- F Dist./back - 266.50
- G Dist./front - 66.00
- H No./teeth - 9
- I B+ M8
- L Terminal 50 - M5
- N Gear type - GR
- O Dist. mm - 119.00
- P Rotation - CW
- R Total length mm - 332.50
- No./mount. holes - 2 (0)
Additional Information
- Drive type - Steel
- Waterproof - No
- Oil sealed - No
Replacing
- 02233004 Nikko
- 02233009 Nikko
- 0230001260 Nikko
- 0230001310 Nikko
- 0230001700 Nikko
- 0230002100 Nikko
- 0230002101 Nikko
- 0230002102 Nikko
- 0230002103 Nikko
- 0230002200 Nikko
- 0230002201 Nikko
- 0230002540 Nikko
- 0230002541 Nikko
- 0230002542 Nikko
- 111254 HC-Cargo
- 11139384 Mahle
- 131533092 PSH
- 18194N WAI
- 19775N WAI
- 71424400 JCB
- 71425200 JCB
- 71429900 JCB
- 8941717700 Isuzu
- 8941717720 Isuzu
- 8944545590 Isuzu
- 8944545591 Isuzu
- 8970298630 Isuzu
- 8970298633 Isuzu
- 8970298634 Isuzu
- 8970298635 Isuzu
- 8970298636 Isuzu
- 8970298637 Isuzu
- 8970789261 Isuzu
- 8970789263 Isuzu
- 8970789264 Isuzu
- 89710278630 Isuzu
- 89710278631 Isuzu
- 8971298636 Isuzu
- 91284026 Wilson
- 91284054 Wilson
- 941717720 Isuzu
- 944545590 Isuzu
- AUS130 ATK
- AZE4727 Mahle
- F032111254 HC-Cargo
- IS9592 Mahle
- JS1010 HC-Parts
- LRS01905 Lucas
- LRS01910 Lucas
- LRS1905 Lucas
- LRS1910 Lucas
- MS1213 Mahle
- RNL0230002103 RNL
- STR29002 Wood Auto
- STR29005 Wood Auto
- STR29007 Wood Auto
- VI8970298636 New Holland
- VI8970298637 New Holland
- WOOSTR29002 Wood Auto
- WOOSTR29005 Wood Auto
- WOOSTR29007 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
-
