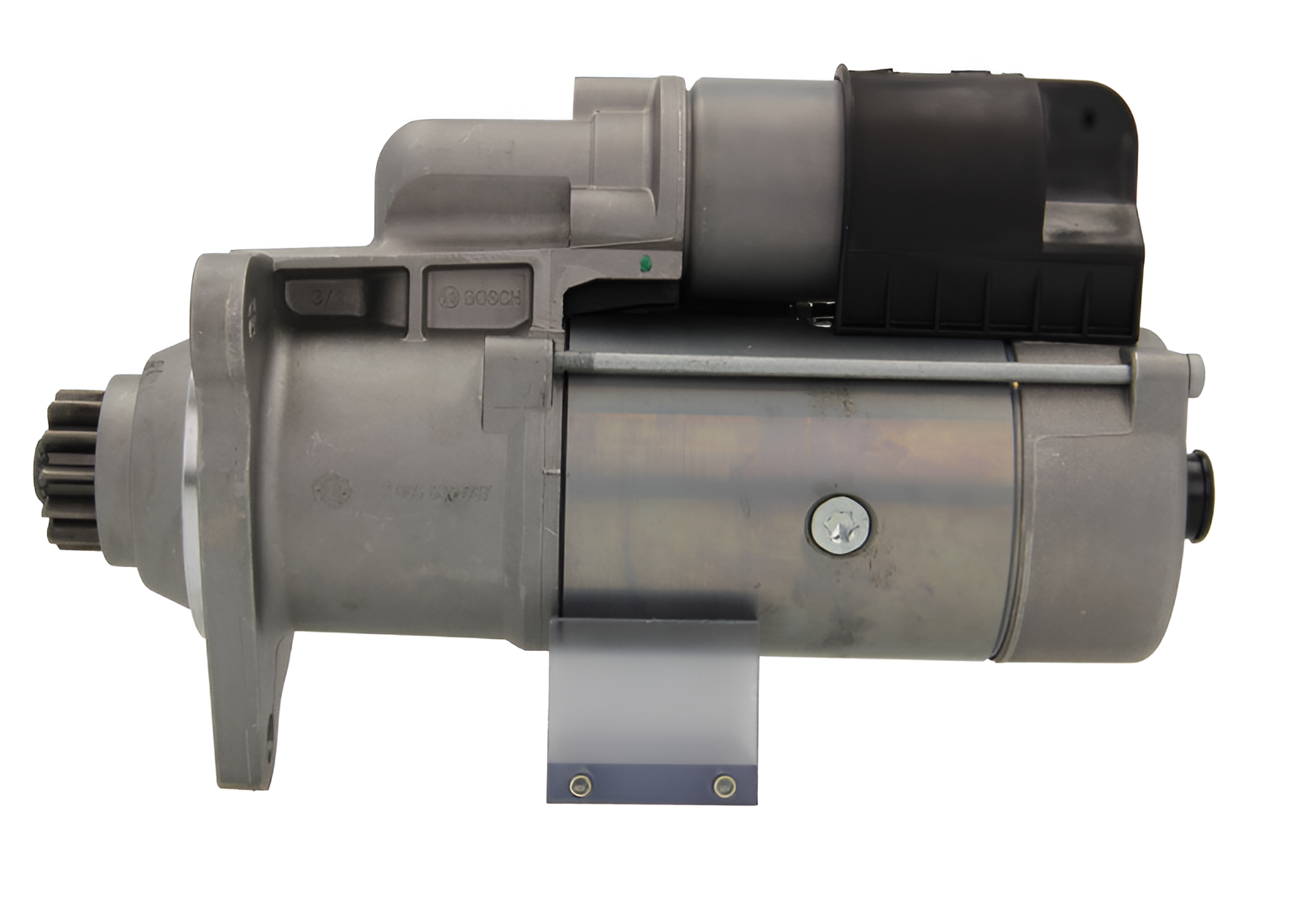

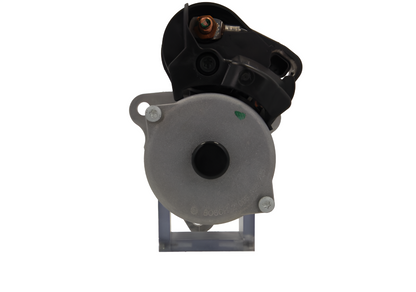

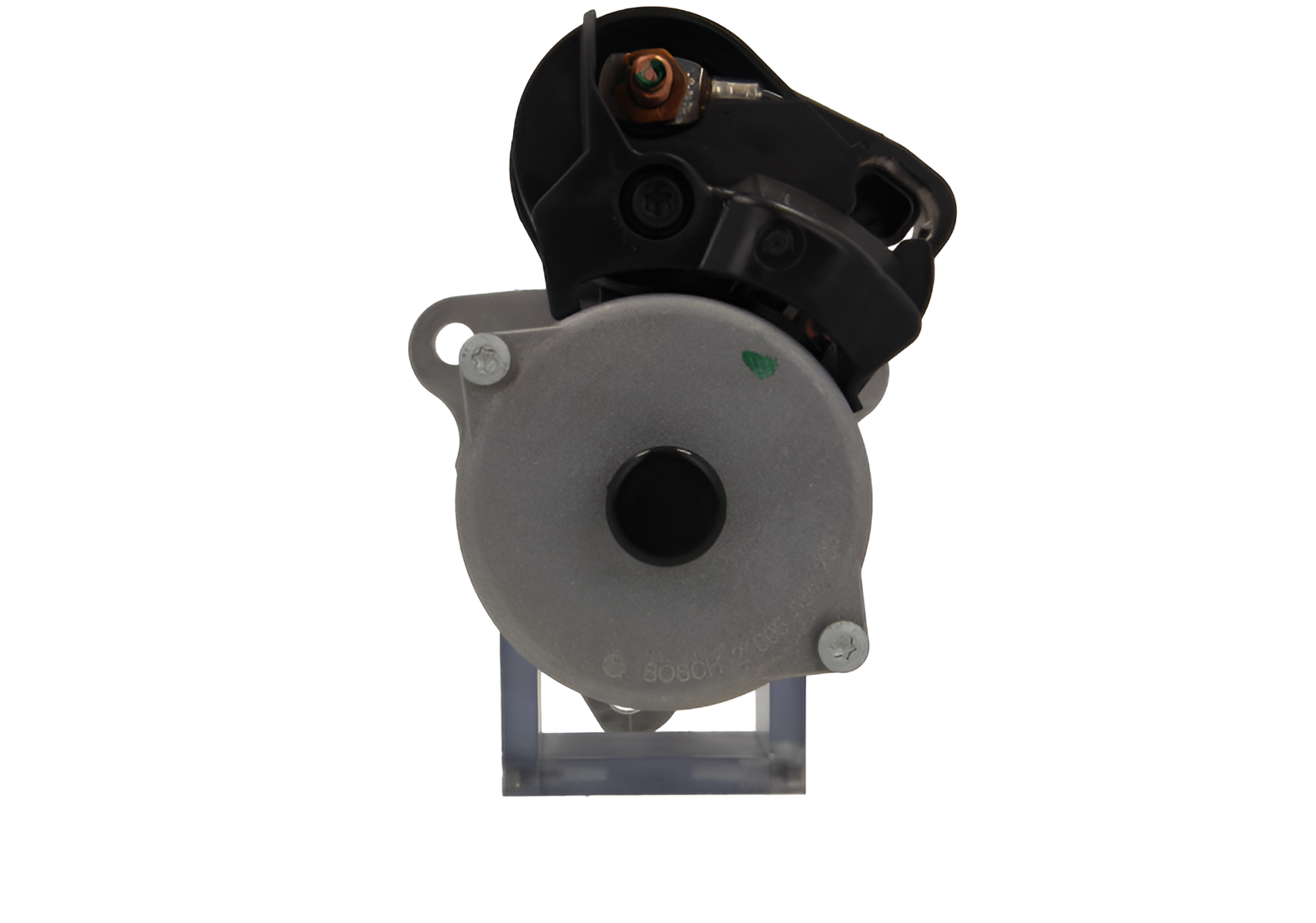

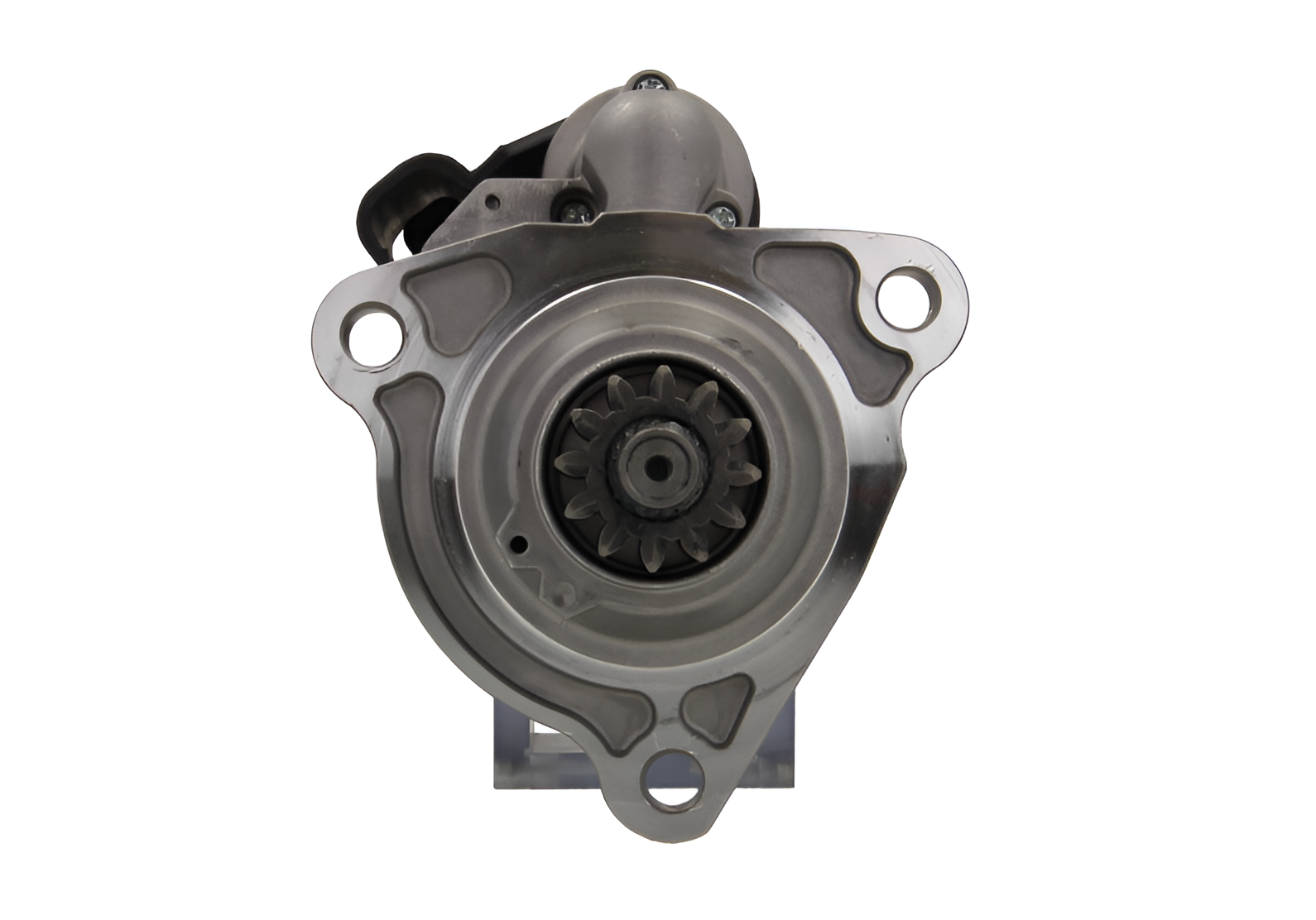

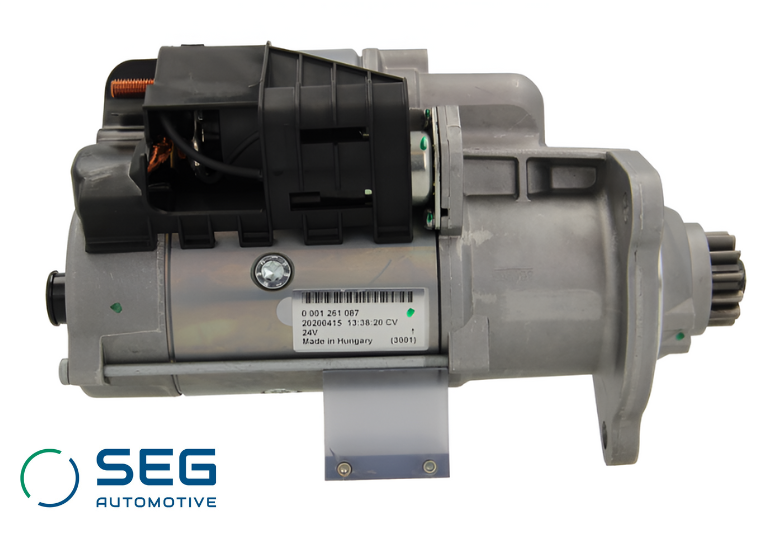

New 24V 6.0KW Starter Motor 12 Teeth Fits: DAF, Van Hool, Solaris 116378 / 0001.261.087
116378
0001.261.087
Electrical specifications
Voltage - 24
KW - 6.0

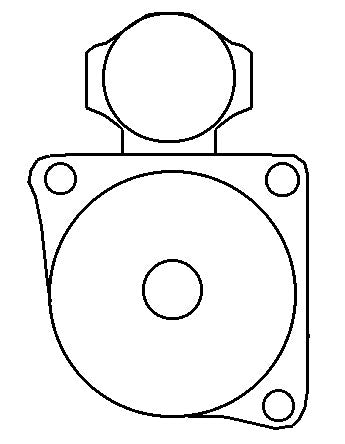

Physical specifications

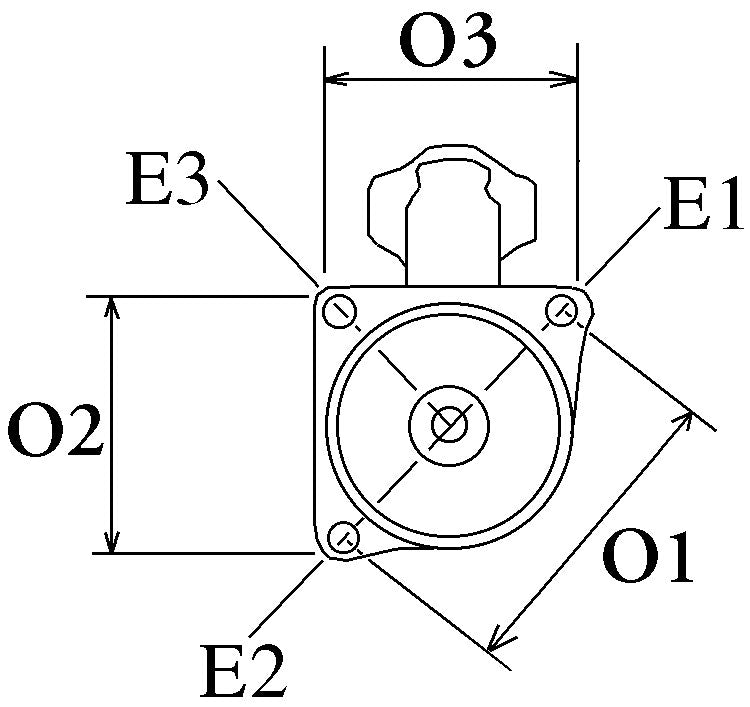

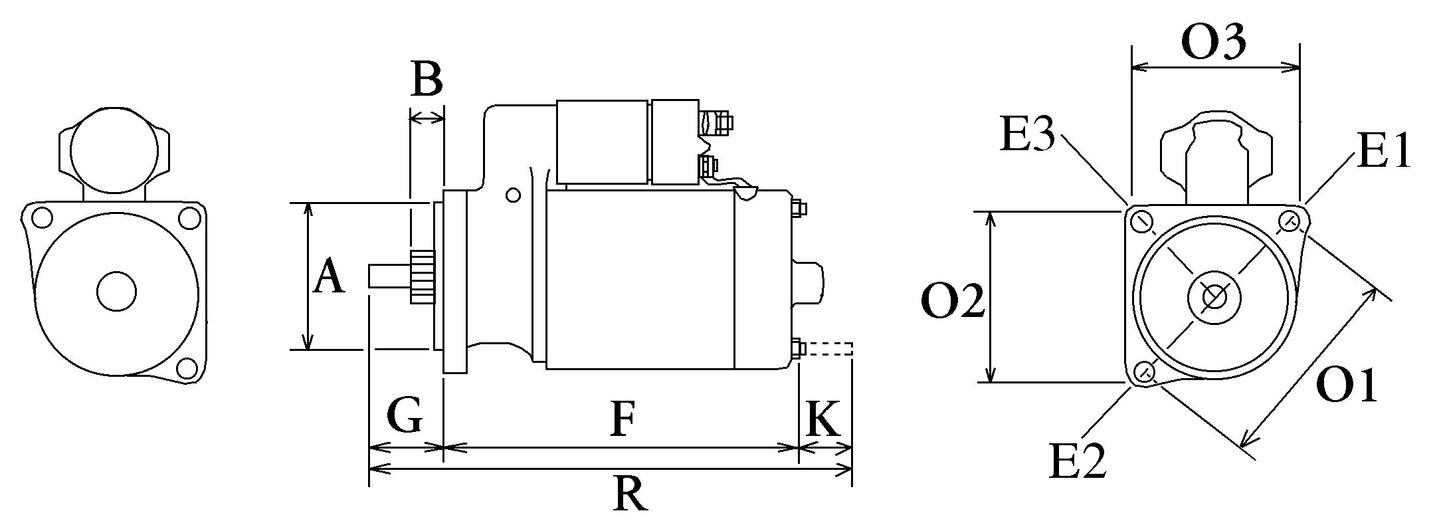

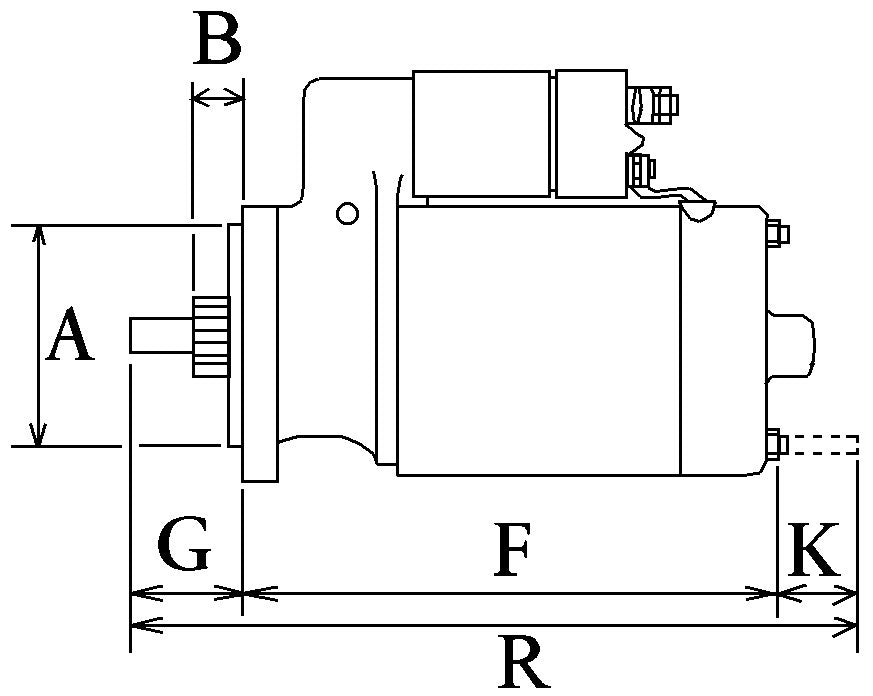

A Mount. flange 92.00
B Drive dist. 48.00

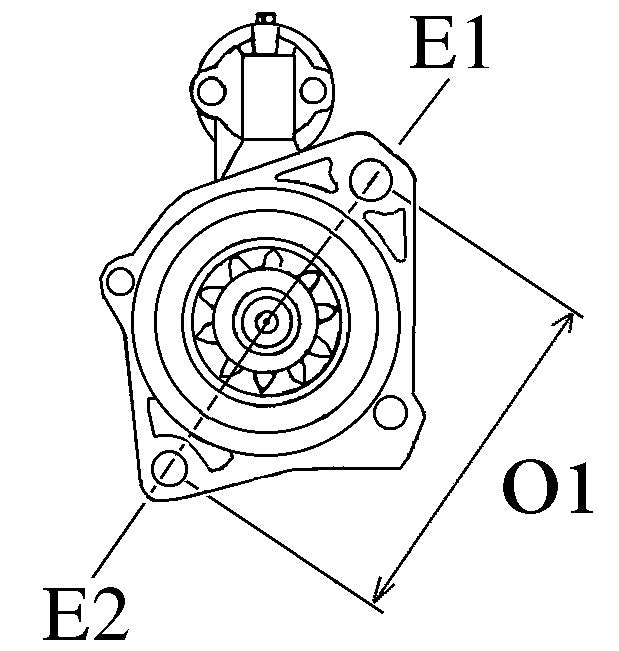

E Mount. hole 3 mm 13.50
E Mount. hole 2 mm 13.50
E Mount. hole 1 mm 13.50
F Dist./back 272.00
G Dist./front 52.00
H No./teeth 12
I B+ M10
L Terminal 50 Plug
N Gear type GR
O Dist. 2 126.50
O Dist. 3 126.50
O Dist. mm 126.50
P Rotation CW
R Total length mm 324.00
No./mount. holes 3 (0)
Replacing
0001261023 Bosch
0001261024 Bosch
0001261046 Bosch
0001261047 Bosch
0001261071 Bosch
0001261072 Bosch
0001261087 Bosch
0001261088 Bosch
0986025900 Bosch Exchange
0986XL6291 Bosch Exchange
11139215 Mahle
116378 HC-Cargo
12130377 AES
1854008 DAF
1886891 DAF
1886891R DAF
19084255 Delco Remy
1956091 DAF
1956091R DAF
1986S10046 Bosch
2015154 DAF
2015154R DAF
21130035 AES
2134699 DAF
2165367 DAF
2165367R DAF
30951N WAI
72514359 Mahle
901508123 PSH
AZF4916 Mahle
BOS0001261087 Wood Auto
DRS1095 Delco Remy
DS2205 Delco Remy
IS9513 Mahle
LES0552 Lucas
LRS04361 Lucas
LRS4361 Lucas
M90R3564AM Prestolite
M90R3564SE Prestolite
M90R3564SEVPP Prestolite
MS998 Mahle
PREM90R3564SE Wood Auto
RNL261087 RNL
SEG0001261087 Wood Auto
STR50722 Wood Auto
WOOSTR50722 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
