Starter Motor 24v 4.5kw 10 Tooth To Fit Cummins, Case Etc. 111760 / STR7150

Starter Motor 24v 4.5kw 10 Tooth To Fit Cummins, Case Etc. 111760 / STR7150

111760

STR7150

Electrical specifications

• Voltage 24
• kW 4.5

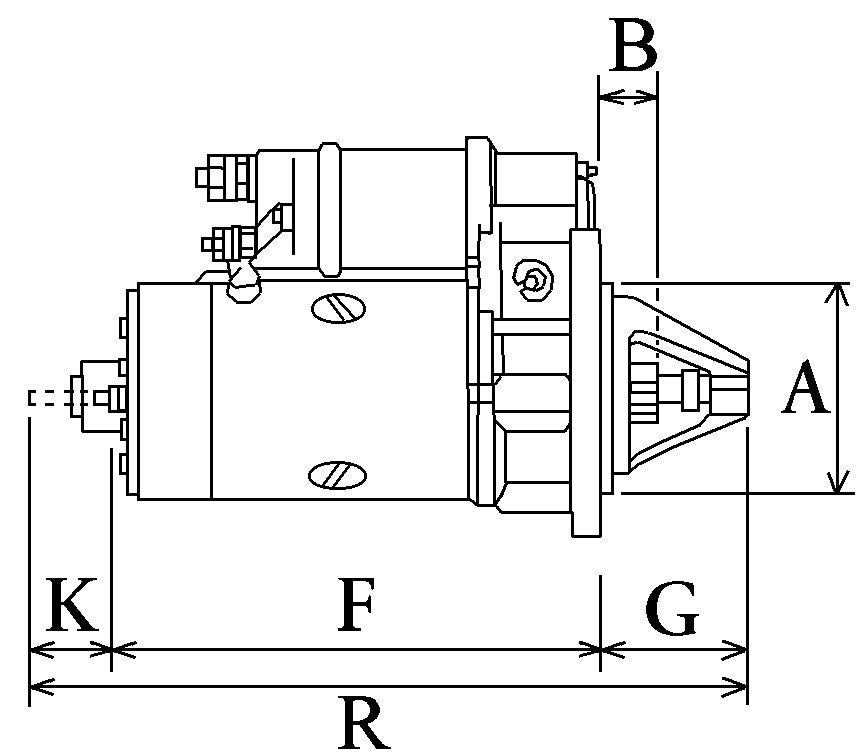

Physical specifications

• A Mount. flange 89.00
• B Drive dist. 45.00
• F Dist./back 250.50
• G Dist./front 88.30
• H No. of teeth 10
• I B+ M10
• N Gear type GR

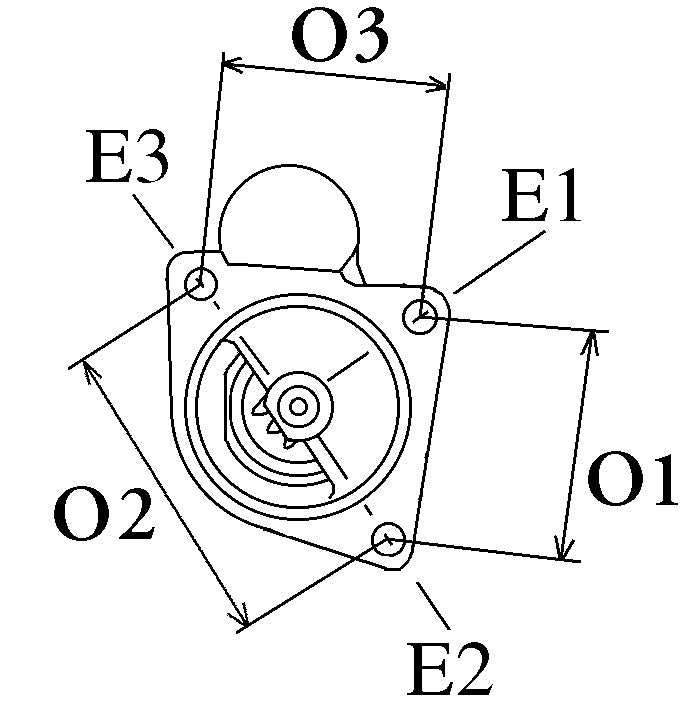

• O Dist. mm 89.00
• O Dist. 2 127.00
• O Dist. 3 90.00
• P Rotation CR
• R Total length mm 339.00

Further Information

• No./mount. holes 3 (0)
• Clutch type Dry
• Drive type Steel
• Replacing: 7MT, 28MT.
• Oil sealed No
• Waterproof No

Replacing

• 0230002030    Nikko

• 0230002040    Nikko

• 0230002470    Nikko

• 031222001    Valeo

• 0610000140    Nikko

• 0986023450    Bosch Exchange

• 0986023451    Bosch Exchange

• 10461461    Delco Remy

• 10465400    Delco Remy

• 10479605    Delco Remy

• 10479656    Delco Remy

• 10496884    Delco Remy

• 110954    HC-Cargo

• 111257    HC-Cargo

• 111286    HC-Cargo

• 1113594    Delco Remy

• 111760    HC-Cargo

• 112652    HC-Cargo

• 154011050    Ford

• 16130217    AES

• 16130402    AES

• 1998459    Delco Remy

• 20128202    Dixie

• 20128203    Prestolite

• 39090914    Cummins

• 4396SP    Valeo

• 508421    WAI

• 641502103    PSH

• 6510R    WAI

• 6574N    WAI

• 6594N    WAI

• 6594R    WAI

• 856766Z    Prestolite

• 859500    Prestolite

• 859839Z    Prestolite

• 859970    Prestolite

• 9003918377    Volvo

• 9011707112    Volvo

• 91014370    Wilson

• DRS3529    Delco Remy

• DRZ5168    Delco Remy

• F032111760    HC-Cargo

• F032112652    HC-Cargo

• F042003112    Bosch

• F042S03112    Bosch

• HUS857    HC-Parts

• LRS02448    Lucas

• LRS2448    Lucas

• PREMS4401    Wood Auto

• REM8200064    Wood Auto

• RNL10479605    RNL

• RNL857US    RNL

• STR7150    Unipoint

• STR80048    Wood Auto

• TS1619    Dixie

• VOE9003918377    Volvo

• WOOSTR80048    Wood Auto

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
