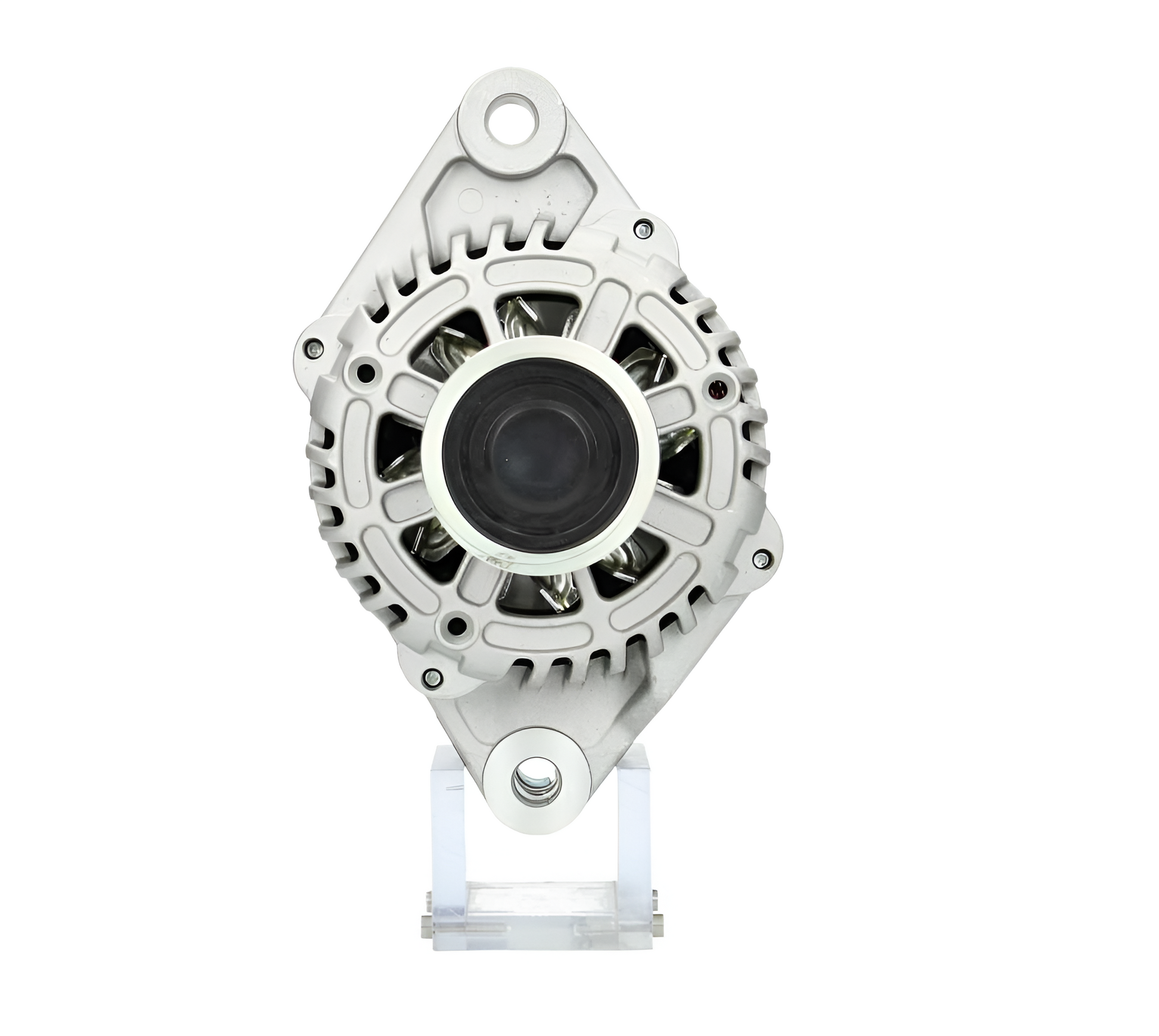

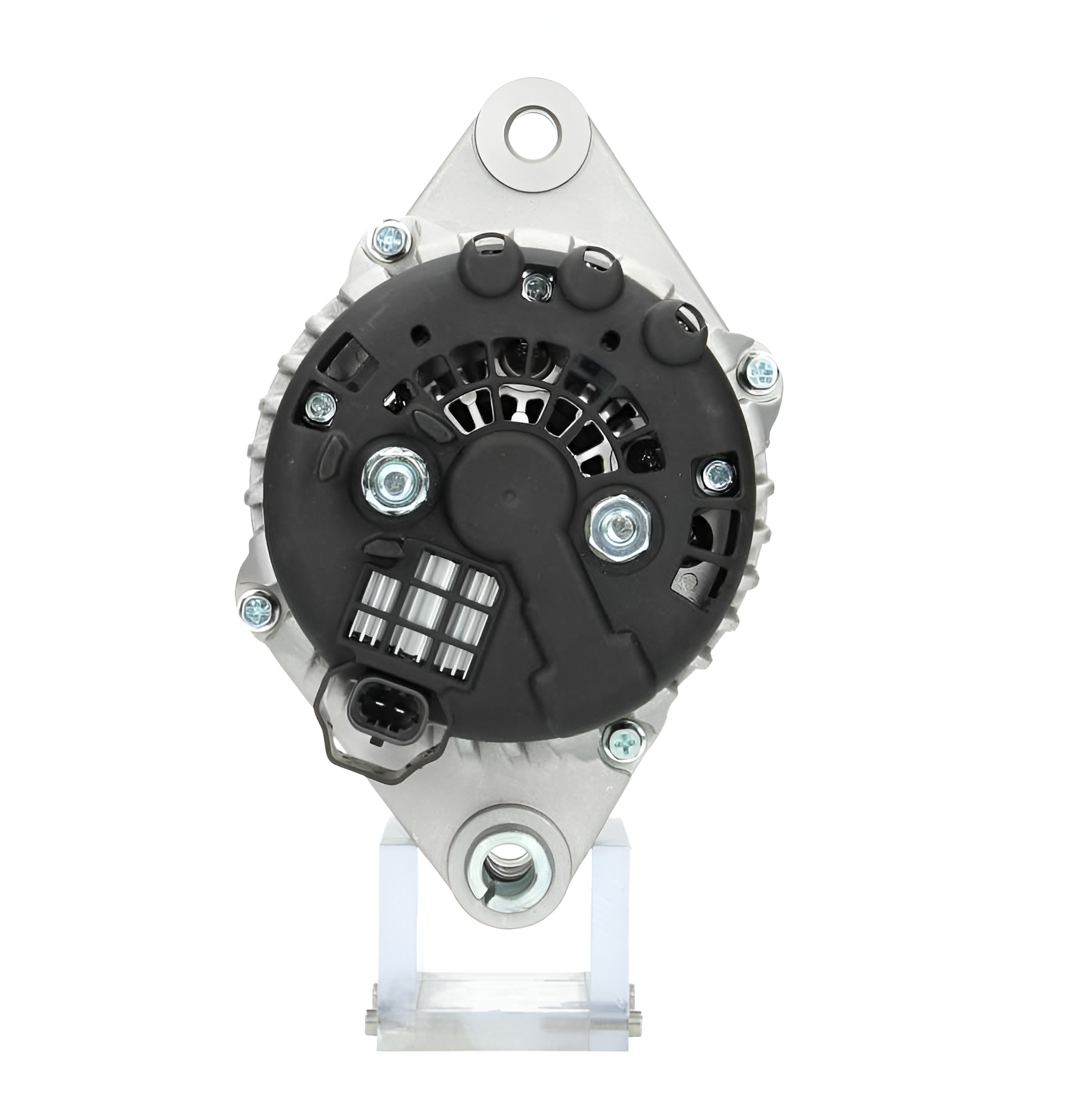

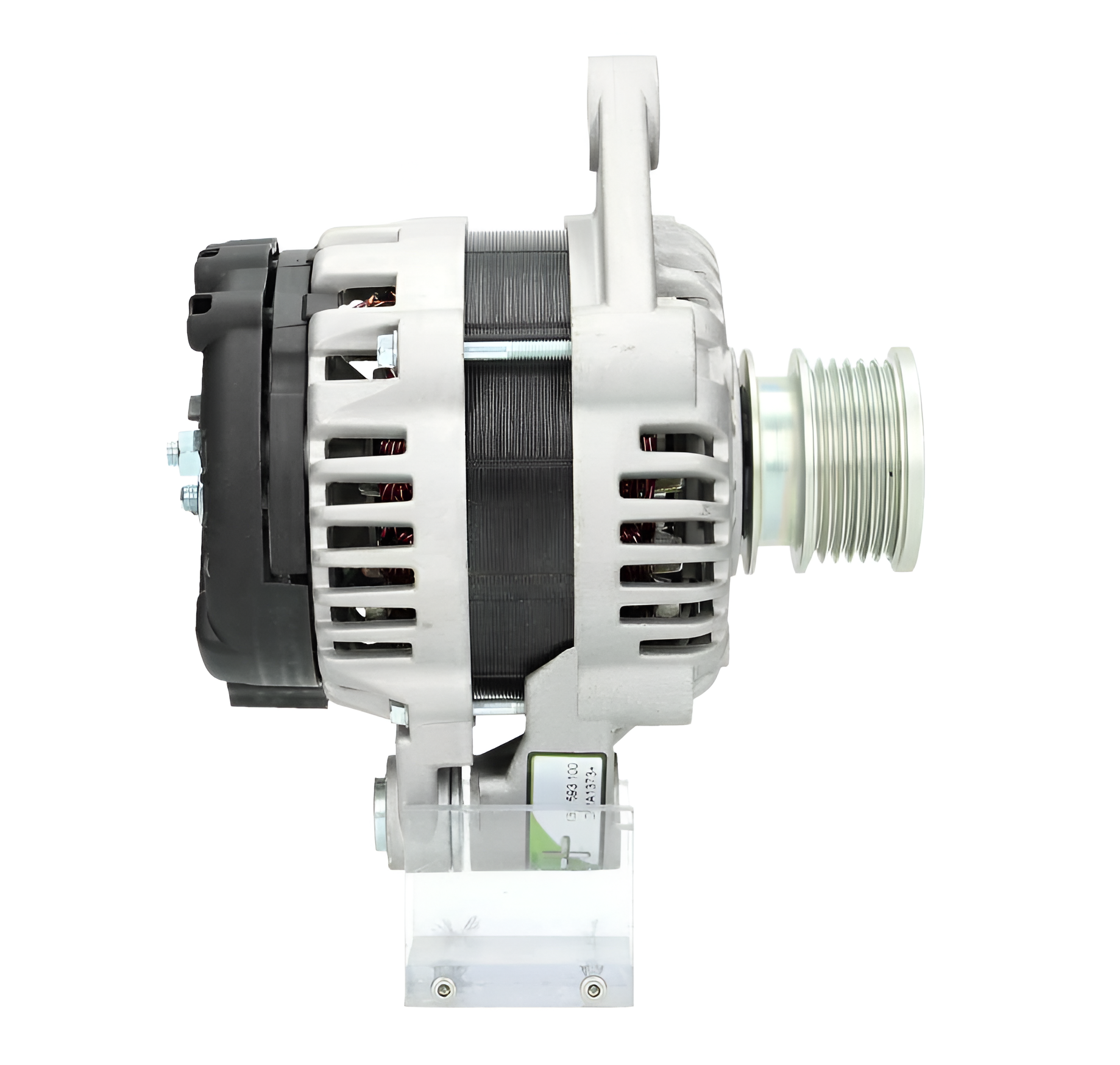

New Alternator 12v 100AMP Fits: Vauxhall, Opel 115526 / ALT20213

New Alternator 12v 100AMP Fits: Vauxhall, Opel 115526 / ALT20213

115526

ALT20213

Electrical specifications

• Voltage 12
• Amp 120


Physical specifications

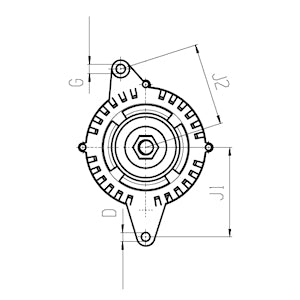

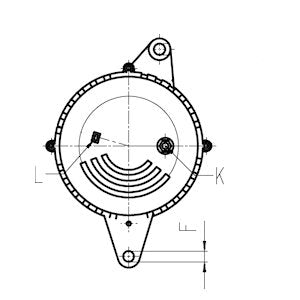

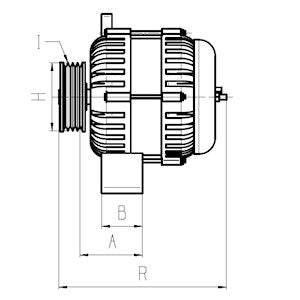

• A    Pulley dist.    57.00

• B    Width/holder arm    18.00

• D    Bracket hole    12.00

• E    Belt. adj. brackethole pos.    60

• G    Belt. adj. bracket hole 1    12.00

• H    Pulley dia.    53.00

• I    Grooves/pulley    6

• J    Radius    83.00

• J    Radius 2    81.00

• K    B+    M8

• N    Rotation    CW

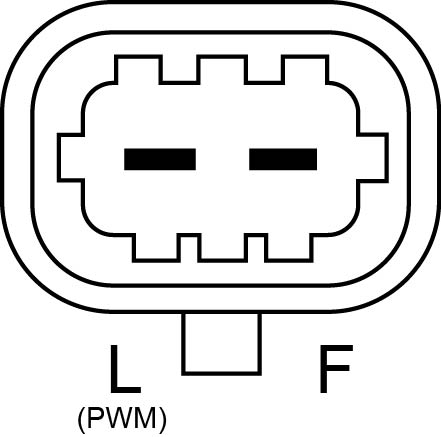

• O    Plug no.    PL180

• R    Total length mm    196.00

• Terminal type    L-F

Additional information

• Pulley - SP/FW

• Regulator type - IR

• Prod. info - BN

• Remarks - This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Replacing

• 0986083450    Bosch Exchange

• 115526    HC-Cargo

• 1202236    Opel

• 1202423    Opel

• 1204643    Opel

• 13201166    AES

• 13502583    Opel

• 135593100    PSH

• 13579668    General Motors

• 20079N    WAI

• 20079R    WAI

• 440989    Valeo

• 443144    Valeo

• 95519835    Opel

• ACD13502583    Wood Auto

• ACD13579668    Wood Auto

• ALT10733    Wood Auto

• ALT20213    Wood Auto

• DA2483    Delco Remy

• DRA1373    Delco Remy

• F032115526    HC-Cargo

• LEA1116    Lucas

• LRA03357    Lucas

• LRA3357    Lucas

• RNL13502583    RNL

• WOOALT20213    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
