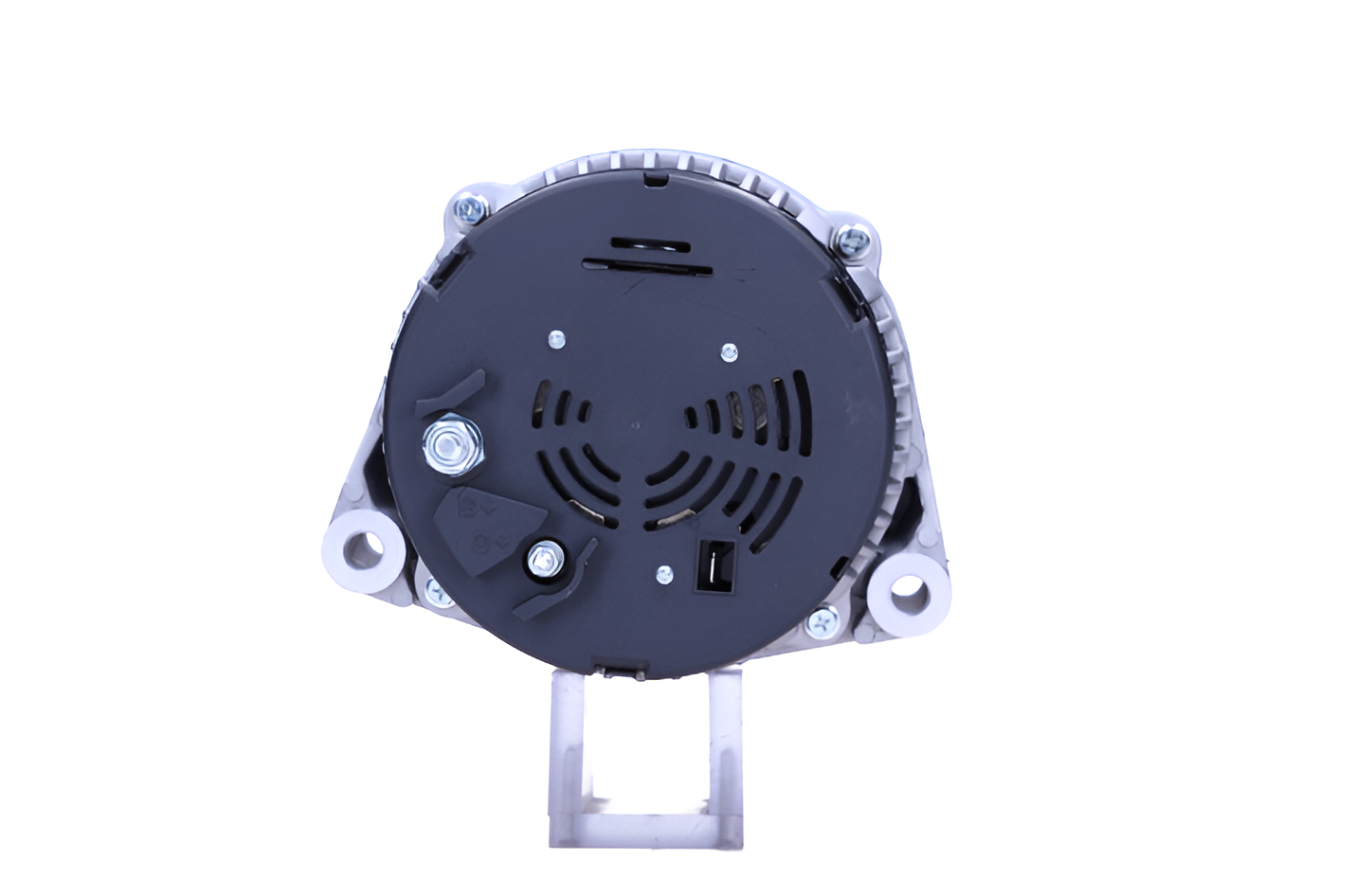

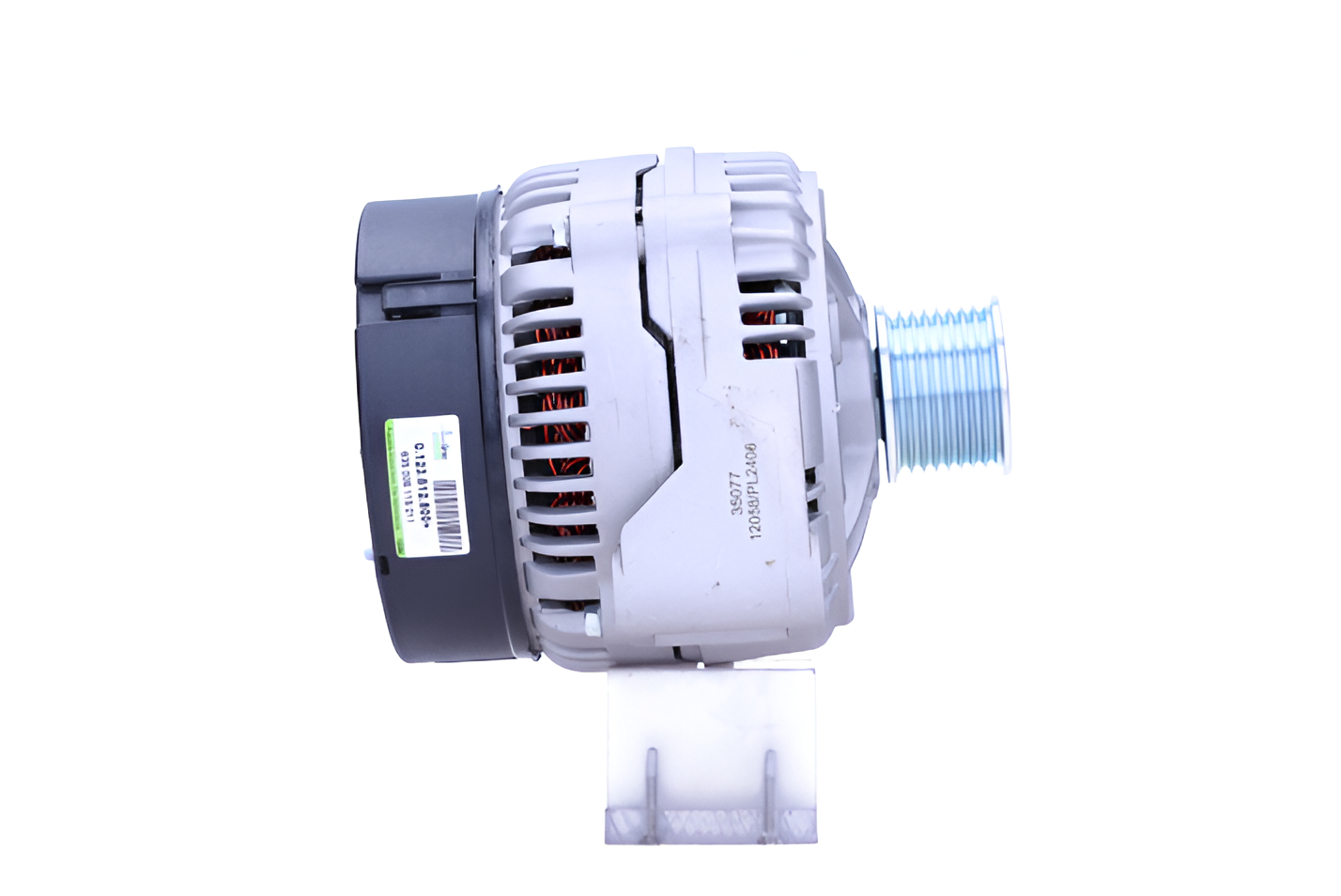

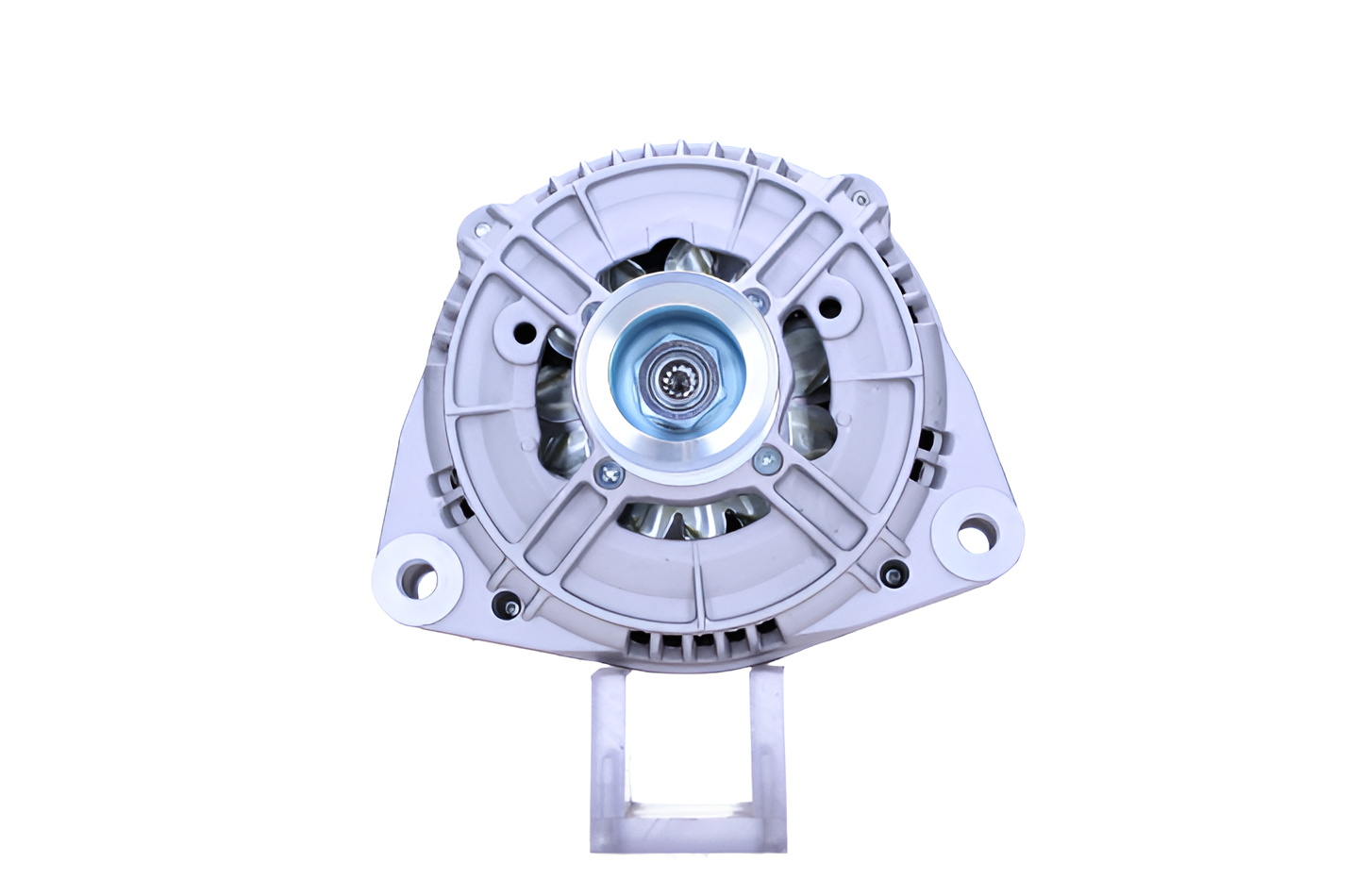

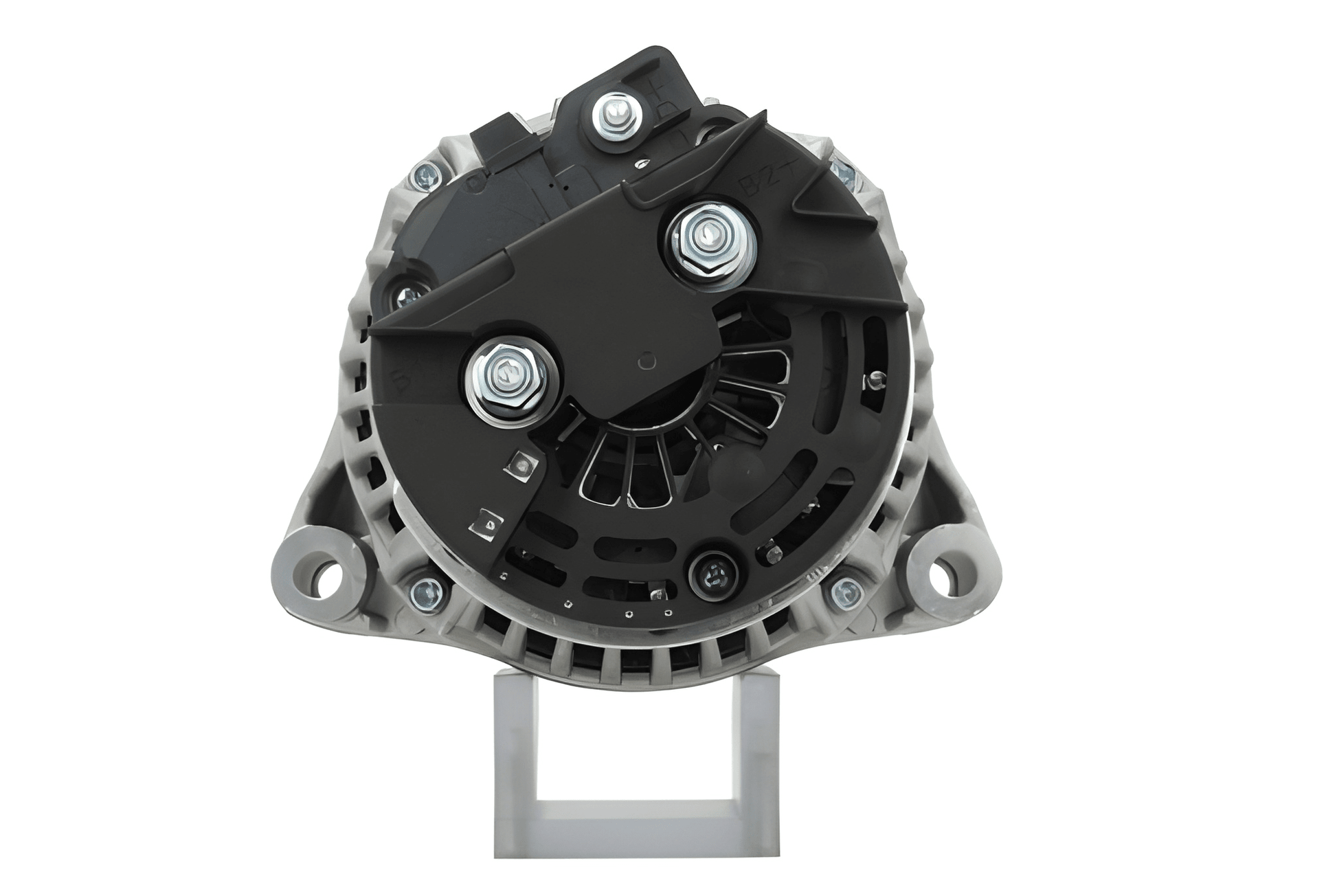

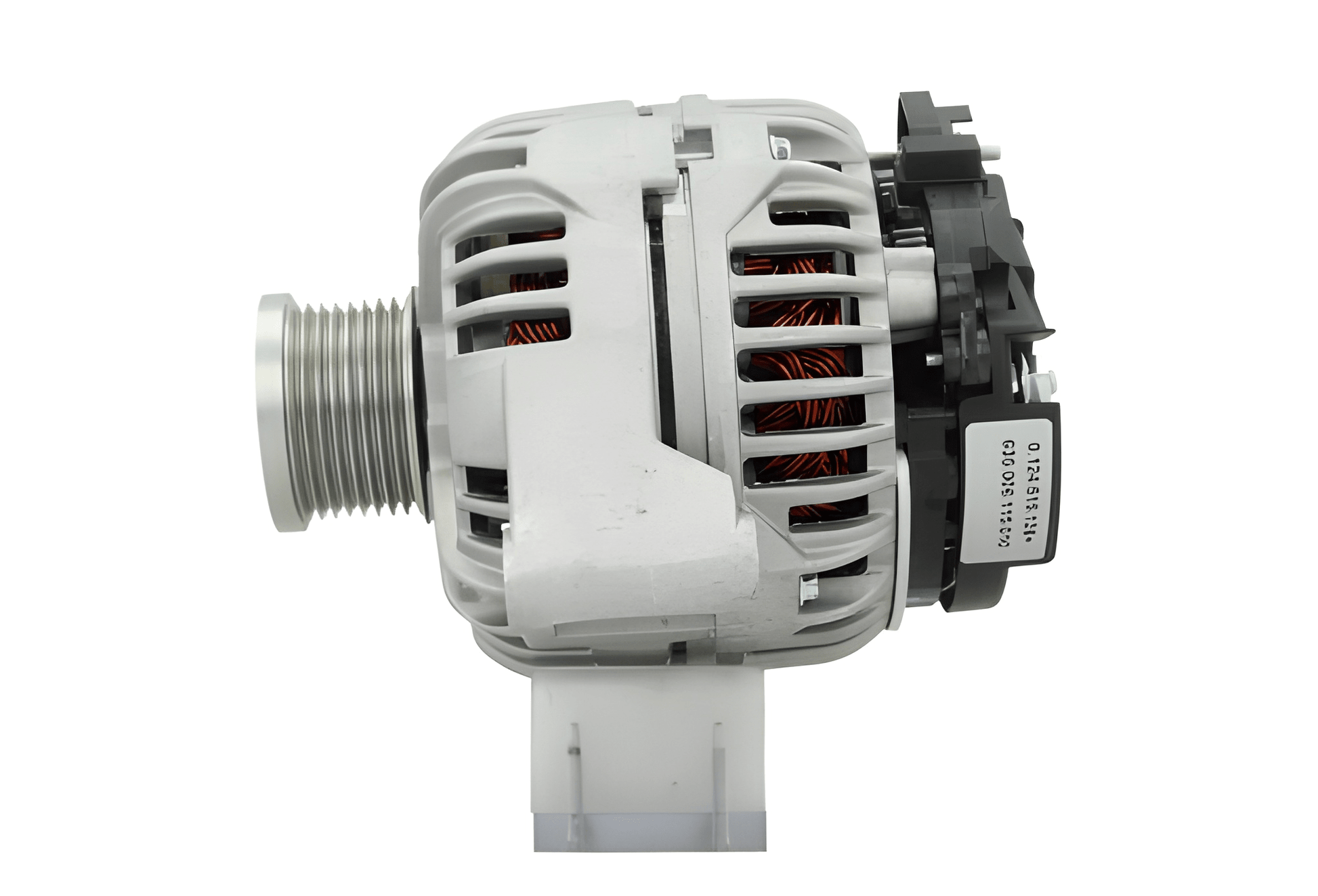

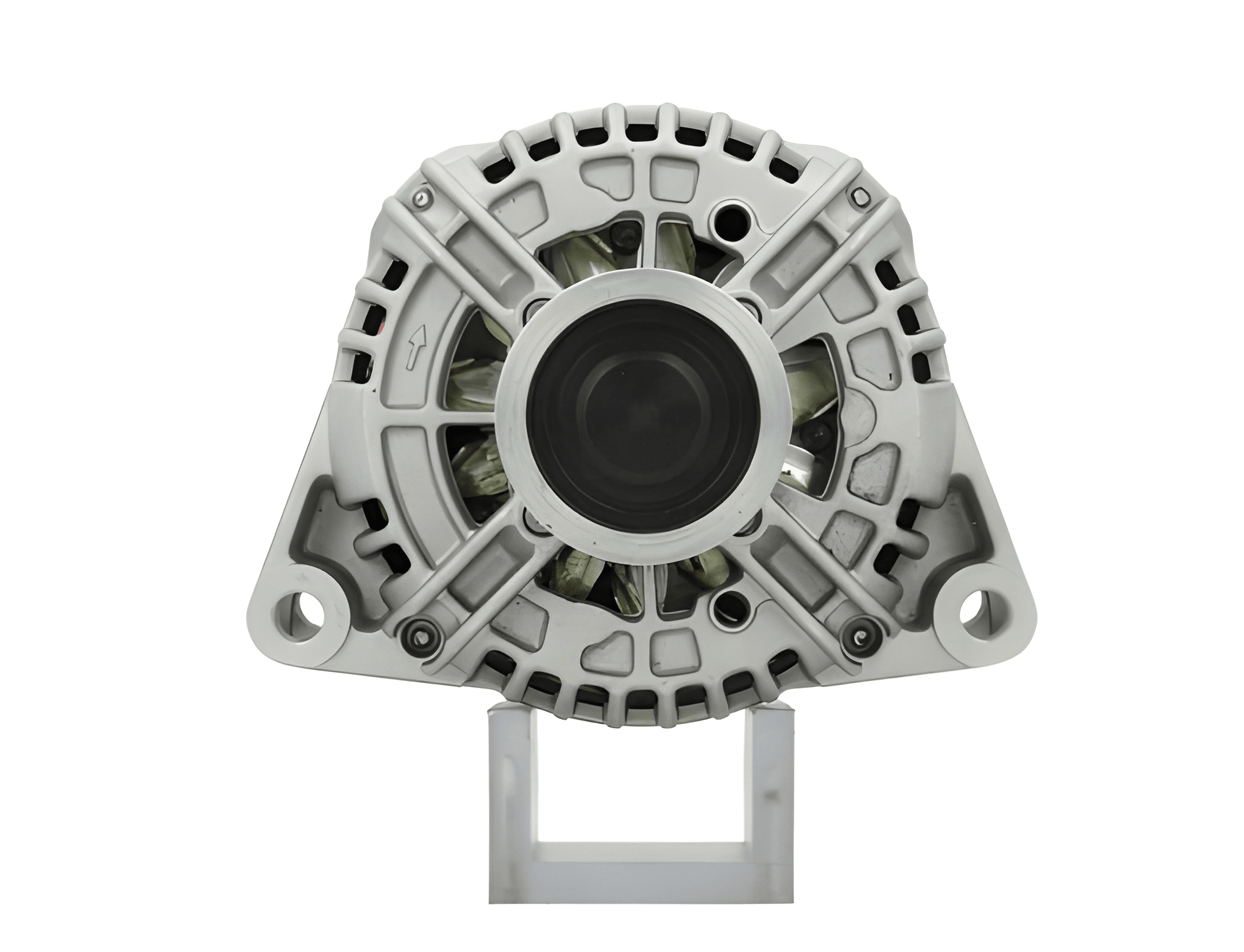

New Alternator 12v 115AMP Fits: John Deere Agricultural Vehicles 116453 / ALT10298
116453
ALT10298
Electrical specifications
Voltage12
Amp 115

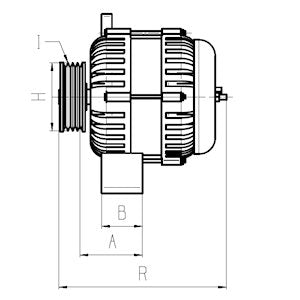

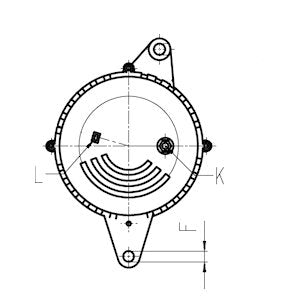

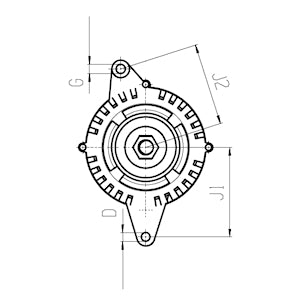

Physical specifications
B Width/holder arm 56.00
D Bracket hole 10.00
E Belt. adj. brackethole pos. 10
G Belt. adj. bracket hole 1 10.00
J Radius 90.00
J Radius 2 90.00
L D+ Size M5
N Rotation CW
R Total length mm 177.00
Additional information
Pulley w/o
Fan IF
Regulator type IR
Prod. info BN
Replacing
0123512500 Bosch
0124515003 Bosch
0124515126 Bosch
0986046030 Bosch Exchange
0986046037 Bosch Exchange
11203204 Mahle
11203862 Mahle
11204152 Mahle
112062 HC-Cargo
116453 HC-Cargo
12370N WAI
12781N WAI
12781R WAI
1986A00854 Bosch
1986A01112 Bosch
439988 Valeo
635006115 PSH
72735003 Mahle
90156390 Wilson
AAN5156 Mahle
AAN5311 Mahle
AAN5763 Mahle
AL111676 John Deere
AL114093 John Deere
AL166646 John Deere
AL5053X Bosch (USA)
ALT10298 Wood Auto
ALT10582 Wood Auto
ALT20731 Wood Auto
BOS0124515126 Wood Auto
BX512500 Bosch (USA)
CA1493IR HC-Parts
DA1948 Delco Remy
DB7140 Delco Remy
DRA0838 Delco Remy
DRB6030 Delco Remy
F000BL07G9 Bosch
F032112062 HC-Cargo
F032116453 HC-Cargo
HCA1493IR HC-Parts
IA1095 Mahle
LEA0873 Lucas
LEA1272 Lucas
LRA01949 Lucas
LRA03333 Lucas
LRA1949 Lucas
LRA3333 Lucas
MAHMG4 Wood Auto
MG4 Mahle
MG4Z RNL
RNL4603 RNL
RNL515126 RNL
SE501827 John Deere
SEG0124515003 Wood Auto
WOOALT10298 Wood Auto
WOOALT20731 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
