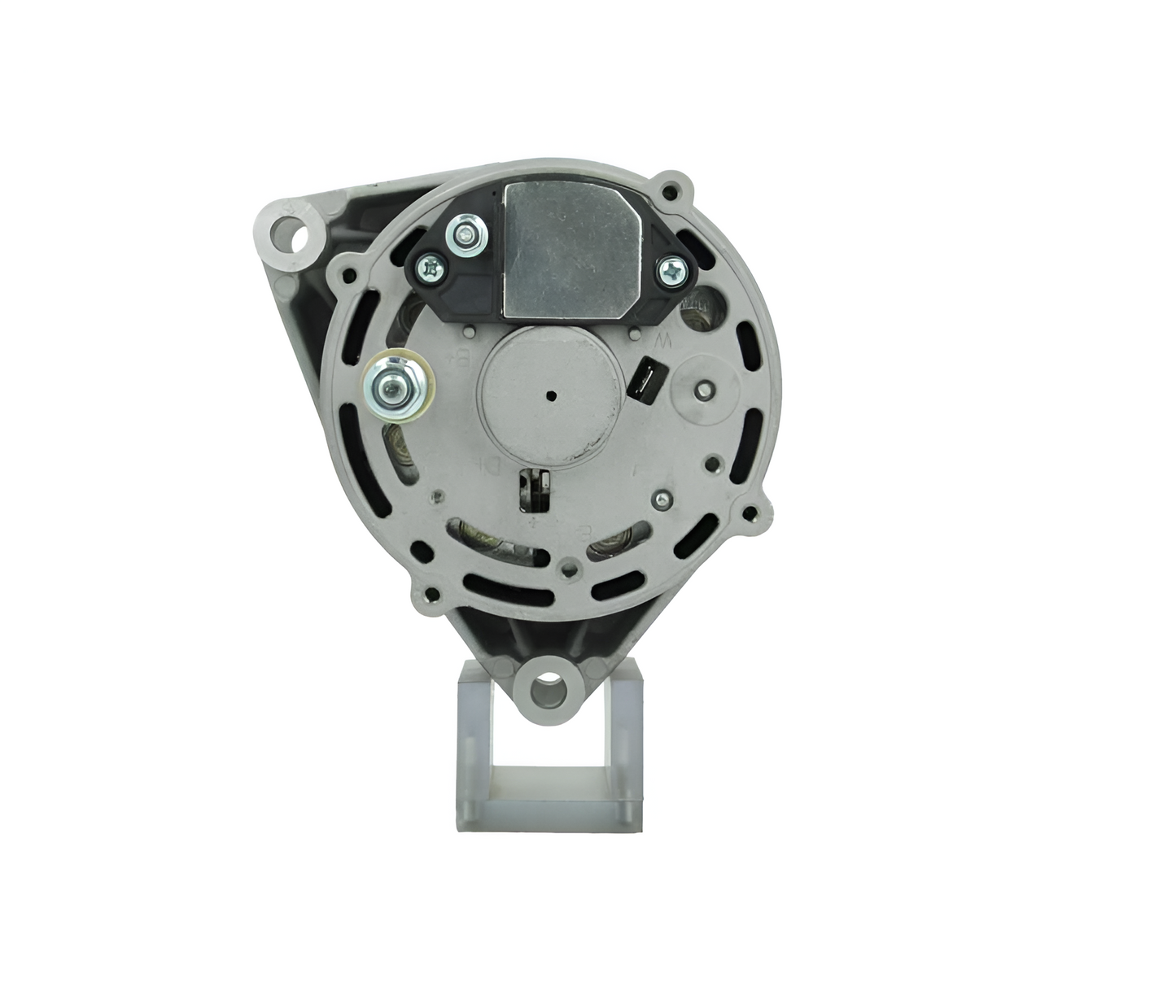

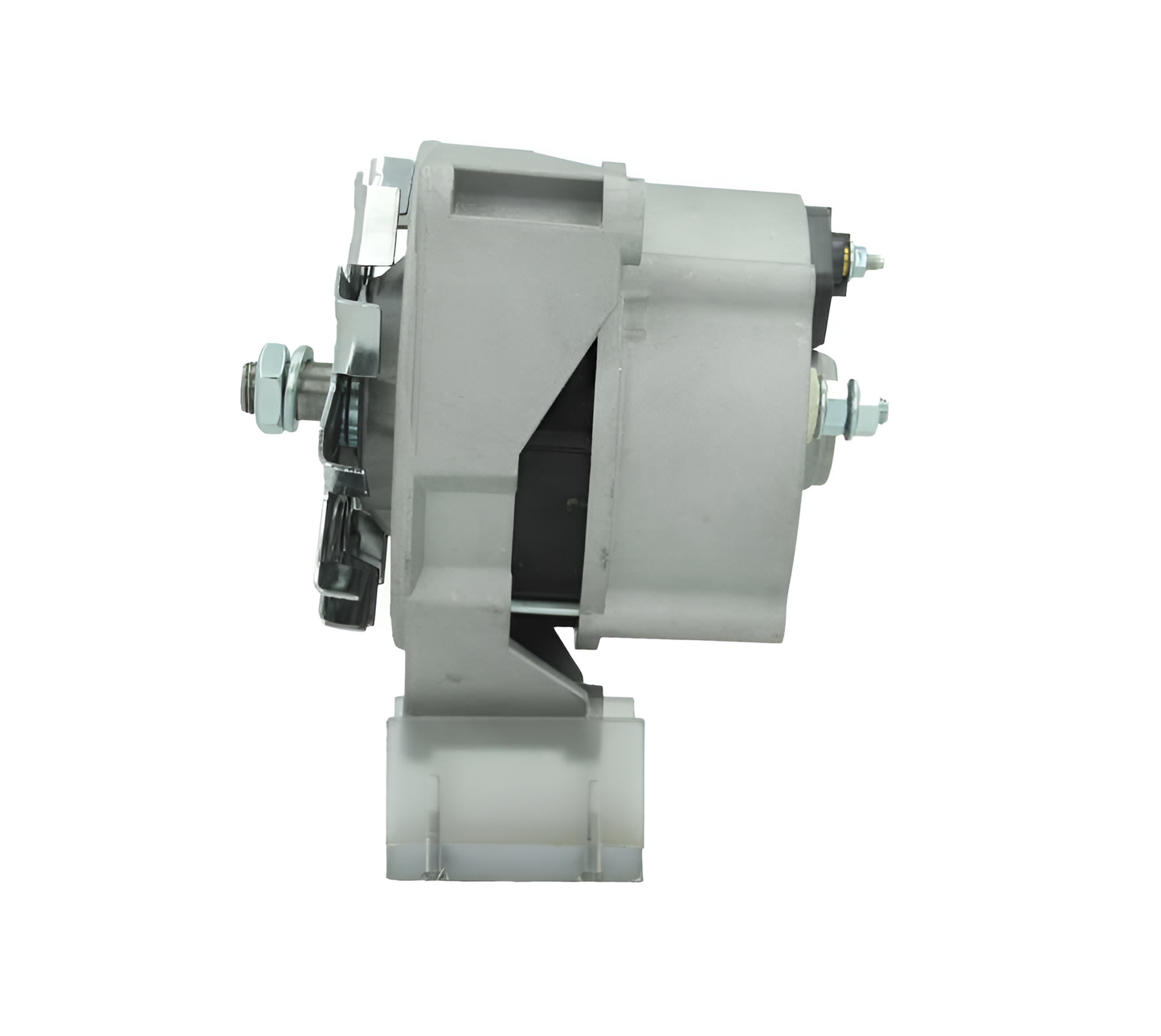

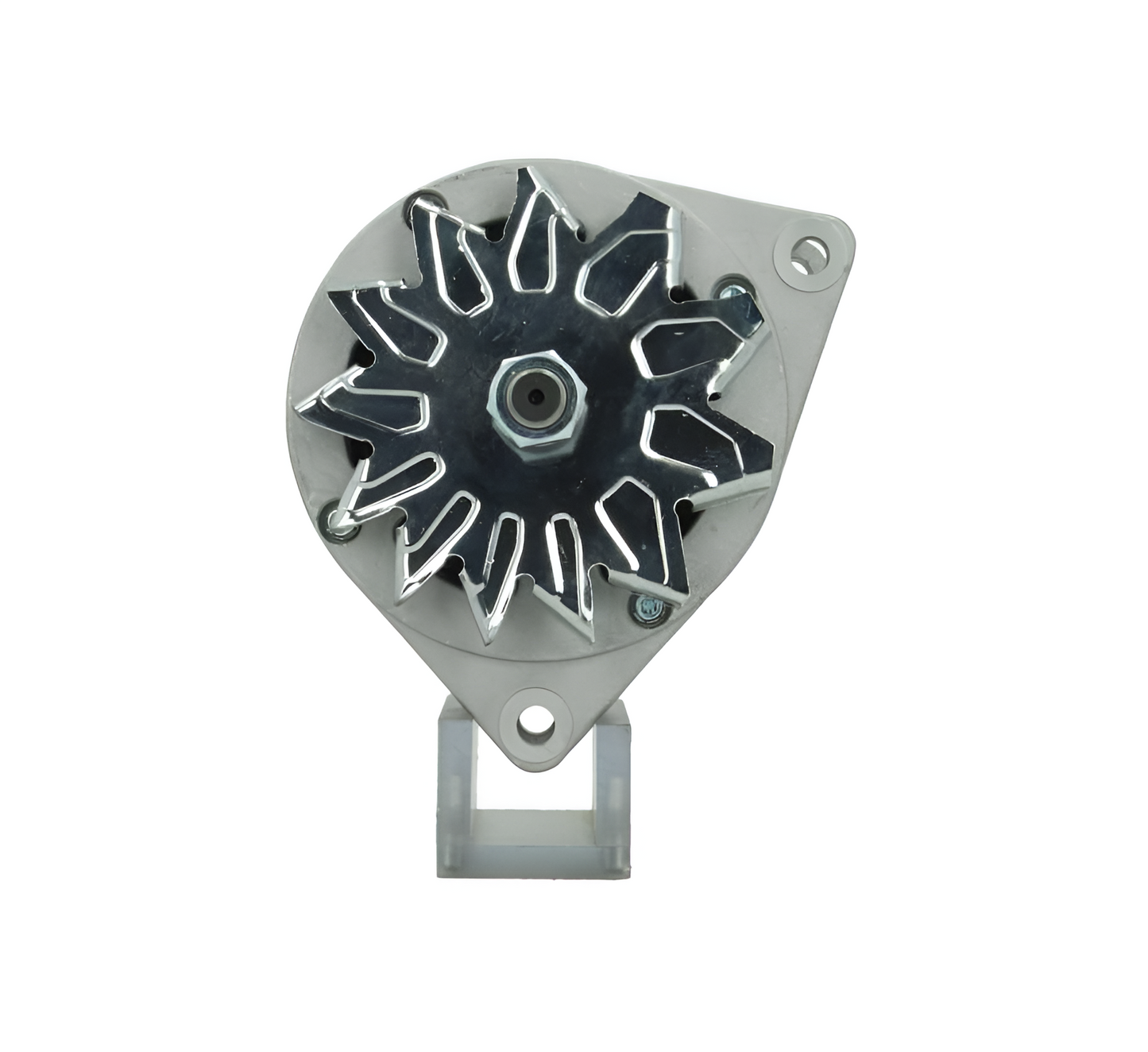

New Alternator 12v 120AMP Fits: Deutz, JCB, Clark, Volvo, Genie etc. 116547 / ALT20717
116547
ALT20717
Electrical specifications
Voltage12
Amp 120

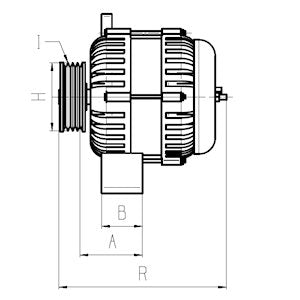

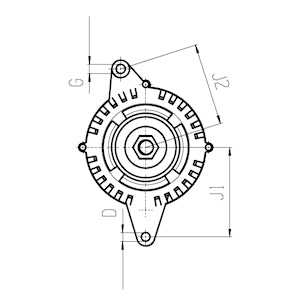

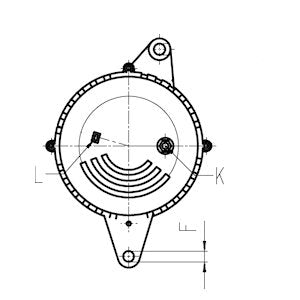

Physical specifications
B Width/holder arm 56.00
D Bracket hole 10.30
E Belt. adj. brackethole pos. 10
G Belt. adj. bracket hole 1 10.30
J Radius 90.00
J Radius 2 90.00
K B+ M8
L D+ Size M5
N Rotation CW
Q W plug type 6.30
R Total length mm 175.00
Lamp type Active
Additional information
Pulley w/o
Fan EF
Regulator type IR
Replacing
01183868 KHD
01183887 KHD
04123607 KHD
04124784 KHD
11204137 Mahle
11204717 Mahle
11204779 Mahle
116547 HC-Cargo
1183868 KHD
11839N WAI
3972863M1 Agco
4124784 KHD
515005120 PSH
72735164 Mahle
AAK3869 Mahle
AAK4954 Mahle
AAK4990 Mahle
ALT20717 Wood Auto
F032116547 HC-Cargo
IA1473 Mahle
LEA1212 Lucas
LRA04306 Lucas
LRA4306 Lucas
MAHMG165 Wood Auto
MG165 Mahle
RNLMG165 RNL
WOOALT20717 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
